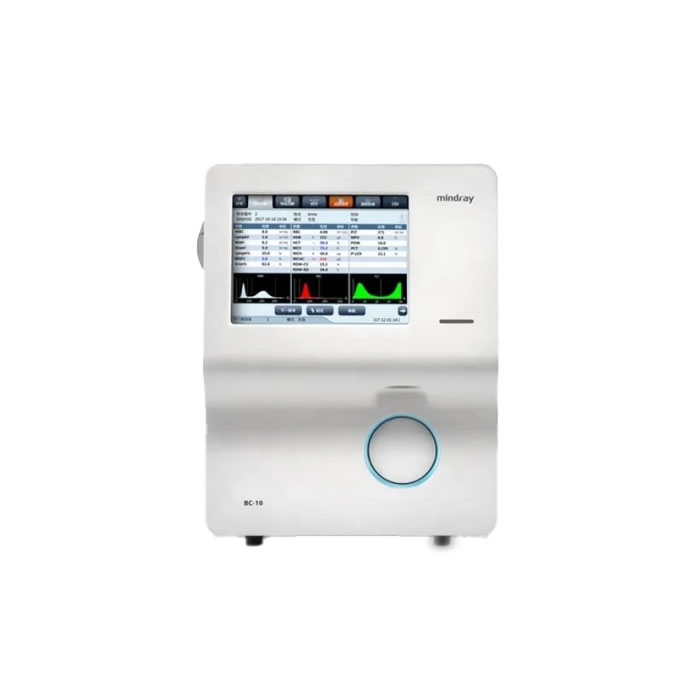

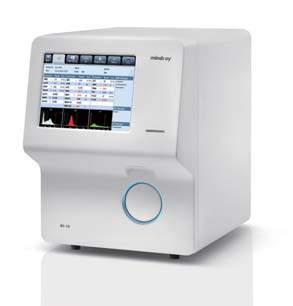

Mindray BC-10 Auto Hematology Analyzer

BC-10 Auto Hematology Analyzer,3 Part Differential Hematology Analyzer

Phone：+86-21-54286005

Resources

BC-10_Hematology_Analyzer_Brochure

Overview Specifications Dimensions

Auto Hematology Analyzer

BC-10

Minimum Size, Maximum Capability

Gives you confidence in results
Advanced detailed flag information provides warning in case of abnormal cell results. High quality original reagent calibrator and quality controls maintain your work at a high level. We integrate technologies into our products to fulfill
your clinical needs, therefore, today, Mindray products and services are used by healthcare facilities in over 190 countries and regions. More and more customers choose Mindray products and trust Mindray's quality.

CBC+3-DIFF,20 parameters+3Histograms
Throughput :up to 30 samples per hour
8.4 inch TFT touch screen
Only three reagents needed
Detailed flag information
Large storage capacity:up to 50,000 samples
Sample volume is only 9μL which is ideal for pediatrics

Gives you less downtime

Quality and user experience are top priorities for Mindray. We design and manage our manufacturing processes in compliance with FDA, ISO and CE.Complete quality control systems in Mindray's manufacturing centers ensure we exceed the most stringent criteria and traceability throughout the entire process. Our professional and responsive support team makes sure your systems are kept at full capability.

Gives you more time to work
Smallest Convenience fast Perfect for pediatric samples
Smart and intuitive software bring your productivity to a new level. The 10.4 inch TFT touch screen makes operations easy and flexible, maximizing your productivity. The incredible 400,000 storage capacity gives you a worry-free solution to managing previous patients' data. The smart software can detect and remove operational errors, as well as run automatic maintenance with a single click.

Principles
SF Cube* method to count WBC, 6-Part diff and NRBC
DC impedance method for RBC and PLT
Cyanide free reagent for hemoglobin test
*S: Scatter; F: Fluorescence; Cube: 3D analysis

Parameters
29 Reportable parameters (whole blood): WBC, Lym%, Mon%,
Neu%, Bas%, Eos%, IMG%, Lym#, Mon#, Neu#, Eos#, Bas#, IMG#;
RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, NRBC#,
NRBC%; PLT, MPV, PDW, PCT, P-LCR, P-LCC
20 Research parameters (whole blood): HFC#, HFC%, WBC-D,
TNC-D, IME%, IME#, H-NR%, L-NR%, NLR, PLR, WBC-N, TNC-N,
InR#, InR‰, Micro#, Micro%, Macro#, Macro%, PDW-SD, PLT-I
7 Reportable parameters (body fluid): WBC-BF, TC-BF#, MN#,
MN%, PMN#, PMN%, RBC-BF
11 Research parameters (body fluid): Eos-BF#, Eos-BF%,
Neu-BF#, Neu-BF%, HF-BF#, HF-BF%, RBC-BF, LY-BF#, LY-BF%,
MO-BF#, MO-BF%
2 Histograms for RBC and PLT
2 Three-dimension scatter grams: DIFF, WNB
2 Two-dimension scatter grams: DIFF, WNB

Mode
CBC, CBC+DIFF

Data storage capacity
Up to 10,0000 results including numeric and graphical information

Operating environment
Temperature: 15℃~32℃
Humidity: 30%~85%

Performance

Parameter	Linearity Range	Precision	Carryover
WBC	0-500×10⁹/L	≤2.5% (≥4×10⁹/L)	≤1.0％
RBC	0-8.60×10¹²/L	≤1.5% (≥3.5×10¹²/L)	≤1.0％
HGB	0-260g/L	≤1.5% (110-180g/L)	≤1.0％
HCT	0-75%	≤1.5% (30%-50%)	≤1.0％
PLT	0-5000×10⁹/L	≤4.0% (≥100×10⁹/L)	≤1.0％

Sample volume
Whole blood (Autoloader, Closed Tube) 80uL
Capillary blood (Closed Tube) 35uL
Predilute (Closed Tube) 20uL
Body fluid (Closed Tube) 85uL

Throughput
Up to 110 samples per hour (CBC+DIFF)
Up to 40 samples per hour (Body fluid)

Loading capacity
Up to 50 sample tubes
