中文Mindray BC-30S Auto Hematology Analyzer
BC-30S Auto Hematology Analyzer
Phone：+86-21-54286005
Resources
BC-30S_Hematology_Analyzer_Brochure
BC-30S_Hematology_Analyzer_Brochure
Auto Hematology Analyzer
BC-30s
Minimum Size, Maximum Capability

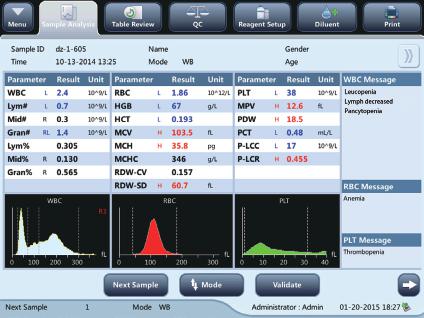

Different flag information provided according to parameter results together with histograms.
Sample 1 : BC-30s shows flags “Leucopenia” , ” Lymph decreased”,“Pancytopenia” which mean white blood cell decreased, the low number of Lymphocyte and decreased of leukocyte, erythrocyte and plate count.Meanwhile “R3” flag is also displayed.Two kinds of ag messages are both supported to ensure clinicians have better understanding of sample results.
Sample 2 : Flag “Anemia” means that the sample has the possibility of anemia.
Sample 3 : Flag “Thrombopenia” indicator is shown together with Platelets low flag.
What a 3-part should be
At Mindray we pride ourselves in our dedication and experience in developing better solutions for small labs. Our new line of 3-part hematology analyzers is the culmination of that effort. Compact yet powerful, full featured yet affordable, the BC-30s is what a 3-part analyzer should be.
Exclusive Feature
Detailed ag information never before seen on a 3-part analyzer. Provides information useful for diagnosis including WBC ag, RBC ag and PLT ag.
Better Usability

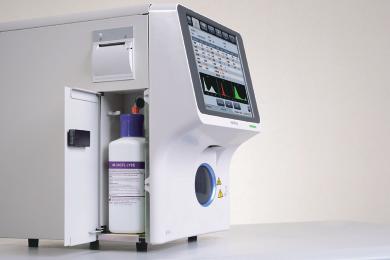

Minimum size with the footprint similar to that of a 17 inch laptop, with space saving design that allows internal storage of lyse giving small labs more space.

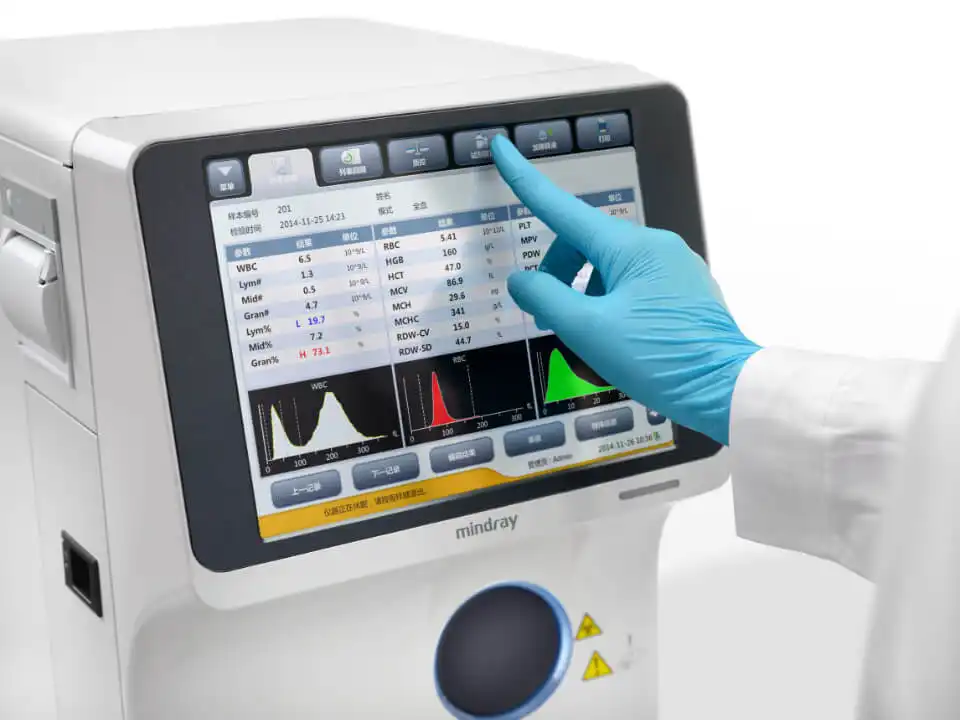

10.4 inch TFT touch screen together with our powerful software enhances user operations and experience.
New technology that eliminates the need for cleanser and rinse, reducing the number of reagents needed while at the same time lowering overall reagent consumption.
Flexible packaging of reagents, with normal and small sizes to better cater to the needs of different daily sample volumes.
Enhanced Performance
Higher throughput at 70 tests per hour.
Micro sample volume at 9.0uL for whole blood mode with capillary whole blood samples supported, perfect for pediatric samples.
Principles
Impedance method for WBC, RBC and PLT counting
Cyanide free reagent for hemoglobin test
Parameters
21 parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC,
HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT,
P-LCR,P-LCC
3 histograms for WBC, RBC and PLT

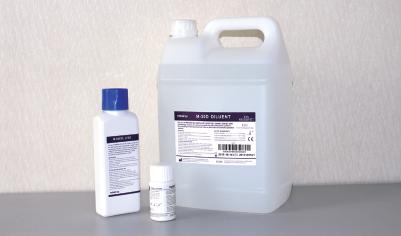

Reagent
M-30D DILUENT
M-20CFL LYSE
PROBE CLEANSER
Sample volume
Prediluted mode 20uL
Whole blood mode 9 uL
Performance
|
Parameter |
Linearity Range |
Precision |
Carryover |
|
WBC |
0-200×109/L |
≤3.5% (4-6.9×109/L) ≤2.0% (7.0-15.0×109/L) |
≤0.5％ |
|
RBC |
0-8.00×1012/L |
≤1.5% (3.5-6.5×1012/L) |
≤0.5％ |
|
HGB |
0-280g/L |
≤1.5% (100-180g/L) |
≤0.5％ |
| MCV(fL) | ≤1.0% (70.0-110.0) | ||
|
PLT |
0-4000×109/L |
≤5.0% (100-149×109/L) ≤4.0% (150-500×109/L) |
≤1.0％ |
Throughput
70 samples per hour
Display
10.4 inch TFT Touch Screen
Multi-language
Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia
Data Storage Capacity
Up to 500,000 results including numeric and graphical information
Communication
LAN Port supports HL7 protocol
Support bi-directional LIS
Interface
4 USB port (for external printer, software upgrade, barcode reader,
WIFI adapter,keyboard and mouse), LAN port (1)
Printout
Thermal recorder, 50 mm wide paper, various printouts formats External printer optional
Power Requirement
Temperature: 10°C~40°C
Humidity: 10%~90%
Air pressure: 70kPa～106kPa
Power Requirement
(100V-240V)±10%
≤300VA
(50Hz/60Hz) ±1Hz
Dimension and Weight
Dimension: Depth (410 mm) x width (300 mm) x height (400 mm)
Weight: ≤20Kg
