中文Mindray BC-7500CRP Auto Hematology Analyzer

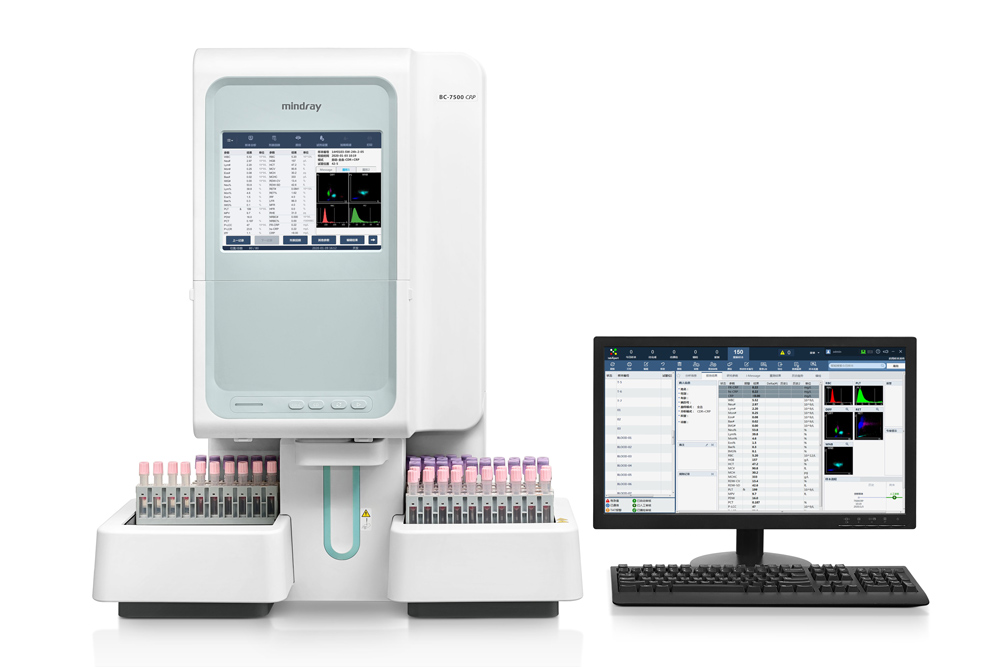

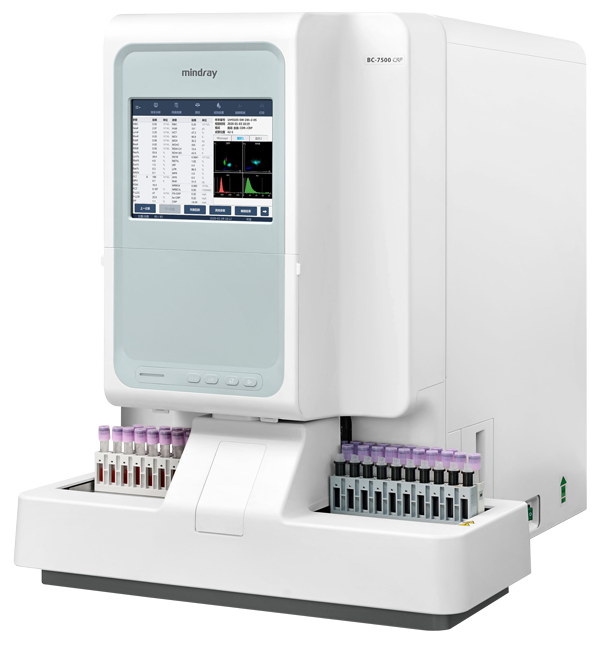

BC-7500 CRP Auto Hematology Analyzer
Phone：+86-21-54286005
Auto Hematology Analyzer
BC-7500 CRP
Empowering Pediatric Care

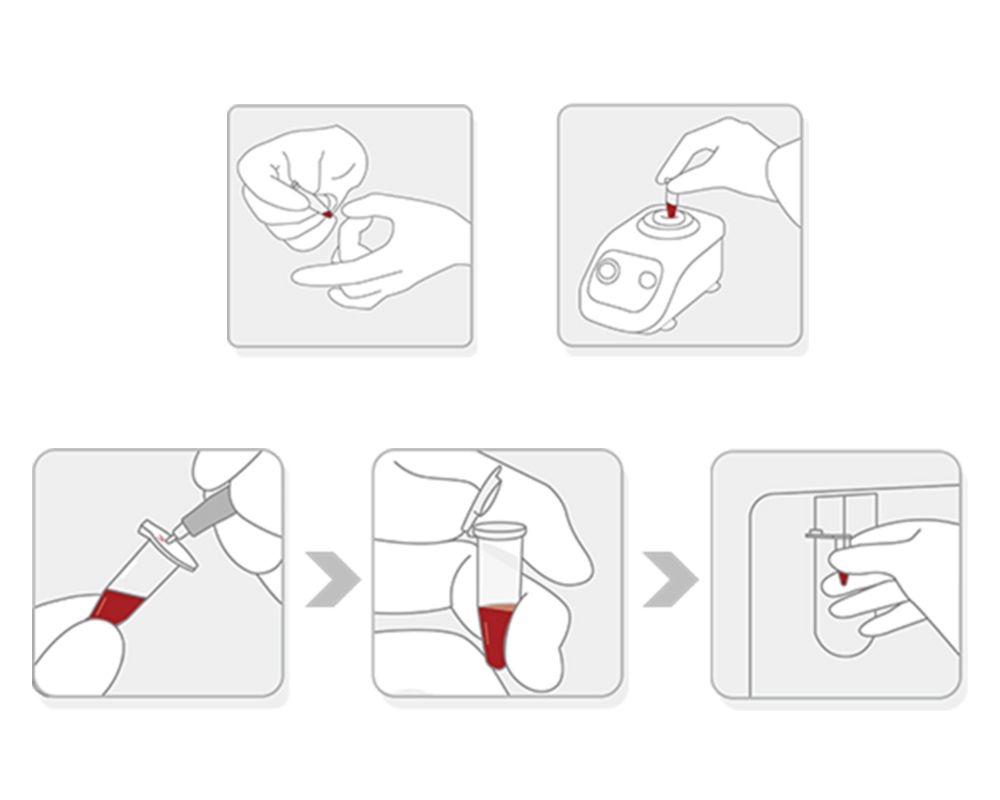

Capillary blood auto loading, mixing and sampling
Standardized capillary blood processing procedure helps relieve workload and deliver morereliable test result.
Capillary blood autoloading
Capillary blood automixing
Capillary blood autosampling
Highly efficiency solution for pediatric sample analysis
- Auto loading and sampling improves testing efficiency for pediatric sample
- Puncturable capillary blood tube
- Only 27.5 μl blood required for CD mode and 37.5 μl for CD+CRP mode
- Minimum sample volume: 100 μl
Standardized biotic auto-mixing
Auto loading and sampling improves testing efficiency for pediatric sample
Before After
High speed CBC+CRP integrated analyzer
- Simultaneously provides results of WBC differentiation and FR-CRP at a throughput of 100 samples/hour.
- In children’s hospital, CRP is often required to help differentiate bacterial infections from viral infections.

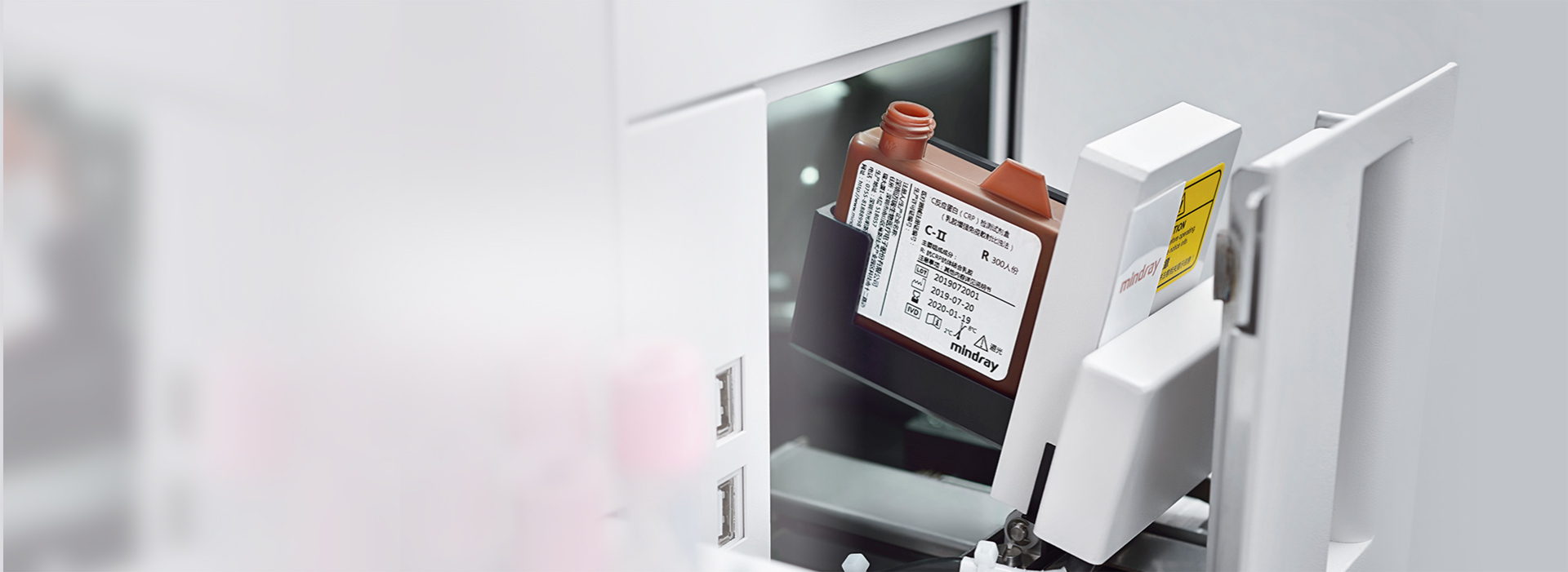

- Latex Particle-Enhanced Immunonephelometry Method plus two reagents can ensure the reliability of CRP result.
- High speed CBC+CRP integrated analyzer helps improve laboratory workflow and TAT efficiency.
3D SF Cube technology
Improves the detection capability of abnormal samples for pediatrics
Improves the detection capability of abnormal samples for pediatrics
Reliable differential result for capillary blood
NRBC in every CBC test ensures reliable WBC result in pediatric sample
Automatic reticulocyte measurement helps diagnose anemia subtypes
More reliable differential result
- 3D SF Cube technology prevents WBC differentiation from being interfered by lipid particles and PLT aggregation, etc.
- More reliable WBC result
NRBC in every CBC test avoids falsely-high WBC result
- Low value WBC is automatically counted in three times to ensure more reliable differential result
- More reliable PLT result
Automatic PLT-O 8-fold counting makes low value PLT more reliable
- Patented PLT de-aggregation technology
- Fluorescent PLT-O avoids large PLT and fragmented RBC interference
|
Model |
BC-7500 CRP |
|
Detection principle |
Laser scattering combined with nucleic acid fluorescence staining multidimensional analysis technology (SF Cube) |
|
Detection speed |
Blood cell analysis: fastest 110T/H |
|
Report parameters |
Blood test report parameters ≥37 items; Body fluid test report parameters ≥7 items; |
|
Research parameters |
≥42 items |
|
Analysis graphics Histogram |
≥3, three-dimensional scatter plot ≥4, two-dimensional scatter plot ≥7 |
|
Blood volume |
Whole blood specimen: ≤85μL |
|
Emergency injection method |
Closed injection or open injection |
|
Instrument expandability |
The product has the original slide stainer, and the slide stainer interface is reserved to meet the customer's single machine upgrade assembly line needs; the modules of the assembly line are connected through the original track |
|
CRP test results |
The interference of red blood cells, white blood cells, and platelet volumes can be corrected during whole blood CRP testing to obtain accurate CRP test results |
|
External quality assessment of the Ministry of Health Blood testing has a separate group in the inter-laboratory quality assessment of the Ministry of Health |
Clinical Inspection Center; CRP testing has a separate group in the inter-laboratory quality assessment of the Ministry of Health Clinical Inspection Center |
