中文Mindray BC-760 CS Auto Hematology Analyzer
BC-760 CS Auto Hematology Analyzer
Phone：+86-21-54286005
Auto Hematology Analyzer with ESR

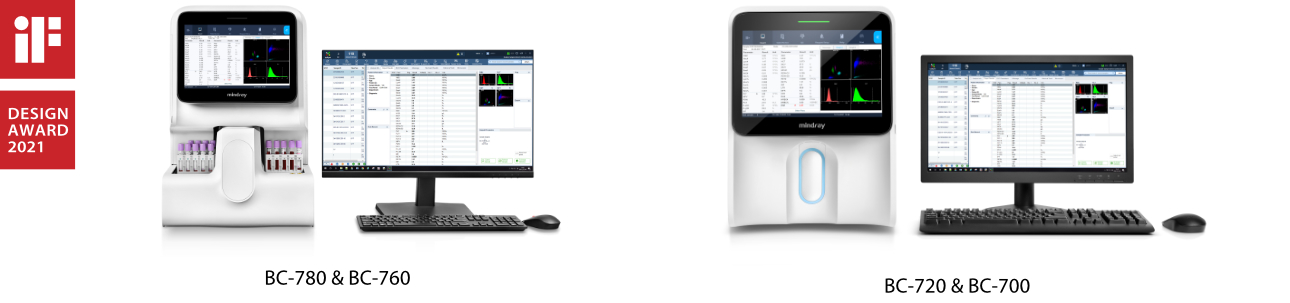

BC-700 Series
Above and Beyond
BC-700 Series
SF Cube · Hybrid Channel PLT · Easy-W ESR
Above and Beyond
Above your expectations

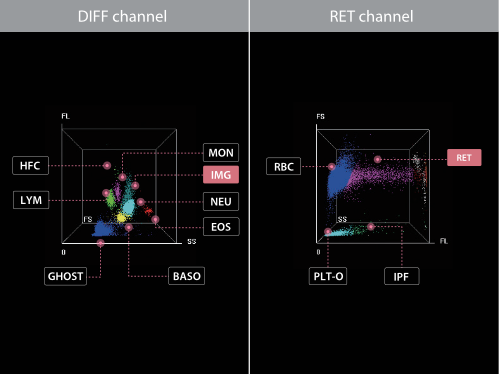

SF Cube fluorescent technology allows reliable counting and differentiation of abnormal samples
More refined and reliable cell differentiation

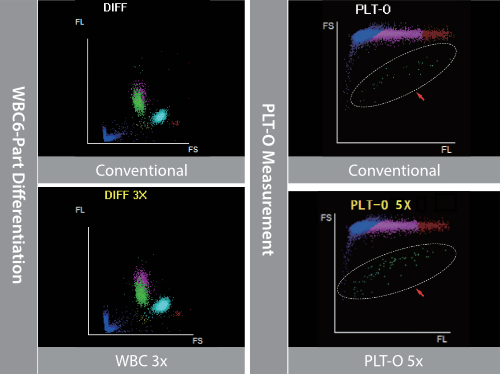

More reliable measurements for low-value samples

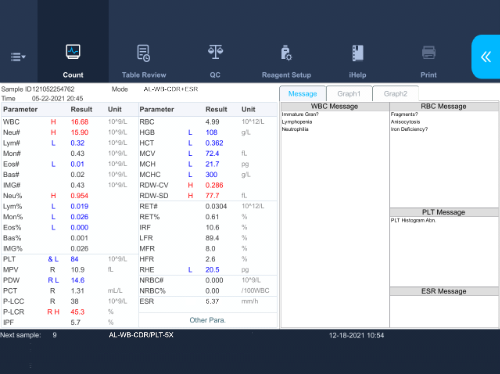

More comprehensive alarm messages for abnormalities
Beyond your expectations
Optical PLT-H in every CBC + DIFF test
In order to solve the above problem, we have developed a brand new parameter PLT-H.
It combines small PLTs from the conventional impedance method and large PLTs from the optical method. The solution can resist the interferences in conventional PLT detection without requiring extra reagents.

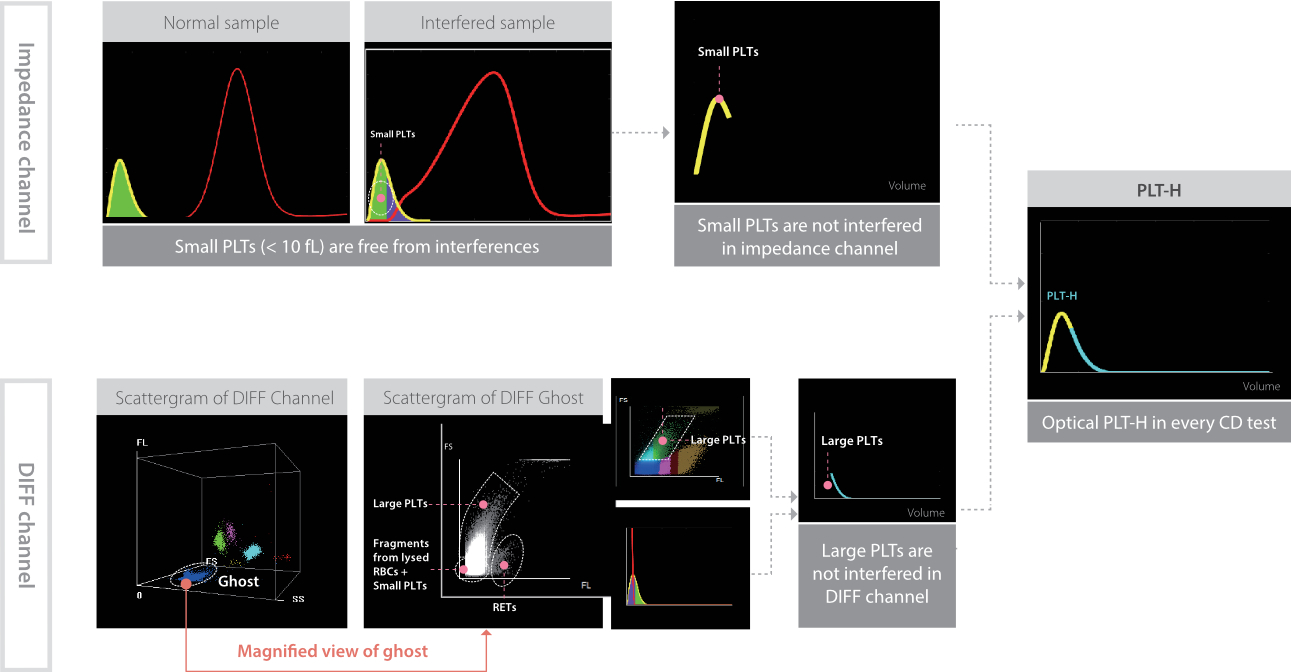

Schematic diagram of PLT-H
Easy-W ESR
CBC + DIFF + ESR in one test provide reliable ESR results with greater ease
The BC-700 series integrates an automatic ESR module in a hematology analyzer. It can also generate both CBC & ESR results in one test within 1.5 min. In addition, it saves the costs that would otherwise be incurred for the purchase, maintenance, consumables, and storage space of a separate ESR analyzer. Compared with the traditional Westergren method, this method performs better in quality traceability, repeatability, speed, safety, and level of automation.
Accurate
- Great correlation with the Westergren method
- Same QC and calibrator as in the BC-6000 series
- Combined examination helps to avoid the interferences of dehydration, polycythemia vera and anemia on ESR results
Cost-effective
- The integrated instrument is capable of both CBC and ESR detection
- Takes up the space of only one analyzer
Automatic
- Report CBC + ESR results together within 1.5 min
- The measurement results are protected against the influence of subjective factors
- Automation can reduce the biosafety hazards that may otherwise be introduced by a manual method

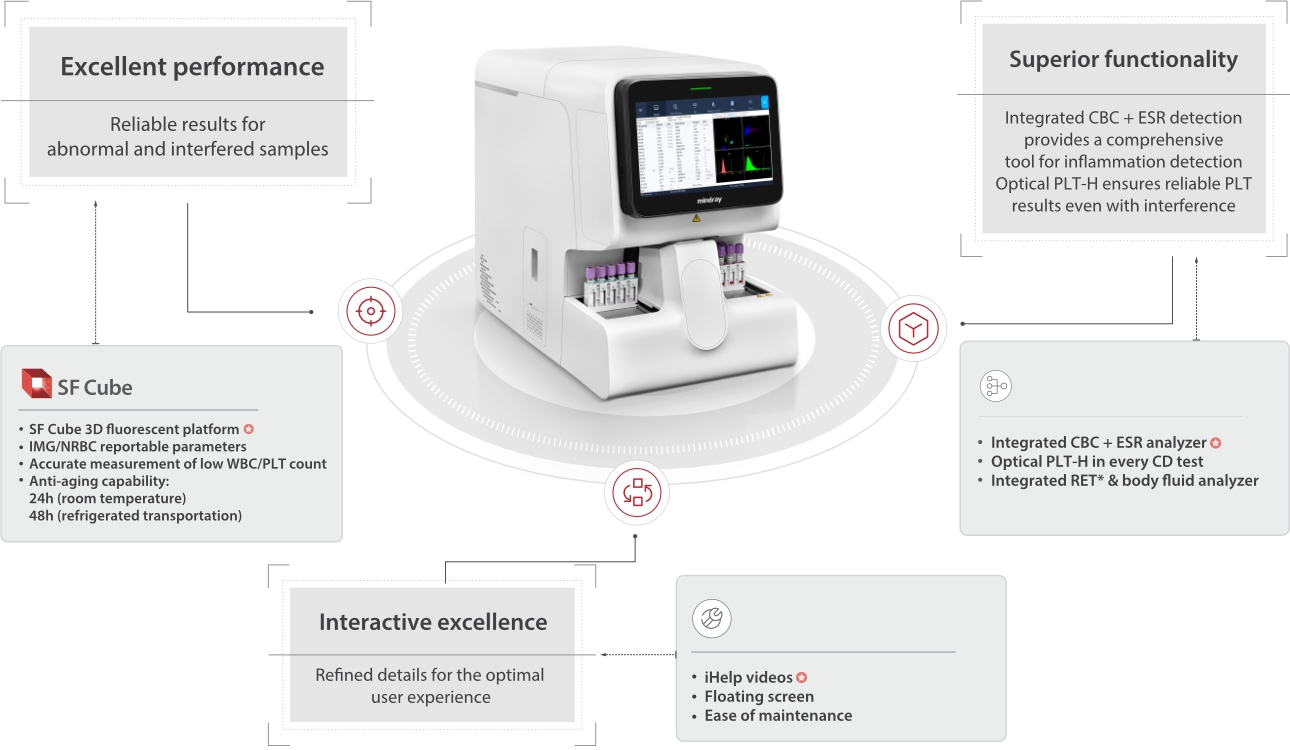

Excellent performance, high reliability, and ease of use
An all-in-one solution that goes above and beyond your expectations
Key Specifications
Principles
WBC (IMG/Neu/Mon/Lym/Eos/Bas), NRBC/RET*, PLT-H/PLT-O*/IPF:
SF Cube ^ Cell Analysis Technology
^S: Scatter; F: Fluorescence; Cube: 3D analysis
RBC, PLT
Focusing Flow-DC Impedance Method
HGB
Colorimetric method
ESR
Photometric method
Number of measuring parameters (whole blood): 109
Number of reportable parameters: 41
WBC Bas# Bas% Neu# Neu% Eos# Eos% Lym# Lym% Mon#
Mon% IMG# IMG% RET%* RET#* RHE* IRF* LFR* MFR* HFR*
RBC HGB MCV MCH MCHC RDW-CV RDW-SD HCT NRBC#
NRBC% PLT PLT-I PLT-H PLT-O* MPV PDW PCT P-LCR P-LCC
IPF ESR
Number of research parameters: 68*
Number of measuring parameters (body fluid): 18
Number of reportable parameters: 7
WBC-BF TC-BF# MN# MN% PMN# PMN% RBC-BF
Number of research parameters: 11
Sample volume
CD (whole blood): 25ul CD+ESR
(whole blood): 160ul Predilute: 20ul
Data storage capacity
Up to 150,000 results including numeric and graphical
information *
Throughput
CD 80t/h CDR 45t/h CD+ESR 40t/h
AnalysisMode
|
Sample Type |
Analysis Mode |
|
Whole blood |
CBC, CBC + DIFF, CBC + DIFF+RET*, CD + ESR,CDR + ESR*, CD/WBC-3X, CDR/PLT-5X*,and other modes |
|
Predilute |
CBC, CBC + DIFF, CDR*, and other modes |
|
Body fluid |
CBC + DIFF |
Physical Specifications
Dimensions
840D x 655W x 600H mm
Weight
≤70.6Kg
Voltage
100V-240V~ (±10%)
Frequency
50Hz/60Hz (±1Hz)
Power input
600VA
External output
LANx1 , USB x 4 (Specifications: DC 5V; 500mA;USB2.0 x 3; USB3.0 x 1 )
Normal Operating Environment
Ambient temperature:
10℃ ~ 35℃
Relative humidity:
30% ~ 85%
Atmospheric pressure:
70.0kPa ~ 106.0kPa^
^Note : Required altitude for normal operation:
-400m ~ +3000m
Performance
|
Parameter |
Linearity Range |
Precision |
Carryover |
|
WBC |
0-500×109 /L |
≤2.5% (≥4.51×109 /L) |
≤ 1.0% |
|
RBC |
0-8.60×1012/L |
≤1.5% (≥3.5×1012/L) |
≤ 1.0% |
|
HGB |
0-260g/L |
≤1.0% (110-180g/L) |
≤ 1.0% |
|
HCT |
0-75% |
≤1.5% (30%-50%) |
≤ 1.0% |
|
PLT* |
0-5000×109 /L |
≤ 1.5(SD) (≤20×109/L)^ ≤2.5% (≥100×109/L)^ |
≤ 1.0% |
|
RET* |
0-0.8×1012/L |
≤15% (RBC ≥ 3.00×1012/L |
≤ 1.0% |
|
ESR |
|
≤1.8(SD)(0~20mm/h) |
≤ 1.0% |
|
Note: Applicable only to CDR/PLT-O 5x and CR/PLT-O 5x models |
|||
Items marked with an aerisk (*) apply only to BC-780
