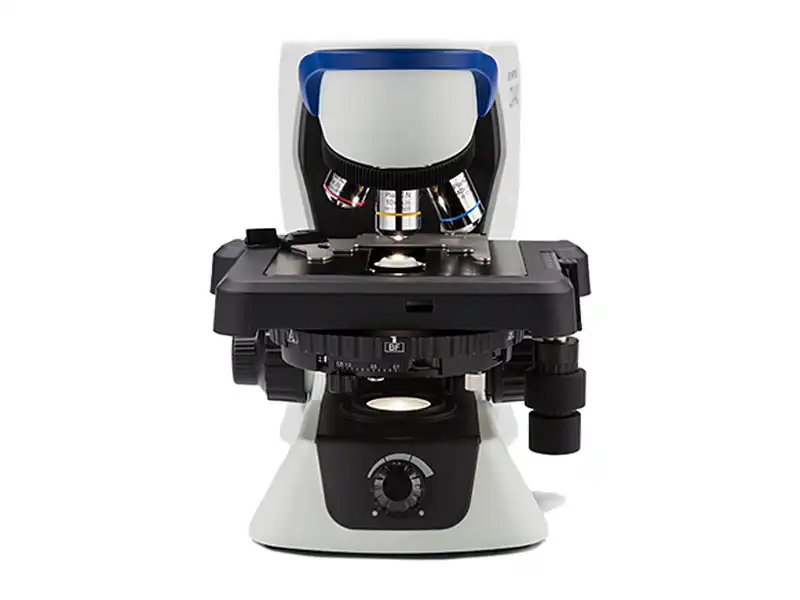

Comfortable, High-Throughput Routine Microscopy
CX43 and CX33 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.
Maintain Preferred Observation Conditions with Minimal Adjustments
CX43 CX33
Uniform Illumination with Consistent Color Temperature
The CX43/CX33 LED illumination provides several advantages, both immediate and over the long-term:
- Produces daylight conditions so specimens can be viewed with their natural colors
- Consistent color temperature at any brightness, so can avoid spending time making adjustments when you change the brightness
- A long 60,000-hour lifetime with the brightness level remaining stable throughout
Fixed Köhler Illumination for Comfortable Viewing
CX43 and CX33 microscopes provide fixed Köhler illumination, enabling you to achieve the right illumination without adjusting the condenser.
Remain Comfortable during Extended Usage
CX43 CX33
Ergonomically Positioned Focus Knob

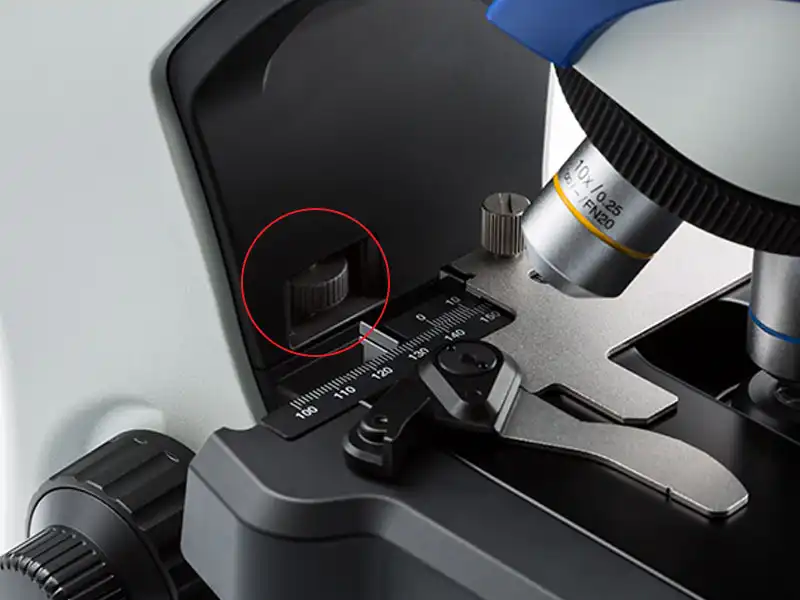

The low-positioned focusing knob enables you to conduct your observations while keeping your hands and forearms in comfortable positions resting on the desk. When working under high magnification, the focusing stopper prevents a specimen from accidentally hitting an objective.
Ergonomic Stage and Eyepiece Position
CX43 and CX33 microscopes offer features that support you through long hours in the lab:
- Low-positioned stage to enhance comfort and reduce fatigue
- Stage visibility from the eye point position to enable you to smoothly set and check specimens
- Low stage knob that can be controlled with just a light touch, so you can quickly and comfortably view your specimens
Excellent Optical Performance for Flat Images
CX43 CX33

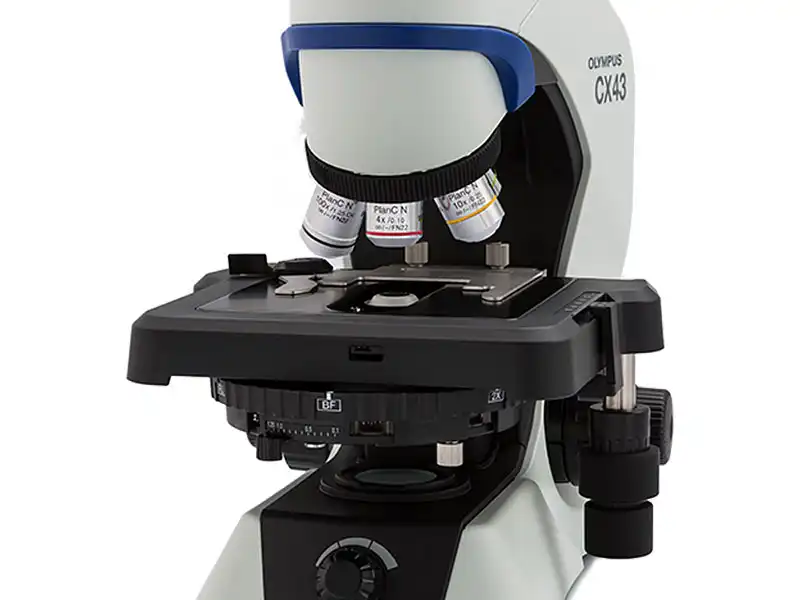

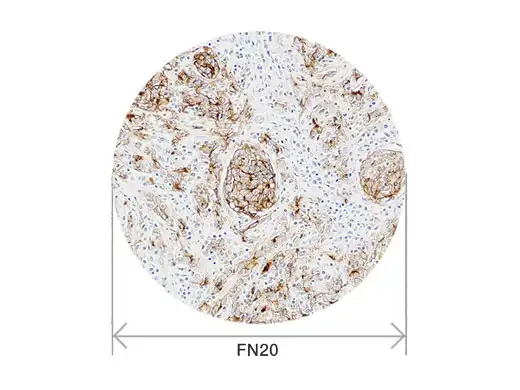

CX43 and CX33 microscopes can be used with plan achromat objectives, which provide clear images with high image flatness over a wide field of view. You can view specimens clearly with even illumination during routine observations.
*The CX43 is compatible with all UIS2 objectives while the CX33 comes with specially designed plan achromat objectives.
Flexibility for Multiple Applications
CX43
The CX43 microscope uses a standard universal condenser, offering a variety of observation methods:
- Brightfield
- Darkfield
- Phase contrast
- Fluorescence
- Simple polarization
You can change the magnification from 2X to 100X without moving the top lens on the condenser.
Simple Fluorescence Observation
CX43

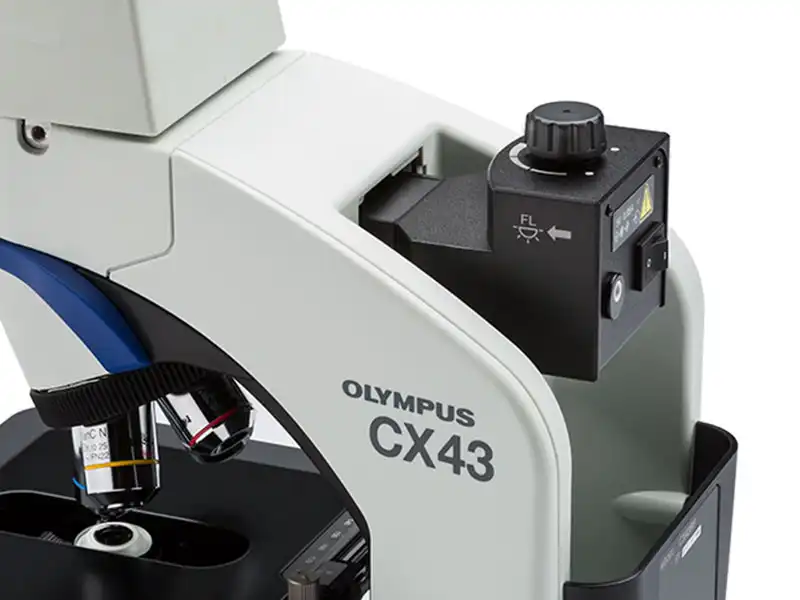

Fluorescence observation is simple and easy. Plug the compact fluorescent illuminator into the microscope frame and set the condenser turret to the FL position. The LED light source is pre-centered and has a long, 60,000-hour lifetime. Shutter the transmitted illumination by setting the condenser turret to the FL position to reduce the background noise cause by incidental light coming from the top of the condenser.
Smooth Magnification Change
CX43 CX33

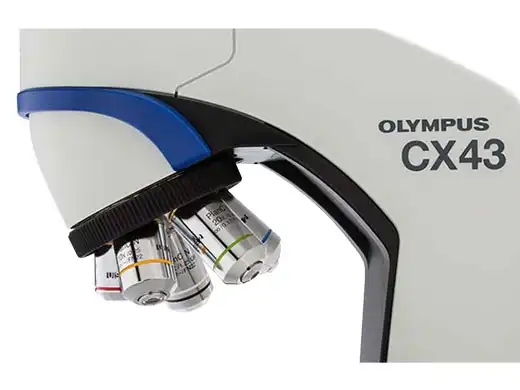

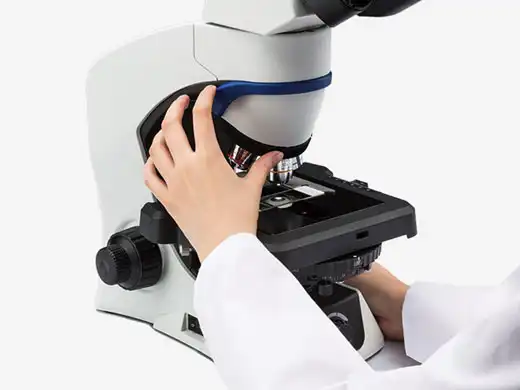

The revolving nosepiece is positioned at a lower height, enabling you to easily change objectives with your elbows resting comfortably on the desk. The nosepiece also faces inward providing a larger working space when changing specimens or adding immersion oil.
Supports Up to Five Objectives
CX43
For added flexibility, up to five UIS2 objectives can be supported on the revolving nosepiece. In addition to general objectives, you can select a 2X objective for wide area observation or objectives for phase contrast.
Contrast Enhancement with a Simple Aperture Stop Operation
CX43 CX33
Quickly enhance the contrast by narrowing down the aperture diaphragm. This technique provides the same, if not better, image when adjusting the condenser.

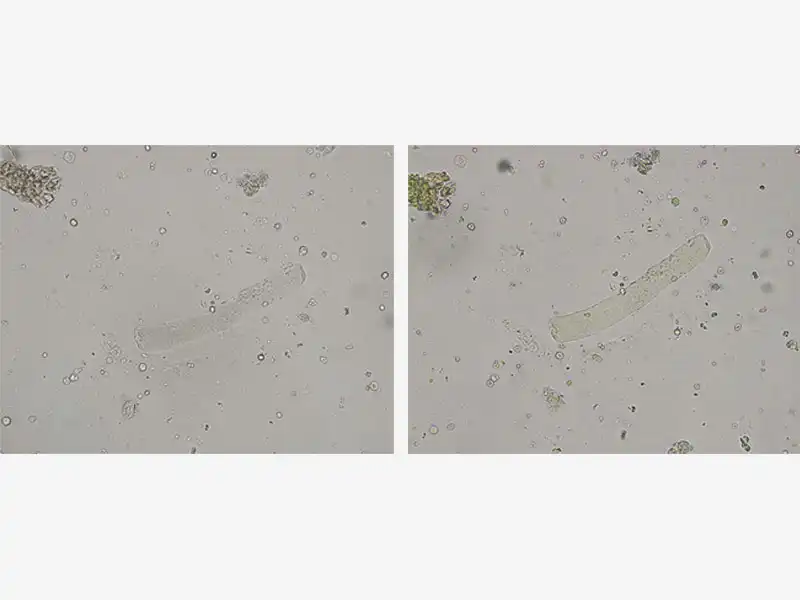

Left: CX41 with the aperture stop closed and condenser down / Right: CX43 with the aperture stop closed /Sample: waxy cylinder

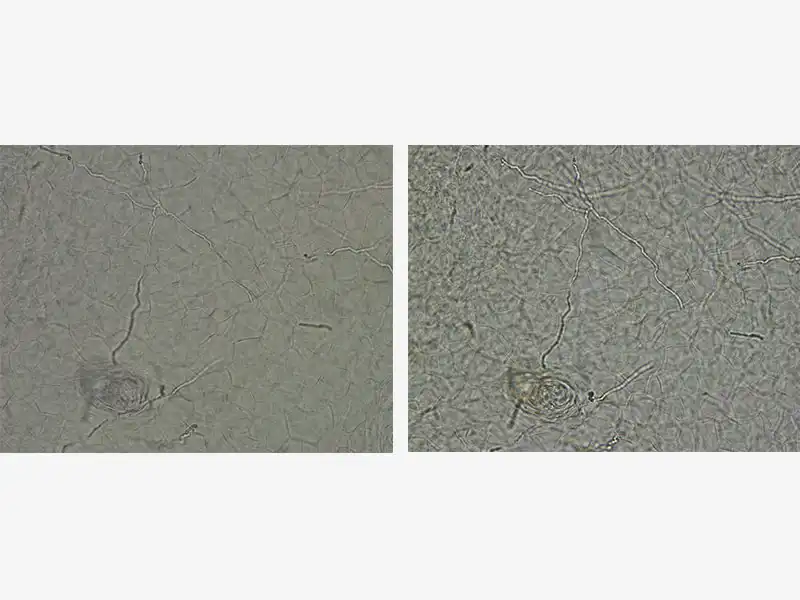

Left: CX41 with the aperture closed and condenser down /Right: CX43 with the aperture stop closed/Sample: trichophyton
Keep Your Desired Contrast Level and Observation Setting
CX43

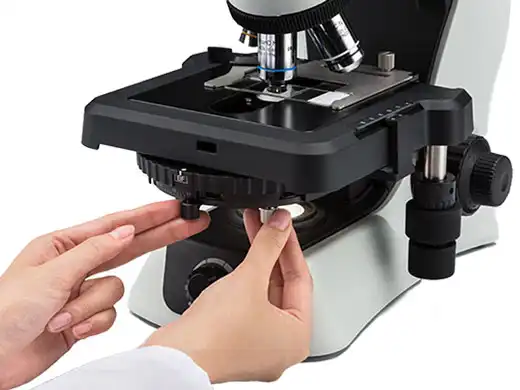

The CX43 microscope offers two different fixing pins that can help improve the observation workflow and reduce operation errors:
- Maintain your desired contrast level using a fixing pin on the aperture diaphragm
- Keep the microscope set to brightfield observation, if desired, using the fixing pin on the condenser
Specimen Holders that Match Your Observation Style
CX43 CX33

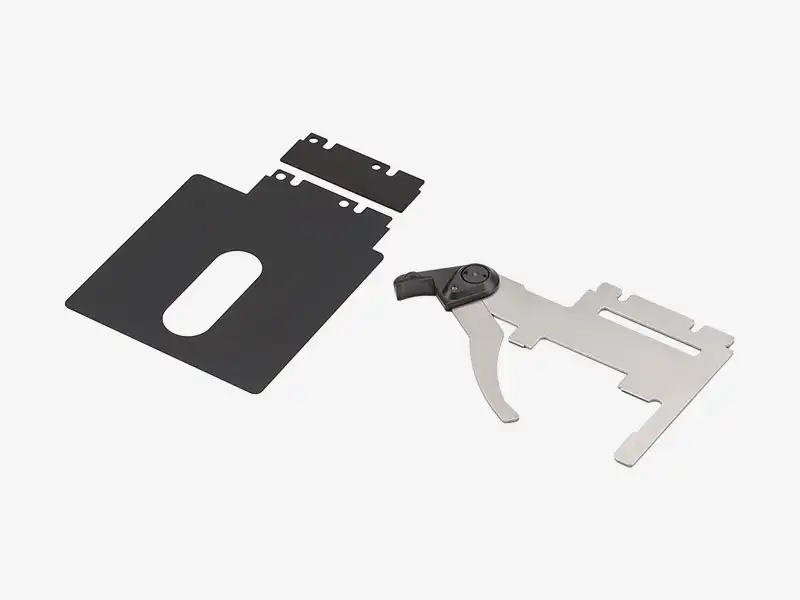

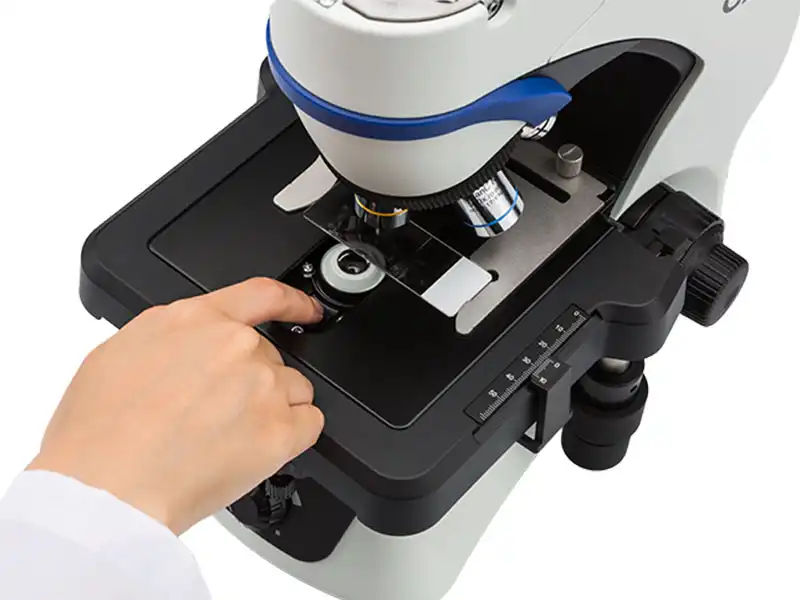

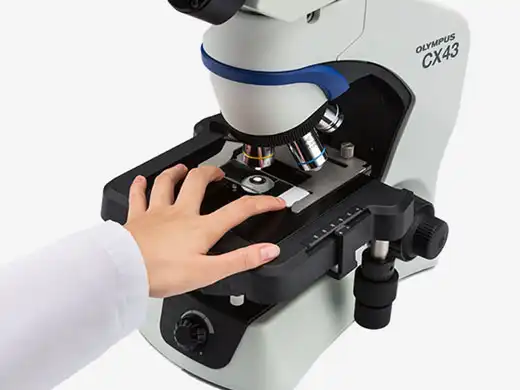

Multiple stage accessories are available to help improve efficiency. When using the specimen holder sheet, there’s no need to pinch the specimen with the holder. Instead, the holder enables you to easily maneuver the slide while it’s on the sheet. The double specimen holder can hold a large specimen or two standard sized glass slides.

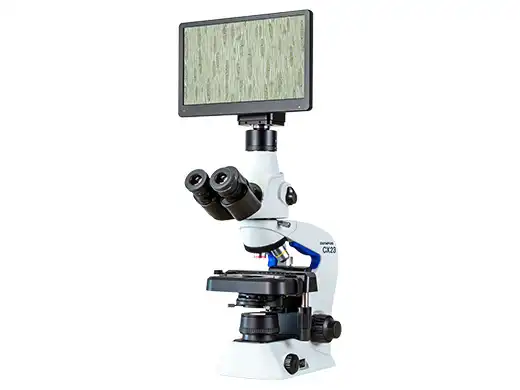

Easily Capture and View Images with a Digital Camera and Heads-Up Display
Easily share and display images with your colleagues using the wireless LAN-enabled EP50 digital camera. Combine this camera with our CX series microscopes to transform your lab into a digital one. The heads-up display enables easy viewing in a group setting. Everyone can see the observed specimen in real-time without having to take turns viewing through the oculars.
*Third-party products may not be available in some countries.
CX43
| Observation Method |
Brightfield |
|
✓ |
| |
Darkfield |
|
✓ |
| |
Phase Contrast |
|
✓ |
| |
Fluorescence (Blue/Green Excitations) |
|
✓(Blue Excitation only) |
| |
Simple Polarized Light |
|
✓ |
| Illuminator |
Transmitted Köhler Illuminator |
LED Lamp |
✓ |
| |
Fluorescence Illuminator |
LED Lamp |
|
| Focus |
Focusing Mechanism |
Stage Focus |
✓ |
| |
Coarse Handle Stroke |
|
|
| |
Features |
|
Coarse adjustment limit stopper
Torque adjustment for coarse adjustment knob
|
| Revolving Nosepiece |
Manual |
Standard (5 positions) |
✓ |
| Stage |
Manual |
Manual Stages with Right-Hand Control |
- Built-in
- X: 76 mm, Y: 52 mm
|
| Condenser |
Manual |
Abbe Conenser |
NA 1.25 (2X–100X) |
| Observation Tubes |
Standard (FN18) |
Tilting Binocular |
✓ |
| |
Standard (FN20) |
Binocular |
✓ |
| |
|
Trinocular |
✓ |
| |
Tube Inclination Angle |
|
- Binocular, Trinocular 30°
- Tilting Binocular 30°–60°
|
| |
Trinocular Tube Light Path Selection (Camera : Observation) |
|
|
| |
Interpupillary Distance Adjustment |
|
|
| Dimensions (W × D × H) |
|
|
211 mm × 376 mm × 393 mm (8.3 in. × 14.8 in. × 15.5 in.) (standard configuration) |
| Weight |
|
|
Approx. 7.3 kg (16.1 lb) |
The CX43 microscope system comes standard with the stage and condenser included.
CX33
| Observation Method |
Brightfield |
|
✓ |
| |
Darkfield |
|
✓ |
| Illuminator |
Transmitted Köhler Illuminator |
LED Lamp |
✓ |
| Focus |
Focusing Mechanism |
Stage Focus |
✓ |
| |
Coarse Handle Stroke |
|
|
| |
Features |
|
Coarse adjustment limit stopper
Torque adjustment for coarse adjustment knob
|
| Revolving Nosepiece |
Manual |
Standard (4 positions) |
✓ |
| Stage |
Manual |
Manual Stages with Right-Hand Control |
- Built-in
- X: 76 mm, Y: 52 mm
|
| Condenser |
Manual |
Abbe Conenser |
NA 1.25 (4X–100X) |
| Observation Tubes |
Standard (FN20) |
Trinocular |
✓ |
| |
Tube Inclination Angle |
|
|
| |
Trinocular Tube Light Path Selection (Camera : Observation) |
|
|
| |
Interpupillary Distance Adjustment |
|
|
| Dimensions (W × D × H) |
|
|
211 mm × 397 mm × 430 mm (8.3 in. × 15.6 in. × 17 in.) |
| Weight |
|
|
Approx. 7.0 kg (15.4 lb) |
| Objectives |
|
|
Plan Achromat
4X NA 0.1 W.D. 27.8 mm
10X NA 0.25 W.D. 8.0 mm
20X NA 0.4 W.D. 2.5 mm (optional)
40X NA 0.65 W.D. 0.6 mm
100XOil NA 1.25 W.D. 0.13 mm (optional)
|
The CX33 microscope system comes standard with objectives, eyepieces, trinocular, stage, and condenser included.
