AOHUA UHD-GT300Q Video Gastroscope
Phone：+86-21-54286005

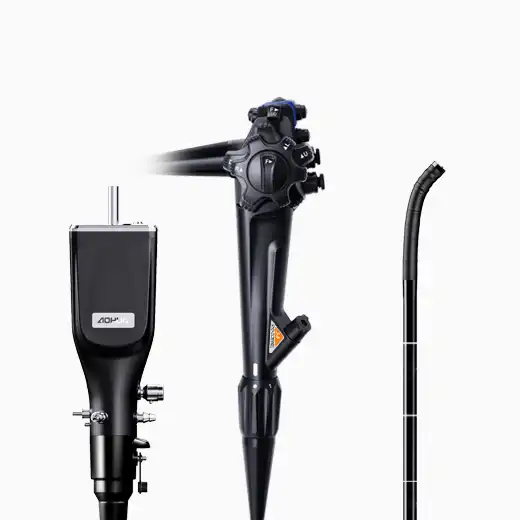

AOHUA UHD-GT300Q
Video Gastroscope
Dual Focus
With just one touch, you can swiftly switch between the standard focus mode and the near-focus mode, enhancing diagnostic and therapeutic efficiency on the foundation of precision care.
CBI Mode
Through multispectral staining technology, blood vessels and tissues on the mucosal surface become more easily observable, aiding doctors in more precise and efficient disease diagnosis.

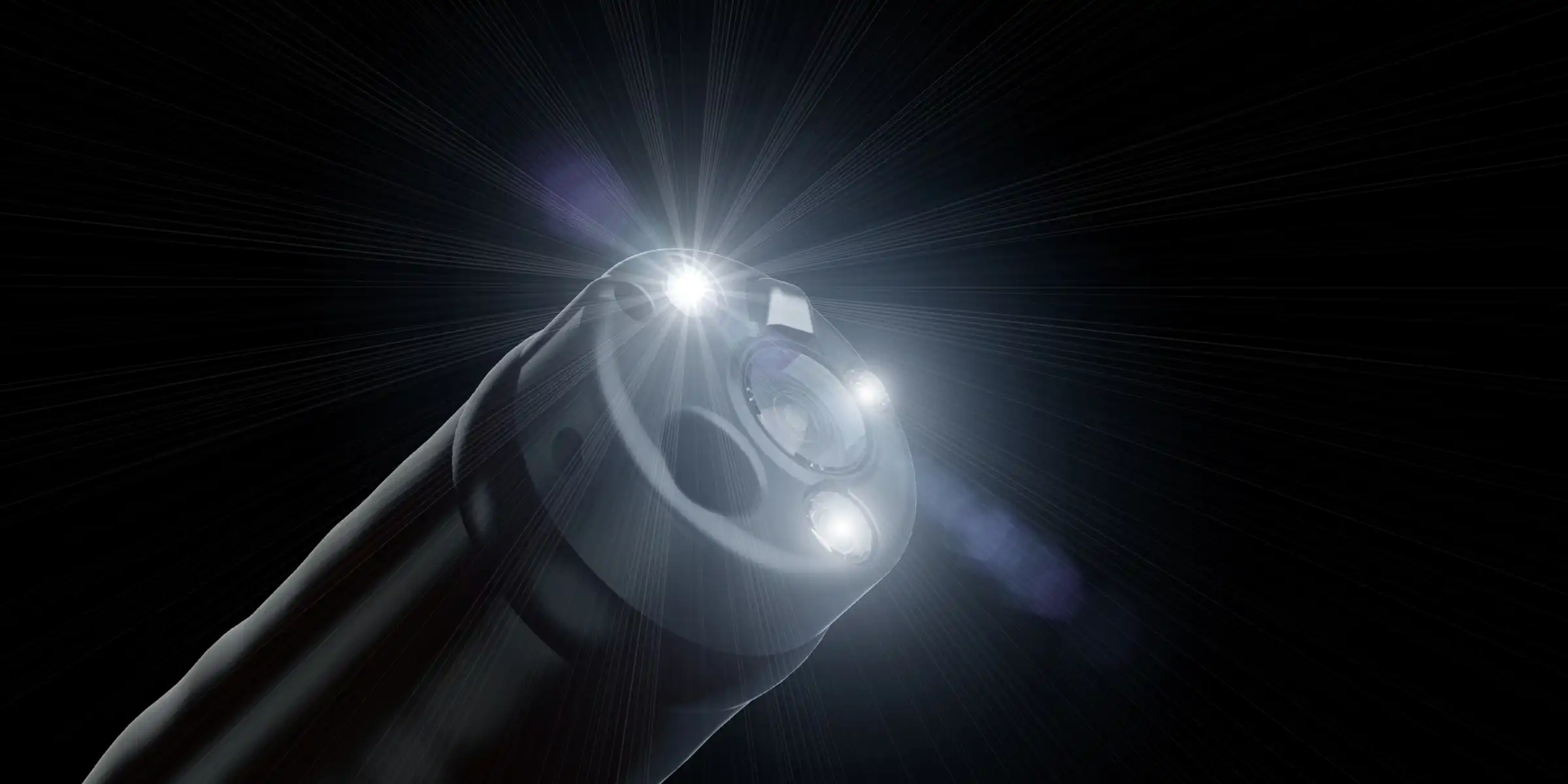

3 Light Guides
The lens tip is equipped with a triple-window illumination system, delivering a more uniform and ample illumination effect. Combined with a wide field of view, it facilitates improved observation of the examination area.

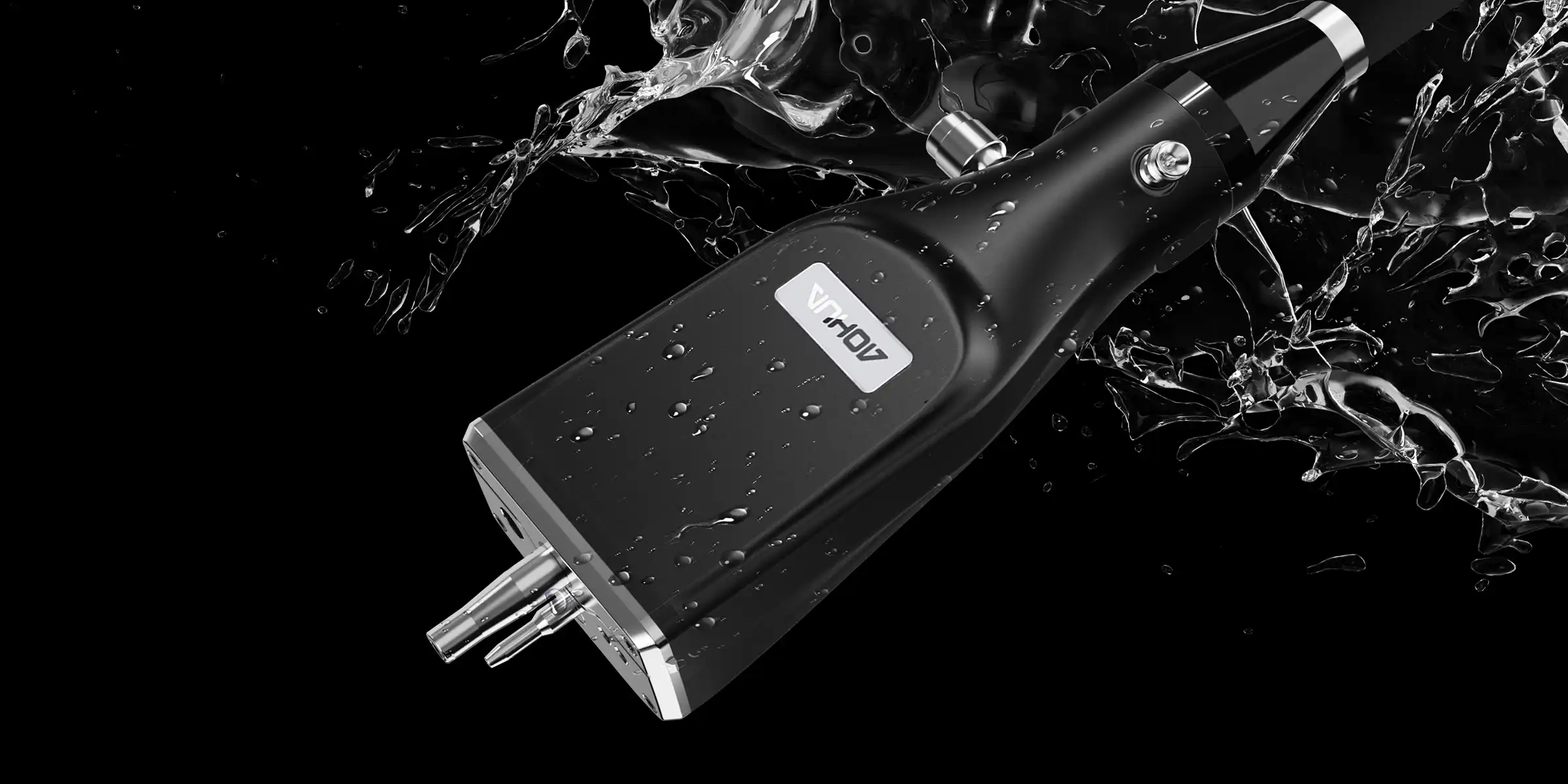

Waterproof
The wireless power connection between the light source and endoscope is achieved through a contactless, wireless power supply method. One-touch insertion and removal reduce the cumbersome steps of detaching the endoscope, allowing for complete immersion without the need for additional waterproof covers, thus facilitating more convenient cleaning and disinfection.

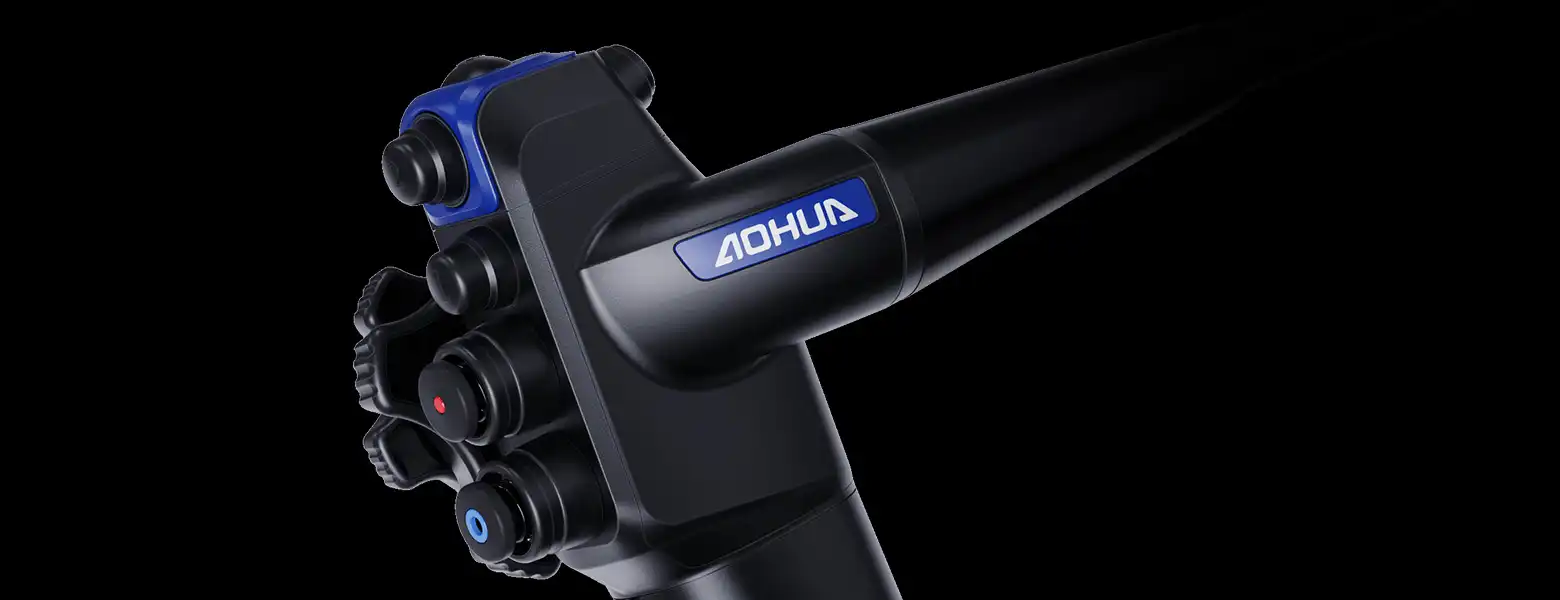

Brand New Handle
More comfortable grip based on ergonomics and clinical feedback Lightweight non-slip material makes long hand-holding easier, less effort and more stable
| Model | UHD-GT300Q | |
| Optical System | Field of view |
Normal 145º Near 145º |
| Depth of fi eld | Normal 7-100 mm Near 1.5-7 mm |
|
| Insertion Section | Distal end outer diameter |
10.2 mm |
| Insertion tube outer diameter |
9.6 mm |
|
| Working length |
1050mm |
|
| Instrument Channel | Channel inner diameter |
2.8 mm |
| Bending Section | Angulation range | Up 210º Down 90º Right 100º Left 100º |
| Total Length |
1350mm |
|
