Olympus CF-H290i,CF-H290L Video Colonoscope

Phone：+86-21-54286005

Resources

CF-H290i/L_Brochure_EN

Overview Specifications Dimensions

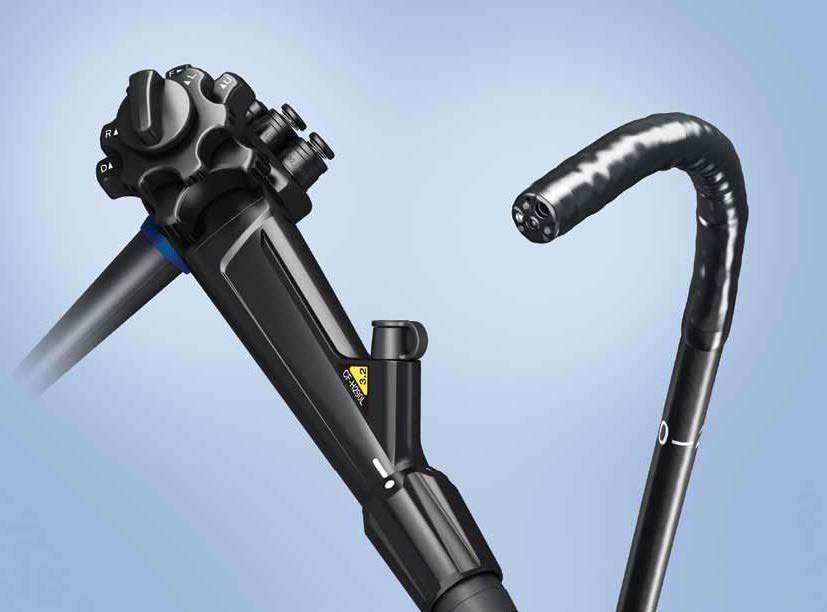

Olympus CF-H290i,CF-H290L

EVIS LUCERA ELITE Video Colonoscope

CF-H290i_L

Main Features

HDTV Image QualityThe CF-H290L/I features HDTV and 170° angle of view. The combination of HDTV image quality and 170° angle of view supports detailed observation and facilitates lesion detection.What's more, the distal end diameter is the same as in the previous model.

HDTV

NBI (Narrow Band Imaging)
NBI in EVIS LUCERA ELITE provides twice the viewable distance of EVIS LUCERA SPECTRUM. The greatly improved performance of NBI opens up exciting new clinical applications and reinforces NBI's position as the standard of care for GI endoscopy.

NBI

RIT (Responsive Insertion Technology)
RIT combines three proprietary insertion tube technologies:HFT (High Force Transmission), PB (Passive Bending) and variable stiffness. These technologies are designed to facilitate complete colonoscopies by improving scope handling,insertability and ergonomics. PB helps EVIS LUCERA ELITE 290 Series scopes move through acute bends in the colon. HFT provides improved operator control for pushing, pulling and twisting maneuvers. Variable stiffness allows the physician to adjust the rigidity of OLYMPUS scopes as needed, by simply turning an adjustment ring on the scope control section.

Water Jet
Water jet function is standard on EVIS LUCERA ELITE routine colonoscopes. This technology helps to keep the mucosa clear during observation and treatment.

Water Jet

Waterproof One-touch Connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition,it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.

Waterproof One-touch Connector

Model	CF-H290L/I
Optical System	Field of view	170º
	Direction of view	Forward viewing
	Depth of field	5-100 mm
Insertion Section	Distal end outer diameter	12.2mm
	Insertion tube outer diameter	12mm
	Working length	CF-H290L: 1680 mm CF-H290i: 1330 mm
Instrument Channel	Channel inner diameter	3.2 mm
Instrument Channel	Minimum visible distance	3.0 mm from the distal end
Bending Section	Angulation range	Up 180º Down 180º Right 160º Left 160º
Total Length		CF-H290L: 2005 mm CF-H290i: 1655 mm
Compatible EVIS LUCERA System		Video System Center OLYMPUS CV-290 Xenon Light Source OLYMPUS CLV-290SL
