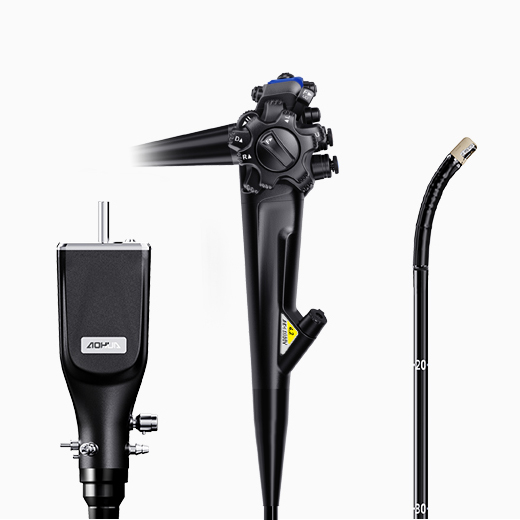

AOHUA UHD-ED300V Video Duodenoscope

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

AOHUA UHD-ED300V

Video Duodenoscope

UHD-ED300V

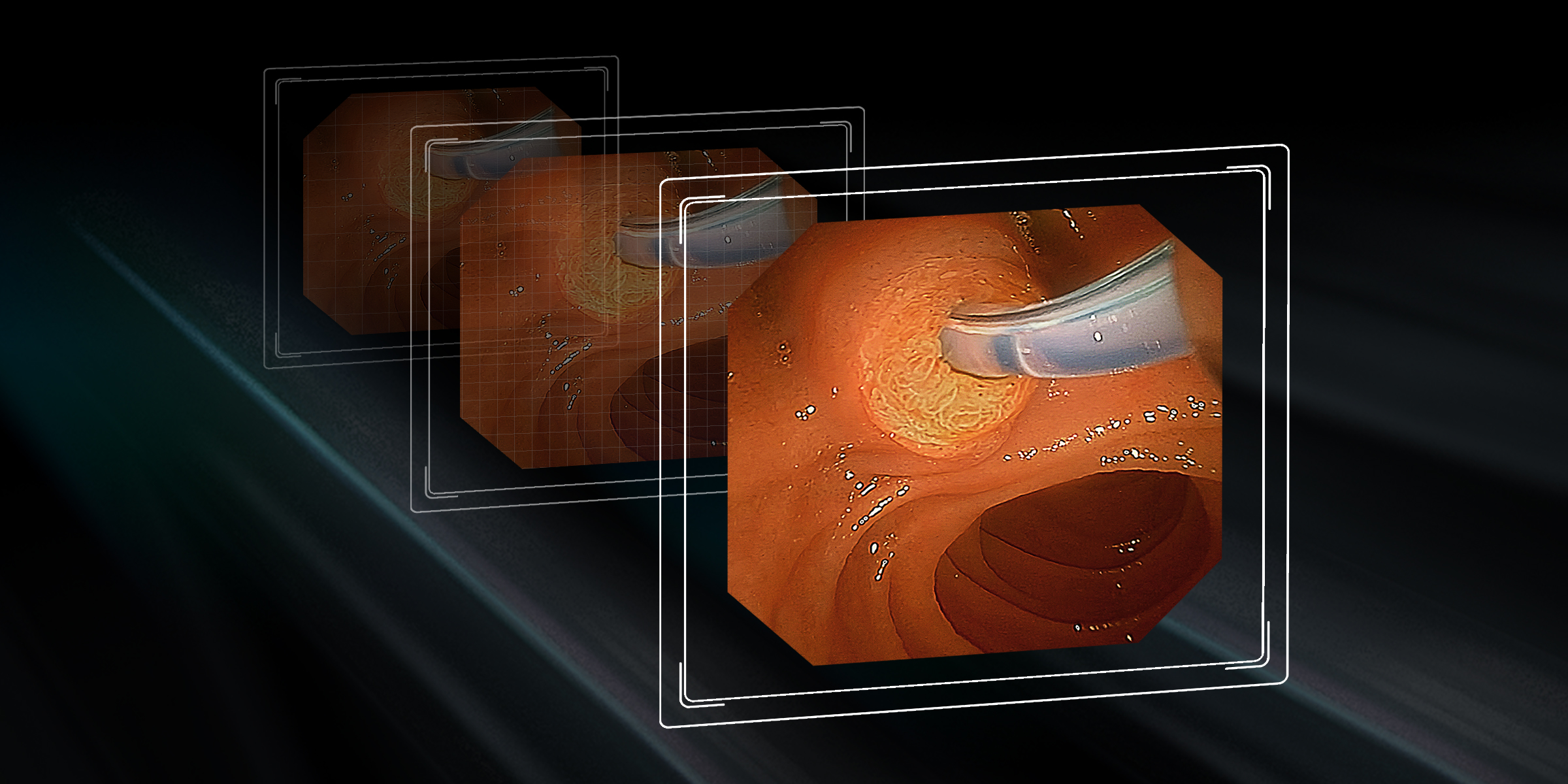

HD Image Quality

When combined with the AQ-300/AQ-200 Elite series, it can present clinical images with higher levels of clarity.

HD Image Quality

Disposable Distal End Cap and Efficient Disinfection

Propose targeted solutions for the challenges of disinfecting duodenoscopes.

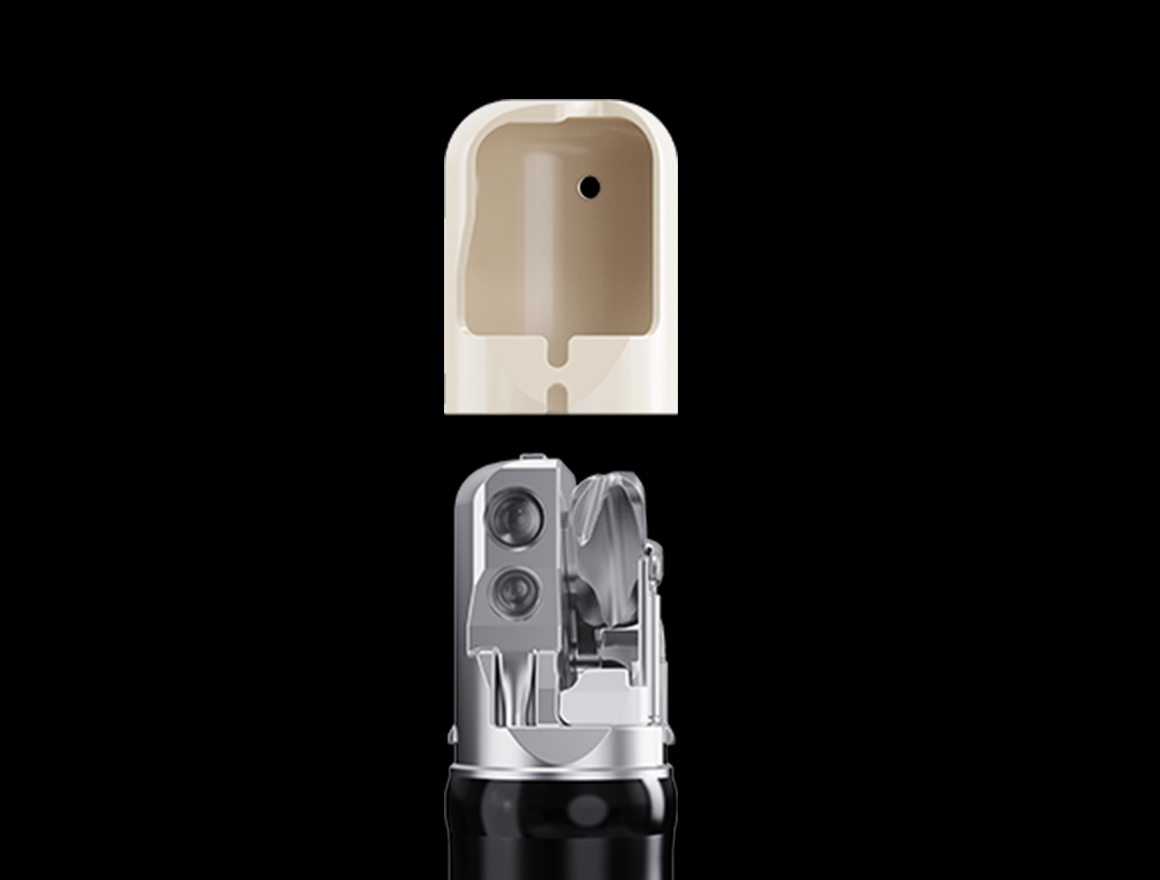

Disposable Distal End Cap

Reduce the risk of infection caused by repeated use.

Disposable Distal End Cap

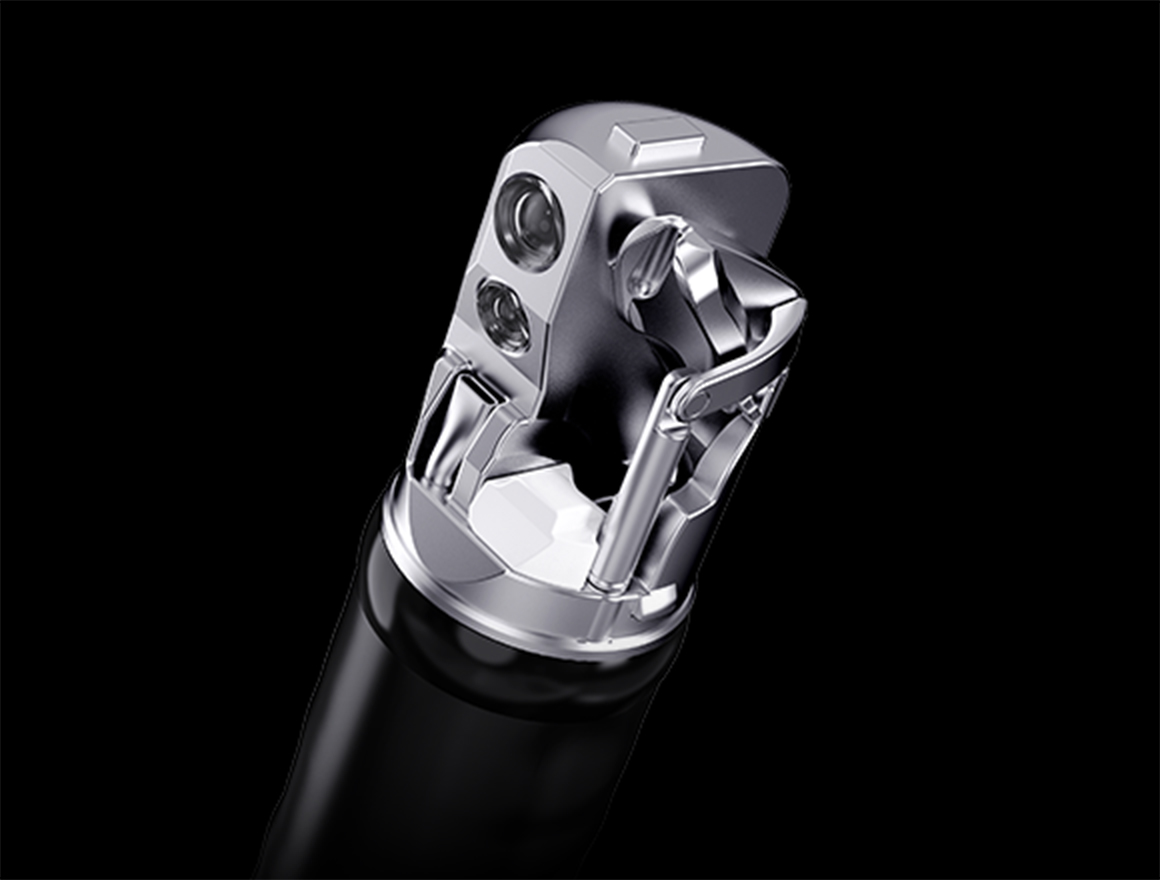

Closed-end Elevator

Avoid the risk of scratching from exposed steel wires, reduce the scope of surgical contamination, and facilitate cleaning and disinfection.

Closed-end Elevator

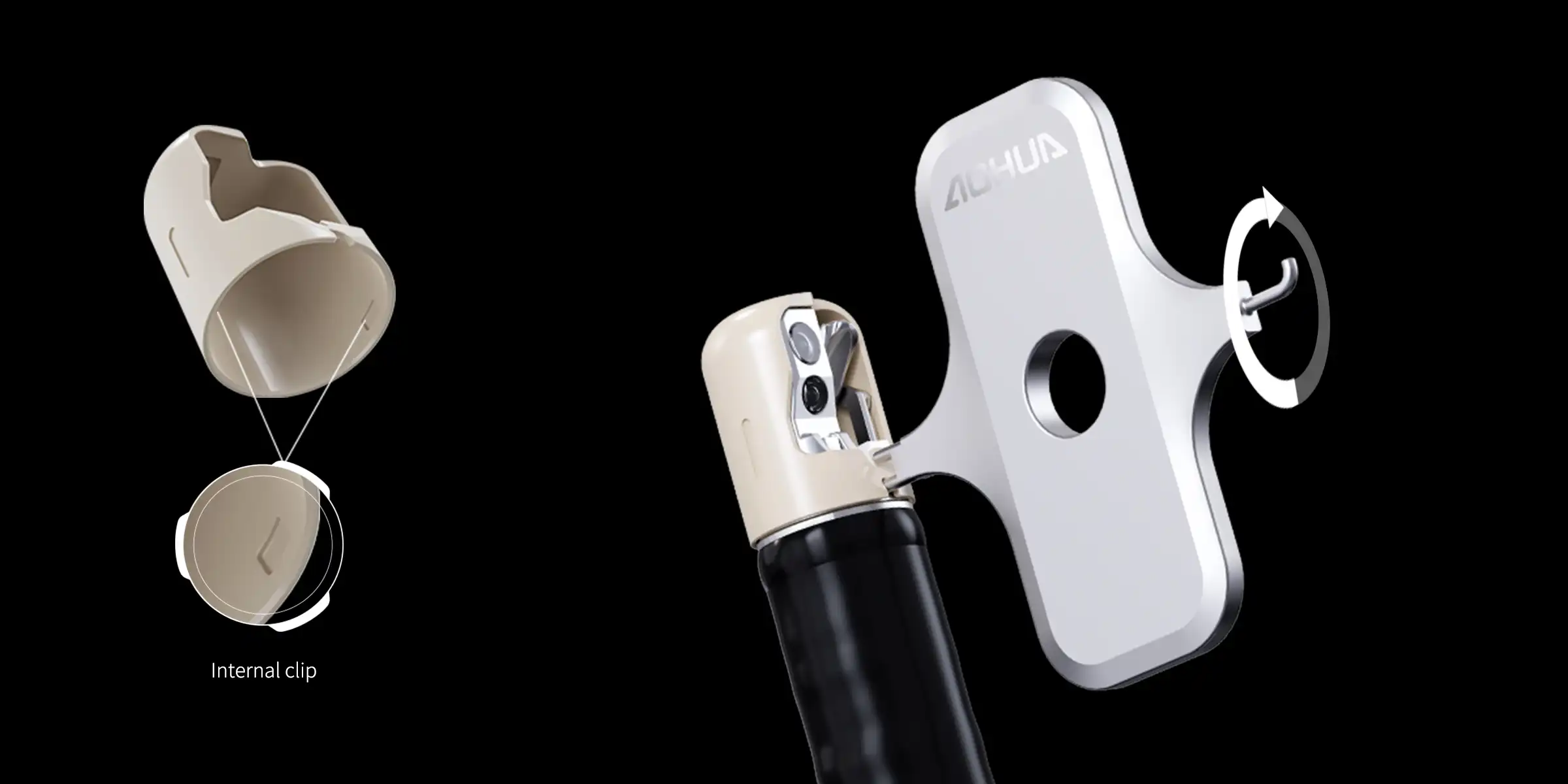

Double Clip Fastening for Secure and Safe

The lens end is securely fastened using a double clip connection, ensuring reliable installation and preventing loosening. The destructive disassembly method further eliminates the possibility of reuse.

Double Clip

Convenient for Clinical Use

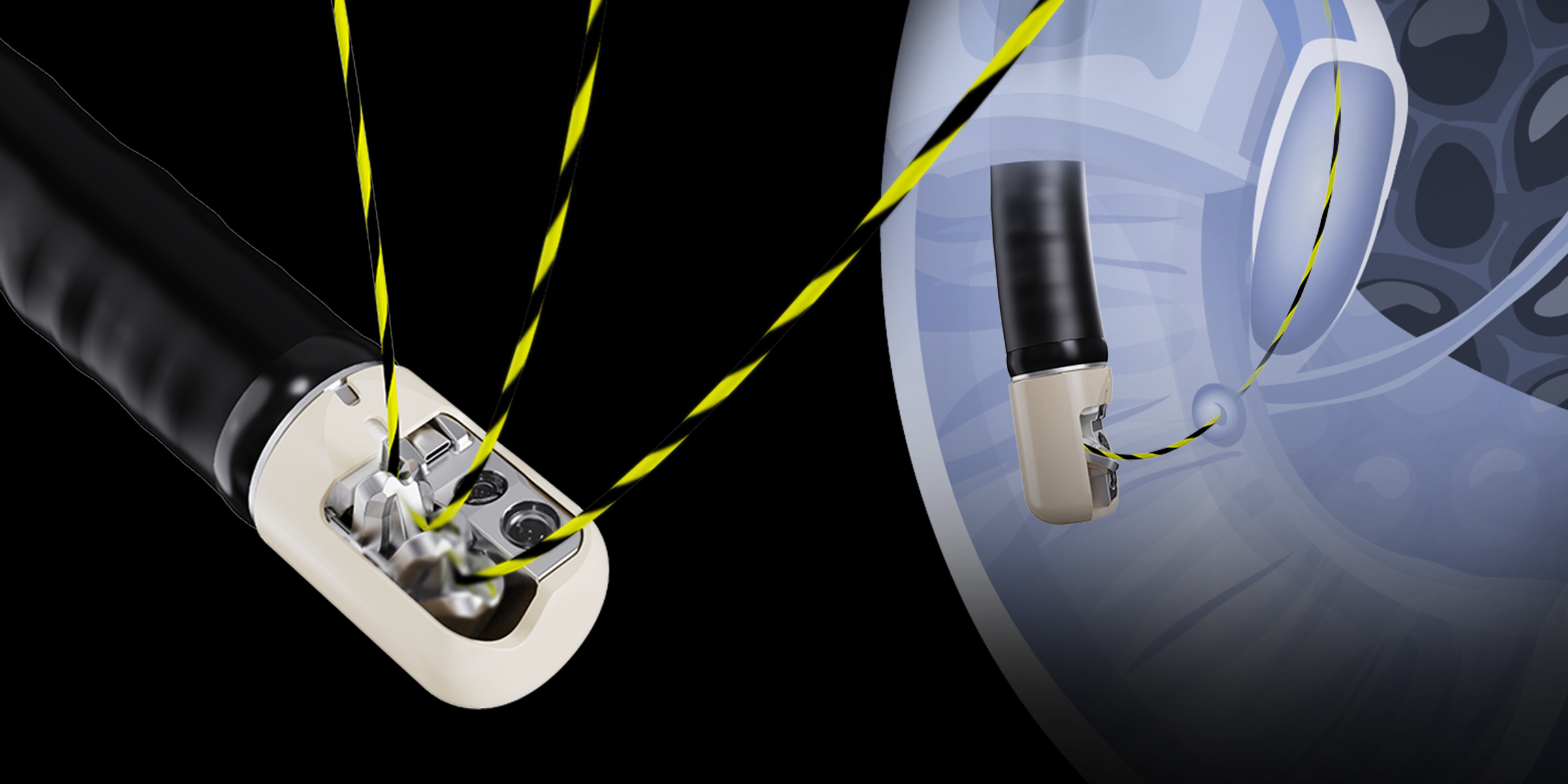

4.2mm large working channel

It can smoothly accommodate various consumables such as dissecting knives, biliary drainage catheters, and ensure sufficient suction power.

Suitable for various surgeries

Supports various clinical procedures such as endoscopic retrograde cholangiopancreatography (ERCP), endoscopic sphincterotomy (EST), endoscopic nasobiliary drainage (ENBD), endoscopic retrograde biliary drainage (ERBD), and other endoscopic procedures for the biliary and pancreatic system.

large working channel

Model		UHD-ED300V
Optical System	Field of view	100°
Optical System	Depth of field	4-60 mm
Insertion Section	Distal end outer diameter	13.5 mm
	Insertion tube outer diameter	11.2 mm
	Working length	1250 mm
Instrument Channel	Channel inner diameter	4.2 mm
Bending Section	Angulation range	Up 210º Down 90º Right 90º Left 110º
Total Length		1530 mm
