FUJIFILM EN-840T Double Balloon Video Enteroscope
Phone：+86-21-54286005

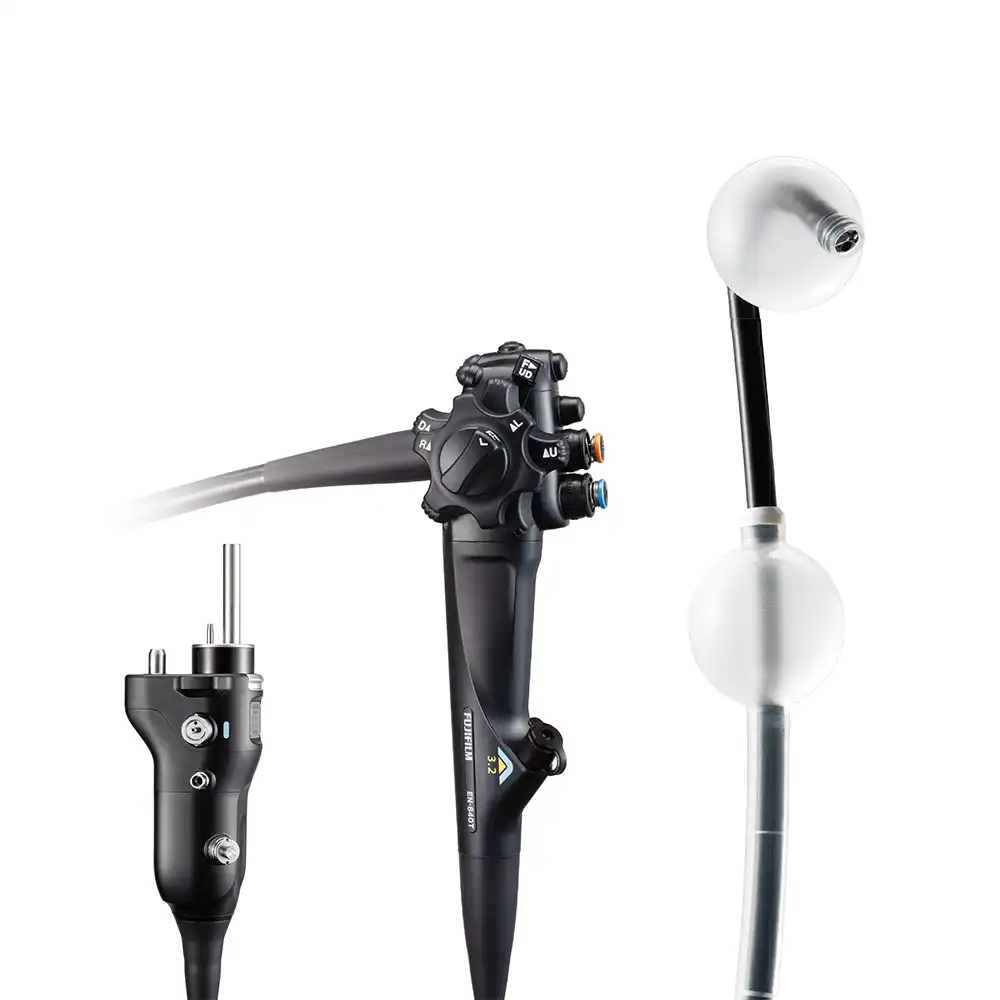

FUJIFILM EN-840T
Double Balloon Enteroscope - Therapeutic type
The new EN-840T double balloon endoscope is equipped with a CMOS sensor and achieves HD image quality. It also features LCI (Linked Color Imaging) and BLI (Blue Light Imaging) to support from observation to treatment.
Due to its Water Jet Function mucus and blood adhering on the mucous membranes can be washed away and the endoscope's fi eld of view can be cleaned promptly.
Whight Light Imaging LCI BLI

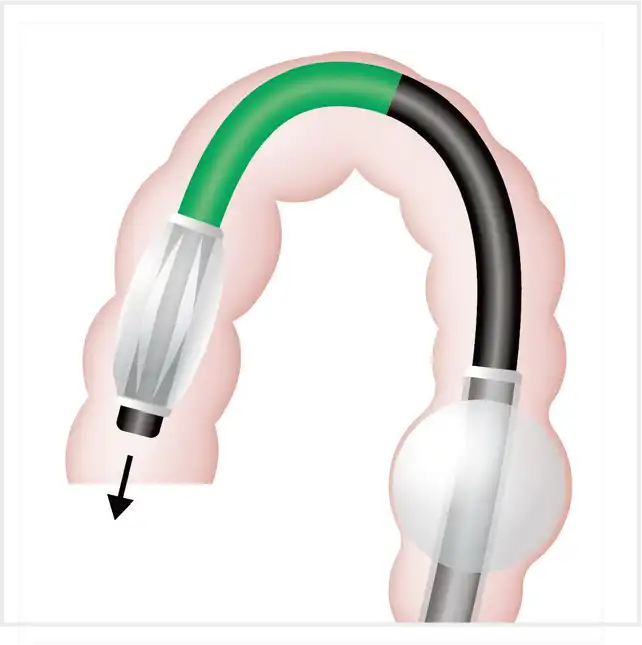

Improved insertion portion
EN-840T features the established insertion portion that is hard at the control portion and soft at the distal end.
It is aiming to make it easier to transmit operations such as pushing, pulling, and rotating to the distal end of the endoscope. In addition, the curve vertex when bending is designed closer to the tip of the fl exible portion compared to EN-580T.
| Viewing direction | 0° (Forward) |
|
Field of view |
140° |
|
Observation range |
2-100mm |
|
Distal end diameter |
9.4 mm |
|
Insertion tube diameter |
9.3 mm |
|
Minimum diameter of instrument channel |
3.2 mm |
|
Bending capability |
UP 180° / DOWN 180° |
|
Working length |
2,000 mm |
|
Total length |
2,300 mm |
