AOHUA UHD-CL300TPS,UHD-CL300TPI,UHD-CL300TPL Slim Therapeutic Video Colonoscope

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

AOHUA UHD-CL300TPS,UHD-CL300TPI,UHD-CL300TPL

Slim Therapeutic Video Colonoscope

UHD-GT300XP

High-Quality Images
Using advanced image sensors and proprietary algorithms, images are clearer and sharper, capturing subtle changes in both white light and various CBI staining modes.

High-Quality Images

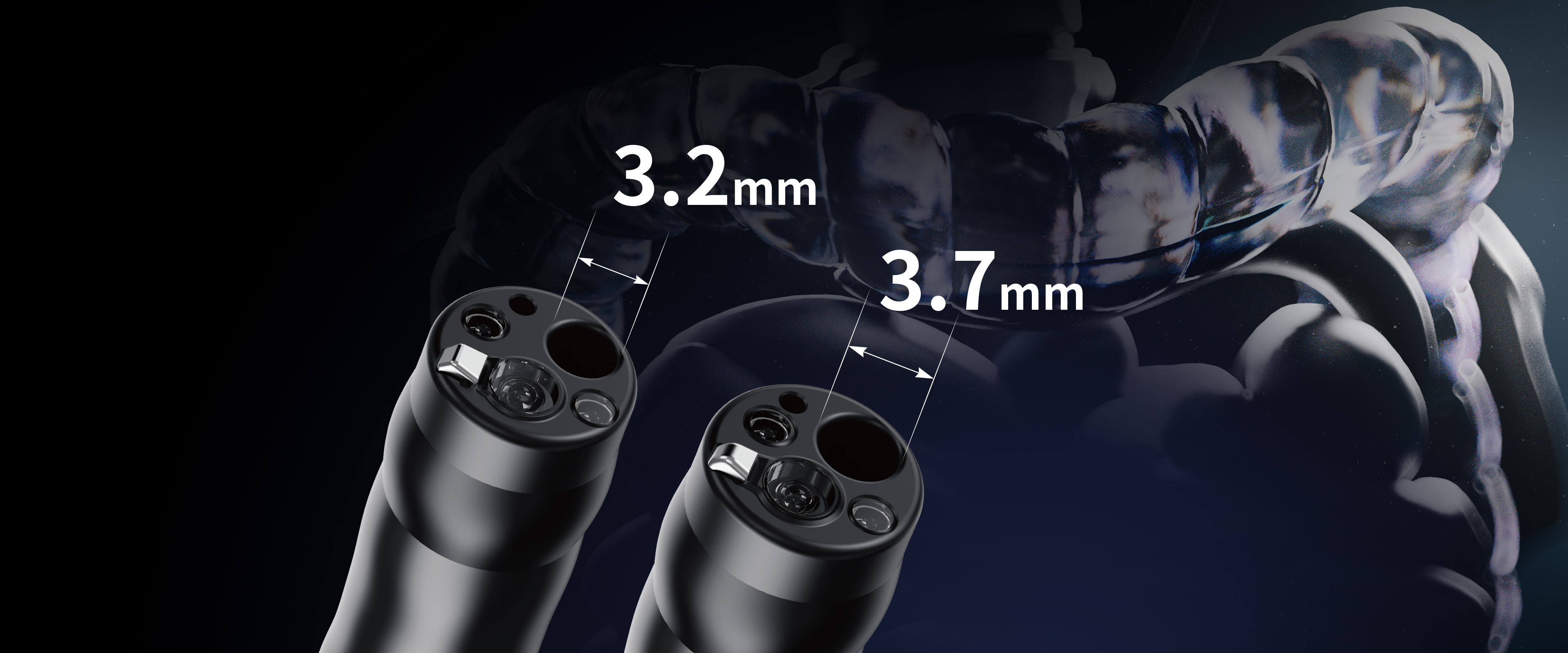

large Instrument Channel

Available with large Instrument Channel of 3.7mm, it accommodates most treatment accessories while ensuring ample suction space.

Large instrument channel

Bending Performance

The 210° upward bending angle combined with a wide 170° field of view allows the surgeon to more easily access the dorsal surface of the fold during reverse endoscopic procedures, making it easier to detect and treat lesions hidden behind the fold.

Bending Performance

Waterproof

The wireless power connection between the light source and endoscope is achieved through a contactless, wireless power supply method. One-touch insertion and removal reduce the cumbersome steps of detaching the endoscope, allowing for complete immersion without the need for additional waterproof covers, thus facilitating more convenient cleaning and disinfection.

无线供电全防水设计

Sync Force Transmission

Effectively transmits the Push-pull forces and rotational forces to the apex of the colonoscope Facilitate easier access to the cecum

Sync Force Transmission

Adjustable Stiffness

The softness of the Colonoscope can be adjusted using the adjustment ring Cater to the needs of different parts of the colon segments

Adjustable Stiffness

Elastic Bending

Adaptive twisting of the endoscope in response to the steering of different parts of the colon Effectively reducing the need for endoscope manipulation and improving patient comfort

Elastic Bending

Model		UHD-CL300TPi	UHD-CL300TPL
Optical System	Field of view	170°
	Depth of field	2-100 mm
Insertion Section	Distal end outer diameter	10.2 mm
	Insertion tube outer diameter	10.2 mm
	Working length	1300 mm	1650 mm
Instrument Channel	Channel inner diameter	3.7 mm
Bending Section	Angulation range	Up 210º Down 180º Right 160º Left 160º
Total Length		1600 mm	1950 mm
