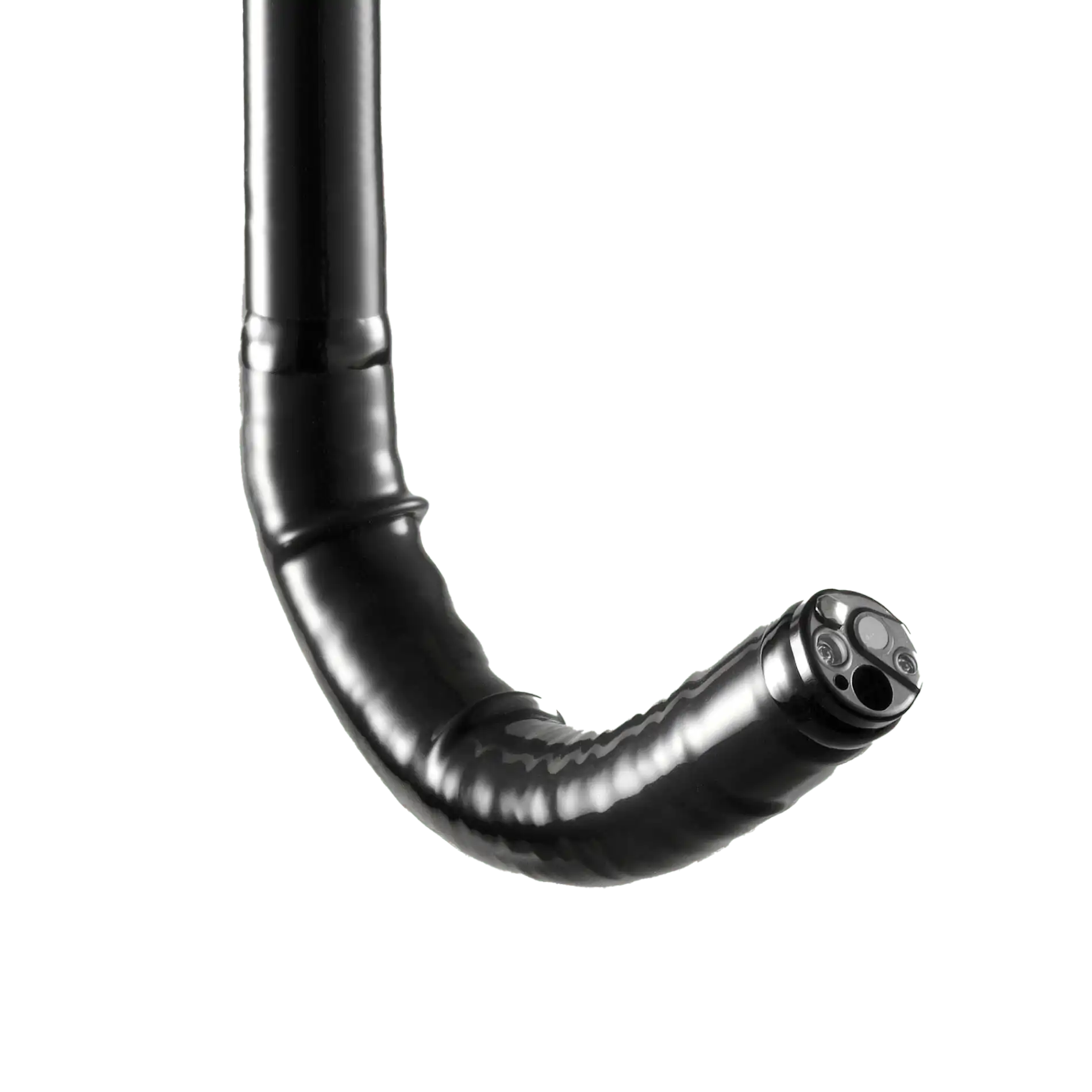

Fujifilm EG-860R Standard Video Gastroscope

Phone：+86-21-54286005

Resources

Fujifilm EG-860R

Standard Video Gastroscope

EG-860R

Streamlined design concept for insertion tubes
Since conventional generations, Fujifilm's "gradual stiffness" technology has been incorporated into their colonoscopes in which the stiffness changes over the length of the endoscope being softest at the distal end and hardest at the proximal end. This technology now expands towards the 800 series gastroscopes,aiming to improve insertion and operability in the upper gastrointestinal tract.
These features are expected to improve endoscopic operability, not only for colonoscope insertion, but also in the upper gastrointestinal tract, such as during duodenal insertion.

High-resolution CMOS sensor
Compared to the conventional 760 series endoscopes, the highsensitivity sensors integrated in the 800 series endoscopes enable the image to be viewed with less noise.

High-resolution CMOS sensor

G7 grip for comfort in daily practice
The G7 grip is designed to have an easy and comfortable feel to enhance performance and reduce stress during clinical procedures. Each 800 series endoscope displays the information required to choose compatible accessories, which helps to facilitate on-the-spot decision making.

G7 手柄

Labels attached to the control portion, which show 1 Colour code of G7 control portion
the model number and instrument channel inlet size 2 Identification colour of Instrument channel size
3 Instrument channel diameter
4 Corporate brand logo
5 Model number

One-step connector for easy plug-in
One-step connector to incorporate an integrated wireless power supply that provides high-speed transmission of data. The design helps to simplify the cleaning process and reduces the potential for accidental damage.

One-step connector

Close observation at 2 mm
The 2 mm close-up observation is expected to improve visibility during treatment.

图示图像并非严格显示 2 mm处的近距离观察

White Light Imaging mode BLI Imaging Mode

Viewing direction	0°（Forward）
Field of view	140°
Observation range	2-100 mm
Distal end diameter	8.9 mm
Insertion tube diameter	8.9 mm
Minimum diameter of instrument channel	2.8 mm
Bending capability	UP 210° / DOWN 120° RIGHT 100° / LEFT 100°
Working length	1,100 mm
Total length	1,400 mm
