FUJIFILM EC-860P/M,P/L Slim Video Colonoscope

FUJIFILM EC-860P/M,EC-860P/L Slim Video Colonoscope

Phone：+86-21-54286005

Resources

FUJIFILM EC-860P/M,EC-860P/L

Video Colonoscope - Slim type

This routine colonoscope is equipped with a high-sensitivity CMOS sensor and has a wide field of view of 170° as well as a large Instrument channel of 3.8 mm. It is available in three lengths.

Streamlined design concept for insertion tubes
Since conventional generations, Fujifilm's "gradual stiffness" technology has been incorporated into their colonoscopes in which the stiffness changes over the length of the endoscope being softest at the distal end and hardest at the proximal end. This technology now expands towards the 800 series gastroscopes,aiming to improve insertion and operability in the upper gastrointestinal tract.

These features are expected to improve endoscopic operability, not only for colonoscope insertion, but also in the upper gastrointestinal tract, such as during duodenal insertion.

High-resolution CMOS sensor
Compared to the conventional 760 series endoscopes, the highsensitivity sensors integrated in the 800 series endoscopes enable theimage to be viewed with less noise.

高分辨率CMOS传感器

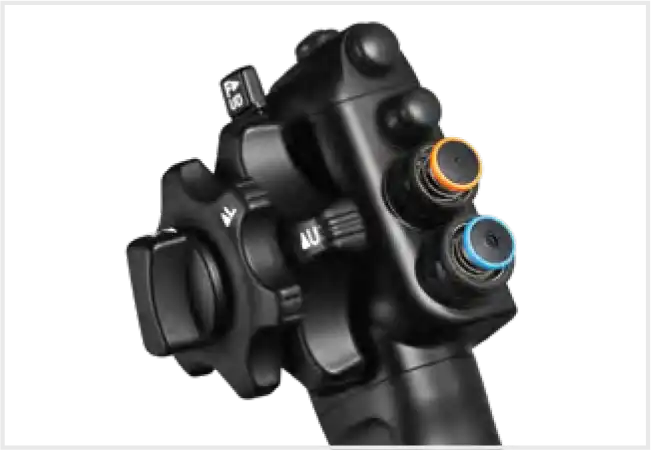

G7 grip for comfort in daily practice
The G7 grip is designed to have an easy and comfortable feel to enhance performance and reduce stress during clinical procedures. Each 800 series endoscope displays the information required to choose compatible accessories, which helps to facilitate on-the-spot decision making.

G7 手柄

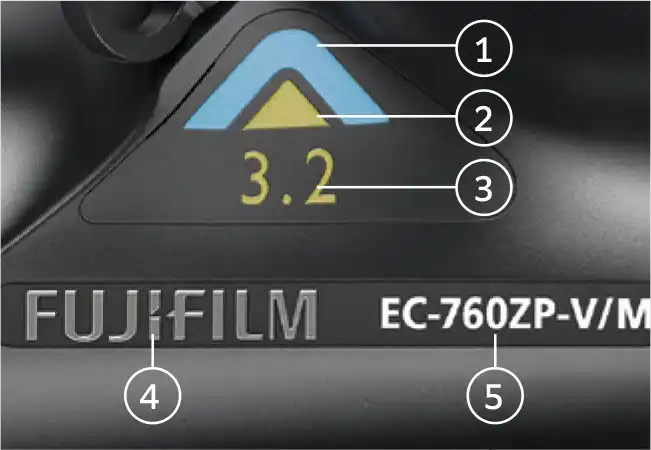

Labels attached to the control portion, which show 1 Colour code of G7 control portion
the model number and instrument channel inlet size 2 Identification colour of Instrument channel size
3 Instrument channel diameter
4 Corporate brand logo
5 Model number

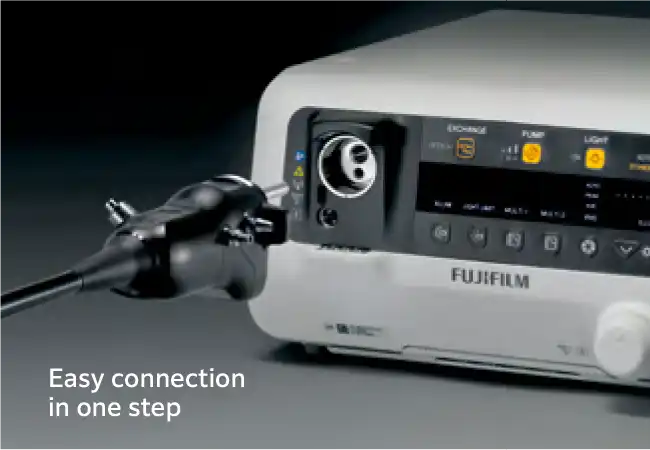

One-step connector for easy plug-in
One-step connector to incorporate an integrated wireless power supply that provides high-speed transmission of data. The design helps to simplify the cleaning process and reduces the potential for accidental damage.

One-step

Close observation at 2 mm
The 2 mm close-up observation is expected to improve visibility during treatment.

图示图像并非严格显示 2 mm处的近距离观察

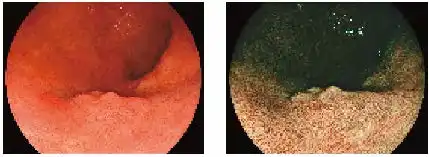

White Light Imaging mode BLI Imaging Mode

Advanced Force Transmission
The insertion tube is designed to easily transmit push-pull and rotation movements from the endoscopist's hand to the distal end of the endoscope, reducing the torque load when performing rotary operations.

In deep insertion

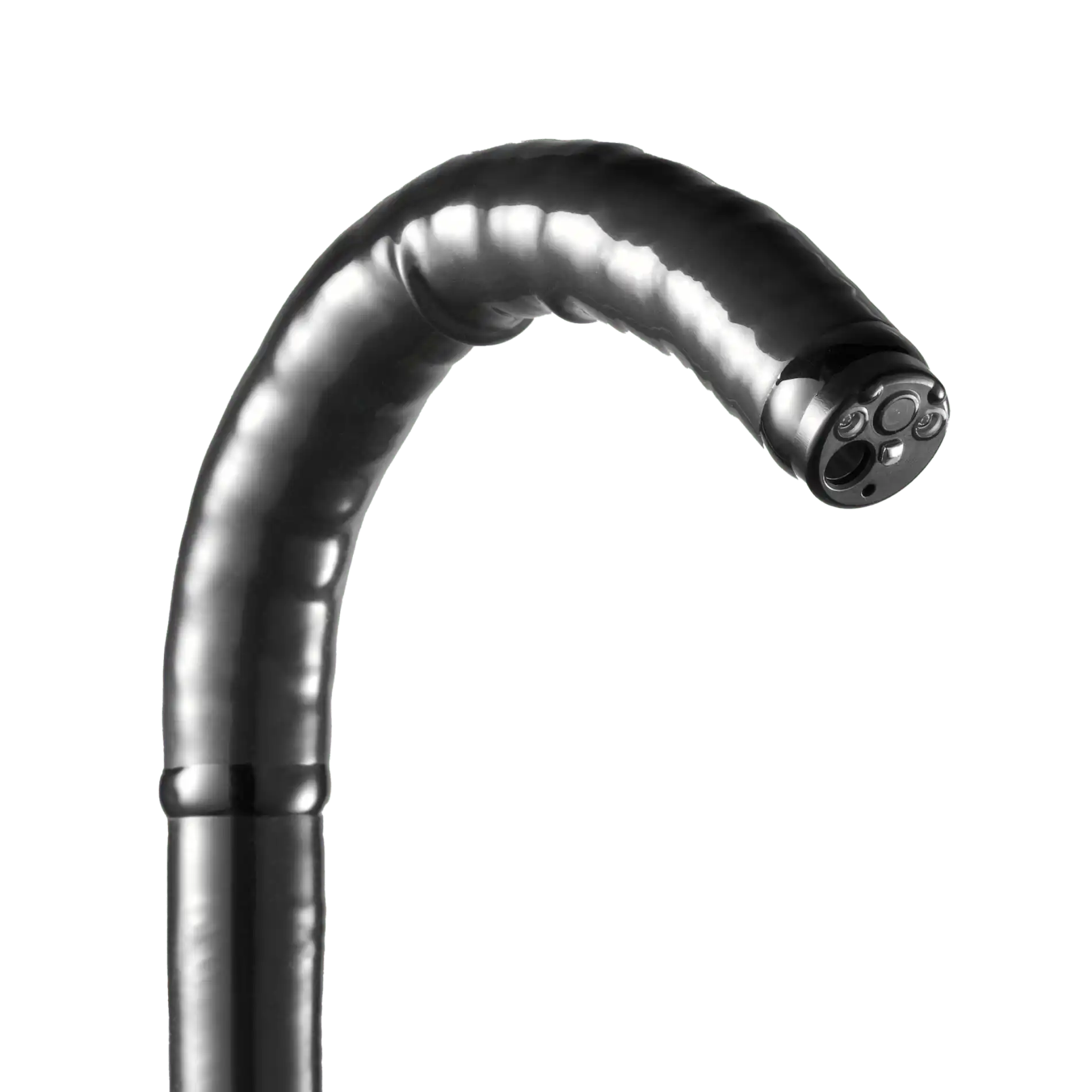

Adaptive Bending
The end of the bending section is soft, allowing the endoscope to bend easily. The flexible bending section has been designed to return more easily to its straight form after passing through the tight curves of the colon.

Without Adaptive Bending With Adaptive Bending

Flexibility Adjuster
The stiffness of the insertion tube of the 800 system colonoscope can be easily adjusted according to the endoscopist's preference by turning the flexibility adjustment ring (levels 0–3).

170° Advanced_Force_Transmission Adaptive_Bending Flexibility_Adjuster

Viewing direction	0°（Forward）
Field of view	170°
Observation range	2-100 mm
Distal end diameter	11.5 mm
Insertion tube diameter	11.5 mm
Minimum diameter of instrument channel	3.2 mm
Bending capability	UP 180° / DOWN 180° RIGHT 160° / LEFT 160°
Working length	1,330 mm(EC-860P/M) 1,690 mm(EC-860P/L)
Total length	1,650 mm(EC-860P/M) 2,010 mm(EC-860P/L)
