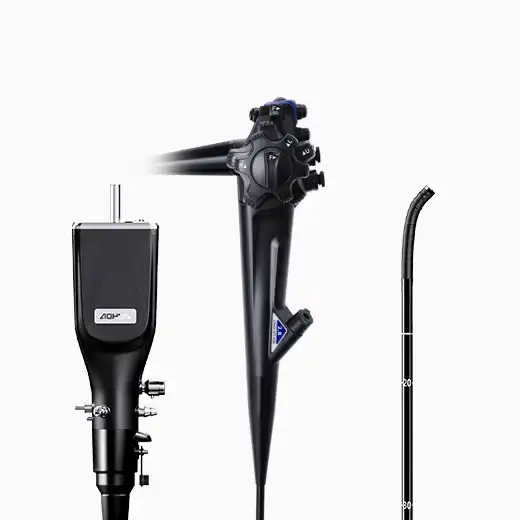

AOHUA UHD-GT300 Video Gastroscope

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

AOHUA UHD-GT300

Video Gastroscope

UHD-GT300

Ultra-high Resolution Imaging

Equipped with the AQ-300 series processor, capable of outputting ultra-high-resolution images, resulting in significant improvement in image quality compared to previous models.

Brand New Handle

More comfortable grip based on ergonomics and clinical feedback Lightweight non-slip material makes long hand-holding easier, less effort and more stable

5代手柄

Multifunctional Integration

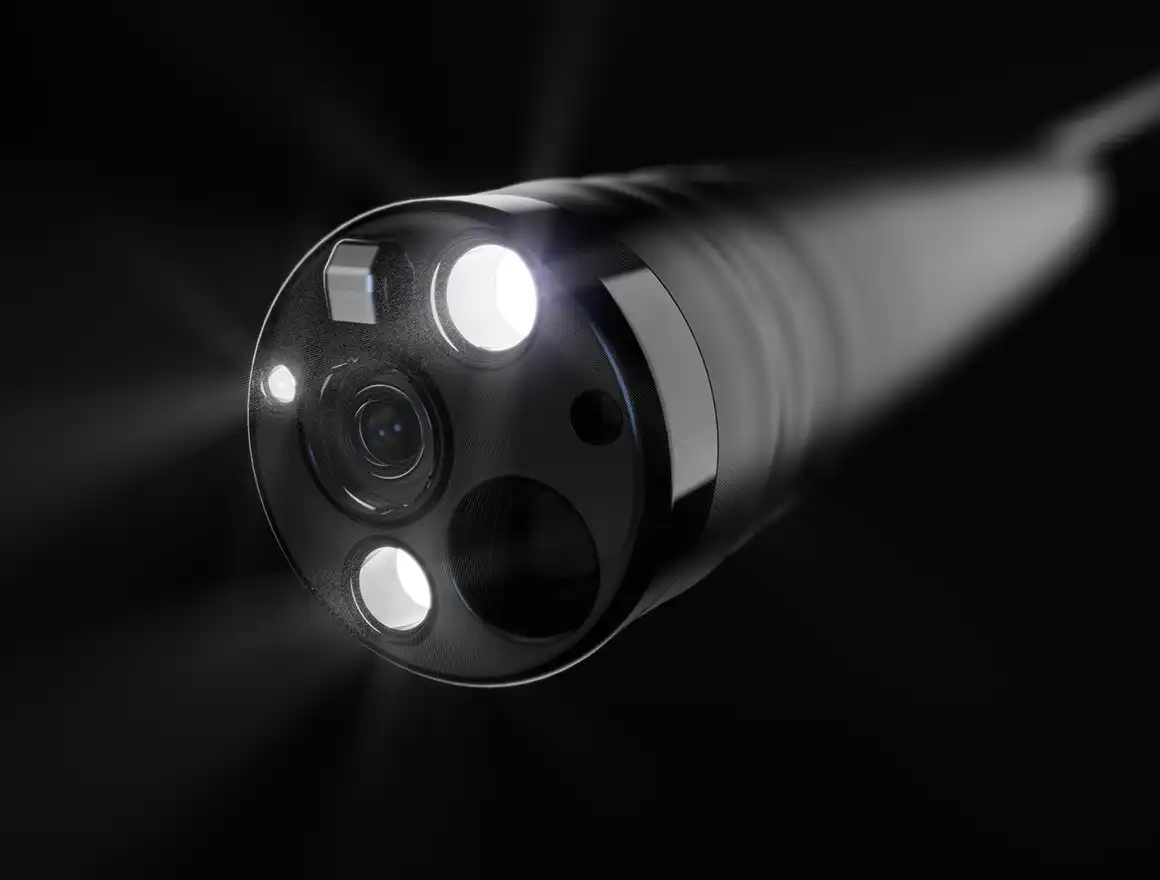

3 Light Guides

Provides a larger and more uniform lighting effect Combined with a large field of view, for superior image quality

头端3光窗照明系统

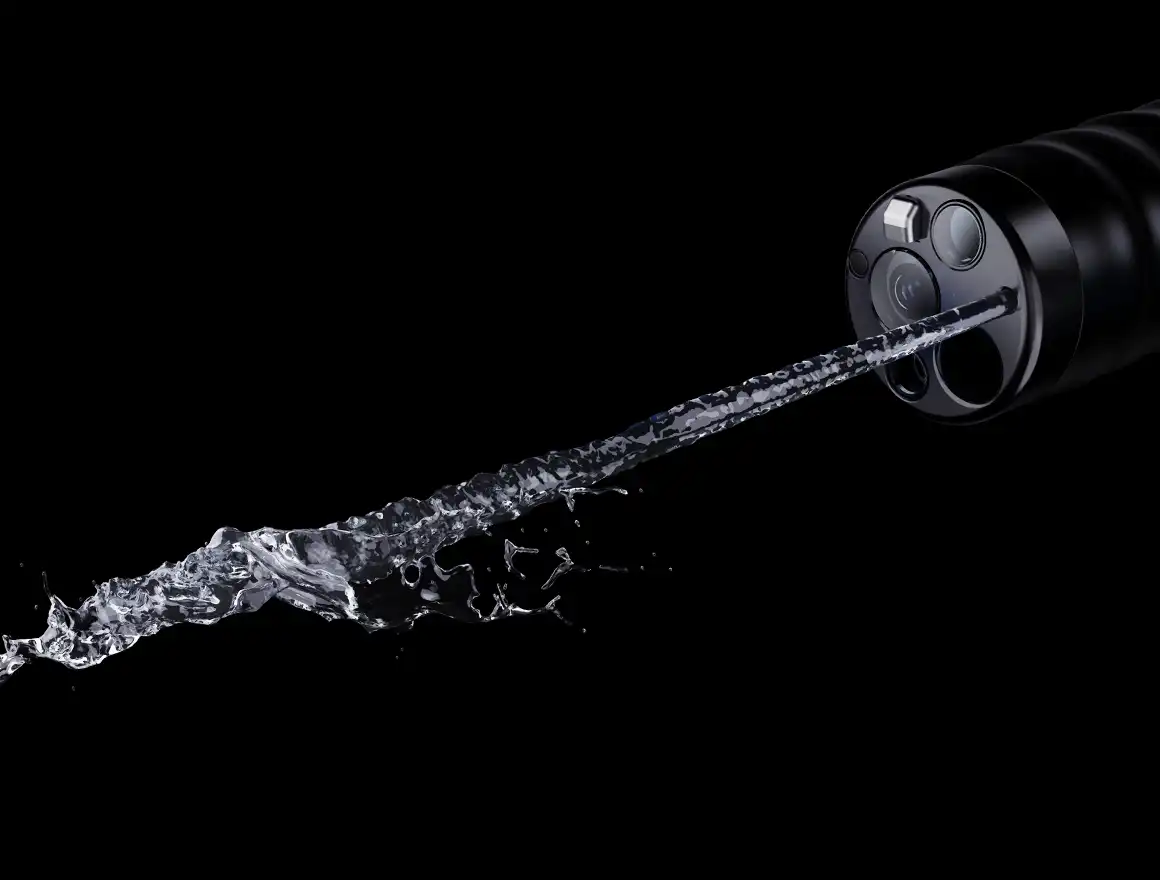

All Standard Water-jet Function

All AQ-300 series endoscopes are equipped with forward water-jet function Ensure a clear view in real time and quickly detect bleeding spots

副送水

Model		UHD-GT300
Optical System	Field of view	145°
Optical System	Depth of fi eld	2-100 mm
Insertion Section	Distal end outer diameter	9.2 mm
	Insertion tube outer diameter	9.2 mm
	Working length	1050mm
Instrument Channel	Channel inner diameter	2.8mm
Bending Section	Angulation range	Up 210º Down 90º Right 100º Left 100º
Total Length		1350mm
