Olympus TJF TYPE 260V EVIS LUCERA Video Duodenoscope

Phone：+86-21-54286005

Resources

TJF-260V_Brochure_EN

Overview Specifications Dimensions

OLYMPUS TJF TYPE 260V

EVIS LUCERA Duodenoscope

Breakthrough V-Groove design ensures fast,easy ERCP device replacement andsecure device manipulation

Main Features

4.2 mm instrument channel for expanded treatment options in the bile and pancreatic ducts.
Innovative V-Groove forceps elevator offers reliable duodenoscopic treatment capability in combination with dedicated V-System ERCP devices.
Insertion tube measuring 11.3 mm across with distal end diameter of 13.5 mm.
4-way angulation (120° up, 90° down, 110º right, and 90° left) facilitates approach to the papilla of Vater.
Ergonomically designed grip enhances torque performance and scope maneuverability while easy-to-access control knobs improve operability.
Detachable distal cover for easier cleaning of the scope tip.
Fully compatible with the CV-290,CV-260, CV-240,CV-230 and CV-200.
Scope ID function retains individual scope information in the memory chip and displays it on the monitor. Also stores settings such as auto white balance to facilitate endoscopy suite management.

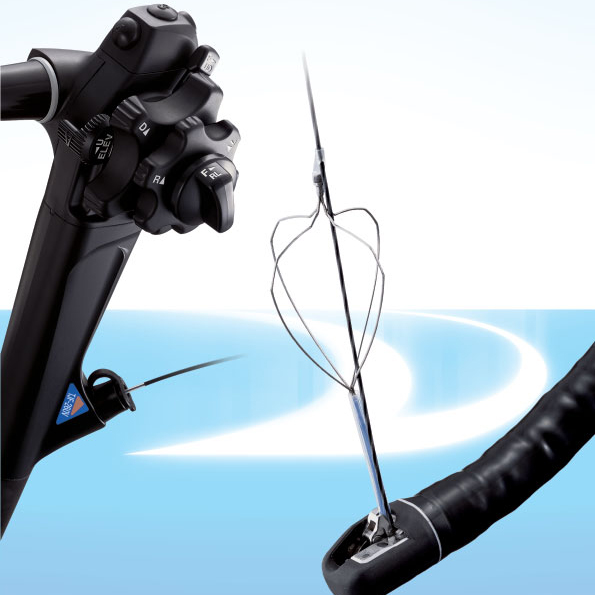

TJF-260V

Reliable Device Replacement,Secure Guidewire Positioning,And Easier Handling

Equipped with Olympus' innovative V-Groove forceps elevator,the revolutionary TJF-260V makes it possible to perform ERCP device manipulation and replacement with confidence and efficiency.The unique V-Groove on the forceps elevator securely locks the guidewire into position.

TJF-260V

V-Groove forceps elevator

The innovative design of the forceps elevator on the TJF-260V allows it to be raised at a sharper angle than a conventional scope elevator, while its unique V-shaped guidewire locking groove combines with the dedicated guidewire's reactive force to securely lock the guidewire in position.

TJF-260V

Optical System	Field of view	100°
	Direction of view	15° Backward oblique viewing
	Depth of field	5 to 60 mm
Distal End	Outer diameter	13.5 mm
Insertion Tube	Outer diameter	11.3 mm
Bending Section	Angulation range	Up 120°, Down 90°, Right 110°, Left 90°
Working Length		1,240 mm
Total Length		1,550 mm
Instrumental Channel	Inner diameter	4.2 mm
Instrumental Channel	Minimum visible distance	10 mm from distal end
Laser Compatibility		NO
High-Frequency Compability		YES
Scope ID Function		YES
