GIF-XP170N_Brochure_EN

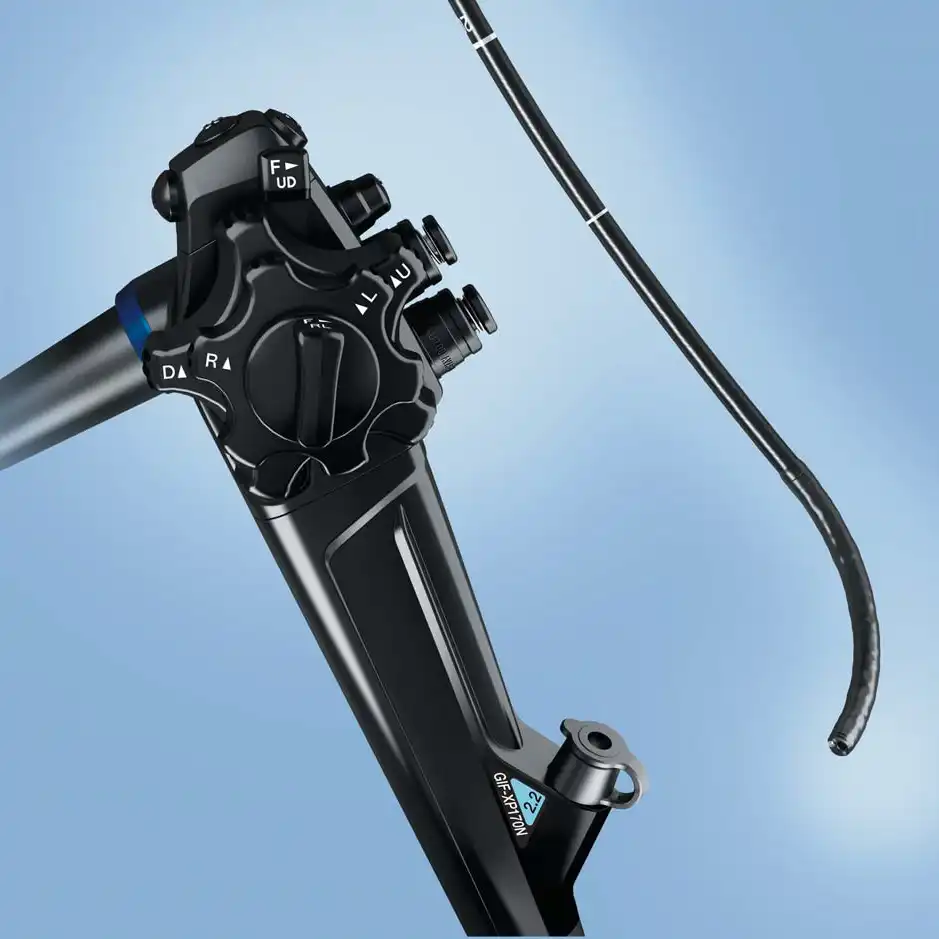

Optera GIF-XP170N Video Gastroscope
5.4 mm ultra-slim endoscope achieves both great insertability and high image quality at the same time
Main Features
Ultra-slim Design
A marvel of compact design, the 5.4 mm outer diameter of the distal tip improves insertability, resulting in reduced patient discomfort and enhanced operator comfort.
Advanced Image Clarity
Two light guides provide amplifi ed brightness to support accurate depiction of mucosal structures.
White Light NBI
Wide View Angle
The fi eld of view has been increased to 140 degrees, now delivering the same fi eld of view as routine upper GI scopes.
Advanced Suction Capability
The larger 2.2 mm instrument channel enables the use of a wide range of endotherapy accessories and increases suction capability.
Waterproof Connector
The newly designed connector is fully submersible and therefore eliminates the need for a water-resistant cap, while minimizing the risk of damage due to accidental immersion.
| Optical System | Field of view |
140° |
| Direction of view | Forward viewing | |
| Depth of fi eld |
3-100 mm |
|
| Insertion Section | Distal end outer diameter |
5.4 mm |
| Insertion tube outer diameter |
5.8 mm |
|
| Working length |
1100 mm |
|
| Instrument Channel | Channel inner diameter |
2.2 mm |
| Minimum visible distance | 2.0 mm from the distal end | |
| High-frequency | Cauterization treatment | Available |
| Bending Section | Angulation range | Up 210º Down 90º Right 100º Left 100º |
| Total Length |
1420 mm |
