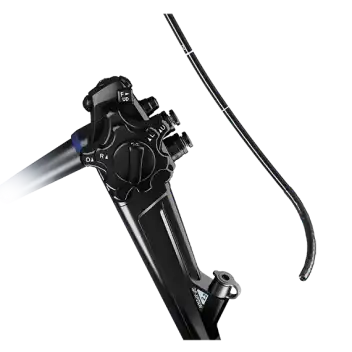

Olympus GIF-XP290N Video Gastroscope, ultra-slim 5.4 mm

Excellent image quality coupled with enhanced NBI capabilities makes the GIF-XP290N a powerful tool for diagnostic gastroscopy via the transnasal route.

Phone:+86-21-54286005

Resources

GIF-XP290N_Brochure_EN

EVIS LUCERA ELITE GIF-XP290N Videogastroscope

ultra-slim 5.4 mm distal end outer diameter

GIF-XP290N



Main Features

Ultra-slim Design
The 5.4 mm outer diameter of the distal end eases insertion.The shape of the scope tip is carefully formed for smooth removal, which further reduces patient discomfort.

Advanced Image Clarity
This scope delivers superior image quality, compared to conventional models. Its two light guides help to achieve ample brightness for precise diagnosis. The two guides also reduce shadows during the use of endotherapy devices.
白光 NBI

White Light                                           NBI



Advanced Suction Capability
The increase in channel size to 2.2 mm increases suction volume compared to conventional scopes with a 2.0 mm channel.



Wide Viewing Angle
The viewing angle of this ultra-slim scope has been increased to 140 degrees, matching the wide field of vision of larger gastroscopes even in restricted spaces.


Waterproof One-touch Connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition,it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.

Waterproof One-touch Connector

Model

GIF-XP290N

Optical System Field of view

140°

Direction of view Forward viewing
Depth of fi eld

3-100mm

Insertion Section Distal end outer diameter

5.4mm

Insertion tube outer diameter

5.8mm

Working length

1100mm

Instrument Channel Channel inner diameter

2.2mm

Minimum visible distance 2.0 mm from the distal end
Bending Section Angulation range Up 210º
Down 90º
Right 100º
Left 100º
Total Length

1420mm

Compatible EVIS
EXERA System
  Video System Center OLYMPUS CV-290
Xenon Light Source OLYMPUS CLV-290SL
