中文Olympus GIF-1TH190 Therapeutic Video Gastroscope
HDTV image quality delivers high-definition observation capabilities, even in a new, slimmer scope design.
Phone：+86-21-54286005
Resources
GIF-1TH190_Brochure_EN
GIF-1TH190_Brochure_EN

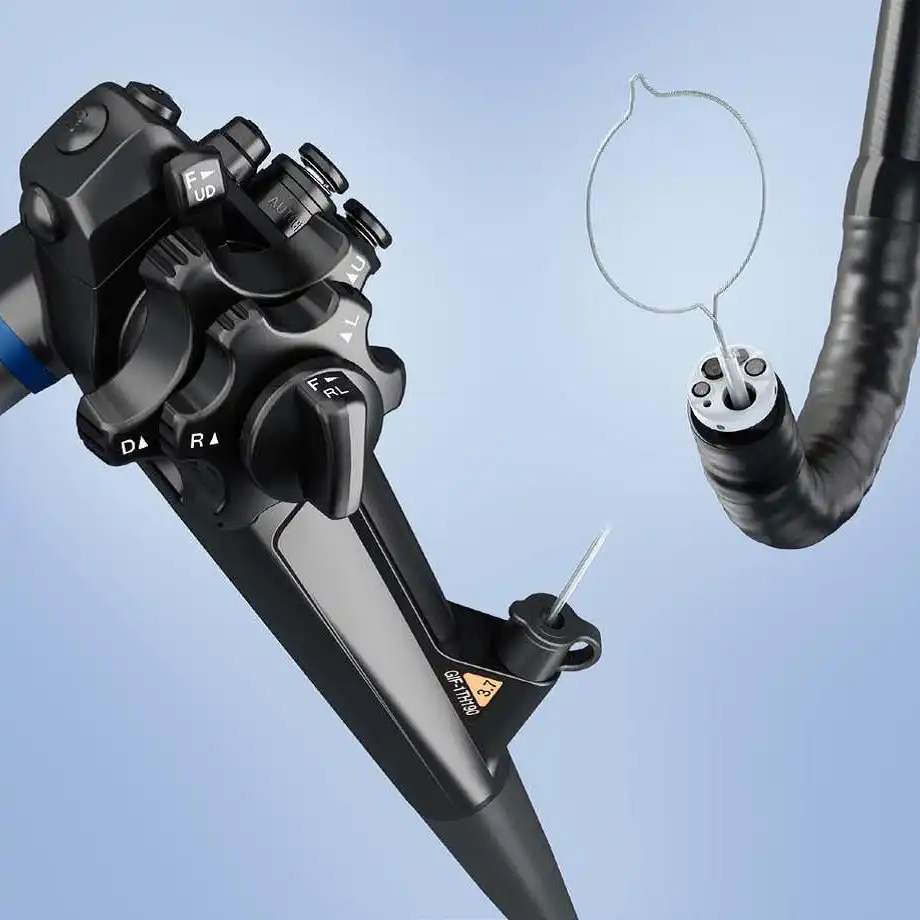

Olympus GIF-1TH190
EVIS EXERA III Videogastroscope-Therapeutic Type
GIF-1TH190 Therapeutic endoscope with superb HDTV image quality and a 3.7 mm instrument channel
Main Features
HDTV Image Quality
HDTV image quality delivers high-definition observation capabilities, even in a new, slimmer scope design.
NBI (Narrow Band Imaging)
NBI in the GIF-1TH190 provides twice the viewable distance of conventional EVIS EXERA II 180 series scope*1 and is significantly brighter. HD NBI provides contrast, which may aid in the interpretation of mucosal morphology, vascular patterns,and blood vessel appearance.
Slim Design and Therapeutic Capability
The 10.0 mm distal end diameter is 0.9 mm smaller than the predecessor*2 – while still maintaining the flexibility of a 3.7 mm instrument channel diameter.
Water Jet
A forward water jet helps to keep the mucosa clear during observation and treatment.
Close Focus
The GIF-1TH190 enables close observation of the mucosal surface (2 mm) without the need for electronic magnification.
Waterproof One-touch Connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition, it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.
*1 EVIS EXERA II Gastrointestinal Videoscope OLYMPUS GIF TYPE Q180
*2 EVIS EXERA Gastrointestinal Videoscope OLYMPUS GIF TYPE 1TQ160
| Optical System | Field of view |
140° |
| Direction of view | Forward viewing | |
| Depth of field |
2-100mm |
|
| Insertion Section | Distal end outer diameter |
10.0mm |
| Insertion tube outer diameter |
10.9mm |
|
| Working length |
1030mm |
|
| Instrument Channel | Channel inner diameter |
3.7mm |
| Minimum visible distance | 3.0 mm from the distal end | |
| Bending Section | Angulation range | Up 210º Down 90º Right 100º Left 100º |
| Total Length |
1350mm |
|
| Compatible EVIS EXERA System |
Video System Center OLYMPUS CV-190 Xenon Light Source OLYMPUS CLV-190 |
|
