中文NIKON ECLIPSE LV100N POL LED Polarized Light Microscope
The LV100N POL LED is equipped with a bright, long-lasting LED light source which produces minimal heat, reducing heat related focus drift.
Phone：+86-21-54286005
NIKON ECLIPSE LV100N POL LED
Polarized Light Microscope
Outstanding optical performance for a wide variety of imaging applications and polarizing techniques.
The LV100N POL LED is equipped with a bright, long-lasting LED light source which produces minimal heat, reducing heat related focus drift.
- Nikon's unique stage mount design ensures exceptional stability.
- The nosepiece comes equipped with a DIN standard compensator slot.
- All five objective positions on the nosepiece are centerable.
- Boasts CFI60 infinity optics for high NA and longer standard working distances.
- The clamp-type upper limit focusing mechanism for easy and safe sample exchange while protecting both the sample and optics from collision damage.
- The robust microscope body is designed for stability and years of dependable use.
Key Features
Uniform brightness with diascopic illumination

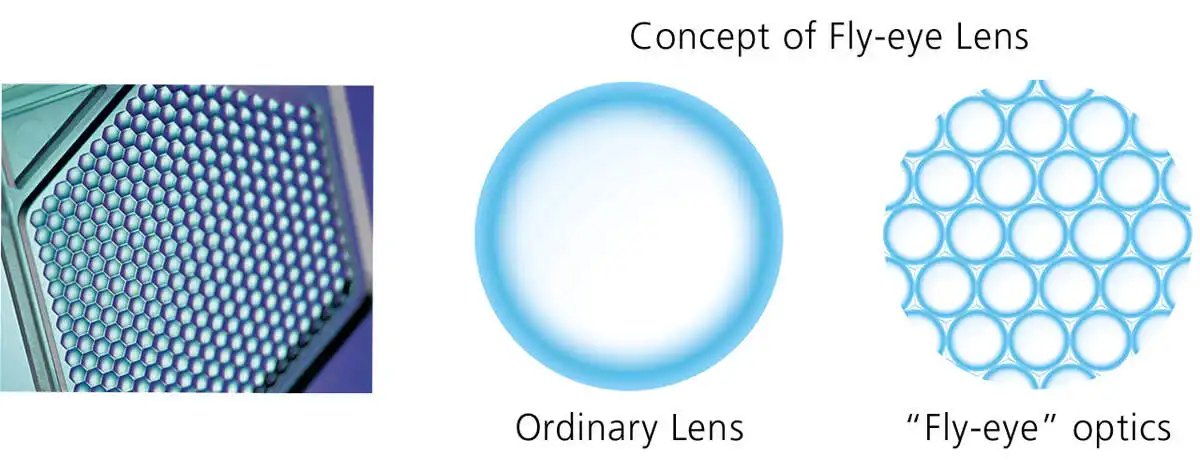

Nikon's unique fly-eye lens employed in the diascopic illumination optics ensures uniform brightness throughout the visual field - perfect for digital imaging.
High-precision rotating stage
The stage is large, pre-adjusted, and has click-stops in 45° increments. The smooth stage movement allows stable and easy rotation, providing high operability and high-quality polarized images.
Because the stage is supported from the bottom near the optical axis and incorporates steel cross roller guides, it offers excellent stability and durability.
- Focus stroke has been improved to 30mm, facilitating observation of tall samples.
- Clamp-type upper limit focusing mechanism makes for easy and safe sample exchange.
Reversed centering quintuple nosepiece
The nosepiece uses the same DIN standard compensator slot design as the LV100N POL LED to accept various compensators for advanced quantitative measurements. All five objectives are centerable.
Intermediate tube
The intermediate tube incorporates a Bertrand lens as standard, enabling both observation and capture of conoscopic and orthoscopic images.
Objectives for polarizing observation
CFI Achromat P objective series (for diascopic illumination)
The unique Nikon CFI60 infinity optics successfully deliver longer standard working distances and high numerical apertures, offering superb image flatness, contrast and cost performance.
CFI TU Plan Fluor EPI P objective series (for diascopic/episcopic illumination)
The CFI TU Plan Fluor EPI P series of CFI60-2 objectives produce incredibly sharp aberration-free images regardless of magnification.
Nikon CFI infinity optics utilize eco-glass which is manufactured without the use of harmful substances such as lead and arsenic.
CFI P Achromat objective series (for diascopic illumination) CFI TU Plan Fluor EPI P objective series (for episcopic illumination)
Diascopic/Episcopic illumination type
Both diascopic and episcopic polarizing observations are possible by utilizing the LV-UEPI-N Universal Epi-illuminator. It is possible to switch between illumination techniques of the LV100N POL LED with a simple action. Furthermore, the epi-illuminator uses a bright, long-lasting LED light source equipped with a noise-terminator mechanism to provide sharp images with high S/N ratios.
With an optional universal-type nosepiece and DIC accessories such as objectives, episcopic differential interference contrast (DIC) microscopy is also possible.
Digital Camera for Microscopes
The DS-Fi3 and Digital Sight 10 cameras are capable of acquisition, processing, measurement, analysis, data management and report creation via NIS-Elements software when connected directly to a PC.
DS-Fi3 Microscope Camera (C-mount)
Equipped with a 5.9-megapixel CMOS sensor, the DS-Fi3 enables fast 15 fps acquisition of high-definition imagery up to 2880 x 2048 pixels with superior color reproduction for vivid polarized images. It also provides smooth live image movement and high sensitivity imaging in weak-light polarization samples.
Digital Sight 10 Microscope Camera (F-mount)
A high-resolution camera for both color and monochromatic image capture up to 6000 x 3984 pixels. This enables the capture of images over a wide area in one shot. Tiled images can be stitched together making a single and large combined image.
| ECLIPSE LV100N POL LED | |
|---|---|
| Optical system | CFI60 infinity |
| Illumination | High color rendering LED; 12V-24W power supply built-in;
Diascopic/episcopic illumination changeover switch; Fly-eye lens; NCB11, ND8 filters built-in |
| Focusing | Coaxial coarse/fine focus knob; Focus stroke: 30mm; Coarse: 14mm per rotation; Fine: 0.1mm; Minimum reading: in 1µm increments |
| Eyepiece |
CFI 10X (22), CFI 10X CM (22), CFI 12.5X (16), CFI 15X (14.5) |
| Eyepiece tube | P-TT3 Trinocular Tube for polarizing microscopy; P-TB2 Binocular Tube for polarizing microscopy |
| Intermediate tube |
Built-in focusable Bertrand lens removable from optical path; Conoscopic/Orthoscopic observations switchable; Analyzer built-in; Accessory plate/compensator slot |
| Analyzer | 360° rotary dial; Minimum reading angle 0.1° |
| Nosepiece | Centering quintuple nosepiece (detachable); DIN slot |
| Stage | Top-grade dedicated circular graduated stage Rotatable 360° horizontally; can be fixed at a specific position; Graduated 360° (in 1° increments); Click stops each 45°; Attachable mechanical stage: 35 x 25 mm travel; vernier 0.1mm |
| Condenser | Dedicated strain-free swing-out type; P Achromat N.A. 0.9 |
| Polarizer |
Fixed to the bottom of the condenser holder; with scale markings |
| Objectives | CFI Achromat P 4X, P 10X, LWD P 20X, P 40X, P 100X Oil CFI LU Plan Fluor EPI P 5X, 10X, 20X, 50X, 100X |
| Episcopic illuminator |
LV-UEPI-N Universal Epi-illuminator |
| Compensators |
P-CL Standard 1/4 λ & tint plate, quartz wedge or Senarmont compensator can be inserted into intermediate tube slot |
| Power consumption |
0.7A/58W |
| Weight | Approx. 17kg (standard trinocular set) |
