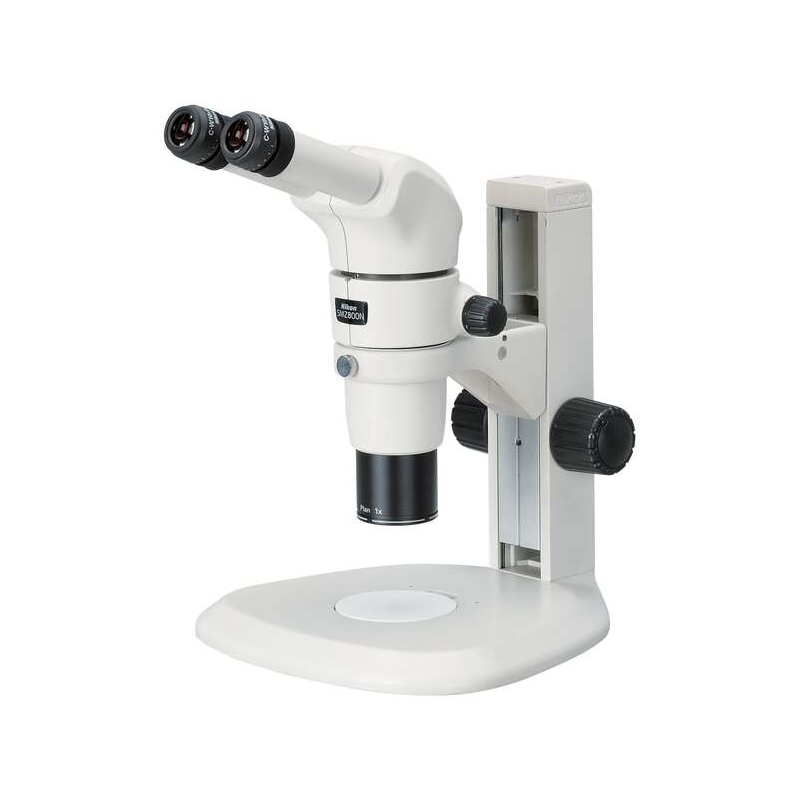

The SMZ800N offers higher magnification than conventional models, enabling high-resolution observation of minute structures. In combination with the new objective series, its improved chromatic aberration correction provides bright and sharp images through the entire viewfield.
Phone：+86-21-54286005
The SMZ800N offers higher magnification than conventional models, enabling high-resolution observation of minute structures. In combination with the new objective series, its improved chromatic aberration correction provides bright and sharp images through the entire viewfield. The parallel optics design allows ergonomic accessories and observation attachments to be used in a wide range of applications.
* SMZ800N is not for clinical diagnostic use.

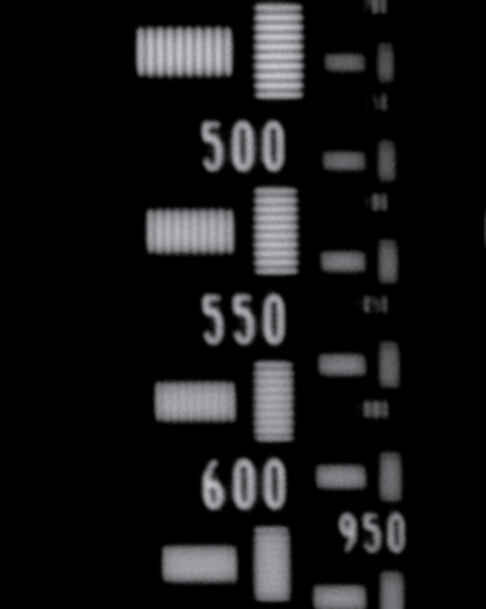

The SMZ800N comes with a wide zoom ratio of 8:1 (1 - 8x zoom range) and enables high resolution observation of 640LP/mm (using ED Plan Apo 2x/WF at maximum zoom) with its high-NA optics. Semi-Apochromat optics have been adopted for the lenses in the SMZ800N zoom body to achieve chromatic aberration correction throughout the viewfield.
SMZ800N Conventional model

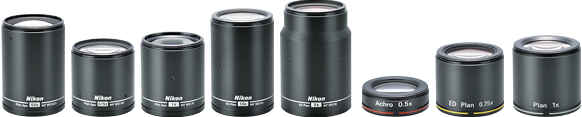

A wide selection of newly developed objectives with various magnifications and working distances are available for the SMZ800N. These include high-NA, high-resolution and wide-viewfield Plan Apo WF series objectives with superior image flatness and chromatic aberration correction. In addition, a 0.75x objective is now available, expanding the lineup of low magnification objectives.
The double nosepiece offers easy on-axis imaging, enabling observation of the bottom of holes, accurate simple measurement and extended depth-of-focus (EDF) imaging without distortion.

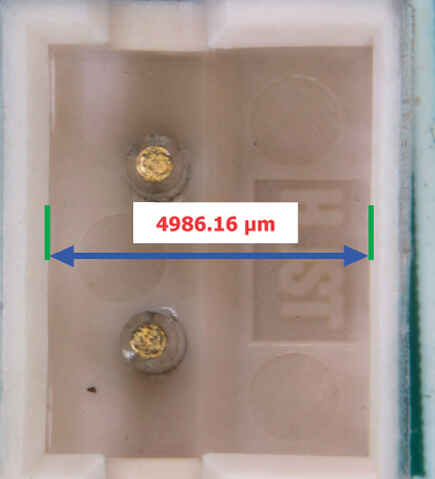

On-axis view Without nosepiece On-axis imaging

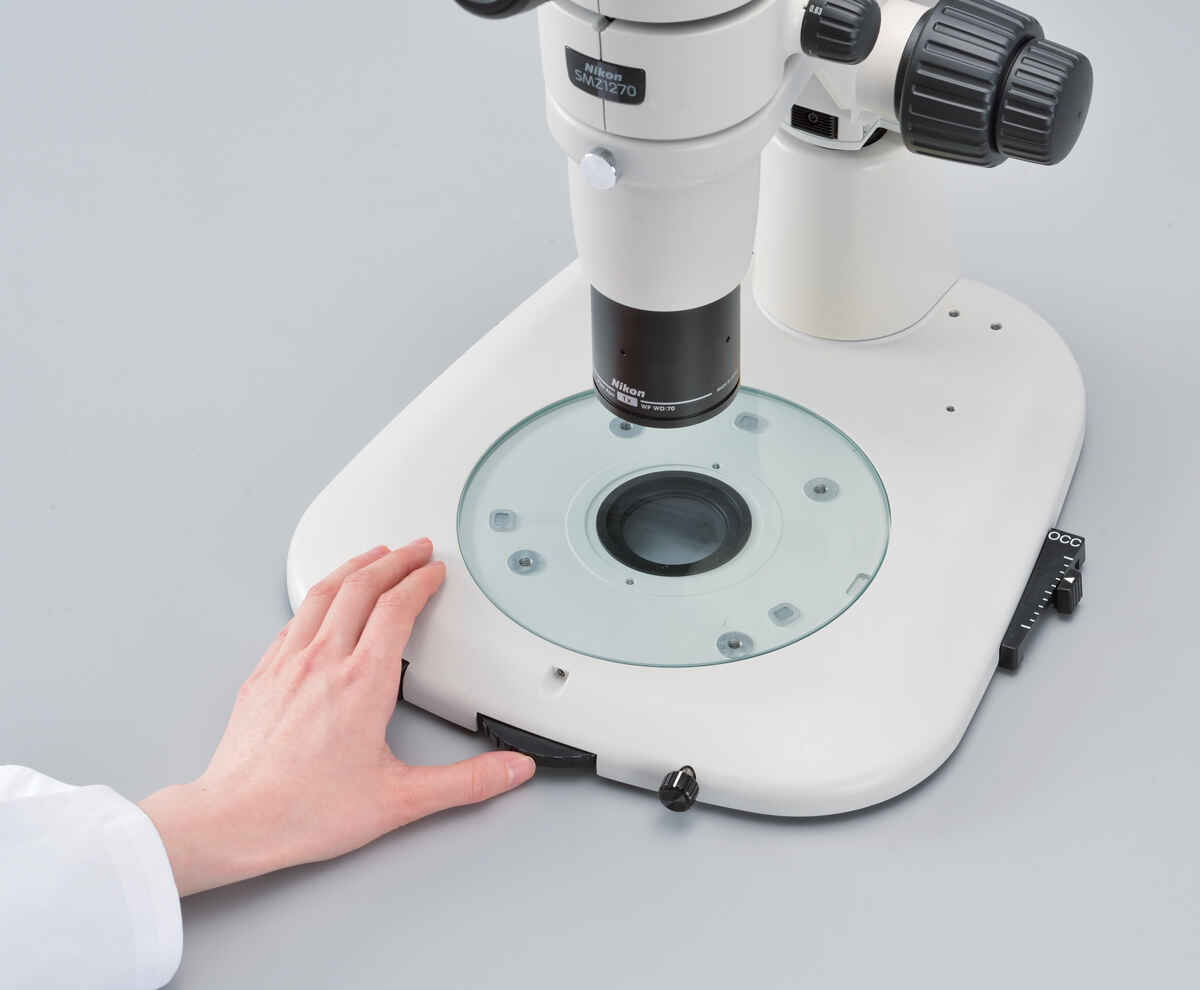

Eyepiece tubes with a range of inclination angles are available for comfortable observation. They offer the optimum eyelevel for each user. In addition, slim-type plain stands and the LED Diascopic Illumination Stand easily facilitate the presentation and removal of specimens.
With the LED Diascopic Illumination Stand and Fiber Diascopic Illumination Stand, focus control during observation is possible using the dial in front of the base.
In addition to basic optional accessories, the same high level of accessories used with superior models are also available for this model. These include trinocular tubes and slim-type LED diascopic illumination stands. These allow various microscope configurations to suit numerous routine inspections and a range of research and development applications.

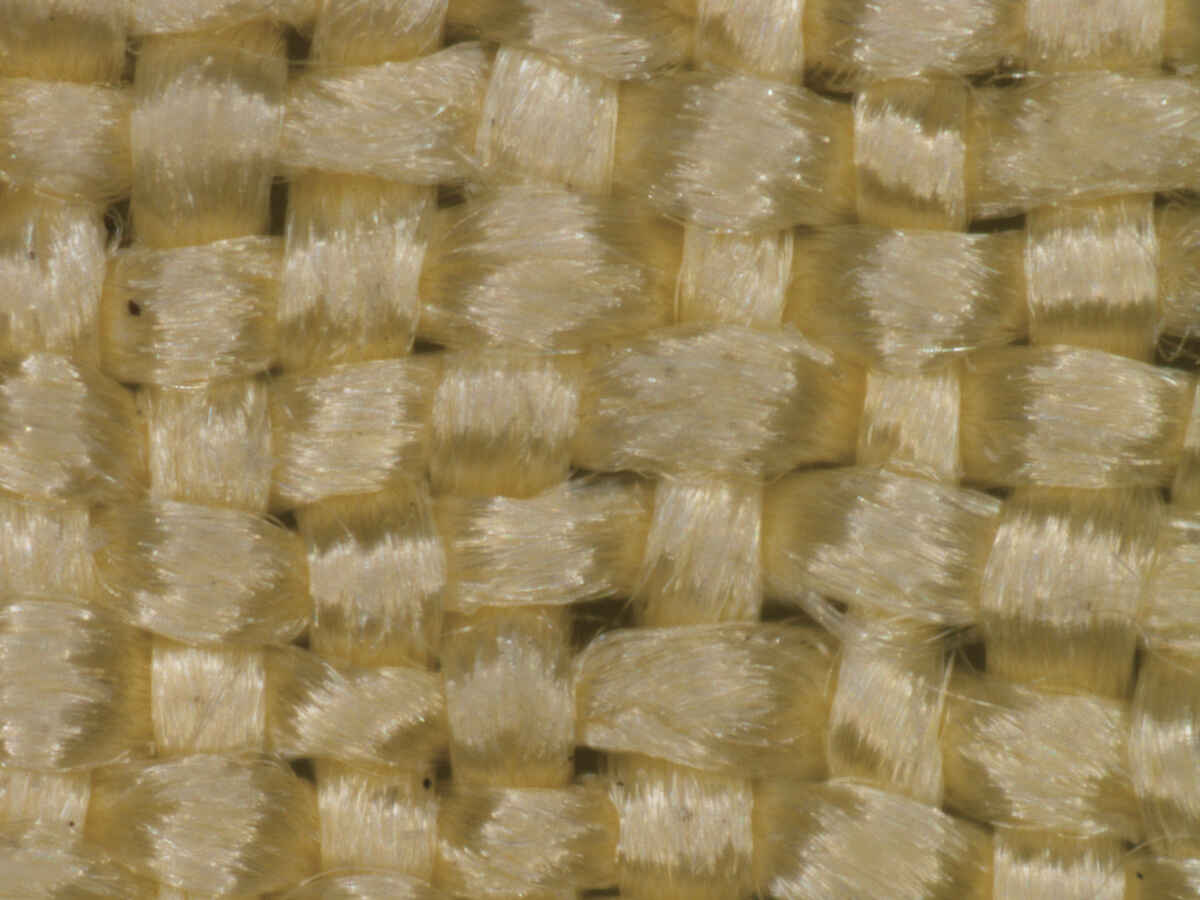

Sample: Brain of adult Drosophila expressing GFP. Sample: Fibers
Image courtesy of Hokto Kazama, Ph.D., Circuit Mechanisms of Sensory Perception, Brain Science Institute, RIKEN
OCC illumination boosts the contrast of transparent sample structures.

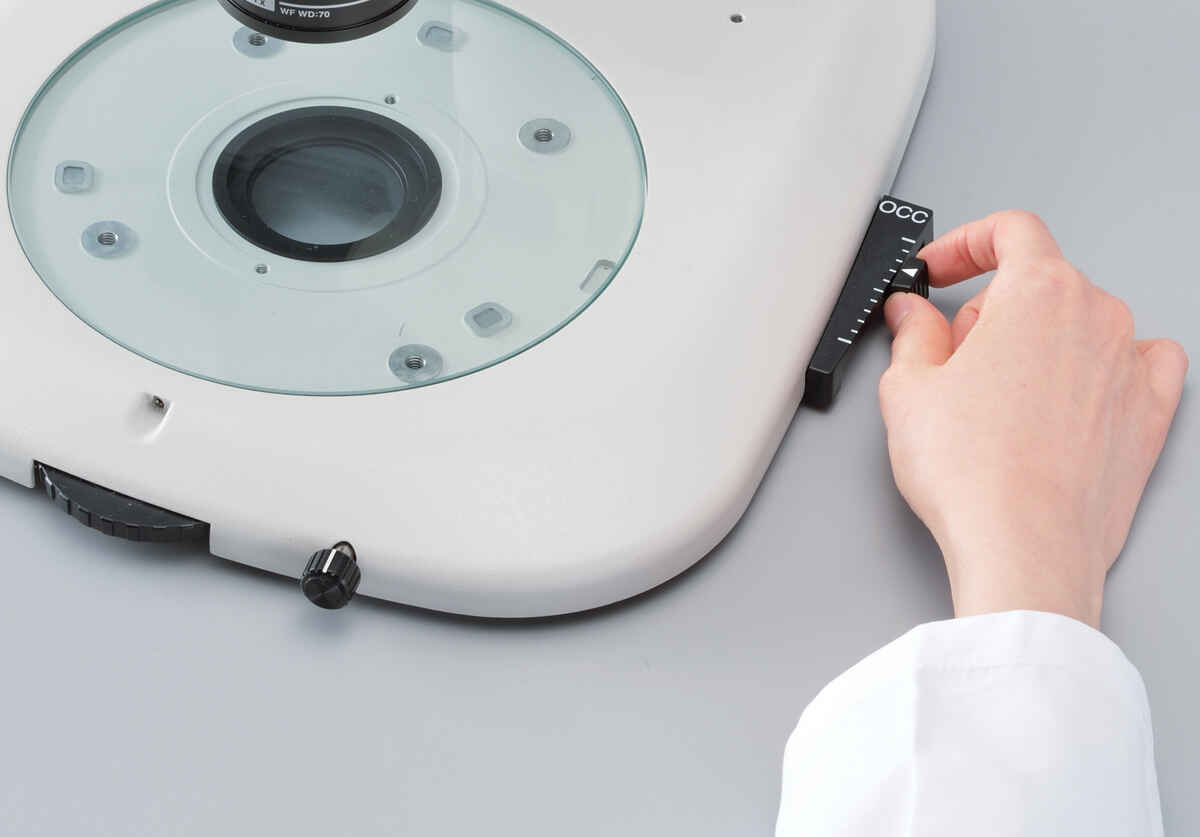

OCC illumination Diascopic brightfield illumination With the LED Diascopic Illumination Stand and Fiber Diascopic Illumination Stand, image contrast under OCC illumination can be easily adjusted.
| SMZ800N | |
|---|---|
| Optical system | Parallel-optics type (zooming type) |
| Zoom ratio | 8:1 |
| Zoom range | 1 - 8x (1/2/3/4/6/8x stops) |
| Total magnification | 5 - 480x (depending on eyepiece and objectives) (coaxial episcopic illuminator: 22.5 - 540x) |
| Tubes | Eyepiece inclination: 20° (P-B Binocular Tube) / 15° (P-TL100 Trinocular Tube) / 0°-30° (P-TERG100 Trinocular Tilting Tube, P-TERG50 Trinocular Tilting Tube) |
| Eyepieces | C-W10xB (F.N. 22), C-W15x (F.N. 16), C-W20x (F.N. 12.5), C-W30x (F.N. 7) |
| Objectives | Plan Apo 0.5x/WF, Plan Apo 0.75x/WF, Plan Apo 1x/WF, ED Plan 1.5x/WF, ED Plan 2x/WF, Plan 1x, ED Plan 0.75x, Achro 0.5x |
| Working distance | 78mm (with Plan 1x) |
| Weight (approx.) | 6.8 kg (with P-B Binocular Tube +C-PSN Plain Stand) |
