Featuring a zoom magnification of 7.5X and a long working distance of 115mm, Nikon SMZ745 microscopes are well suited for both industrial and biomedical applications. The adoption of a new total reflection prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high.
Phone：+86-21-54286005
SMZ745/SMZ745T_Brochure

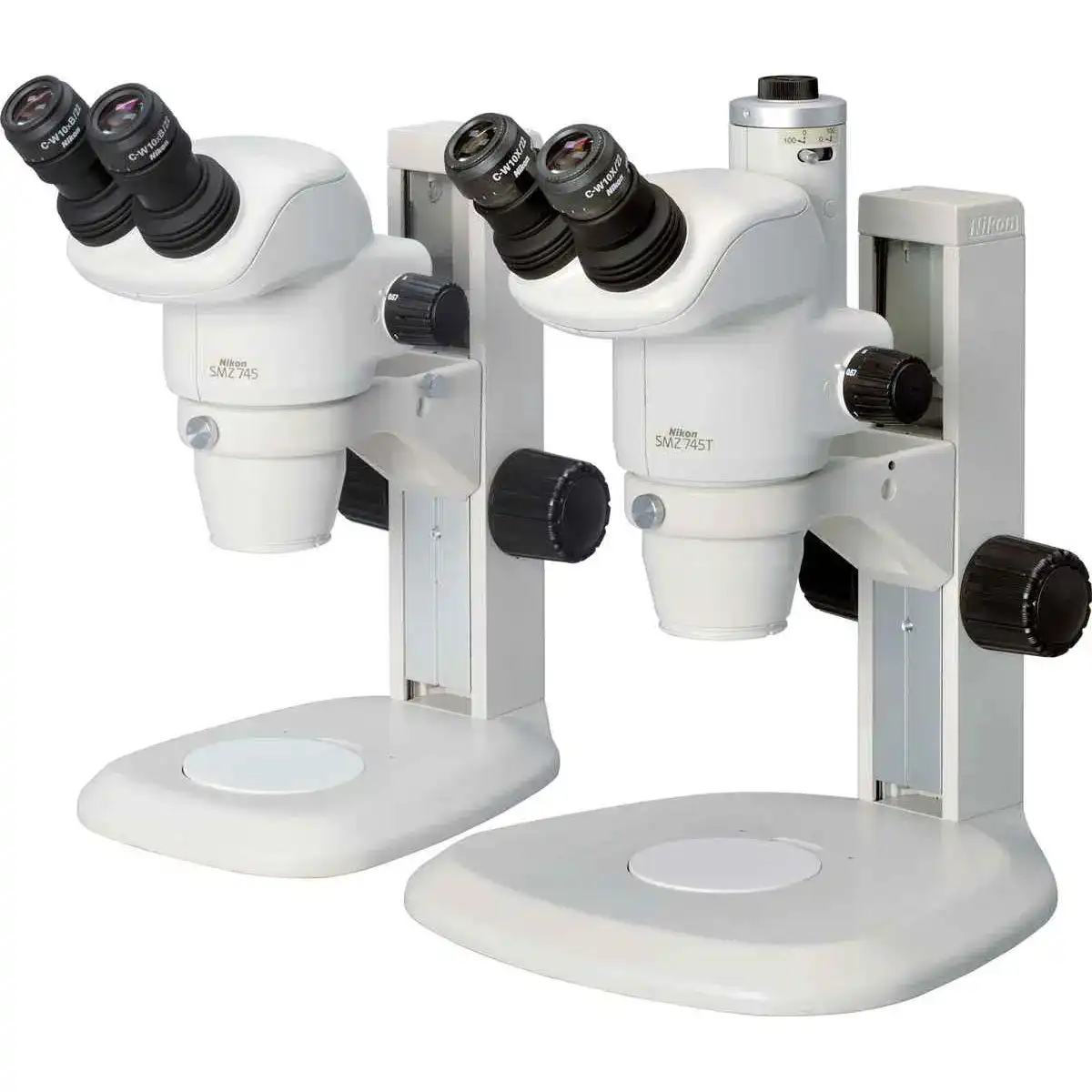

Featuring a zoom magnification of 7.5X and a long working distance of 115mm, Nikon SMZ745 microscopes are well suited for both industrial and biomedical applications. The adoption of a new total reflection prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high. The SMZ745T trinocular model comes equipped with a microscope camera port and a built-in 0.55x c-mount adapter, permitting direct mounting of Nikon DS Series Digital Cameras.
The SMZ745/SMZ745T boasts a 7.5x zoom that incorporates a Greenough optical system. The zoom range of 0.67x to 5x provides a broad observation range.
In addition to high zoom ratio and magnification, the SMZ745/745T offers a long 115mm working distance.

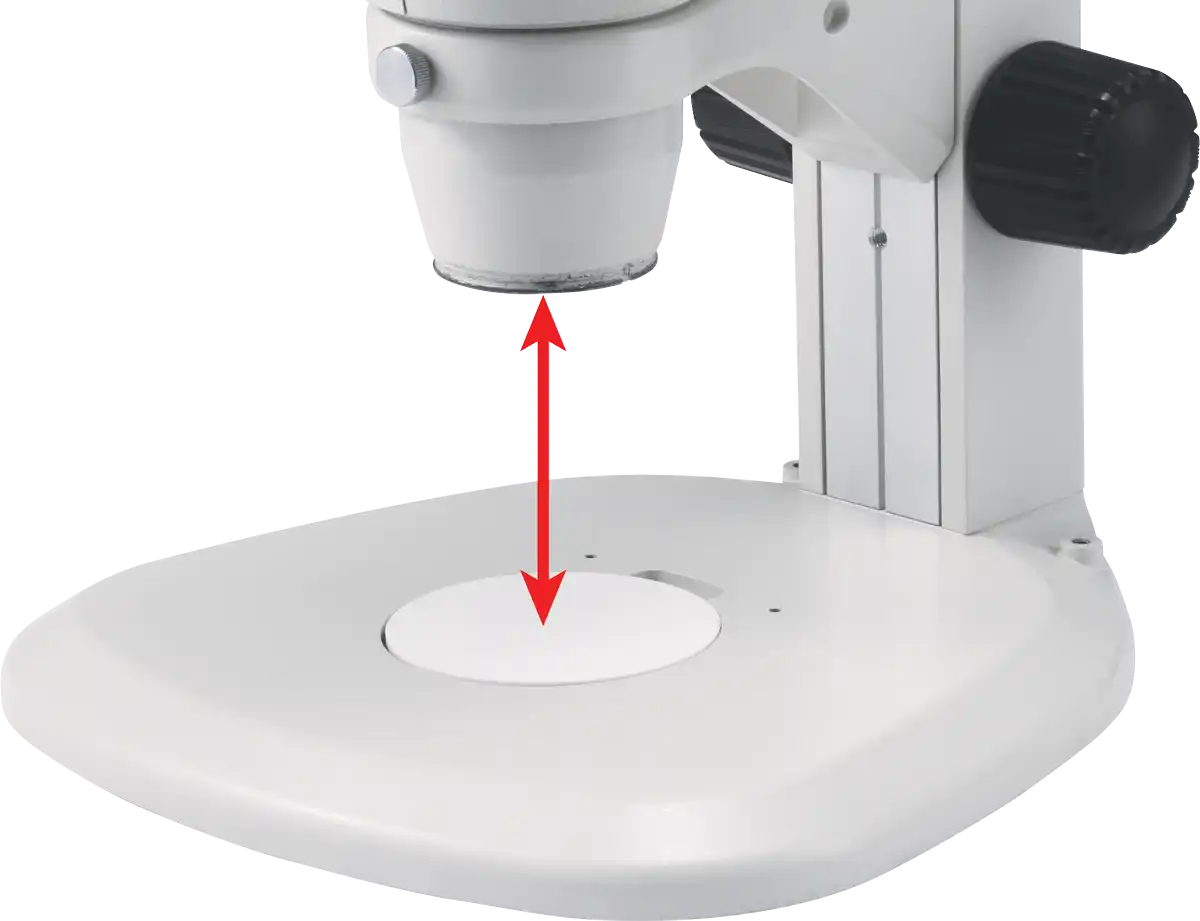

115mm working distance

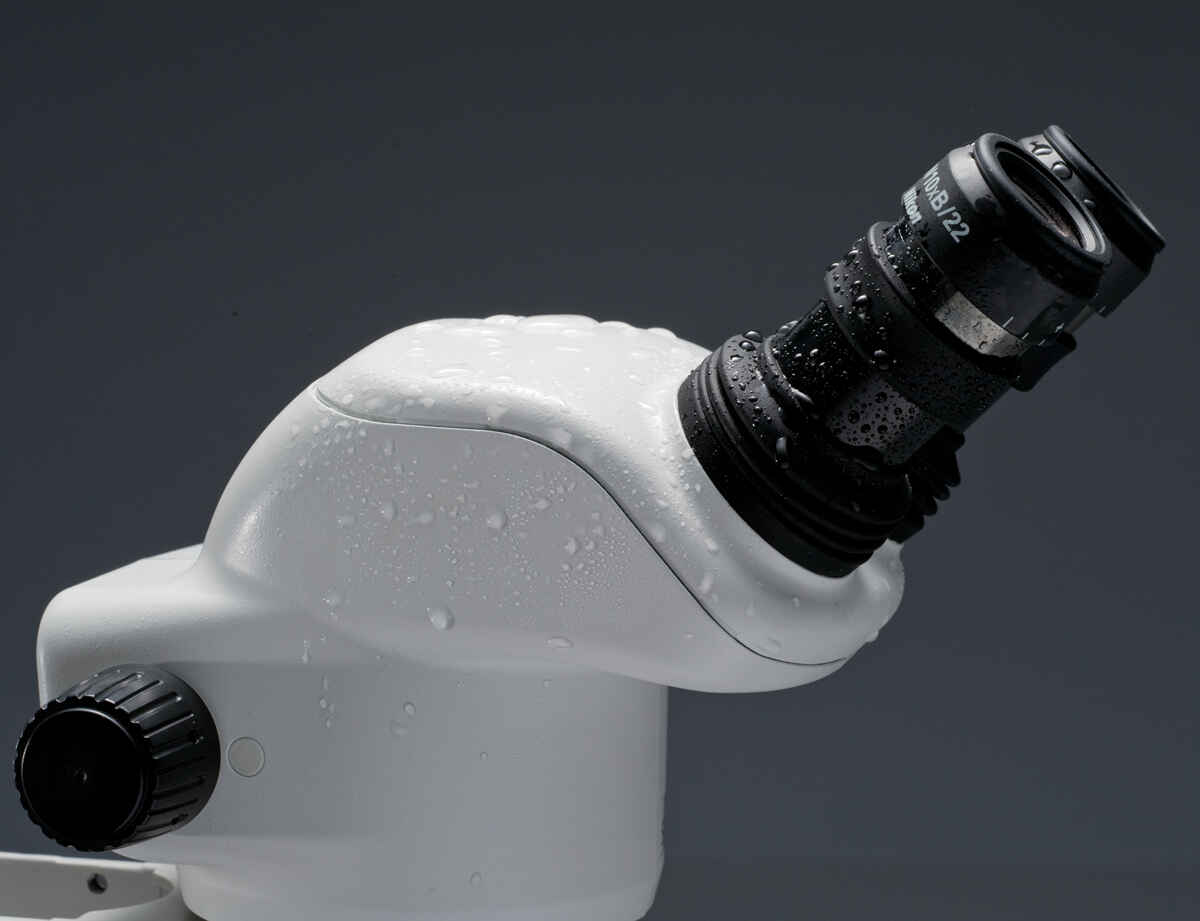

By making joints airtight, contamination from dust, oil, water and other contaminants is prevented.
Airtight construction: JIS Degrees of protection provided by enclosures IPX1
Anti-fungal design developed exclusively by Nikon ensures peace of mind when the microscope is used in environments subject to high heat or humidity.
Static electricity built up within the microscope is discharged

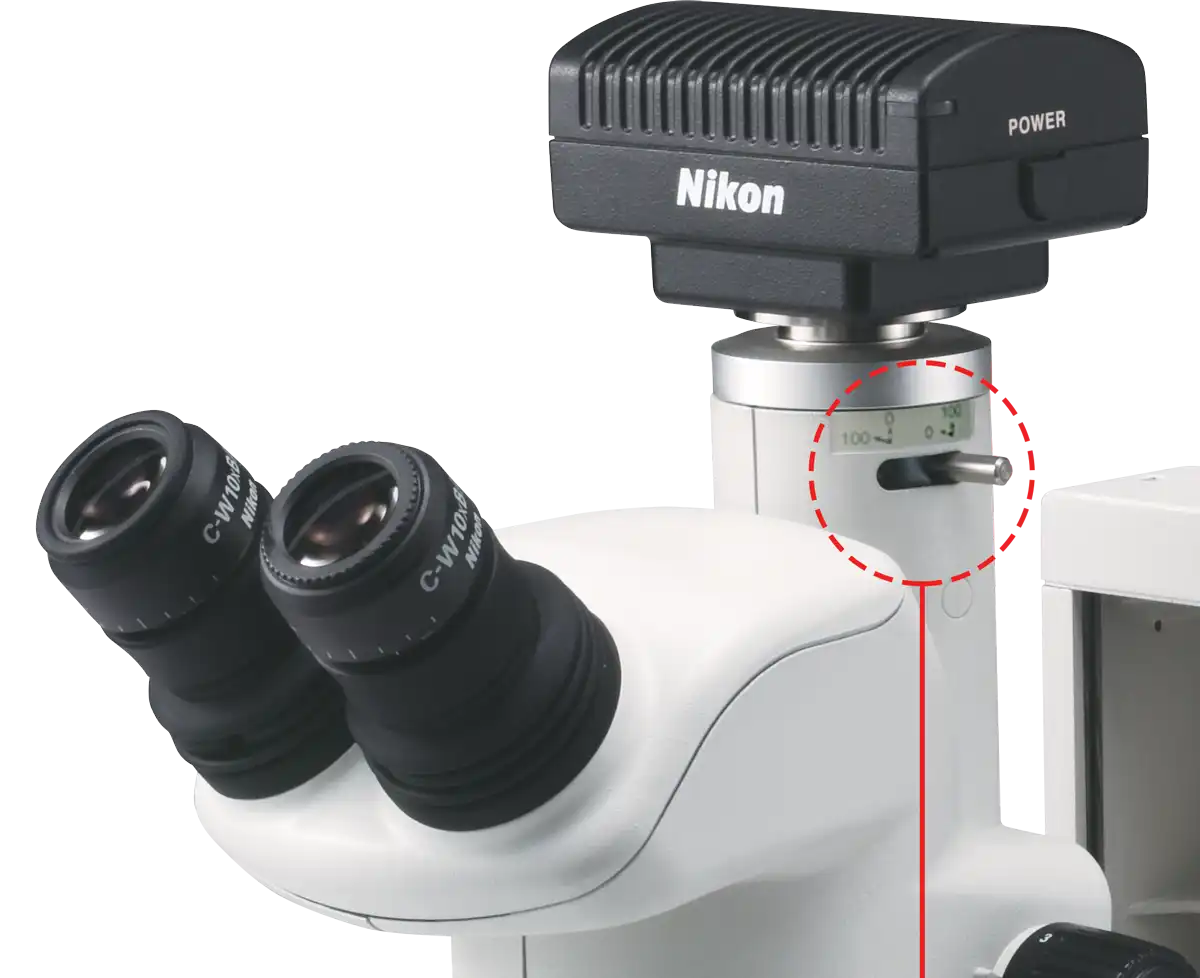

A Nikon Digital Sight Series Camera can be attached.
Optical path switching lever
| SMZ745/SMZ745T | |
|---|---|
| Optical system | Greenough optical system |
| Total magnification | 3.35-300x (depending on eyepiece and auxiliary objective used) |
| Vertical tube (SMZ745T) | Built-in C-mount 0.55x magnification lens (F.N. 11), compatible with 2/3 in. or smaller CCD |
| Eyepiece tube | Fixed type |
| Eyepiece inclination | 45 ° |
| Interpupillary distance adjustment | 52-75 mm |
| Eyepieces (with diopter adjustment) | C-W 10xB (F.N. 22), C-W 15x (F.N. 16), C-W 20x (F.N. 12.5), C-W 30x (F.N. 7) |
| Zoom range | 0.67-5x |
| Zoom ratio | 7.5 : 1 |
| Auxiliary objectives | G-AL 0.5x (W.D. 211 mm), G-AL 0.7x (W.D. 150 mm), G-AL 1.5x (W.D. 61 mm), G-AL 2x (W.D. 43.5 mm) |
| Working distance | 115 mm (standard) |
| Weight | 1.6 kg (SMZ745) 1.8 kg (SMZ745T) |
