AOHUA AQ-200 Video Endoscope Processor

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

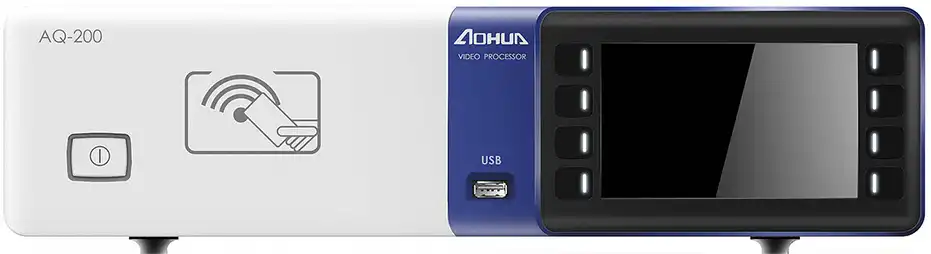

AOHUA AQ-200

Video Endoscope Processor

AQ-200

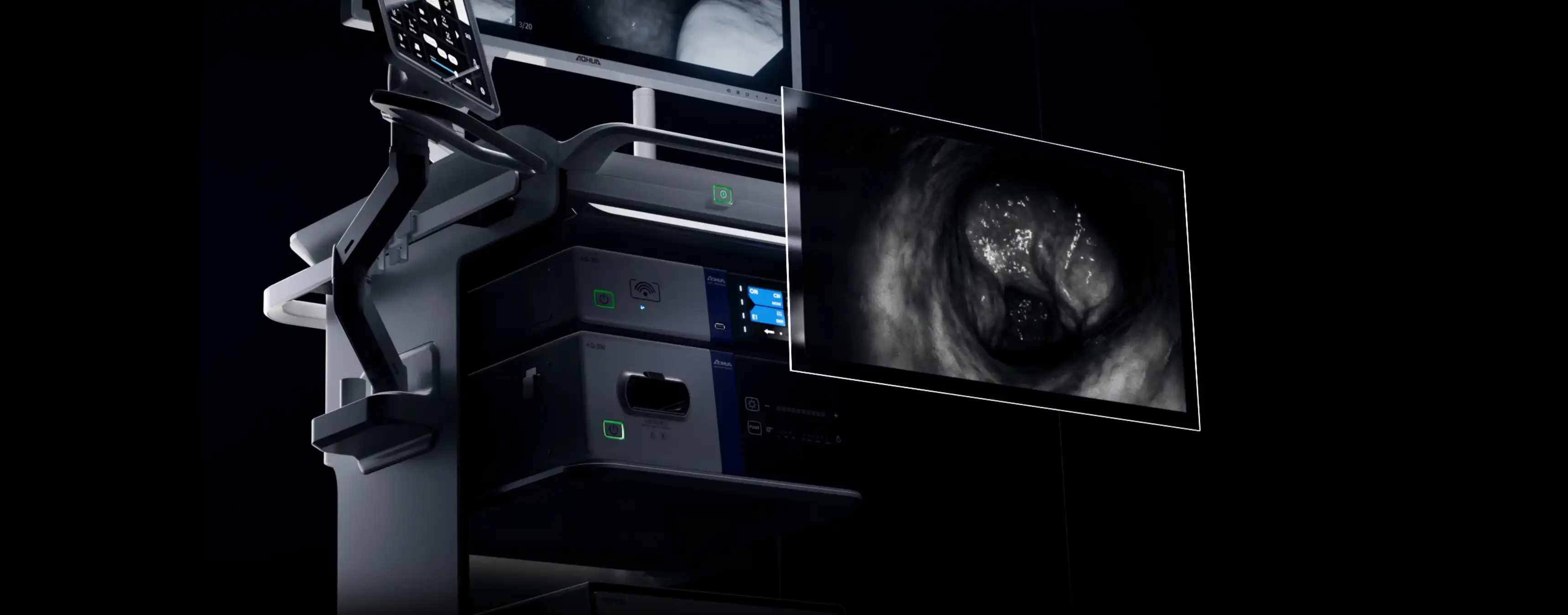

Million Pixels

A million-level high-pixel image sensor presents high-resolution endoscopic images

聚焦高画质视界

Efficient Platform

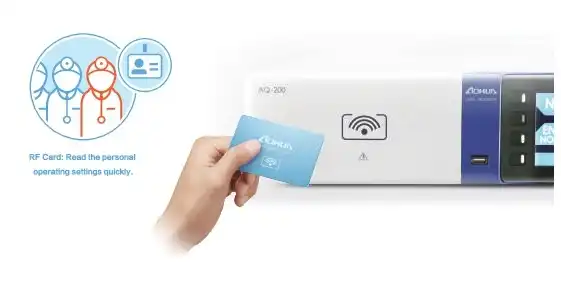

RFID Recognition

One-touch card swipe for quick personal mode retrieval
Support personalized settings for multiple functions

Dual Image Display

No need to switch back and forth between two image modes
Support synchronous viewing of CBI and white light images

Assistive Expansion

Real-time assistive diagnosis during the surgical process
An indispensable assistant for digestive doctors

USB Storage

Real-time storage of high-pixel images and videos
Convenient for clinical material collection and backup

RFID Recognition

Host	Product name	Endoscope image processor
Power supply	Rated voltage	220V
	Rated frequency	50Hz
	Input power	60VA
Dimensions	Size (width * high *depth)	420390115 mm
Dimensions	Weight	8.54 kg
Protection	Electric shock protection class	Class I
	Electric shock protection class	Type BF
	Explosion-proof grade	It cannot be used in the presence of flammable anesthetic gas mixed with air or flammable anesthetic gas mixed with oxygen or nitrous oxide.
Observation	Color gamut	Observation color gamut: NTSCX PAL
	HDMI	SDI2, DVI2; Output video resolution > 1920* 1080P
	Standard definition output signal	VIDEO*2, Y/C, component output (RGB/YPbPr, SYNC) etc.
	USB interface	With USB*3, it can store videos and images through external USB storage device
	Video signal input	It supports Picture-in-Picture video input. There are OFF, CVBS and Y/C options for video input interface. External video can be connected and displayed in Picture-in-Picture.
	Fiber optic transmission of laser	Video signals are transmitted through optical fiber with faster speed, stronger interference resistance, and more stable image and video transmission.
	White balance adjustment	White balance by one touch can correct the color of the endoscopic image. The white balance information can be stored in the endoscope which has information memory function,without frequent operation;
	Tone/hue adjustment	R\B\C:150-step adjustment; Image color can be set and customized. Red, blue and saturation components can be selected for adjustment. After setting, the user mode can be stored. When using, the custom mode can be accessed by one touch;
	Automatic gain AGC	When the front end of the endoscope is too far from the mucosa and the brightness is insufficient, the endoscopic image can be enhanced electronically;
	Contrast	enhanced electronically; The contrast of endoscopic images can be adjusted; contrast can be adjusted to high, medium and low levels;
	Noise reduction	In the process of image processing, noisy points can be automatically corrected
	Photometry mode	There are three photometry modes: peak value automatic measuring, mean value automatic measuring and full automatic measuring; Peak value measuring: adjust according to the brightest part of the image; Mean value measuring: adjust according to the mean brightness of the image; Full automatic measuring: automatically set the optical aperture to adjust the overall brightness of the image.
	Structure highlighting	Structure highlighting: it has the highlighting On/Off feature. When highlighting is enabled, it has three adjustment stages of S1, S2 and S3. Each stage has 8 adjustment levels, and there are 24 levels in total. Structure highlighting: it can highlight the structure of endoscopic images.
	Color/Hemoglobin highlighting	HBE blood highlighting: it can highlight the morphology of mucosal capillaries and enhance the display of vascular tissue. It can highlight protoheme in blood, and enhance the display of blood vessels and blood-rich tissues.
	Digital zoom	It has digital zoom function, which can digitally zoom and view the abnormal mucosa. There are 4 adjustment levels; 1x, 1.2x, 1.5x and 2x;
	Pre-freeze	The image processor can select the clearest one in the images before freezing for display and storage;
	Image playback and processing	It supports image playback, and perform image processing on the playback image such as enhancement, HBE and zoom;
	Optical observation mode	CBI narrow-band imaging: it has optical staining observation mode; CBI regular (CBI-R) regular mode, CBI indigo (CBI-D) indigo carmine mode, CBI Aqua (CBI-Q) lake green mode
	Image display adjustment	The endoscopic image on the display can be adjusted by itself at 16:9, 5:4 or other different ratios. Selection
	User/custom mode settings	RFID RF card swiping mode: support user-defined mode, with no less than 5 modes; The configuration information of the image processor is written in the RF card. Color customization information, enhancement type and enhancement level information, video output format, and picture-in-picture mode switching.
	Dual screen display	Dual screen display/dual screen display function, supporting simultaneous output of white light image and optical staining image. Different modes such as large white light image or large staining image can be selected for the image size;
	Picture-in-picture	Picture-in-picture feature is available for selection;
Information display	Information display query	The display supports the display of endoscope model, serial number, for cep channel, staining mode, photometry mode and other information, and the product information is visually displayed.
	Patient data	The display can input the patient ID, name, gender,age and remarks through the keyboard.
	Display image information	The display can display the endoscope model, serial number, staining mode, highlighting level, photometry mode and other main information.
	Updates	Without being sent back to the manufacturer, the system can bе directly upgraded through the USB interface by one touch, to obtain the latest optimized image processing functions.
Storage	Image freezing	Without being sent back to the manufacturer, the system can bе directly upgraded through the USB interface by one touch,to obtain the latest optimized image processing functions.
	Video recording	Video recording feature is available. It can connect a storage device through USB. It is easy to operate and videos can be recorded and stored at any time. External memories such as hard disk, U disk are supported;
	Storage mode	Images are stored in JPEG, with original output (1/1) supported, and lossless compression formats such as MP4 are supported for videos;
Memory storage	User setting	The user card is configured as standard, and the entered information is stored in the user's RF card;
Memory storage	Setting saved	After the image processor is turned off, the color mode, photometry mode, enhancement mode, etc. are automatically saved, and the latest user information is defaulted on the next boot.
Other	High frequency equipment	It can be used with high-frequency electric burning, YAG and semiconductor laser
