中文AOHUA VME-2300 Video Endoscope Processor

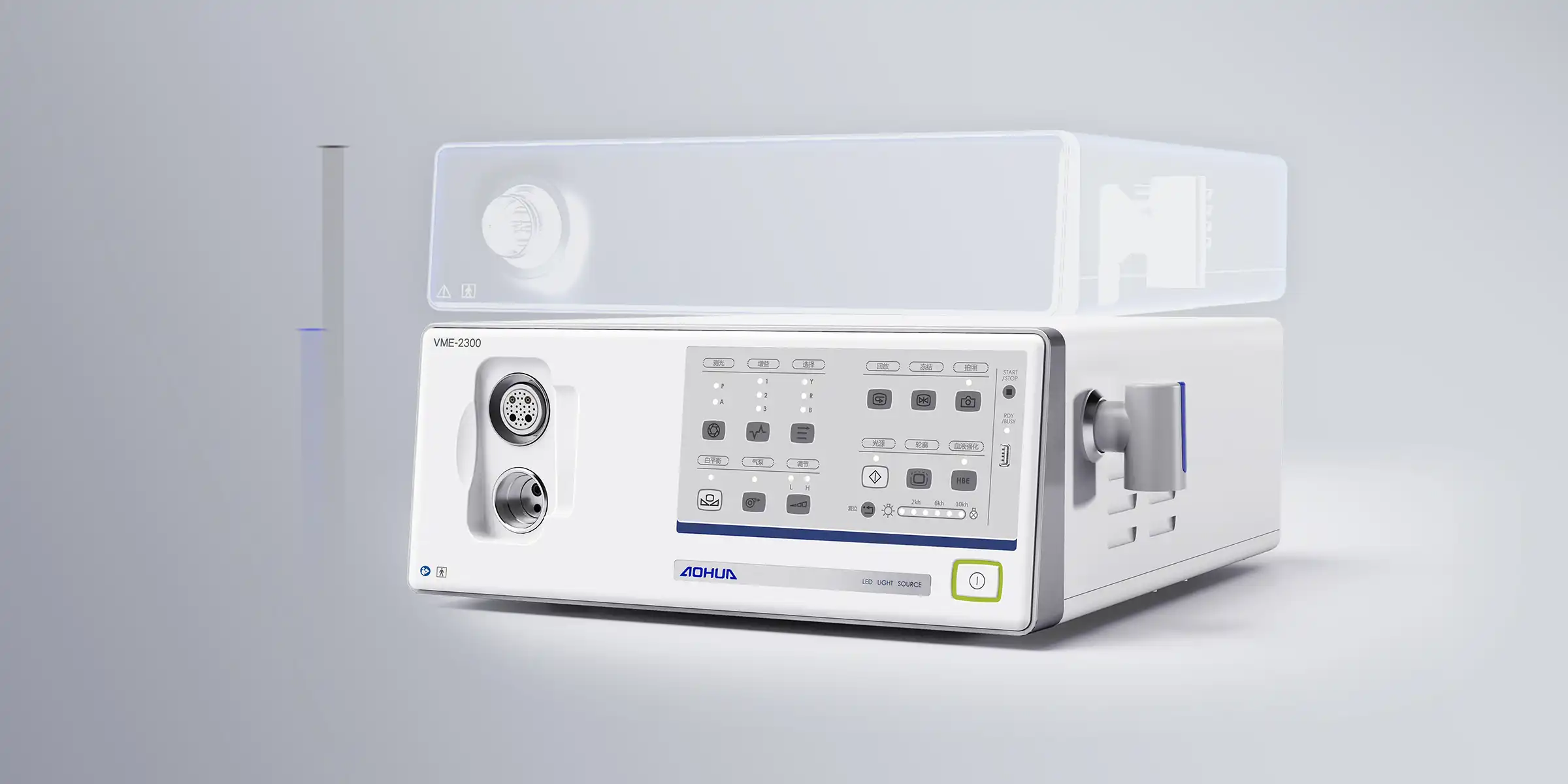

AOHUA VME-2300 Video Endoscope Processor
Phone：+86-21-54286005
AOHUA VME-2300
Video Endoscope Processor
Compact Design
The processor and light source are integrated into one piece Provide a more economical choice for basic medical care
High Image Quality
Clear and sharp clinical images
Powerful Function
Edge enhancement
- Emphasize the edges and contours of the image
USB storage
- Clinical images and videos can be stored
Hemoglobin Enhancement
- High color rendering, strong contrast
- Enhance the mucosal vascular morphology
Freeze and playback
- One-click freeze function allows for easy freezing of real-time images and convenient playback.

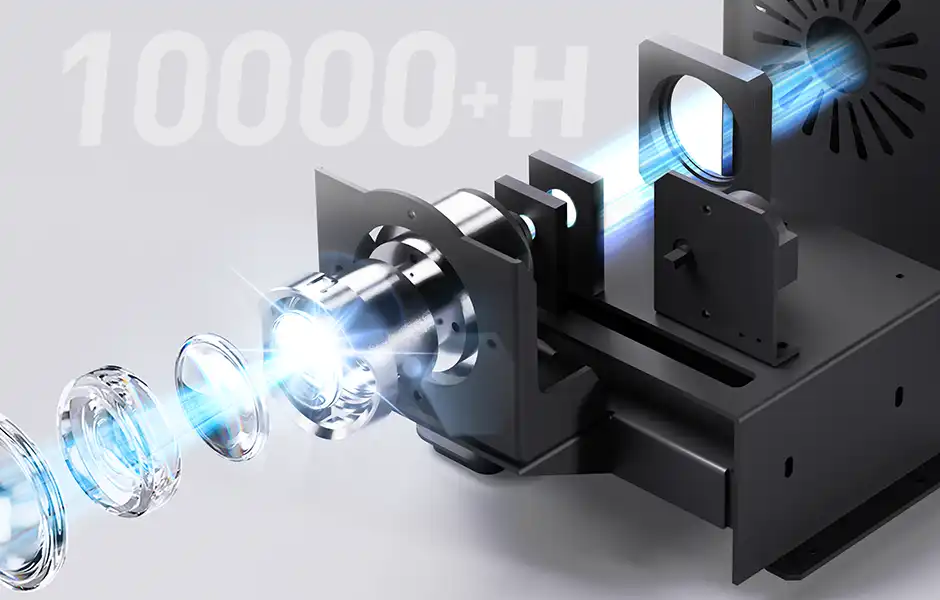

LED Light Source
High Brightness
- Meet clinical illumination requirements
Long Service Life
- Extend the service life
- The cost-effective choice
|
Observation |
Video signal outputs |
Y/C,DVI, RGB, SYNC, AV |
|
Image enhancement |
E-stressed mucosal morphology or profile, to Increase the sharpness of endoscopic images. Profile enhance |
|
|
Color tone adjustment |
“R”、“B” adjustment: ±50 steps |
|
|
Brightness adjustment |
“Y” adjustment: ±50 steps |
|
|
Freeze Save Review |
Endoscopic images can be frozen and saved, the images can be reviewed. 16 pics can be stored maximumly |
|
|
Gain control |
(OFF, 1, 2 and 3) |
|
|
Metering mode |
Average; Peak |
|
|
White balance adjustment |
Press the white balance switch, to do the white balance adjustment. |
|
|
Power |
Voltage |
~110V/220V AC（±10%） |
|
Frequency |
50Hz/60Hz |
|
|
Air pump |
Air flow |
≥5L/min |
|
Air pressure |
30-80kPa |
|
|
Lighting |
Bulb |
LED |
|
Colour temperature |
≥3200K |
