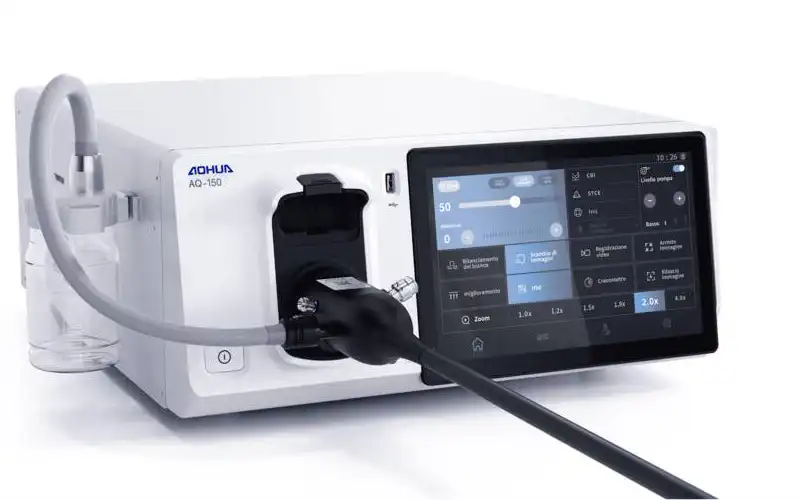

AOHUA AQ-150 Pro Video Endoscope Processor

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

AOHUA AQ-150 Pro

Video Endoscope Processor

AQ-150 pro

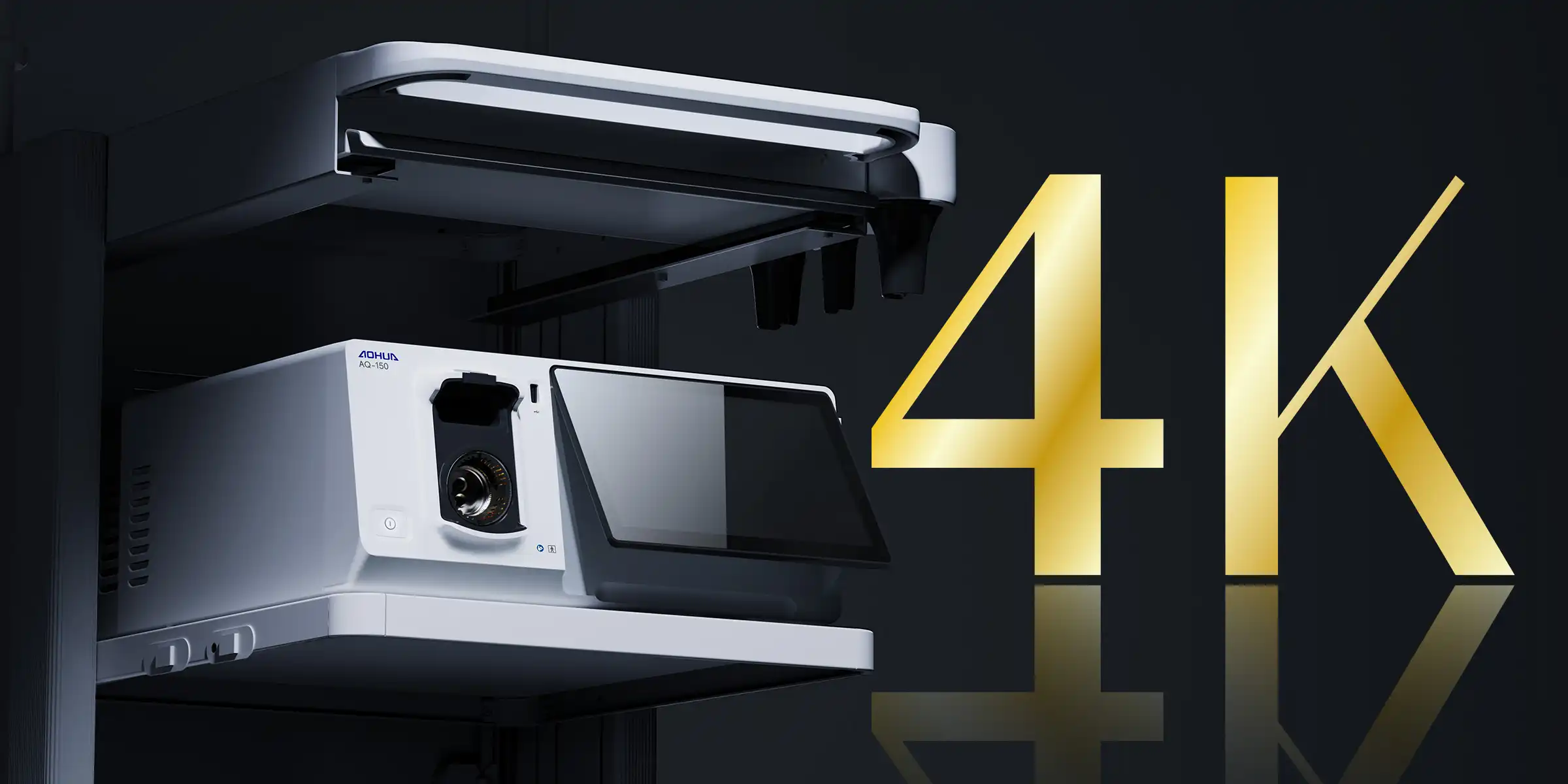

4K Images Resolution

The AQ-150 Pro features a 4K display, delivering exceptional im that reveals intricate details and showcases the system's out-standing image age quality performance.

4K画质

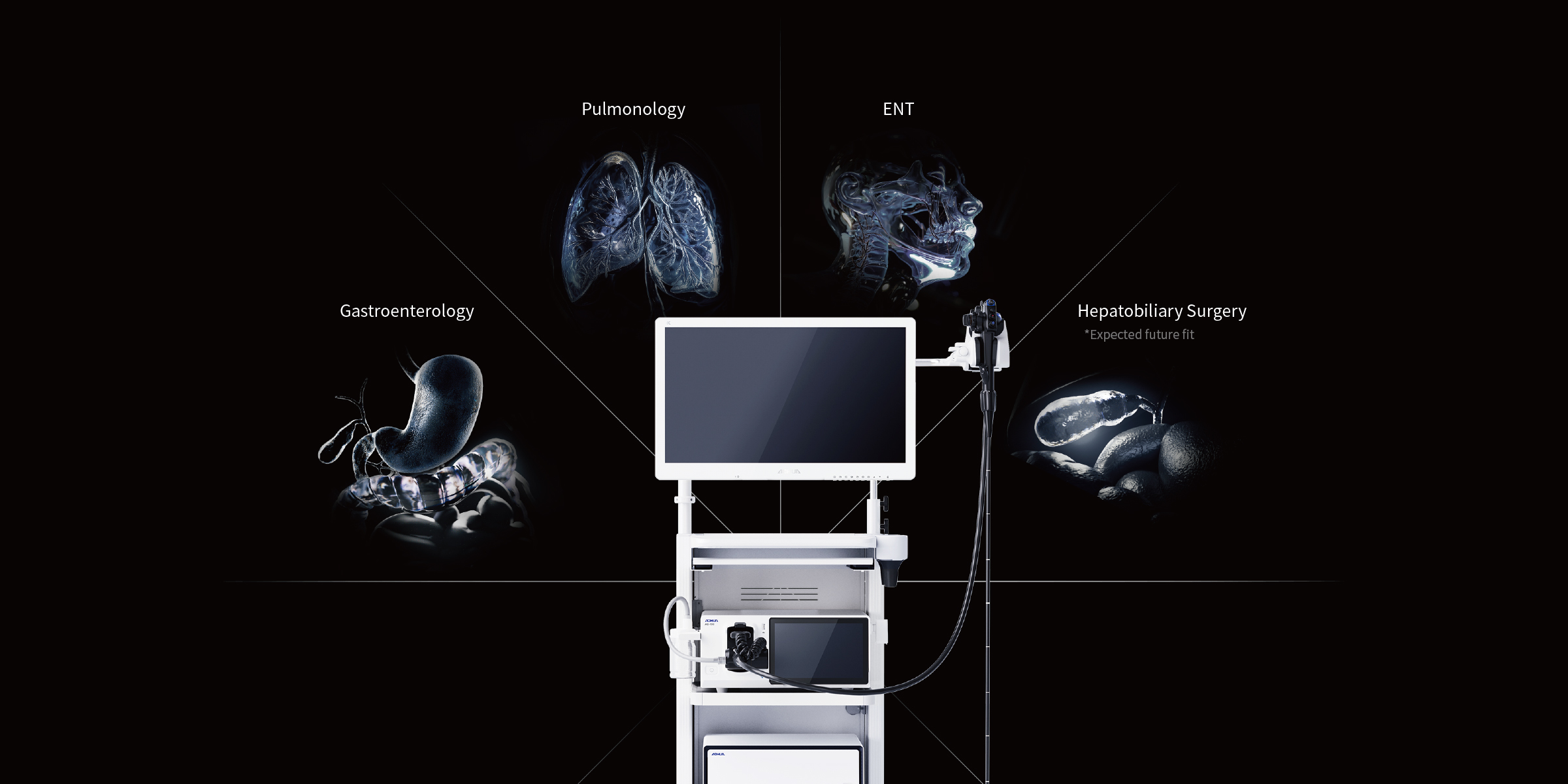

Versatile Applications

The AQ-150 caters to the diverse requirements of various departments, including gastroenterology, pulmonology, respiratory care, and ENT, supporting a wide range of applications.

Versatile Applications

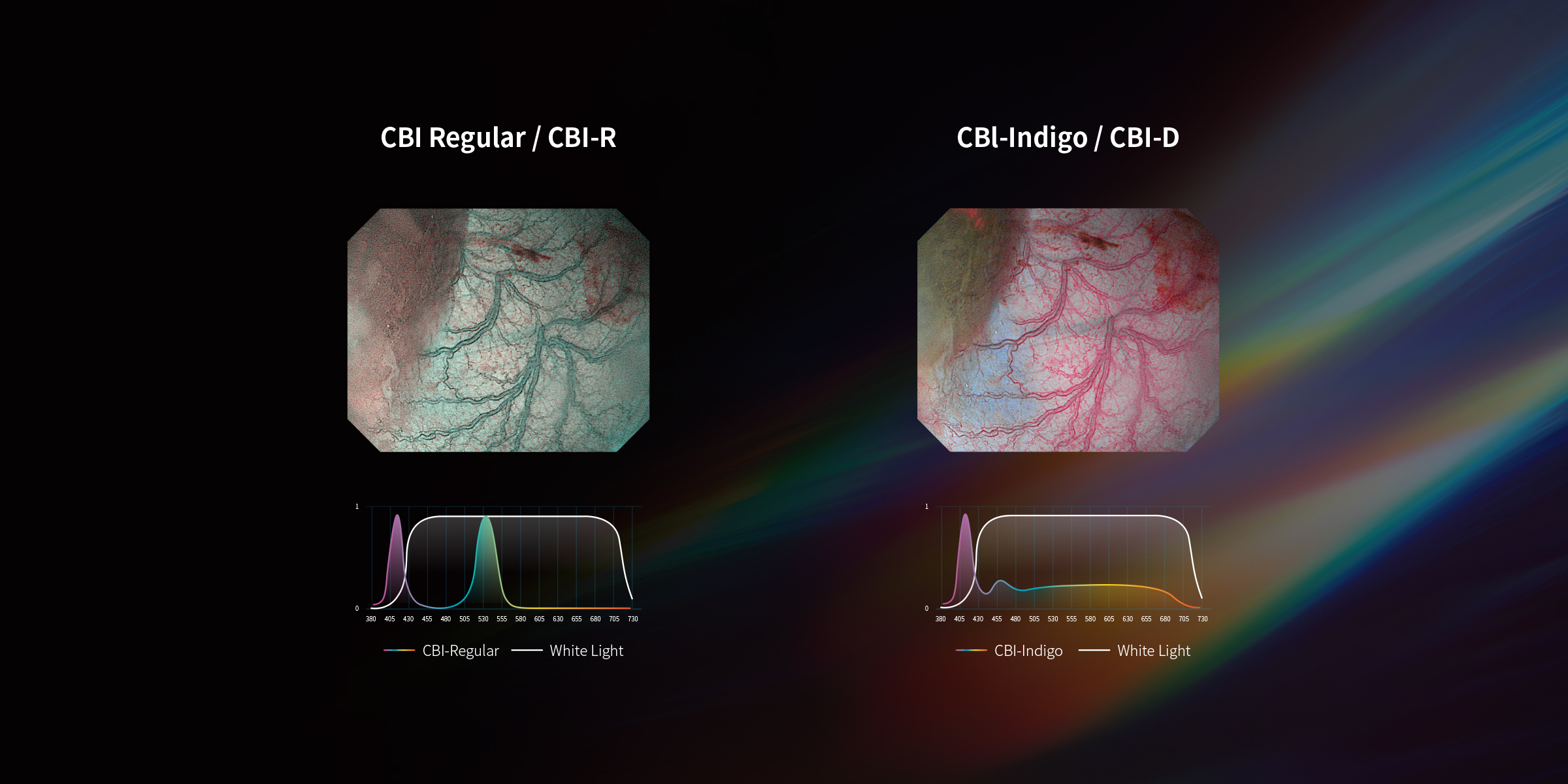

CBI Chromoendoscopy Modes

The AQ-150 features two widely utilized chromoendoscopy modes, which are made possible by the diverse combinations of its three LED light sources.

CBI Chromoendoscopy Modes

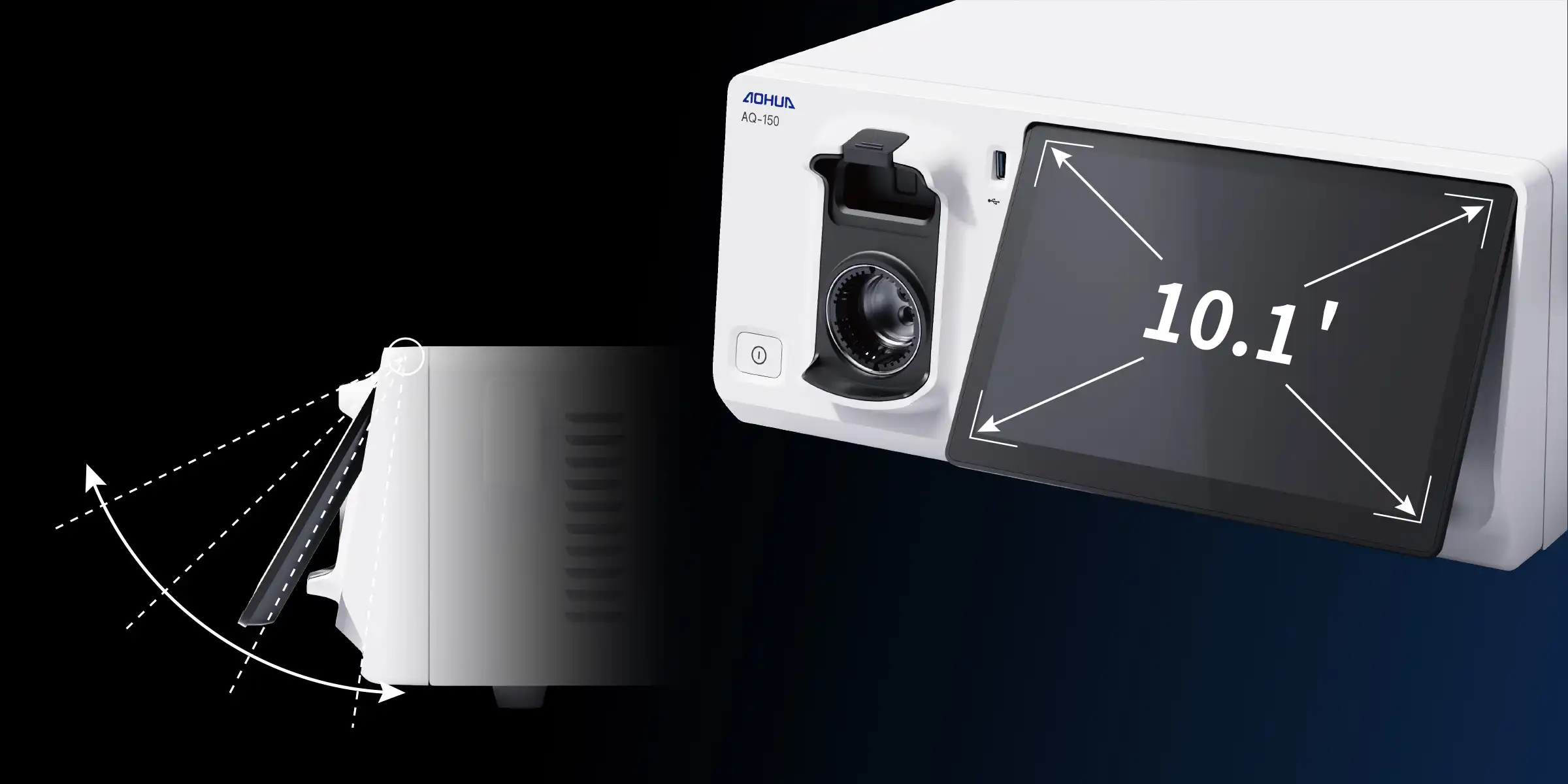

10.1-Inch Adjustable Intuitive Touch Panel

The system can be easily managed through a 10.1-inch touch screen. With its adjustable angle and customizable features, the touch screen ensures the ease, convenience, and intelligence of system control.

10.1英寸超大可触摸液晶显示屏

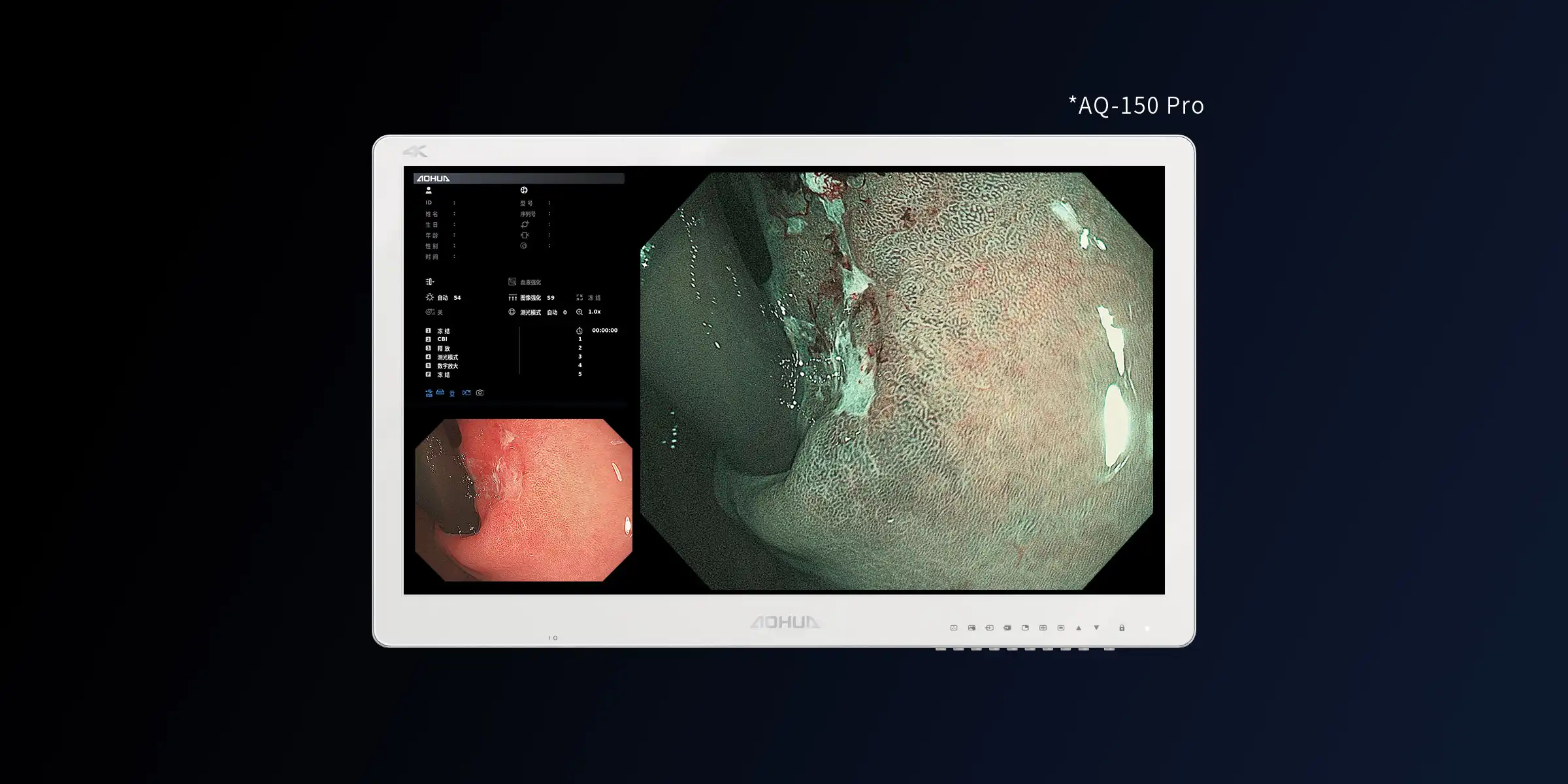

Dual Light Display

The AQ-150 pro supports synchronized display of white light and CBI modes. By viewing the same area in both modes at the same time, a more comprehensive view can be achieved.

双光显示

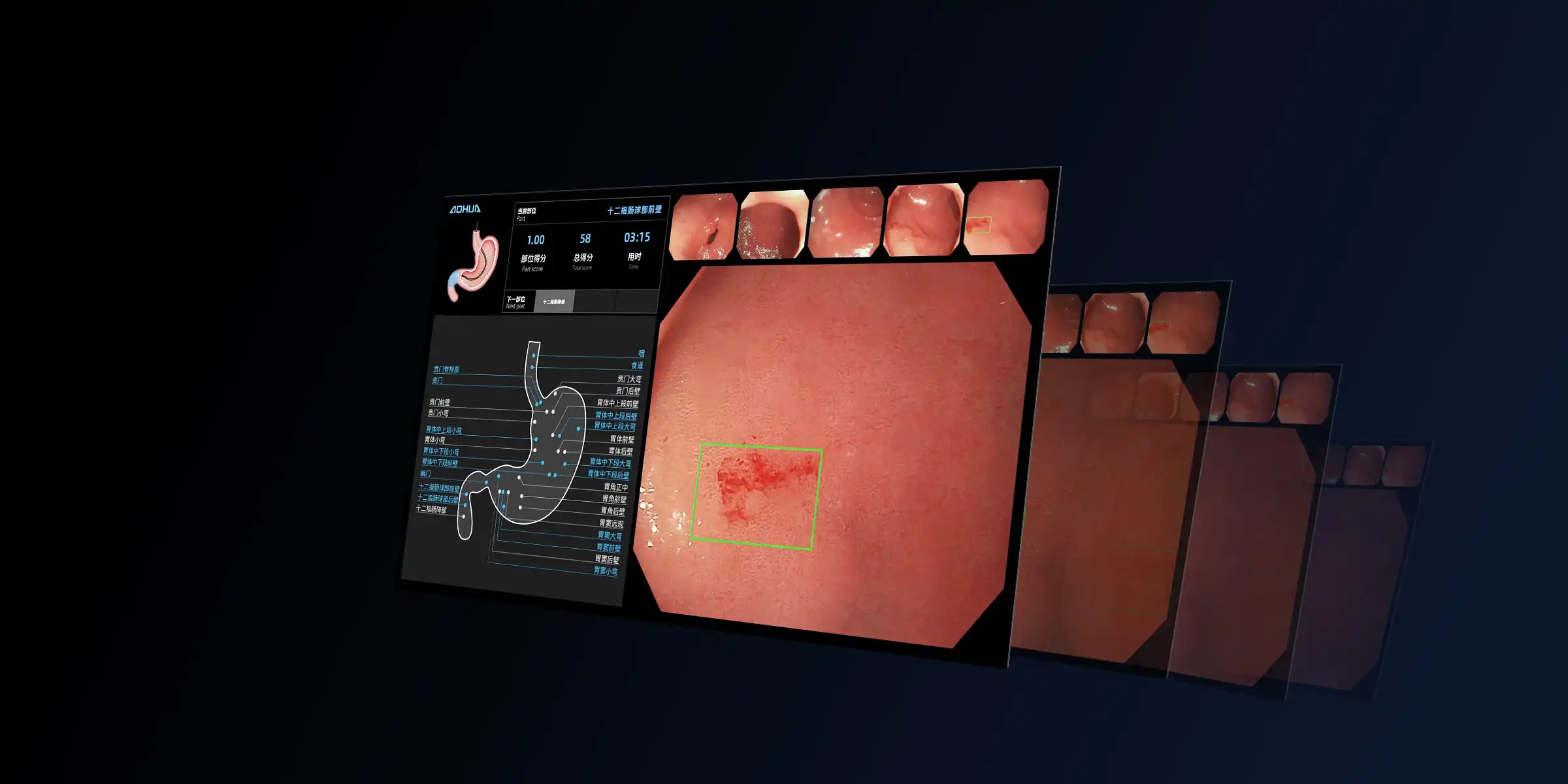

Highly scalable performance/Diagnostic aid

The AQ-150 is capable of capturing video streams generated during endoscopic surgeries in real time and processing them through computer-aided diagnostic equipment.

Diagnostic aid

Functions and Features
Illumination	3-LED Light Source
Chromoendoscopy	CBI Regular / CBI Indigo
lmage Enhancement	Structure / Edge / HBE
Brightness Adjustment	Automatic / Manual Mode
Digital Zoom	1.0x, 1.2x, 1.5x, 1.8x, 2.0x, 4.0x
Freeze and Playback	Freezes the real-time image and plays it back
IRIS	Peak / Average / Auto
Internal Storage	500G, 500 Users Profiles, 100,000+ Examination Records
External Storage	USB
User Interface	10.1-inch Customizable Touchscreen
Dual Image Display	Displays both WLI images and CBI images simultaneously
DICOM	Supports DICOM 3.0 Protocol
