AOHUA VME-2800 Video Endoscope Processor

Phone：+86-21-54286005

Overview Specifications Dimensions

AOHUA VME-2800

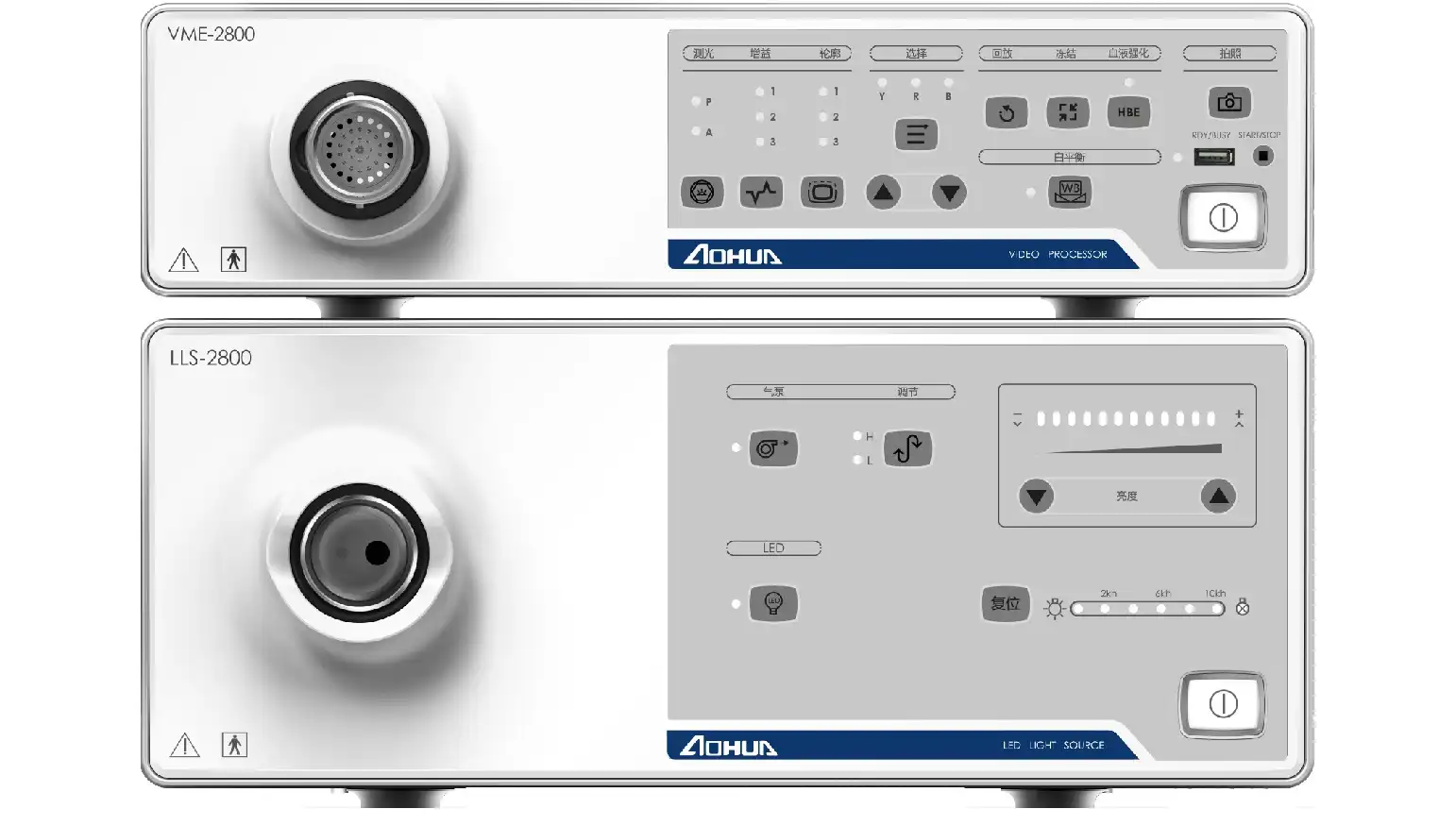

VME-2800 and LLS-2800

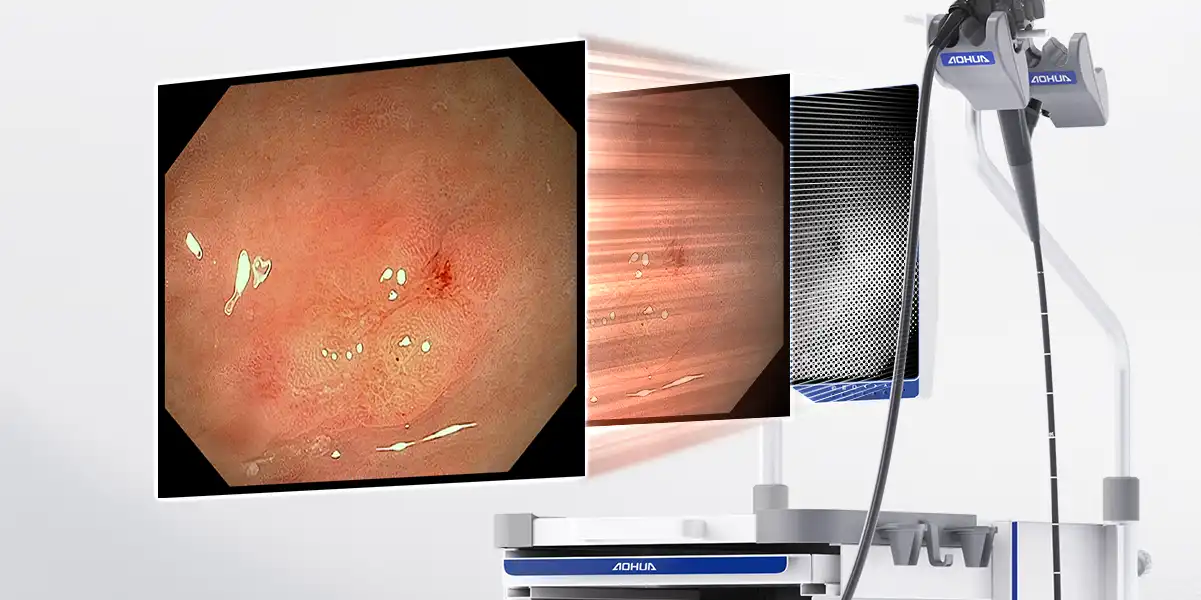

High Image Quality

New vision, renewed details

VME-2800

Powerful Function

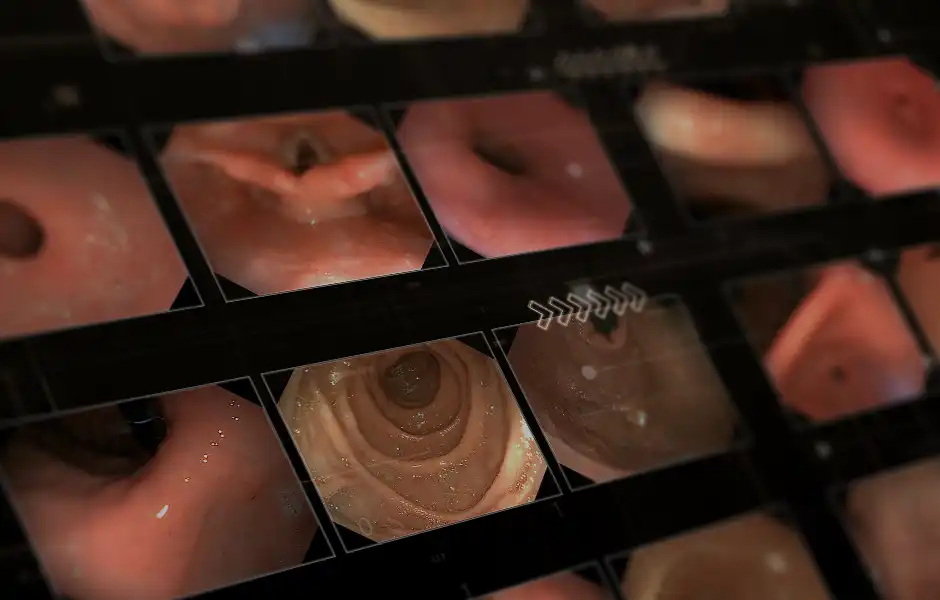

Edge Enhancement

USB Storage

Hemoglobin Enhancement

Freeze and playback

One-click freeze function allows for easy freezing of real-time images and convenient playback.

Edge Enhancement

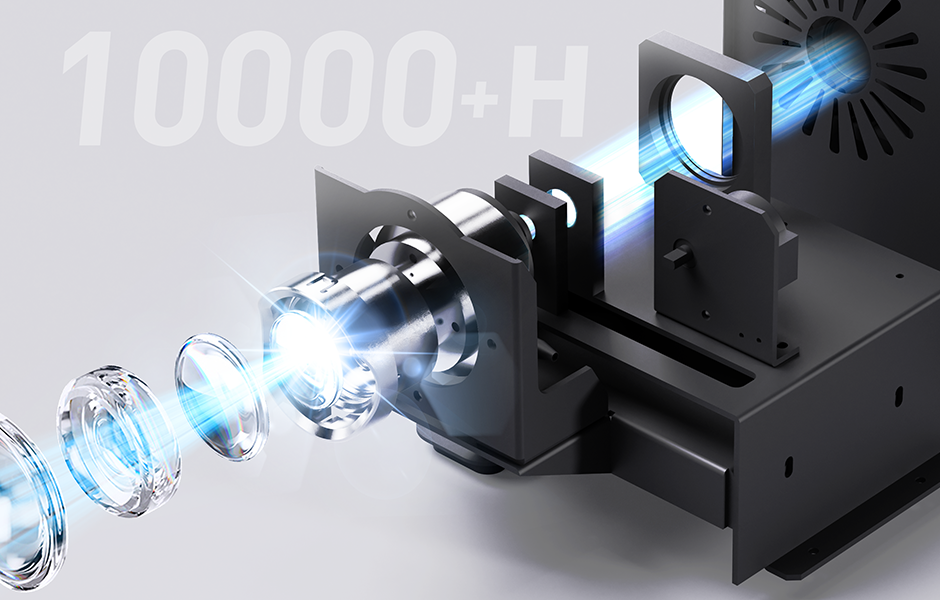

LLS-2800 LED Light Source

High Brightness

Long Service Life

VME-2800

Compatibility

Compatibility with gastrointestinal endoscopes, laryngoscopes, and bronchoscopes

Increase Equipment usage efficiency

Gastroenterology ENT Pulmonology

Observation	Video signal outputs	RGB, S_Video, Composite , DVI(Digital Visual Interface)
	Image enhancement	E-stressed mucosal morphology or profile, to increase the sharpness of endoscopic images. Profile enhance level has four gears can be chosen.
	Color tone adjustment	“R”、“B” adjustment: ±50 steps
	Brightness adjustment	“Y” adjustment: ±50 steps
	Freeze	Endoscopic images can be frozen
	Gain control	(OFF, 1, 2 and 3)
	Metering mode	Average; Peak
	White balance adjustment	Press the white balance switch, to do the white balance adjustment.
Power	Voltage	~110V/220V AC（±10%）
Power	Frequency	50Hz/60Hz

Lighting	Bulb	LED
	Colour temperature	5200K ± 500K
	Average life of bulb	Continuous employ about 10000 hours
	Brightness adjustment	Optical Aperture control
Air pump	Air flow	4L/min-10L/min
	Air pressure	30-80kPa
	Level	High / Low
Power	Voltage	~110V/220V AC（±10%）
Power	Frequency	50Hz/60Hz
