AOHUA AQ-100 Video Endoscope Processor

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

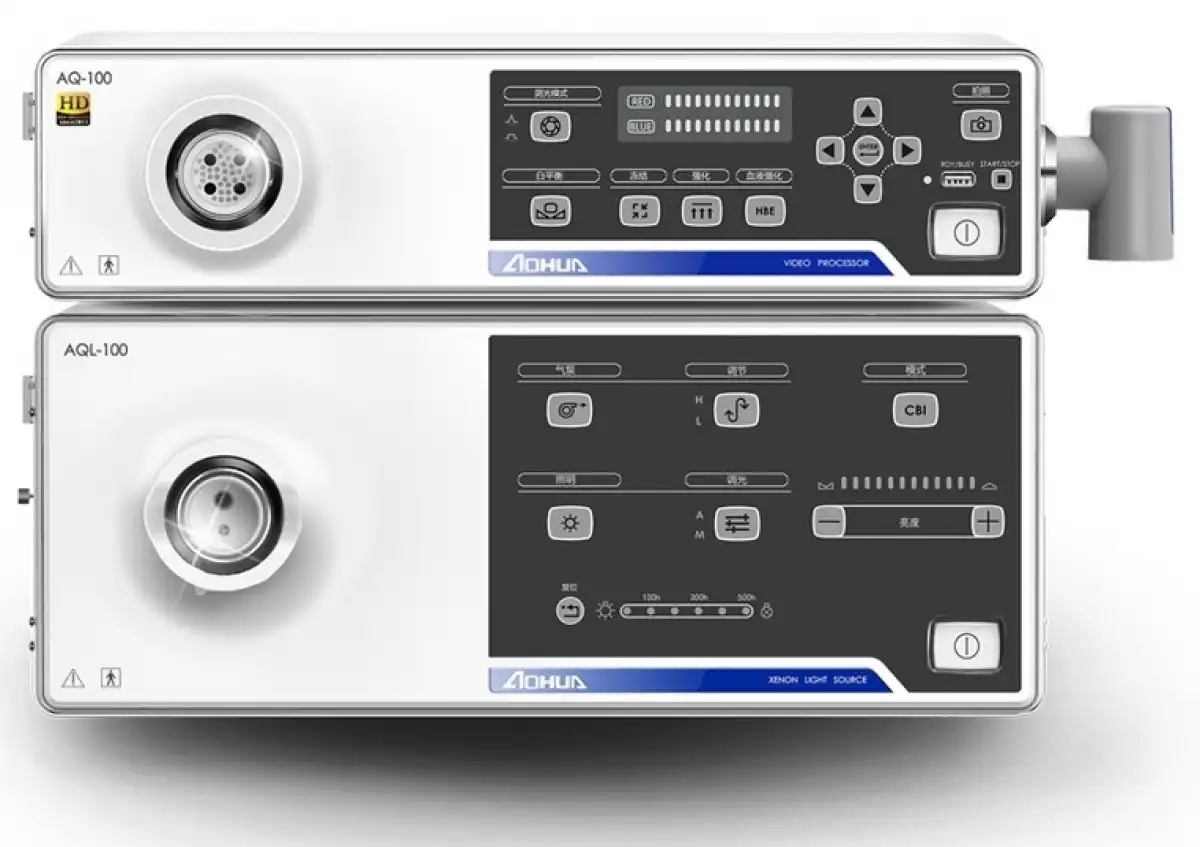

AOHUA AQ-100

Video Endoscope Processor

AQ-100

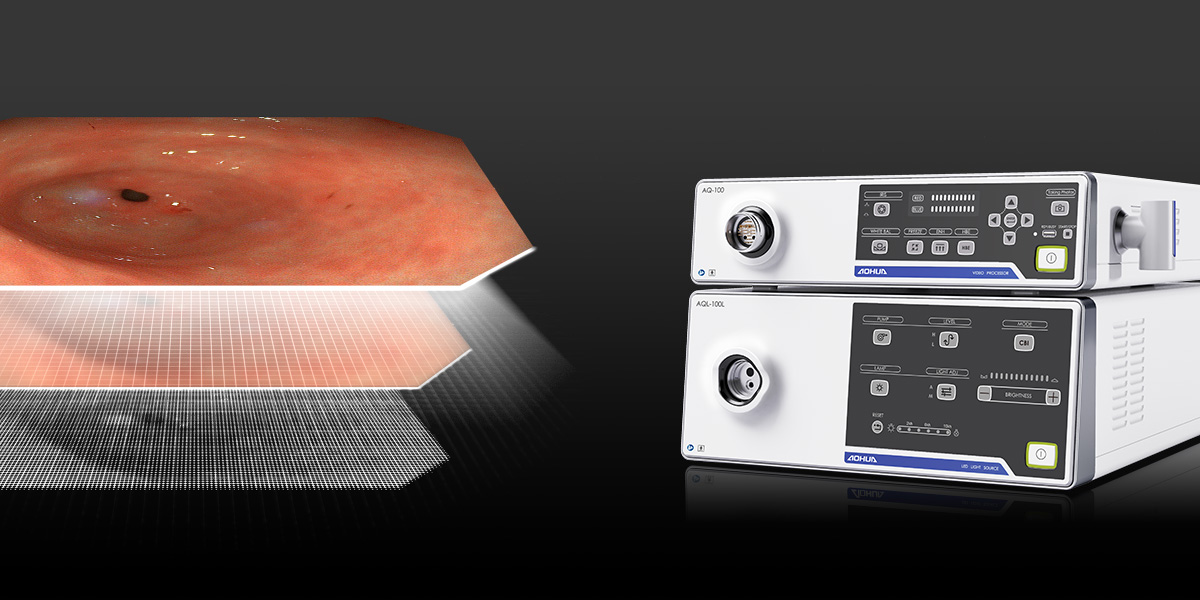

Full HD Image

Full HD Resolution Images - VGT/VCC series endoscopes compatible with AQ-100 image processor, capable of outputting images with a resolution of 1920*1080P, ensuring higher quality images and more accurate color reproduction. Clear and sharp clinical images help in observing more mucosal details.

Full HD Image

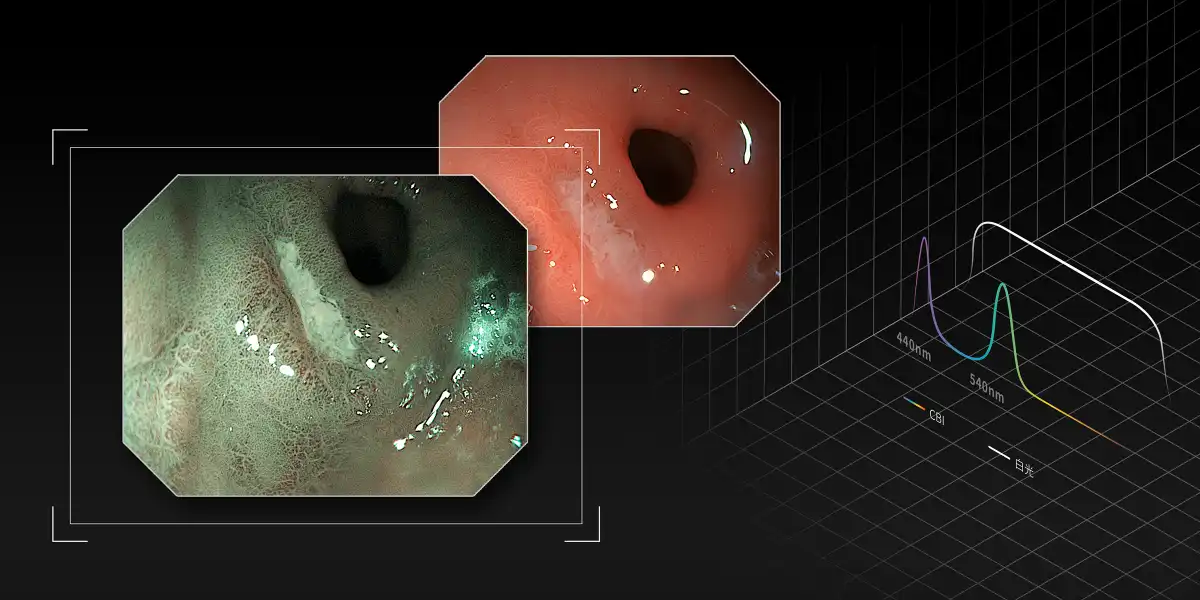

CBI Mode

By using dedicated filters to filter out broadband light waves, only leaving blue and green light waves with wavelengths of 440nm and 540nm. Since the fibrous tissue of the mucosal layer readily absorbs light waves with a wavelength of 440nm, while light waves with a wavelength of 540nm act on the submucosal vessels, utilizing their spectral characteristics can increase the contrast and clarity of the mucosal epithelium and submucosal vessels, thereby improving the accuracy of endoscopic diagnosis.

CBI Mode

Image Processing

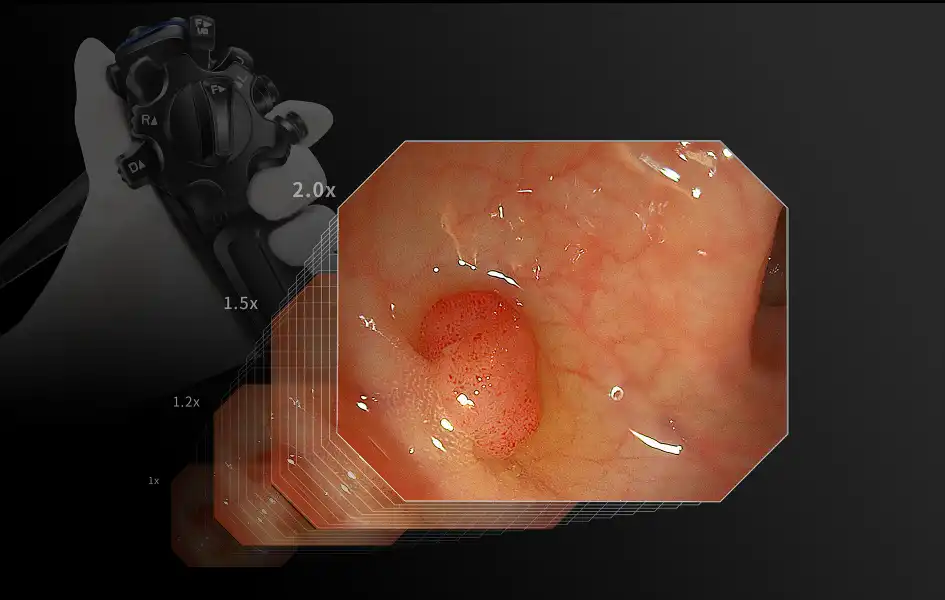

image magnification

Detail magnification
Four-level magnification optional

structural emphasis

Emphasize the structural form of the image

contour emphasis

Emphasize the edges and contours of the image

四档倍率可选

Efficiency Improvement

smart dimming

Automatically adjust light intensity based on received light intensity.
Avoid excessive illumination and effectively control the temperature at the head end.

freeze and playback

Freeze real-time images and enable one-touch playback.

智能调光

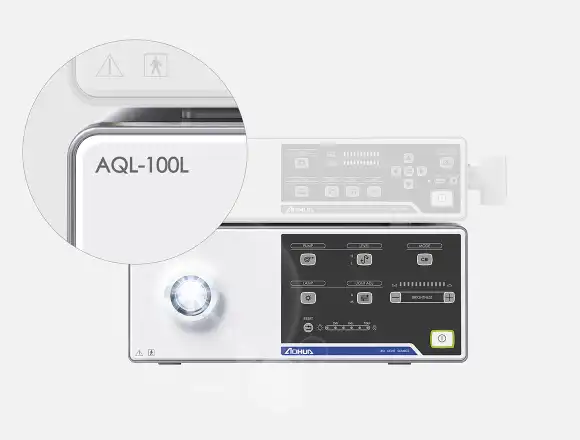

Selectable Light Source

AQL-100 AQL-100L

AQL-100 XE Xenon Lamp Strong Color Rendering AQL-100L LED light source, long lifespan.

High Compatibility

Compatible with gastroscopes, nasopharyngoscopes, and bronchoscopes of the same series, demonstrating excellent compatibility and thus enhancing equipment efficiency.

Gastroenterology ENT Pulmonology

AQ-100 Video Endoscope Processor

Type of protection against electric shock	Class I
Video signal outputs	RGB、Video、CVBS、Y/C、DVI
Operation Model	Continuous Operation
Input power	60VA
Voltage	~220V
Frequency	50Hz/60Hz

AQL-100 XENON LIGHT SOURCE

Type of protection against electric shock	Class I
Operation Model	Continuous Operation
Voltage	220V
Frequency	50Hz
Average life of bulb	500h
Luminous flux	≥300lm
Color temperature	3000K~7000K
Air level	High/ Low
Air pressure	40-90kPa

AQL-100L LED LIGHT SOURCE

Type of protection against electric shock	Class I
Operation Model	Continuous Operation
Voltage	220V
Frequency	50Hz
Average life of bulb	50000h
Luminous flux	≥300lm
Color temperature	3000K~7000K
Air level	High/ Low
Ai r pressure	40-90kPa
