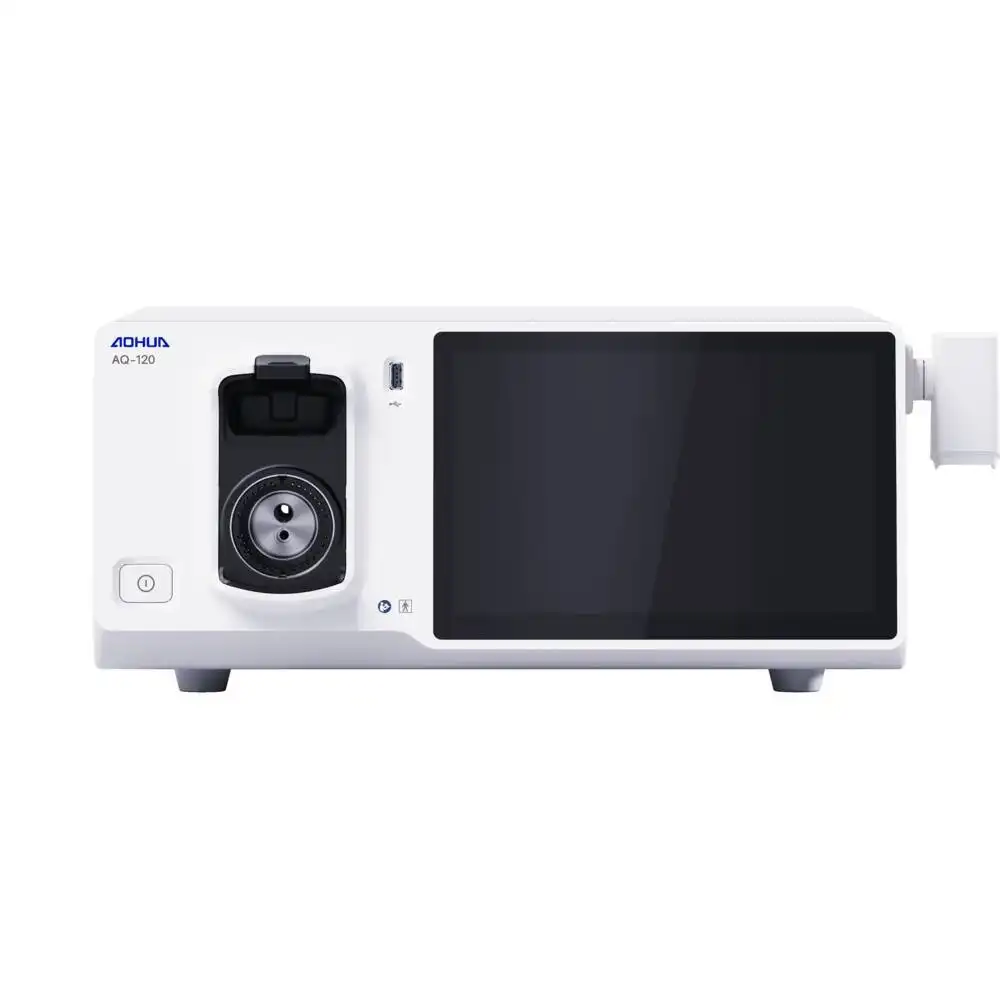

AOHUA AQ-120

Video Endoscope Processor

AQ-120

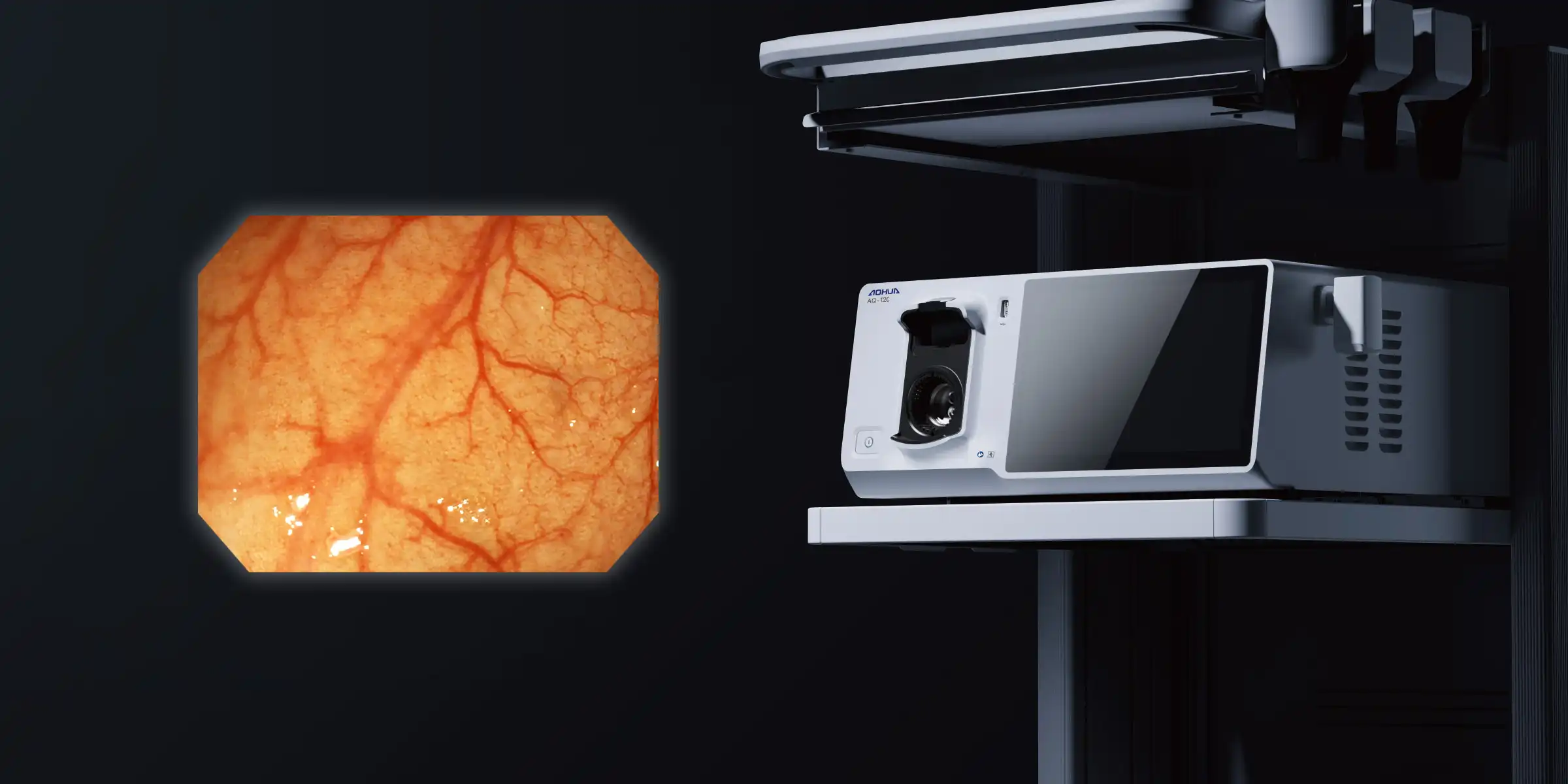

FHD Superior Images Resolution

The AQ-120 adapts a FHD CMOS sensor to provide a 1080p high quality image.

FHD Superior Images Resolution

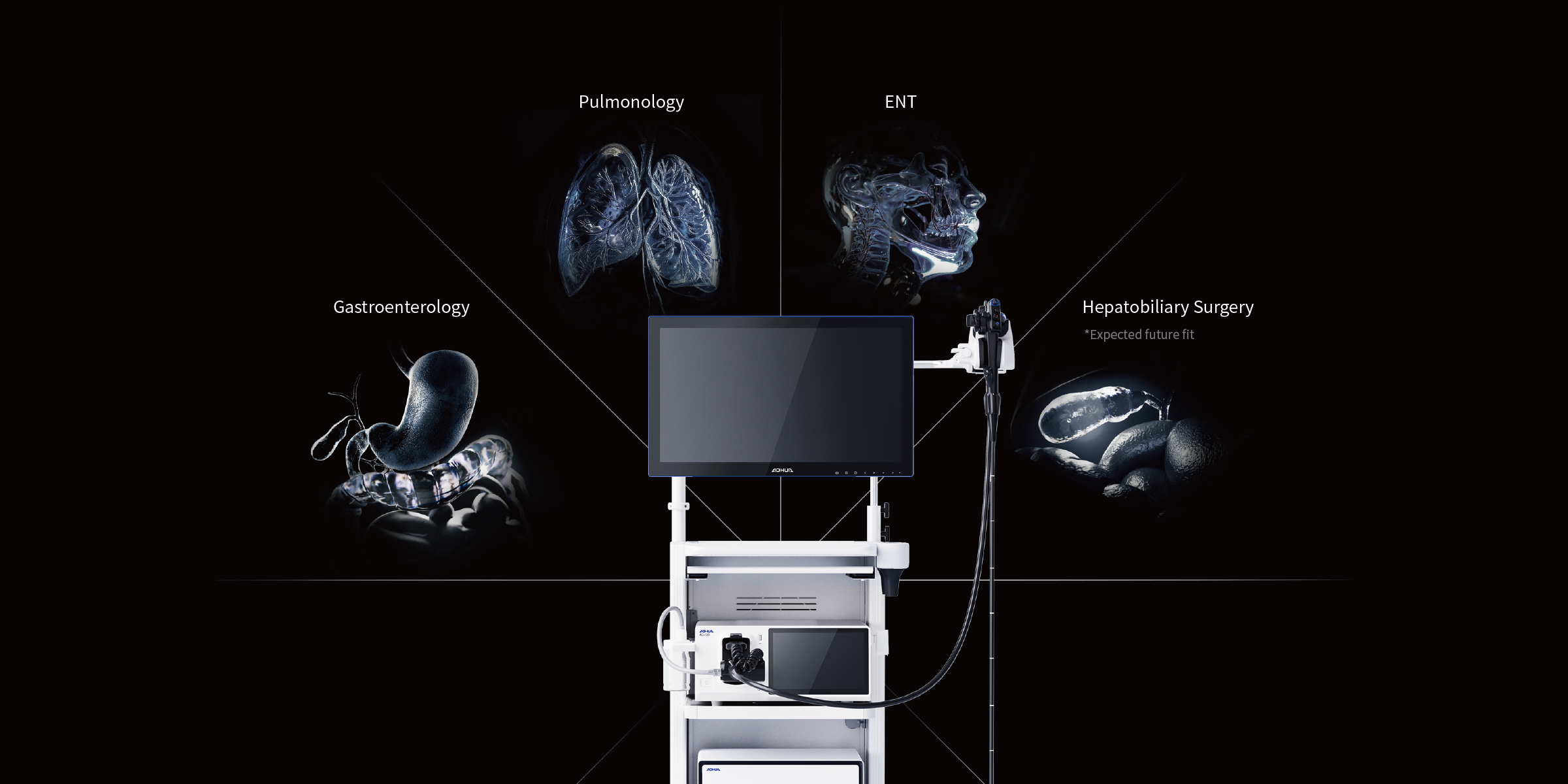

Versatile Applications

The AQ-120 caters to the diverse requirements of various departments, including gastroenterology, pulmonology, respiratory care, and ENT, supporting a wide range of applications.

Versatile Applications

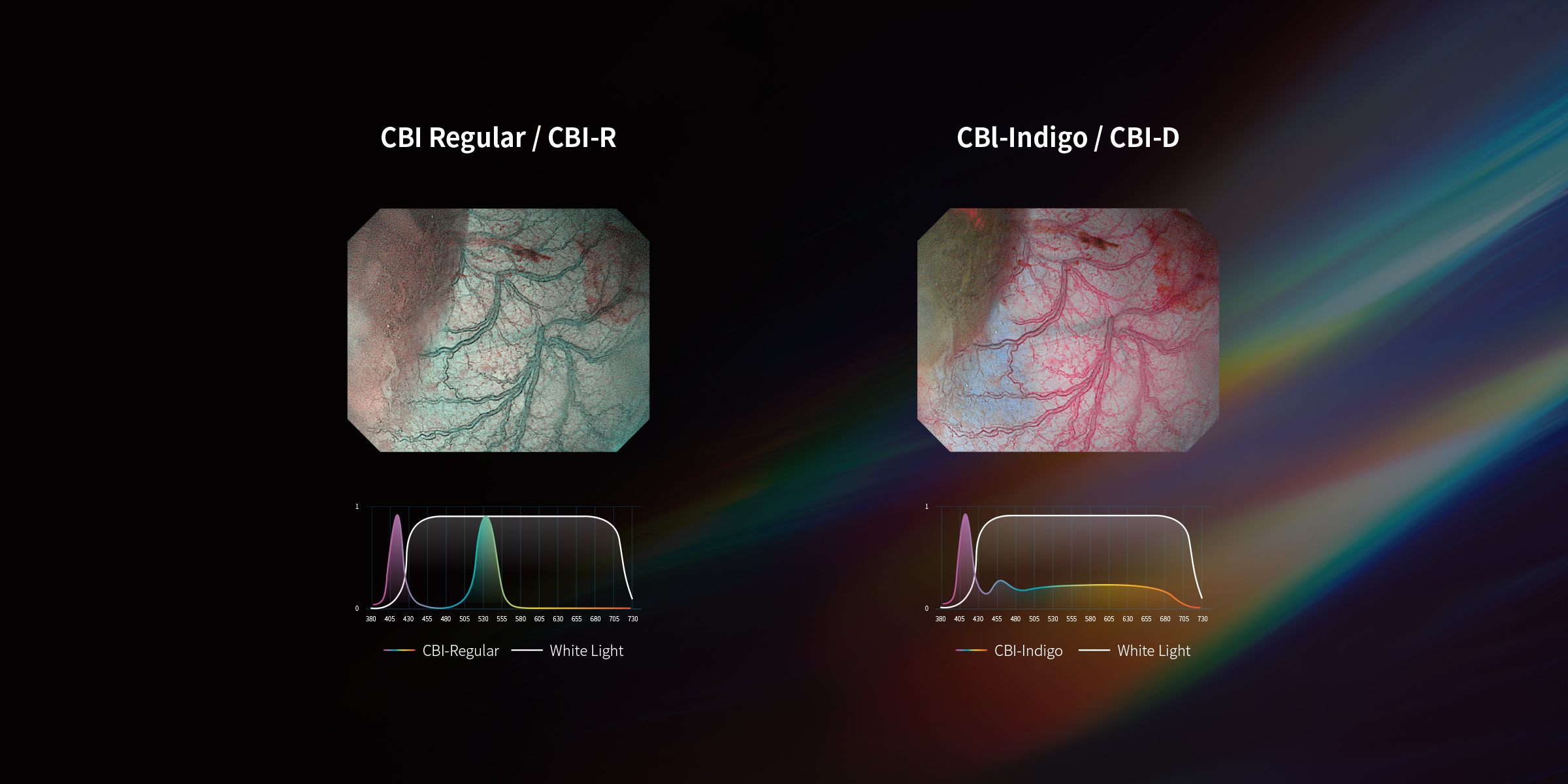

CBI Chromoendoscopy Modes

The AQ-120 features two widely utilized chromoendoscopy modes, which are made possible by the diverse combinations of its three LED light sources.

CBI Chromoendoscopy Modes

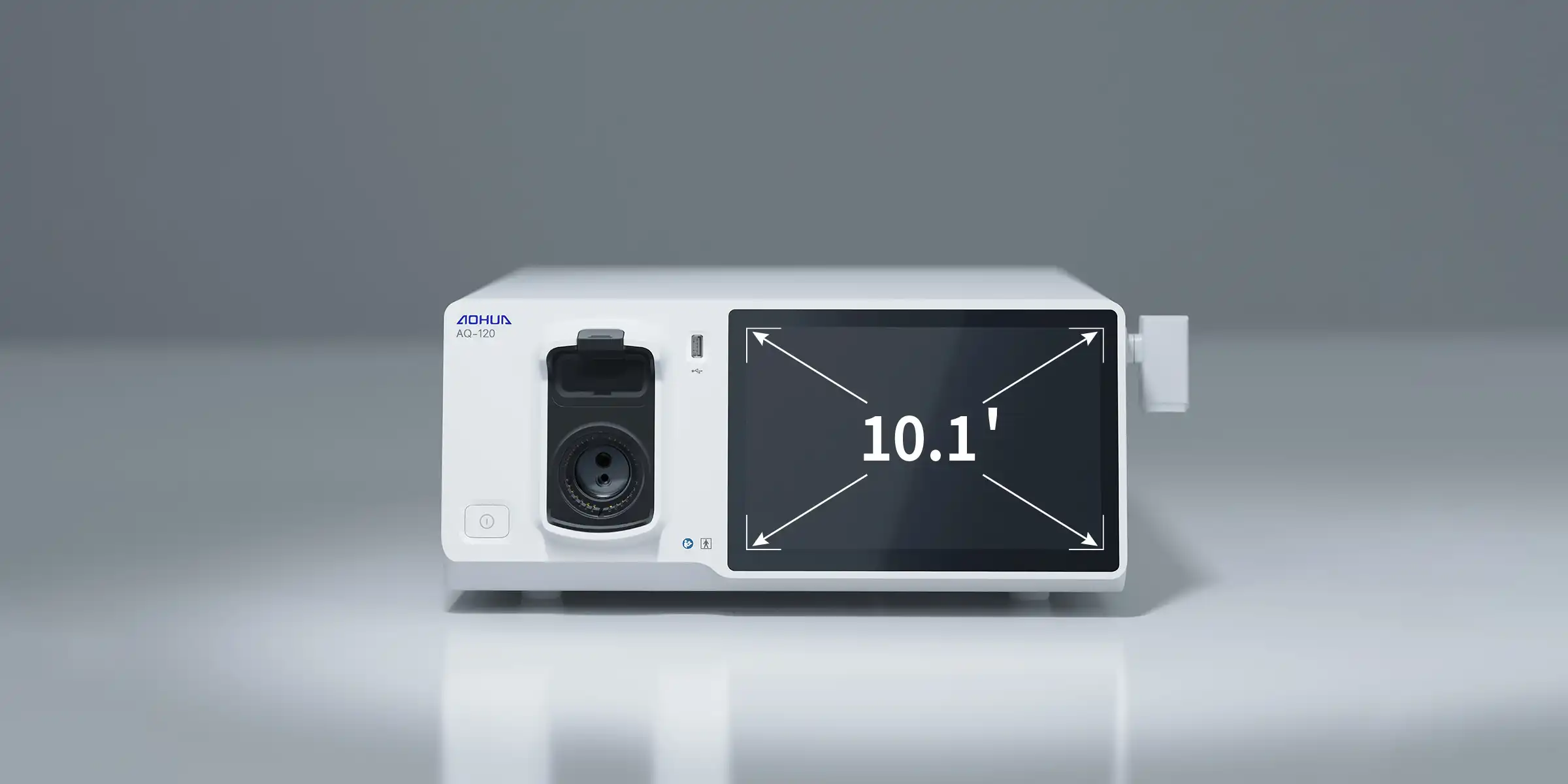

10.1-Inch Intuitive Touch Panel

The entire system can be effortlessly managed through a 10.1-inch touch screen, which enhances the ease, convenience, and intelligence of system control.

10.1-Inch Intuitive Touch Panel

Functions and Features
Illumination	3-LED Light Source
Chromoendoscopy	CBI Regular / CBI Indigo
lmage Enhancement	Structure / Edge / HBE
Brightness Adjustment	Automatic / Manual Mode
Digital Zoom	1.0x, 1.2x, 1.5x, 1.8x, 2.0x, 4.0x
Freeze and Playback	Freezes the real-time image and plays it back
IRIS	Peak / Average / Auto
Internal Storage	500G, 500 Users Profiles, 100,000+ Examination Records
External Storage	USB
User Interface	10.1-inch Customizable Touchscreen
DICOM	Supports DICOM 3.0 Protocol
