Olympus VISERA ELITE III OTV-S700 Video Processor

VISERA ELITE III OTV-S700 Video Processor

Phone：+86-21-54286005

Resources

OTV-S700_Brochure_EN

Overview Specifications

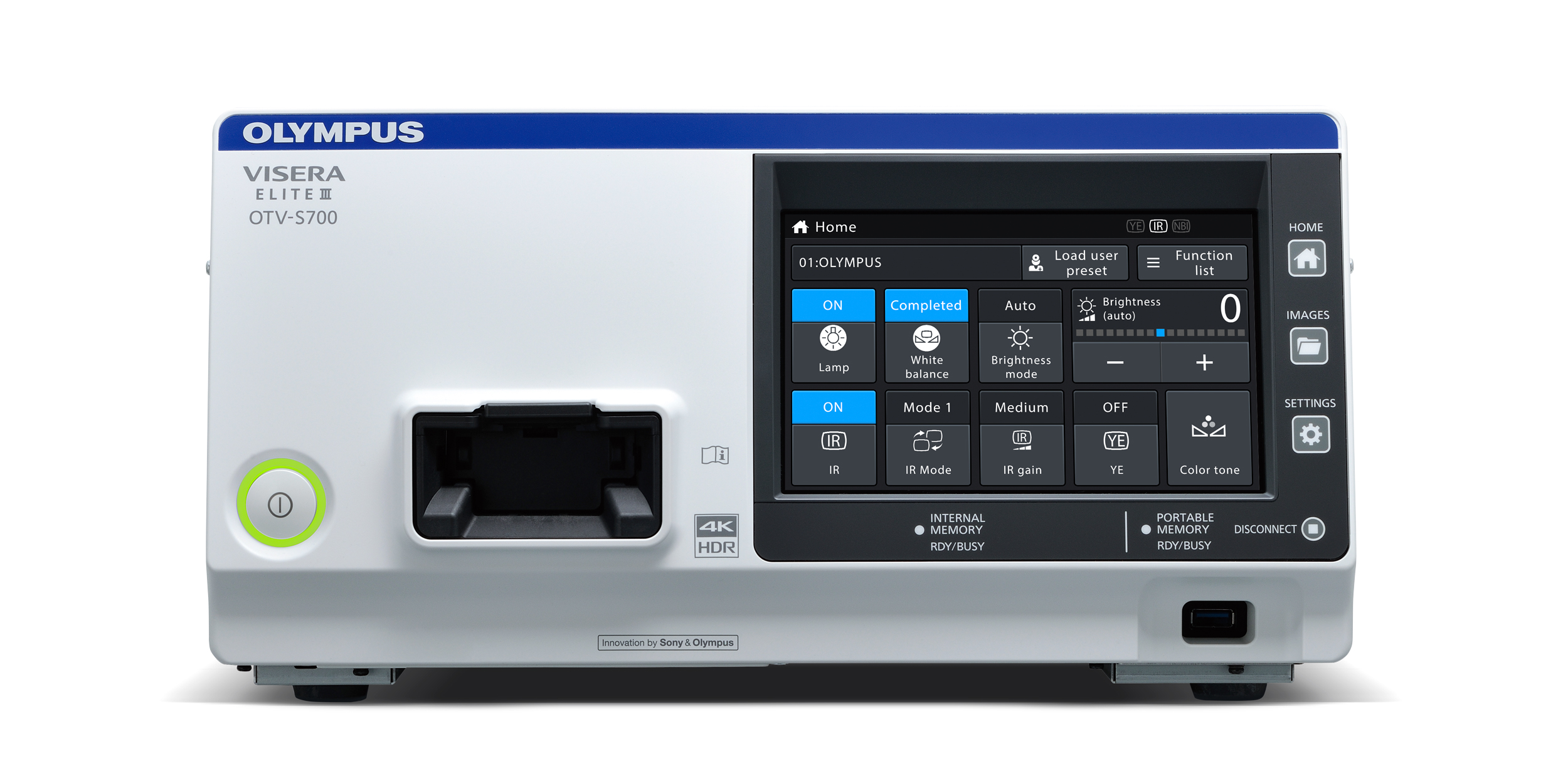

VISERA ELITE III OTV-S700 Video System Center

4K Multi-specialty Video Processor with 3D/IR/BL Upgradeability

otv-s700

Customizable Configuration to Meet Different Clinical Needs and Budgets

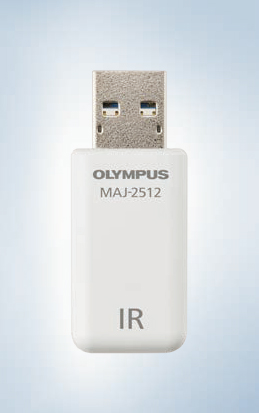

A simple software upgrade via USB drive gives you access to powerful 3D, IR and BL observation modes. You can easily customize your configuration to meet the specific clinical and budgetary needs of your facilities.

USB software upgrade

Improved Visualization with 4K
4K imaging system enables surgeons to observe in precise detail the fine patterns and structures of tissues.

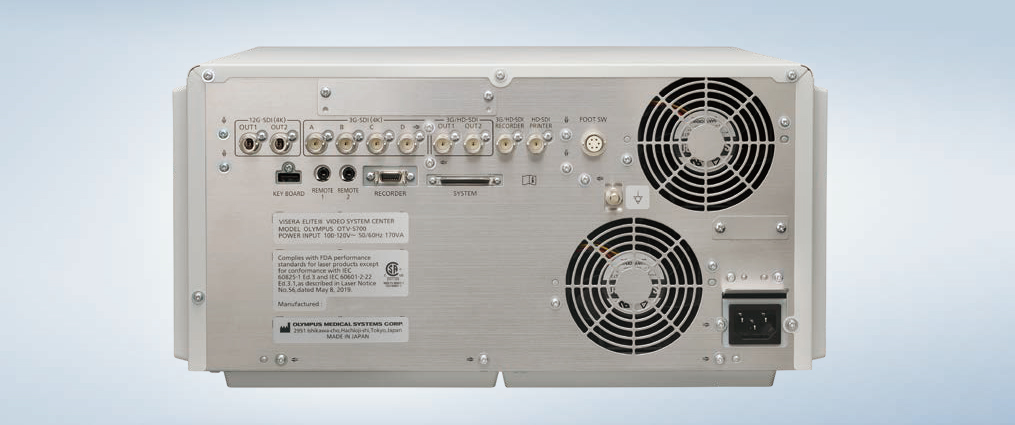

12G-SDI Cable for Access to More Detailed Information
12G-SDI has an eight times higher bandwidth than regular HD-SDI. A single 12G-SDI cable accommodates high frame rate, deep-color 4K/Ultra HD signals up to 100/120 fps.

12G-SDI Cable

Product Associated

FUJIFILM ELUXEO EP-8000 Processor & Light Source

AOHUA AQ-300 4K Video Endoscope Processor

AOHUA AQ-200 Video Endoscope Processor

AOHUA AQ-150 Pro Video Endoscope Processor

AOHUA AQ-120 Video Endoscope Processor

AOHUA AQ-100 Video Endoscope Processor

AOHUA VME-2800 Video Endoscope Processor

AOHUA VME-2300 Video Endoscope Processor

R. Wolf ENDOCAM Flex HD 5521101 camera controller

R. Wolf 5525201 ENDOCAM logic HD lite Camera controller

R. Wolf 552510x ENDOCAM logic HD Camera controller

R. Wolf 5525301 ENDOCAM logic 4K Camera controller

Karal Storz TC300 IMAGE1 S H3-LINK Module

Karl Storz TC301 IMAGE1 S X-LINK Module

Karl Storz TC302 IMAGE1 S D3-LINK Module

Karl Storz TC304 IMAGE1 S 4U-LINK 4K/3D module

Power Supply	Rated voltage	110–240 V AC; within ±10%
	Rated frequency	50/60 Hz; within ±1 Hz
	Rated input	550 VA
Size	Dimensions (maximum)	390 (W) x 199 (H) x 502 (D) mm
	Weight	17 kg
Observation	Analog signal output	VBS composite
	Digital signal output	12G-SDI (SMPTE ST 2082), 3G-SDI (SMPTE424M), HD-SDI (SMPTE292M) can be selected
	Record output signal	Recording format of the video signal output to the video recorder can be switched.
		Video signal	Select from “3G-SDI” or “HD-SDI”
		HD-SDI recording format	Select from "3D/2D auto select", "Always 2D" and "Always 3D (SIDE BY SIDE)" for 3D monitor display
		3G-SDI recording format	Select from "3D/2D Auto select" and "Always 3D" for 3D monitor display
	Electronic zoom	The image enlargement level can be selected
		4K	6 modes (1.0x, 1.2x, 1.4x, 1.6x, 1.8x, 2.0x)
		2D	3 modes (1.0×, 1.2×, 1.5×)
		3D	2 modes (1.0×, 1.2×)
	Optical-digital observation	The optical-digital observation can be performed. The endoscope compatible with the optical-digital observation is required.
		NBI observation	This observation mode uses narrow-band light
		IR observation	This observation mode uses infrared light
Documentation	Remote control	The following ancillary equipment can be controlled (specified models only): ∙ Portable memory / ∙ Video recorder / ∙ Video printer / ∙ Image filing system
	Recording format and number of recorded images in internal memory	TIFF: no compression	Approx. 120 images
		JPEG (1/5): Approx. 1/5 compression	Approx. 636 images
		JPEG (1/10): Approx. 1/10 compression	Approx. 1108 images
		These are the numbers of the recorded images when both HDTV and SDTV images are recorded. These numbers vary depending on the images.
Illumination	Observation mode	WLI, NBI or IR observation
Automatic Brightness Adjustment	Brightness mode	Auto
		Manual
Classification(Medical Electrical Equipment)	Type of protection against electric shock	Class I
	Degree of protection against electric shock of applied part	Depends on applied part. Also refer to applied part (camera head or videoscope).
	Degree of protection against explosion	The video system center should be kept away from flammable gases
