This gastroscope from the ELUXEO 760 series is equipped with a large 3.8 mm working channel that is especially suitable for therapeutic procedures compared to the standard gastroscope EG-760R with a working channel of 2.8 mm.
Phone：+86-21-54286005

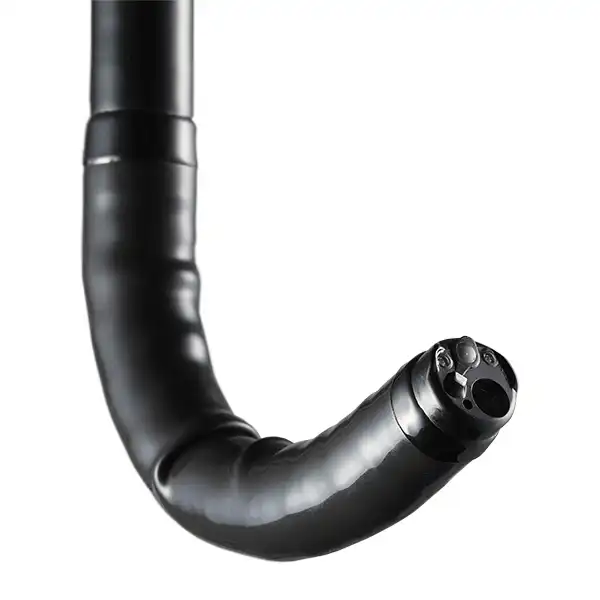

EG-760CT

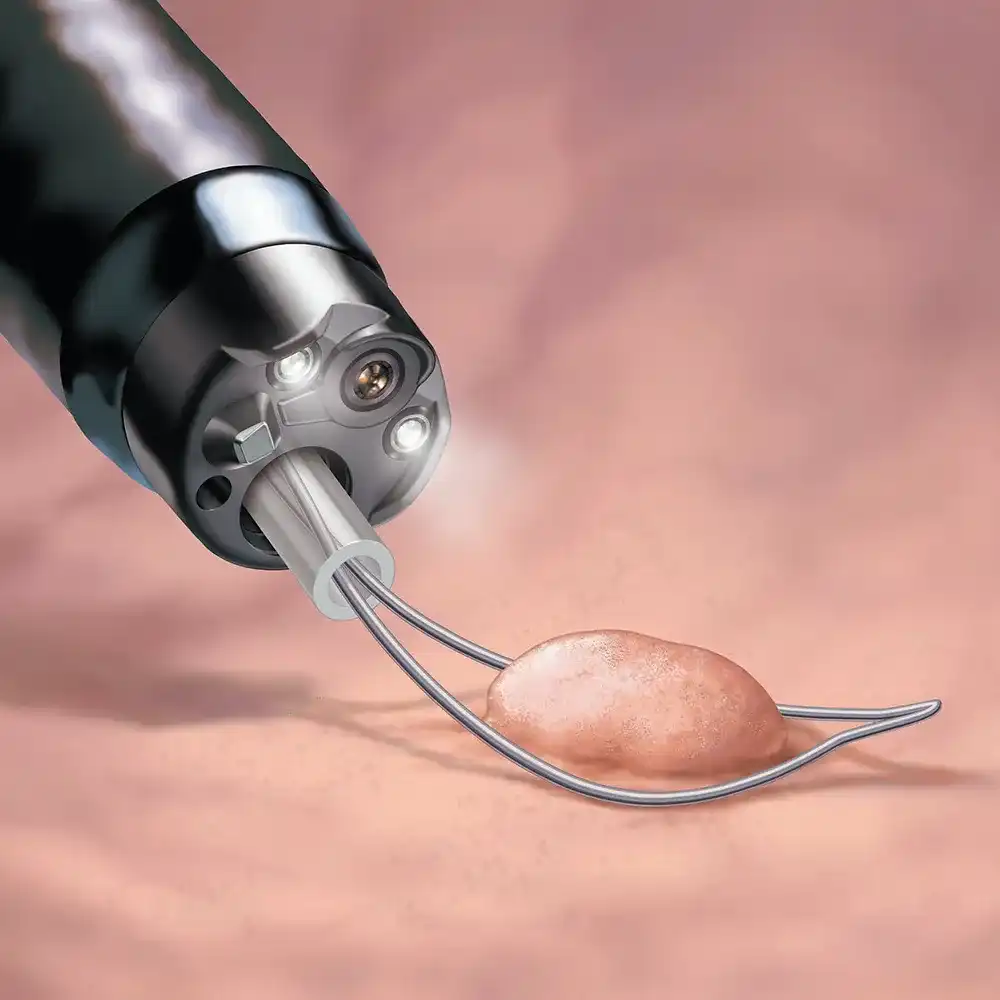

This gastroscope from the ELUXEO 760 series is equipped with a large 3.8 mm working channel that is especially suitable for therapeutic procedures compared to the standard gastroscope EG-760R with a working channel of 2.8 mm. In addition to therapeutic use, the gastroscope features LCI, intended to improve detection, and BLI, intended to characterise lesions, making it an excellent gastroscope for observation.
|
Viewing direction |
0°(Forward) |
|
Field of view |
140° |
|
Observation range |
2-100 mm |
|
Distal end diameter |
10.5 mm |
|
Insertion tube diameter |
10.8 mm |
|
Minimum diameter of instrument channel |
3.8 mm |
|
Bending capability |
UP 210° / DOWN 90° |
|
Working length |
1,100 mm |
|
Total length |
1,400 mm |
|
Water Jet |
Available |
