CANON 80 rows CT Aquilion Lightning

Aquilion Lightning TSX-036A

Phone：+86-21-54286005

Resources

Aquilion Lightning TSX-036A_Brochure

Overview Specifications Dimensions

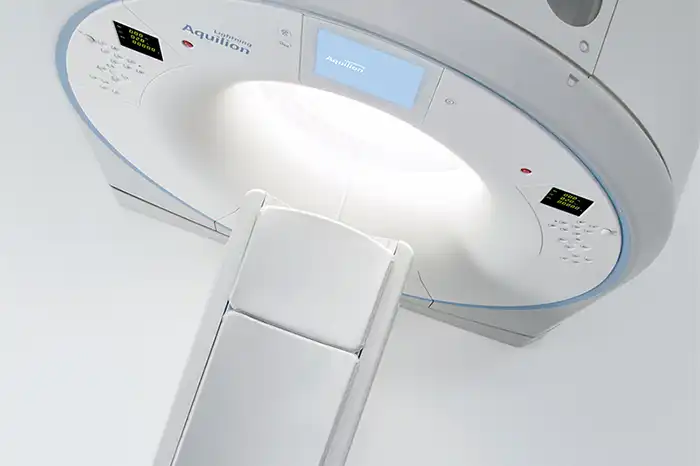

Aquilion Lightning 160 Slice Ultra Helical CT

A smart investment - assisted by AI.

Are you looking for a 160 slice CT scanner that helps provide better care and safer imaging in a compact, affordable package?

Designed to operate reliably and efficiently in a busy environment, the Aquilion Lightning SP now has deep learning innovation integrated into the existing hardware to deliver high quality images in a fast, cost efficient way.

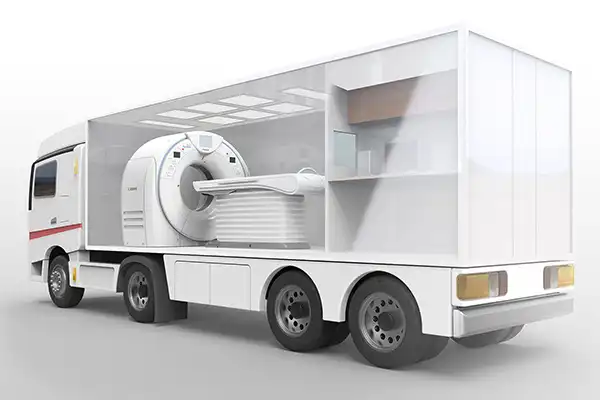

Mobile CT Solution

Clinical Confidence Anywhere

Harness the power of the Aquilion Prime SP systems wherever and whenever you need them. The design of our mobile medical equipment allows for high-patient throughput, without compromising on patient safety, workflow, or image quality.

Advanced intelligent Clear-IQ Engine (AiCE)

Welcome to the age of AI-assisted CT

AiCE is a cutting-edge Deep Learning Reconstruction technology that’s been trained to reduce noise and boost signal to deliver sharp, clear and distinct images at speed.

The system is designed to operate reliably and efficiently, producing high-quality images that help speed up diagnosis and treatment in a busy environment.

*1 With AIDR 3D
*2 Option with small couch

Detector		^PUREViSION detector
Detector		80 rows of 0.5 mm
Gantry	Rotation time	0.5
	Generator	50.4 kW / 112 kW equivalent

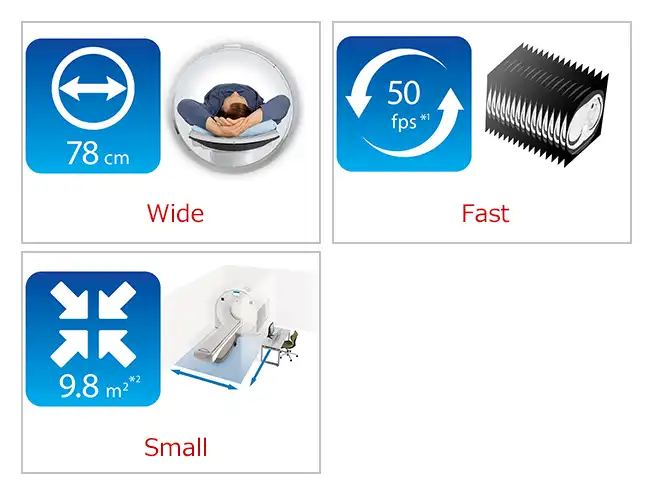

	Bore aperture	78 cm
	Tilt	± 30°
Patient couch	Max. load	205 kg / 300 kg^*
Patient couch	Max. scan range	150 – 200 cm^*
Reconstruction speed	Helical	20 fps / 50 fps^*
Reconstruction	Iterative reconstruction	AIDR 3D Enhanced
Reconstruction	FOV	500 mm / 700 mm^*
Installation	Power capacity	72 kVA
Installation	Min. installation space	9.8 m² (short couch)
