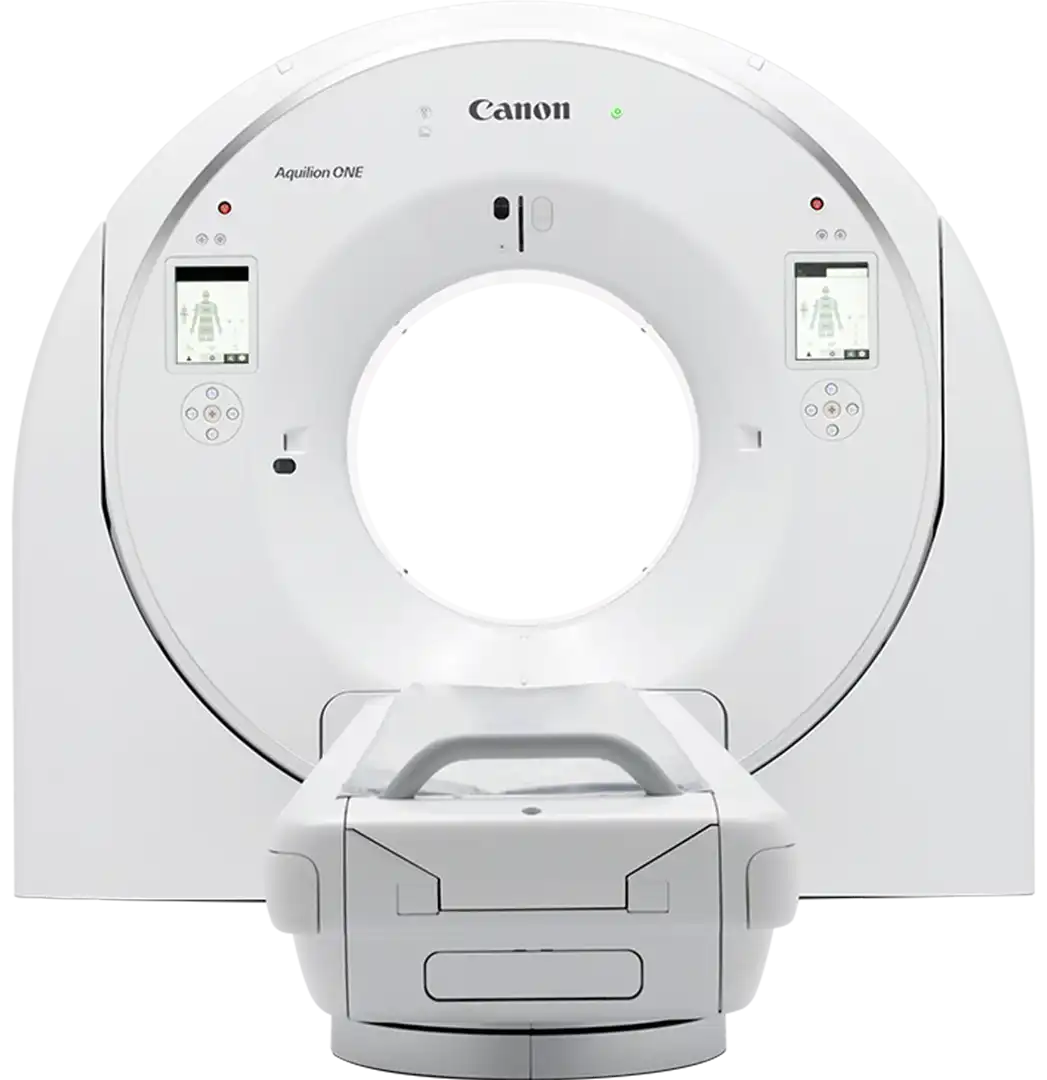

Aquilion ONE / INSIGHT Edition TSX-308A

Advanced imaging simplified.

The Aquilion ONE / INSIGHT Edition is built with our next-generation gantry and optics, offering the latest Deep Learning Reconstruction technology, PIQE 1024¹.

Offering a streamlined system design and intuitive workflow experience with INSTINX automated workflow, enabling quick, consistent and efficient CT exams while keeping your patients' needs a priority.

Improves Confidence

• Super Resolution¹ across studies enabled by PIQE 1024 DLR²
• One rotation wide-area CT for expanded patient population
• Head-to-Toe scans in seconds with ultra-fast acquisitions

Enhances Experience

• Reduce time and ensure consistent results with INSTINX³ workflow
• 40% reduction in workflow steps with automated INSTINX³ workflow
• 97%⁴ accuracy in scan range planning with Anatomic Landmark Detection (ALD)

Drives Efficiency

• Ready to scan on day one with easy to learn automated workflows
• A compact air-cooled premium CT that can fit into most standard CT rooms
• Hybrid mode with energy regeneration

¹ PIQE is designed to fully utilize the maximum resolution of the detector.
² Option
³ Depending on system configuration.
⁴ Based on an ALD evaluation of 240 3D Landmark scans (40 Head, 200 Body) 3D landmark scan data. Cases in which the relevant anatomic landmark(s) were not present (9) were excluded. 97% accuracy is based on results within +/- 1cm of target start, end, and FOV position, confirmed by two experienced CT Technologists.

A better balance between image quality and dose for most patients.

Improves Confidence

Key Benefits:

• Wide, open and low system design that improves patient access, comfort and safety.
• Fast rotation, 0.24¹ sec, for quick imaging of challenging patients and clinical indications.
• All-new imaging chain, CoolNovus X-Ray tube and ^PUREINSIGHT Detector, with reduced electronic noise.
• Optimizing workflow with INSTINX², AI-assisted workflow automation to set new standards in efficiency and consistency.
• Ultra-low dose scanning with SilverBeam Filter for 3D Landmark Scan and in combination with AiCE for lung cancer screening and MSK imaging.
• Deep Learning Reconstruction with PIQE 1024¹ to provide Super Resolution³ images without comprising on image noise, temporal resolution or dose.

¹ Option
² Depending on system configuration.
³ PIQE is designed to fully utilized the maximum resolution of the detector.

Intelligent technology focused on patient safety.

Enhances Experience

Optimizing workflow with INSTINX¹, AI-assisted workflow automation that sets new standards in efficiency and consistency.

Key Benefits:

• 3D Landmark Scan
• Anatomical Landmark Detection
• Automated Hanging Layout

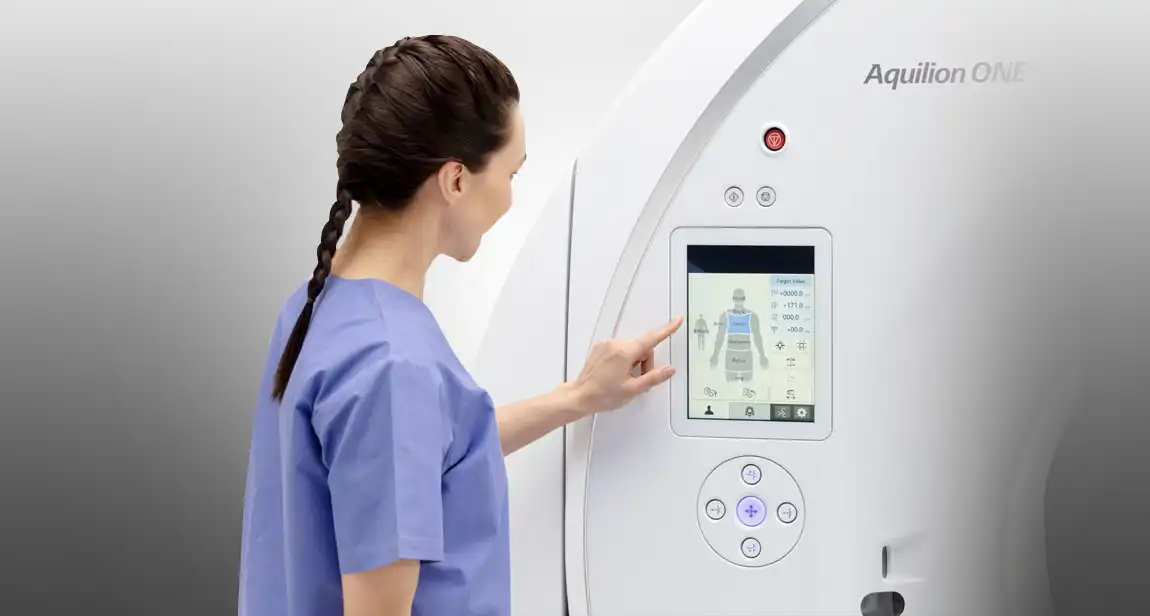

• Gantry Touch Panel Controls
• Built-in Gantry Cameras

¹ Depending on system configuration.

Insightful solutions to complex problems.

Drives Efficiency

Empowering you to work smarter and faster with greater confidence and consistency.

Key Benefits:

• AI-powered Super Resolution1 imaging with AI-assisted workflow automation for high-quality, reliable fast results.
• Easy to learn operation regardless of level of experience or how specialized the scan.
• Automated quality assurance and analysis of image quality for robust and reproducible results.
• Low power requirements with hybrid drive that converts energy during deceleration, generating electricity to power gantry components.
• Designed to fit most clinical environments with easy installations.

¹ PIQE is designed to fully utilize the maximum resolution of the detector.

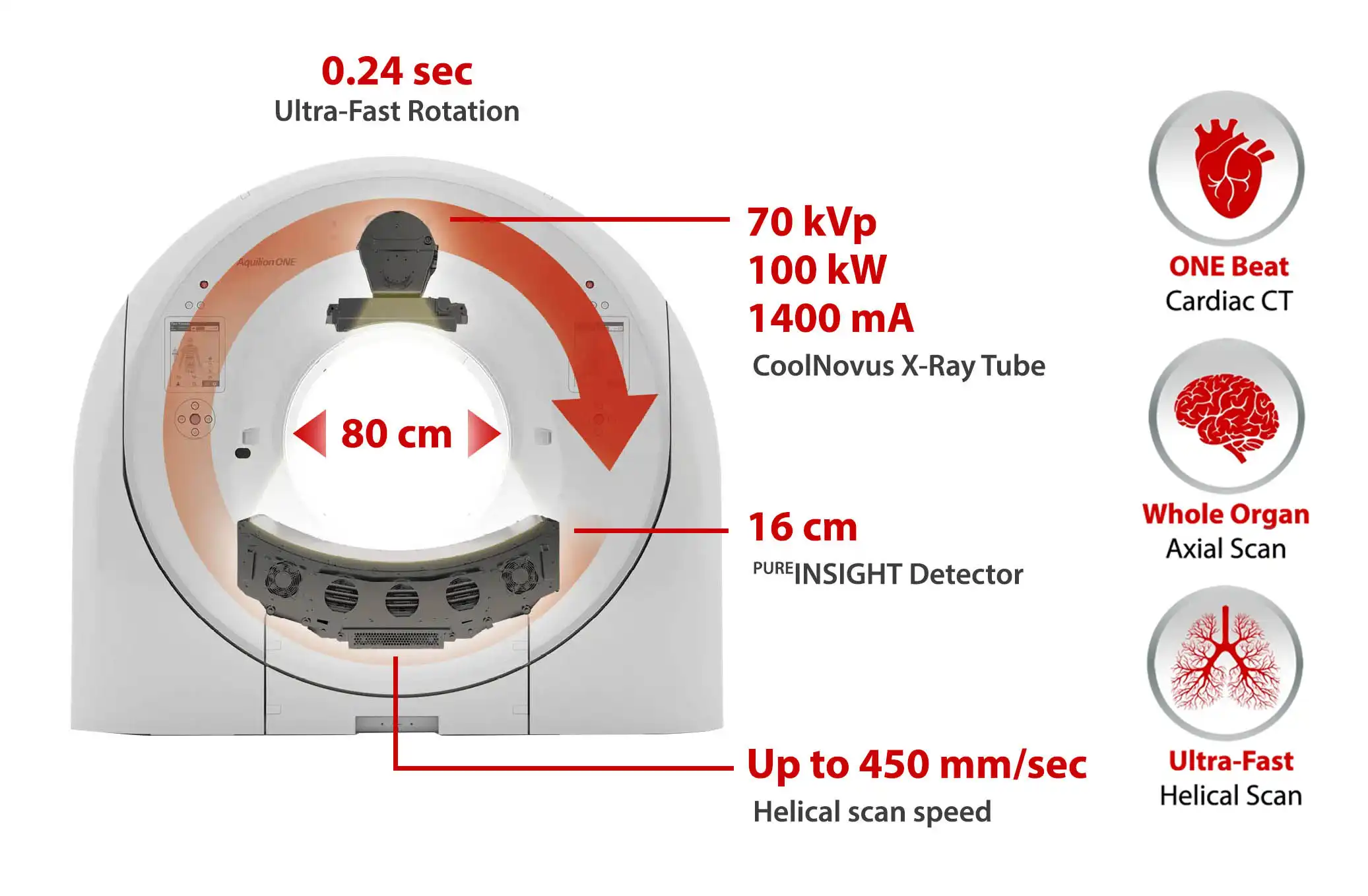

Insights Faster with Next Generation Gantry

Intuitive, integrated, and advanced technologies on the Aquilion ONE / INSIGHT Edition with next-generation gantry and optics.

• Cardiac CT studies in ONE-Beat with high-heart rate thresholds
• Ultra-fast 0.24 sec rotation wide-area 16 cm CT with whole-organ coverage¹
• Head-to-Toe scans in seconds with 0.24 sec rotation ultra-fast acquisitions
• Ultra-low dose lung cancer screening and MSK imaging with the SilverBeam filter
• Super Resolution² images with no dose penalty enabled by Precise IQ-Engine—PIQE 1024¹

¹ Depending on system and configuration.
² PIQE is designed to fully utilize the maximum resolution of the detector.

Insightful solutions to complex problems

Provide optimal image quality and dose for patients of all ages and habitus.

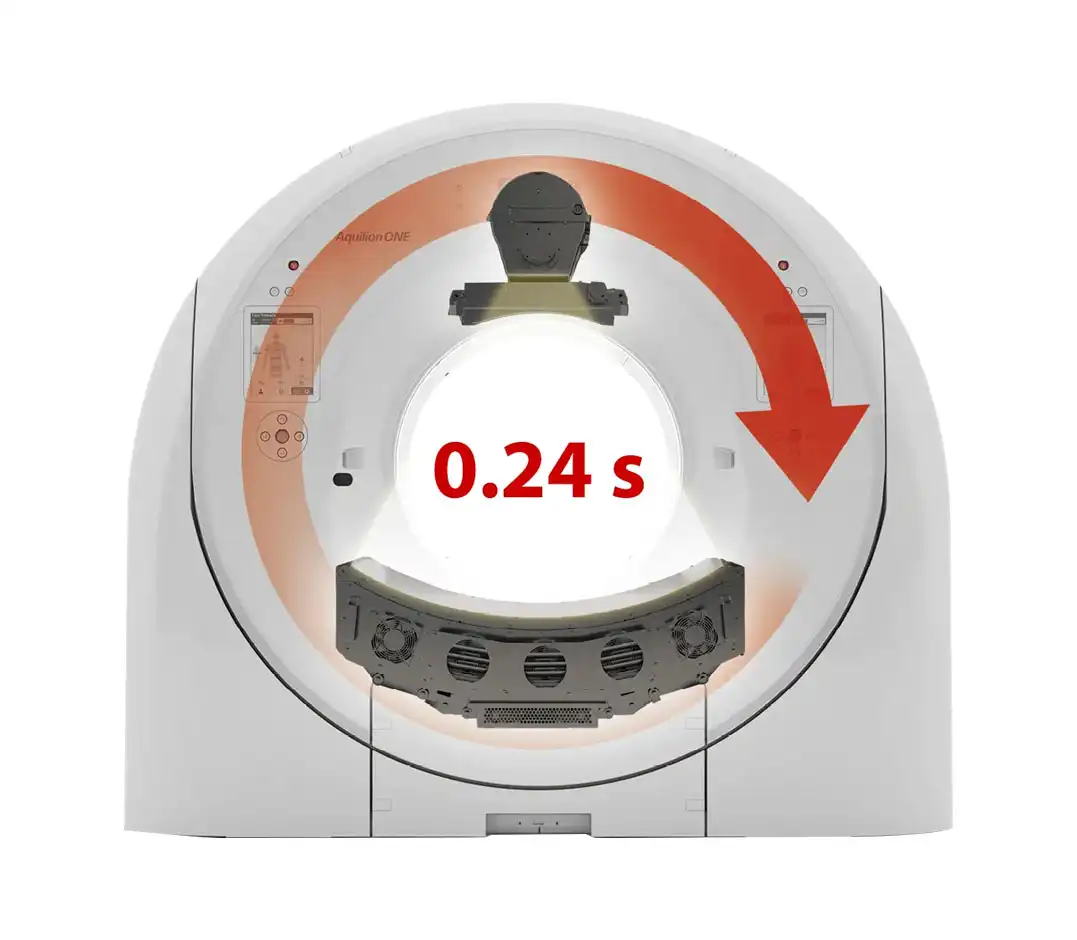

Ultra-fast acquisitions with the synergy of the ^PUREINSIGHT detector with wide-area 16 cm coverage, ultra-fast 0.24 sec rotation*, powerful 100 kW generator* and CoolNovus X-Ray tube.

Fast Rotating Gantry*

• High heart rate cardiac CT capable
• Ultra-fast trauma and pediatric acquisitions
• Rigid frame built to withstand 50g-force

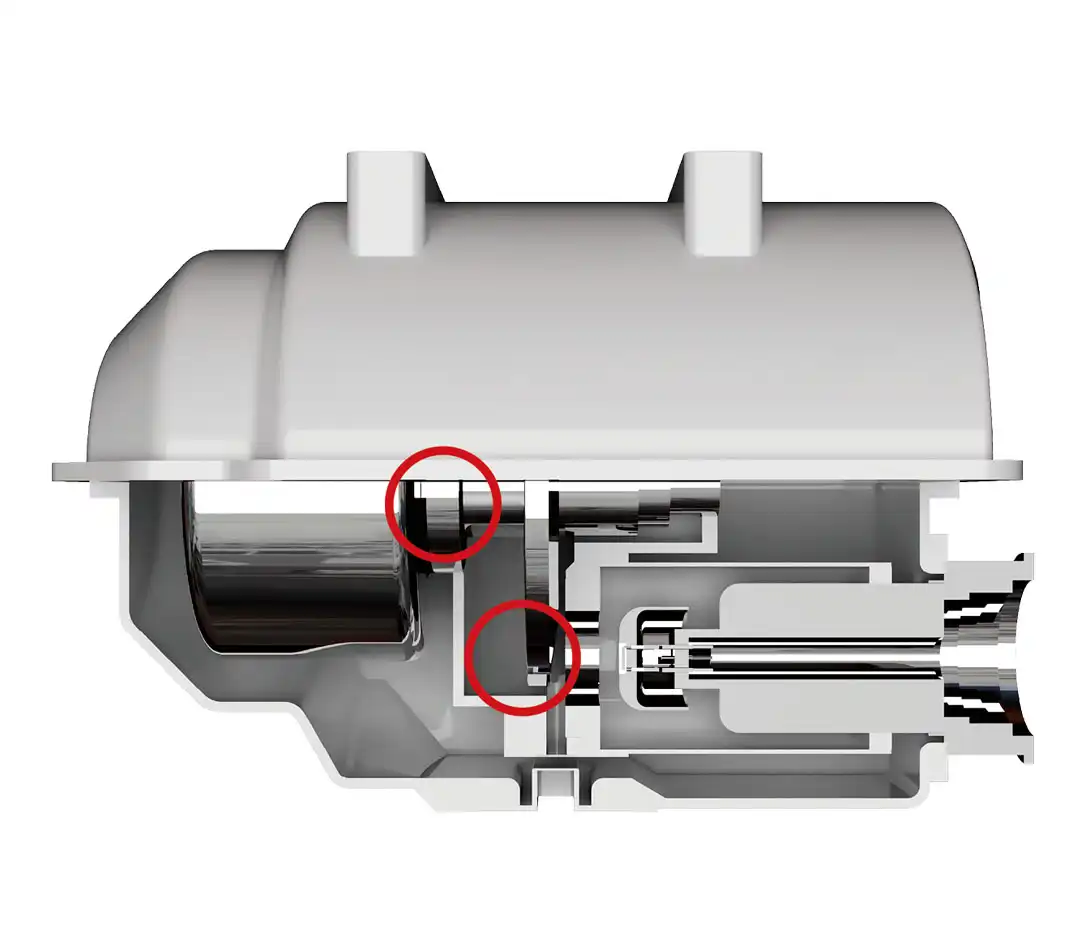

CoolNovus X-ray Tube

• Low 70 kV²
• Up to 1400 mA
• 100 kW Generator*

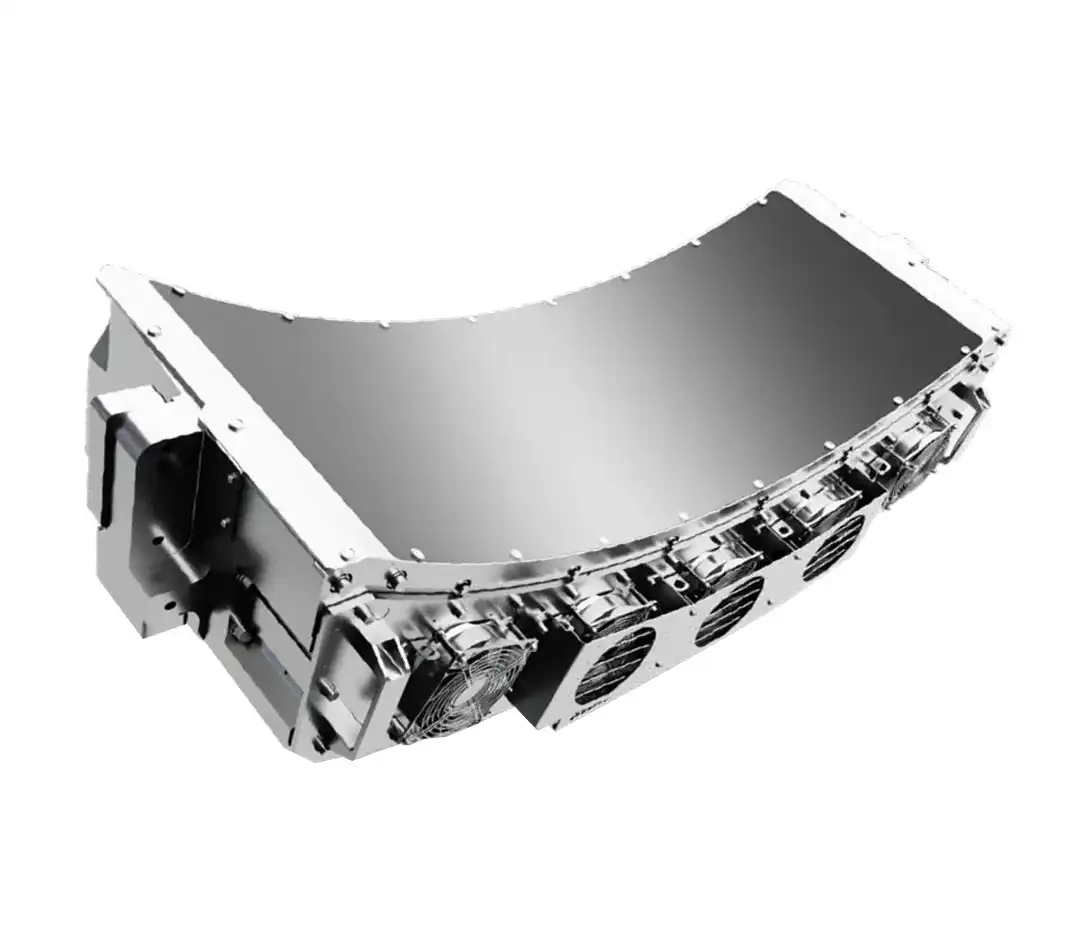

^PUREINSIGHT Detector

• 40% Less Electronic Noise¹
• 16 cm Coverage
• True Isotropic 320 x 0.5 mm

* Option
¹ Compared to conventional CT scanners.
² Low 70 kV is dependent on patient size and type of study.

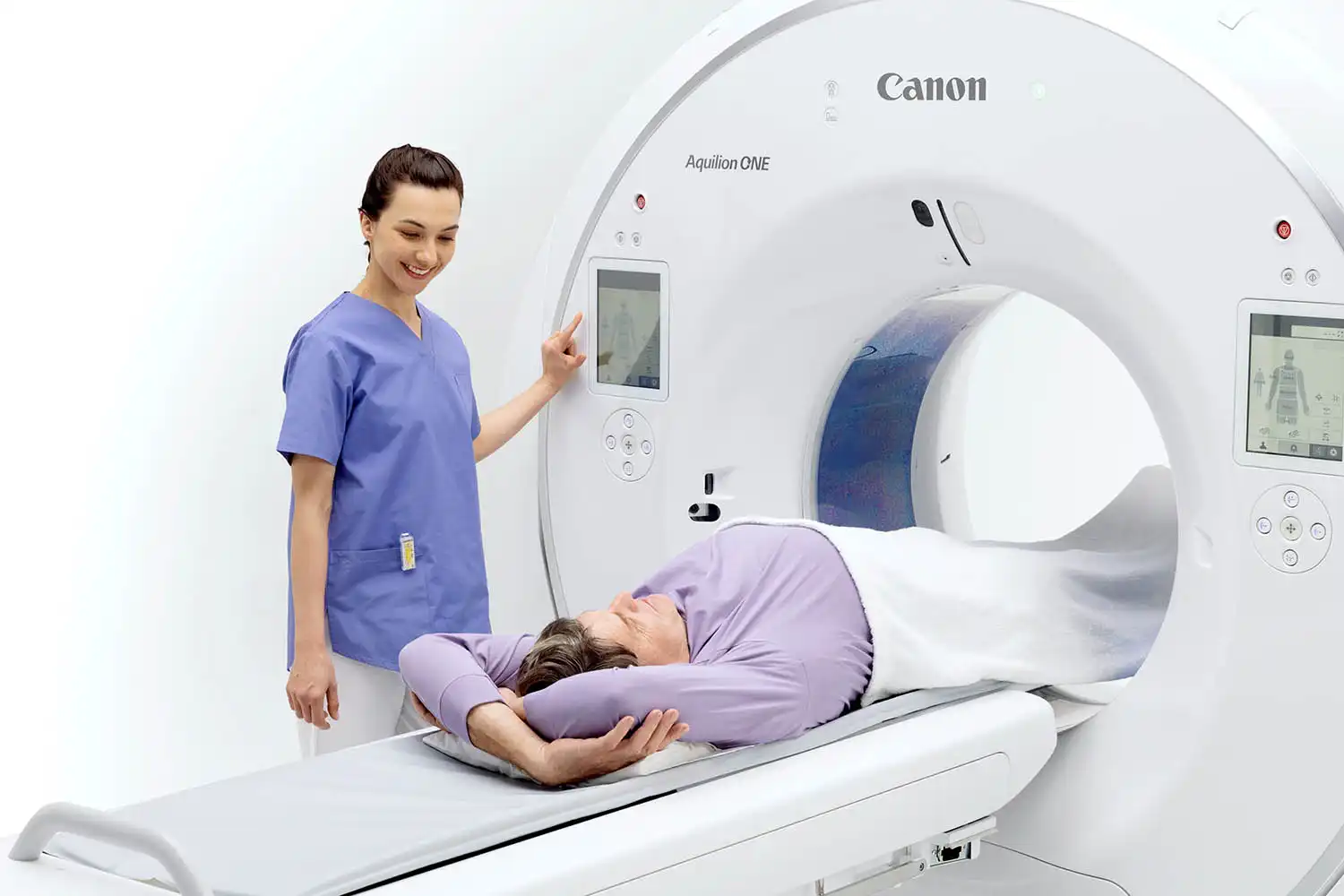

Workflow Redesigned with Patient-Centric System Design

Fast, accurate patient positioning for increased patient and operator safety.

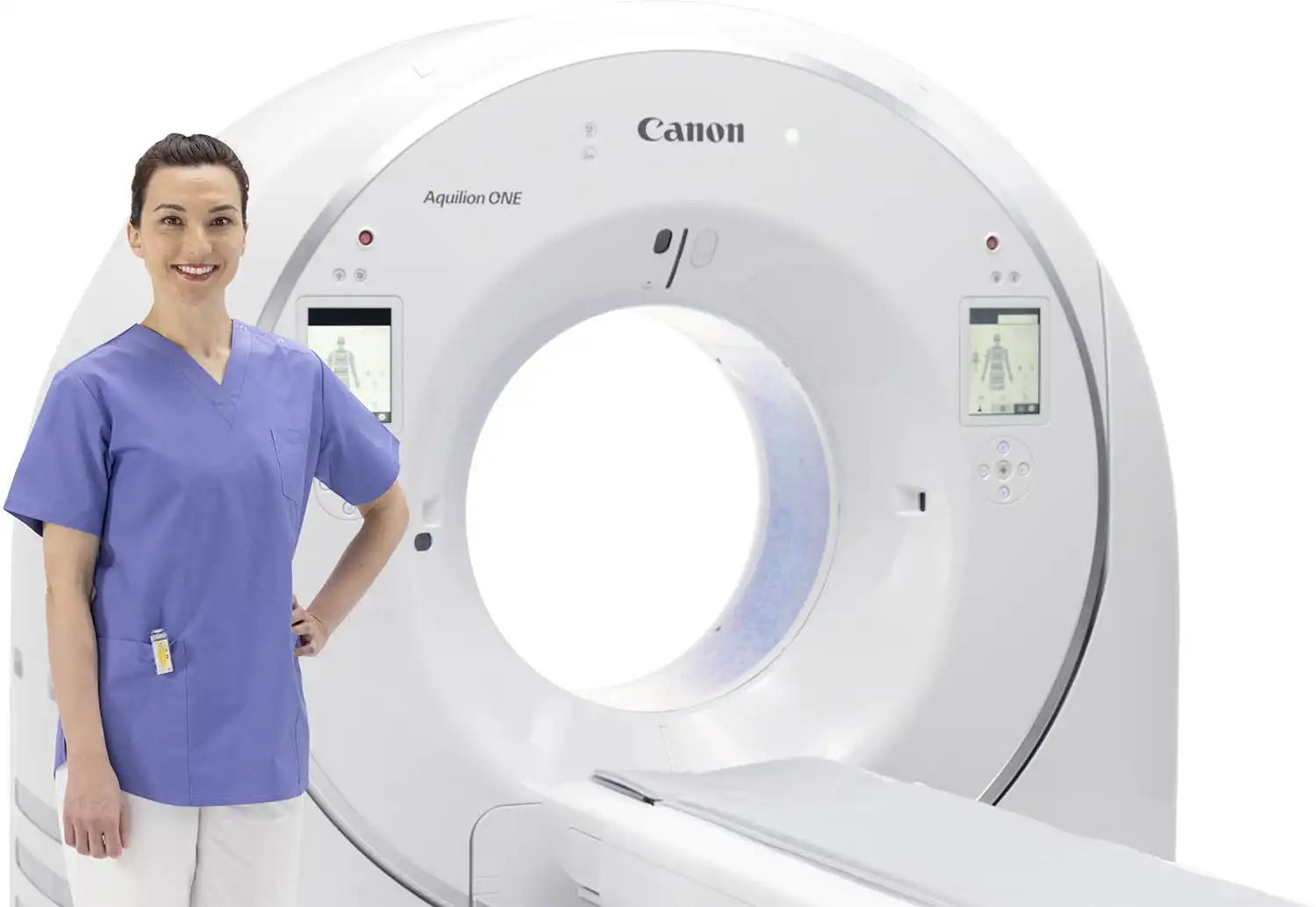

Let the Aquilion ONE / INSIGHT Edition do the heavy lifting with innovative technology to improve patient access, comfort, and safety.

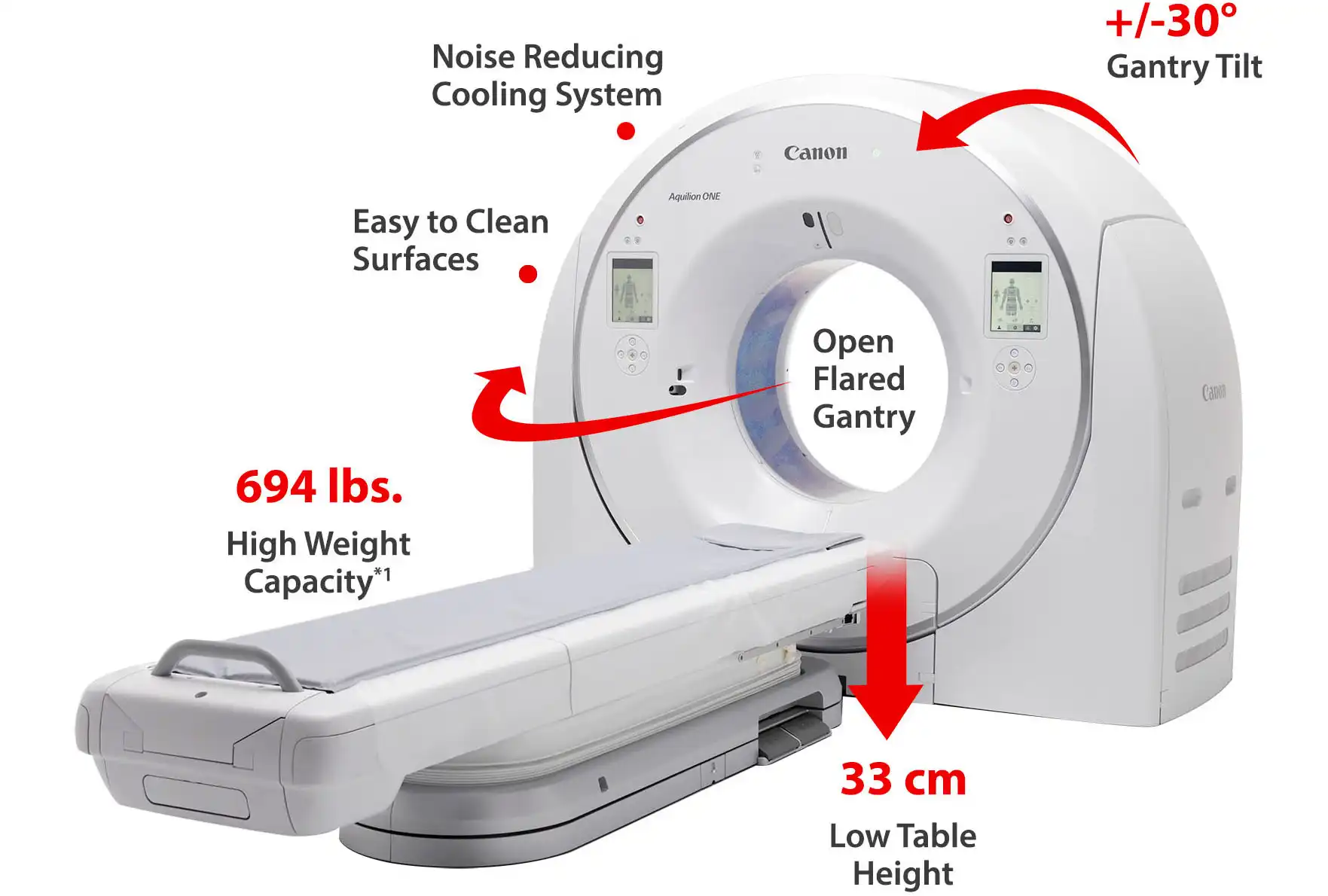

• Patient-centric scanner design, with flared, wide 80 cm gantry bore and high table weight capacity up to 694 lbs.*^,1

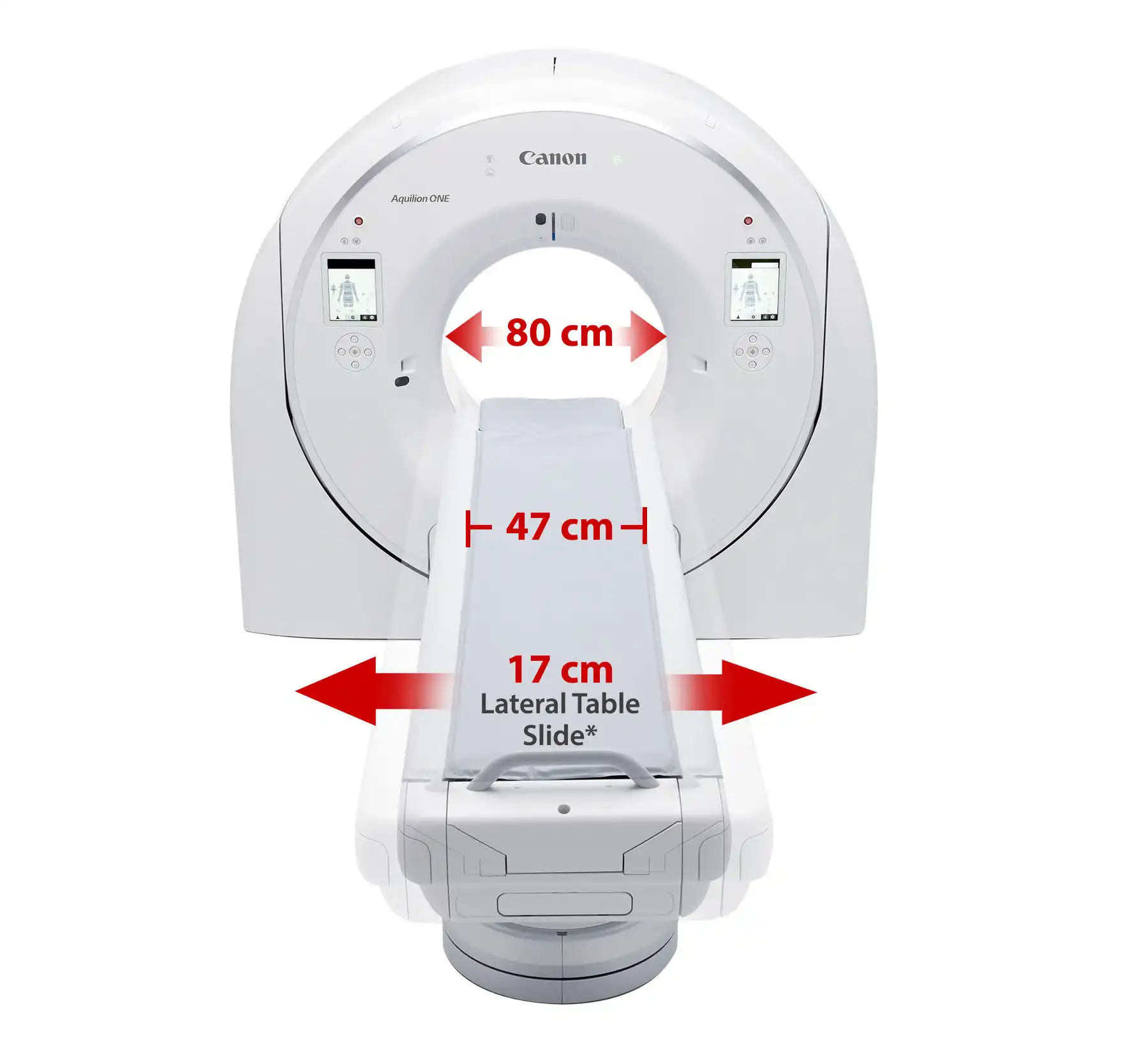

• Quick and accurate isocenter positioning with ^SUREPosition and Lateral Slide*^,2, mechanical movement of the table 8.5 cm left or right, at the touch of a button.
• Easy and accurate positioning
• Saves time
• Reduces heavy lifting
• Reduces patient discomfort
• Optimal IQ and Dose

* Option
¹ Depending on system configuration.
² Optimal dose and image quality occur at isocenter.

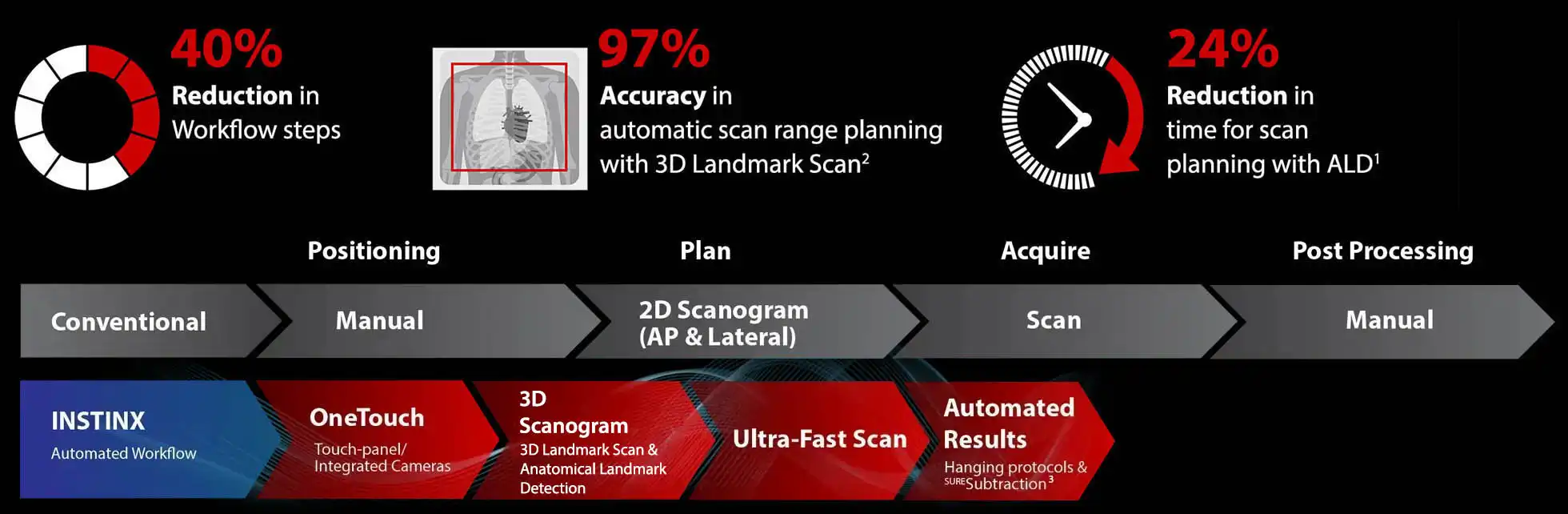

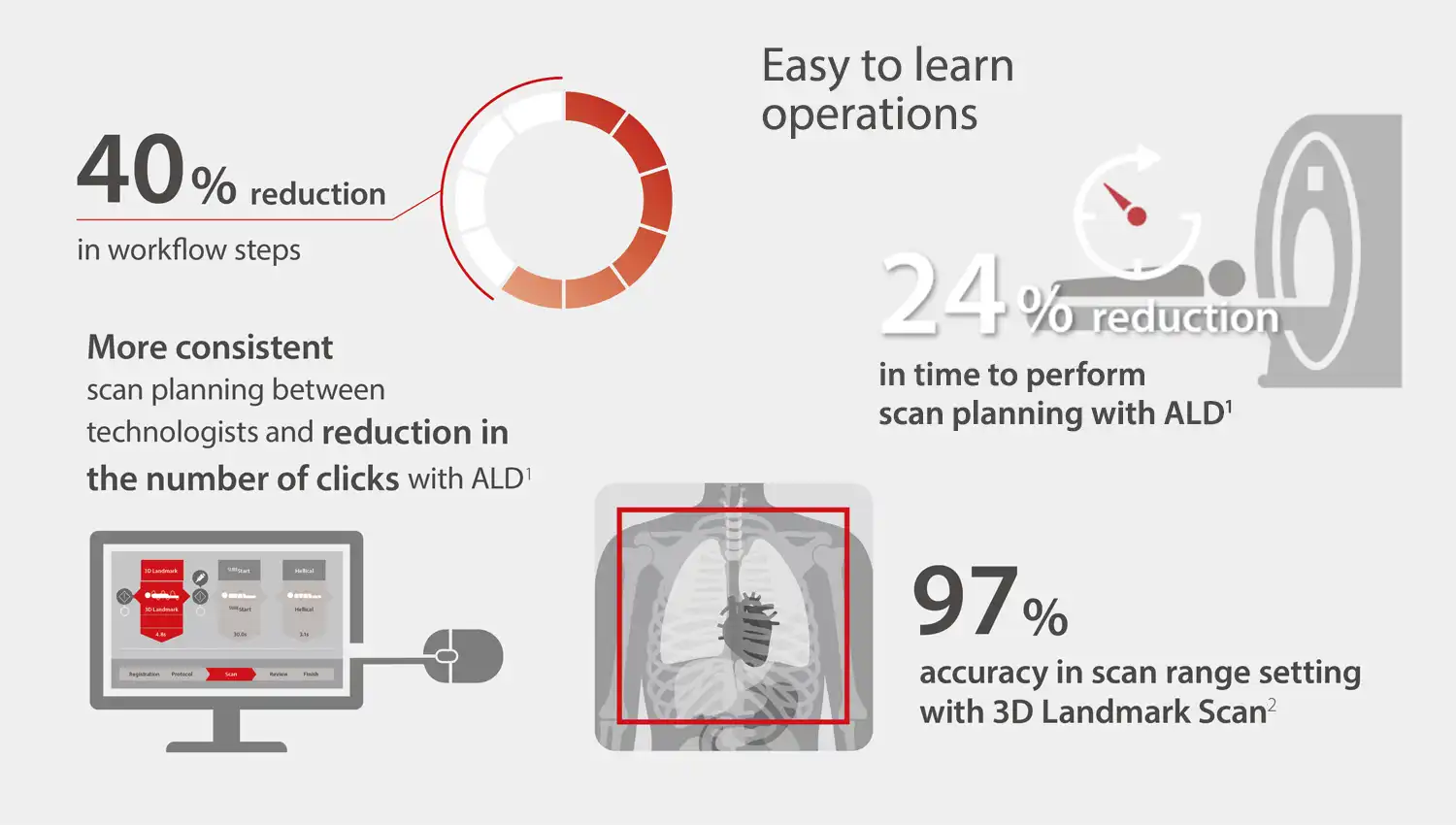

INSTINX*, AI-Assisted Workflow Automation

Optimized and consistent imaging that drives workflow and efficiency.

* Depending on system configuration.
¹ Based on a study performed at Hakujyuji Hospital, Japan with 40 cases, 10 technologists comparing manual scan planning on Aquilion ONE with automatic scan planning on Serve for body examinations.
² Based on an ALD evaluation of 240 3D Landmark scans (40 Head, 200 Body) 3D landmark scan data. Cases in which the relevant anatomic landmark(s) were not present (9) were excluded. 97% accuracy is based on results within +/- 1 cm of target start, end, and FOV position, confirmed by two experienced CT Technologists.

Enhancing Efficiency through Autonomous CT

INSTINX*, AI-Assisted Workflow Automation.

• Intuitive operation and intelligent automated workflows
• Simple and accurate scan planning
• Consistency between operators regardless of their experience

* Depending on system configuration.
¹ Based on a study performed at Hakujyuji Hospital, Japan with 40 cases, 10 technologists comparing manual scan planning on Aquilion ONE with automatic scan planning on Serve for body examinations.
² Based on an ALD evaluation of 240 3D Landmark scans (40 Head, 200 Body) 3D landmark scan data. Cases in which the relevant anatomic landmark(s) were not present (9) were excluded. 97% accuracy is based on results within +/- 1 cm of target start, end, and FOV position, confirmed by two experienced CT Technologists.
^3 SURESubtraction Iodine Mapping and Bone Removal.

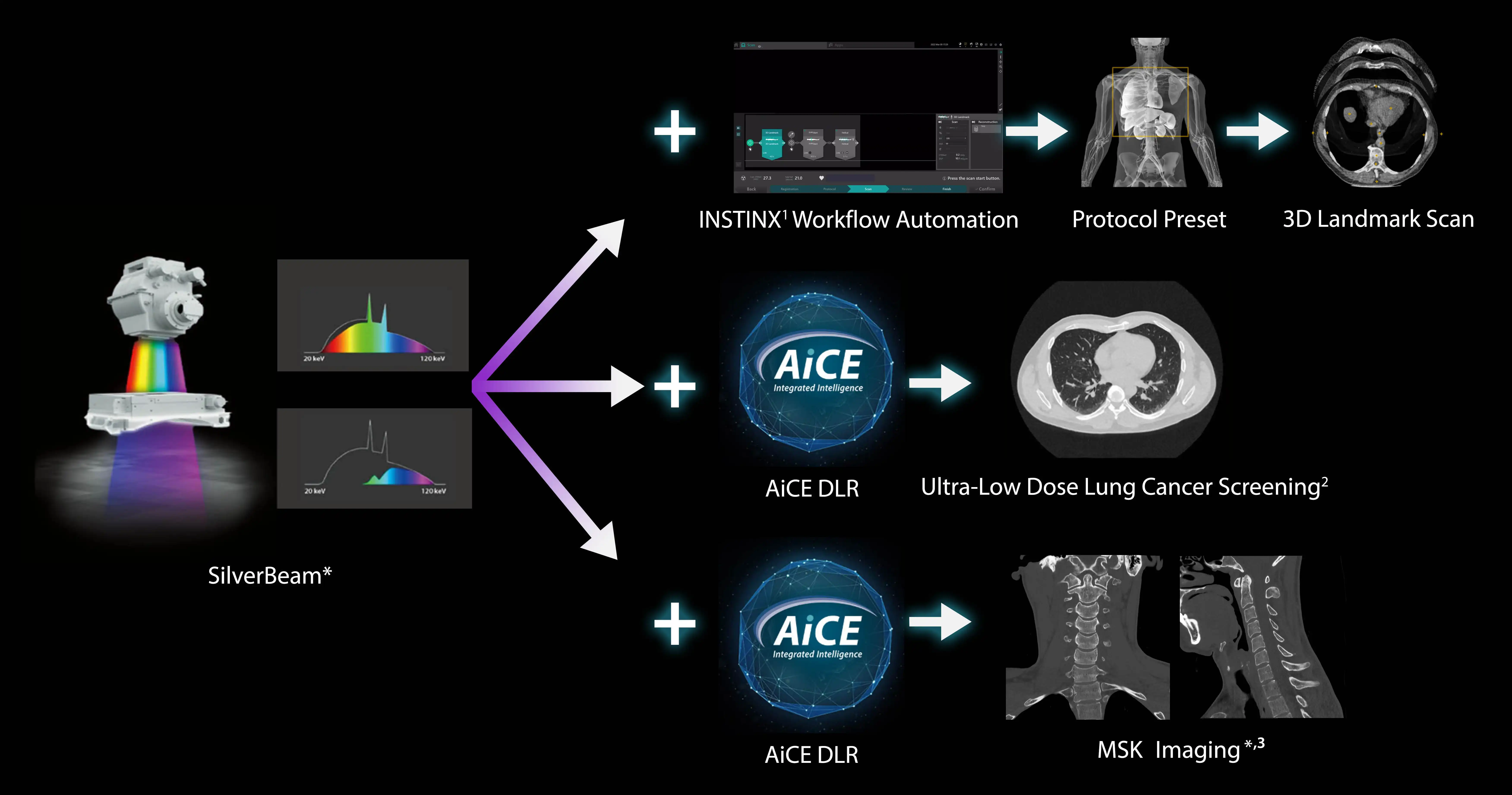

SilverBeam* Filter

Ultra-low dose scanning.

The beam shaping energy filter leverages the photon-attenuating properties of silver to selectively remove low-energy photons from a polychromatic X-ray beam, leaving an optimized energy spectrum.

* Not all options/features may be available across all systems/configurations
¹ Depending on system configuration.
² Courtesy of Dr. M Chen, NHLBI, National Institutes of Health, USA
³ Courtesy of Dr. Bull, Bournemouth, UK

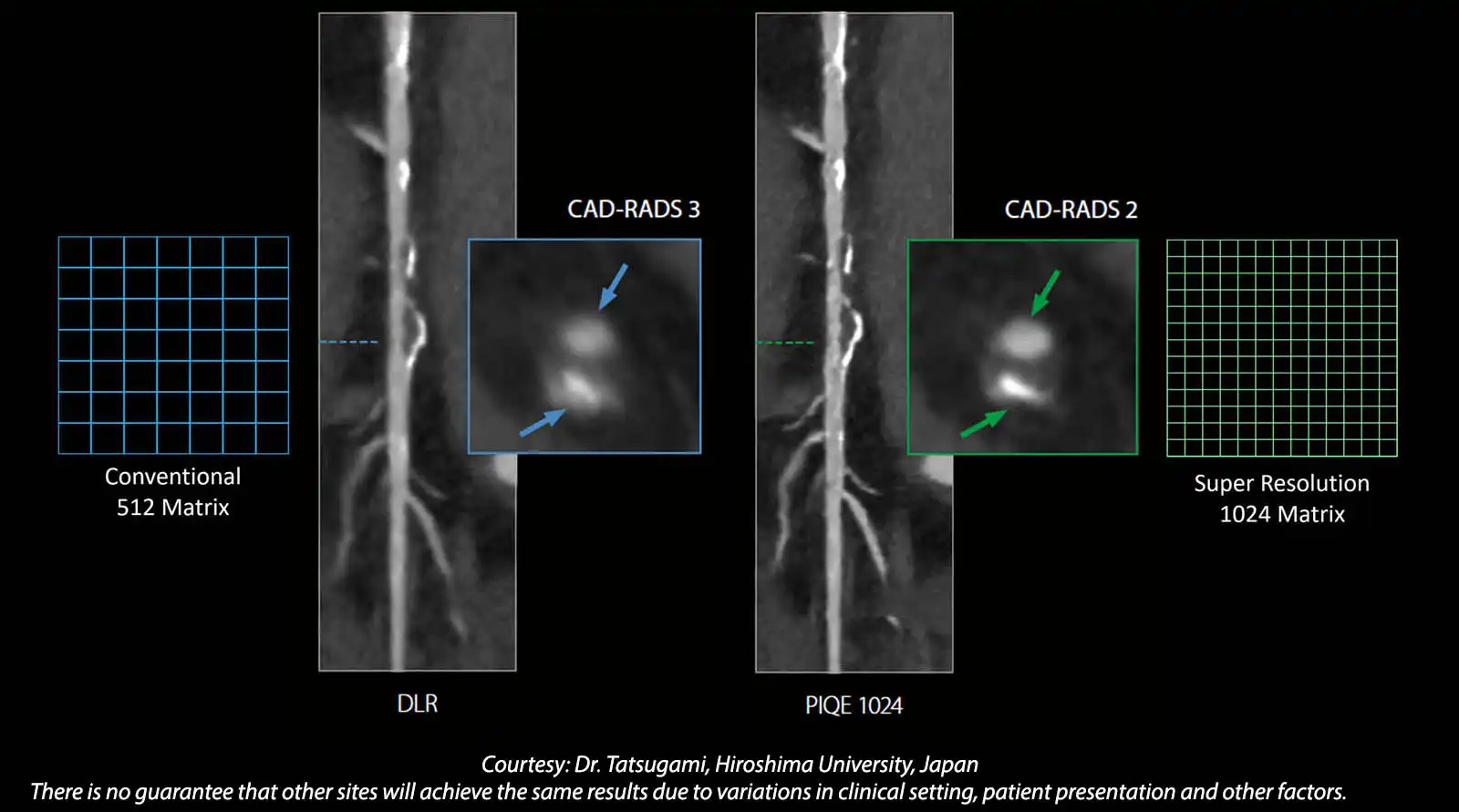

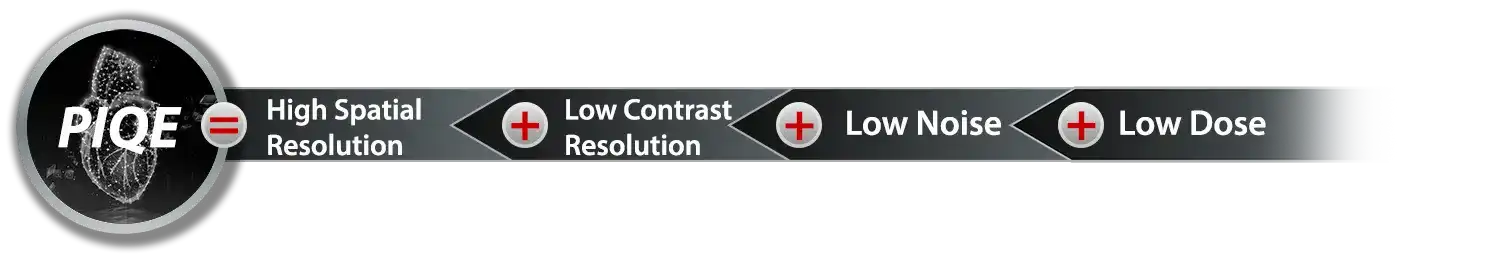

Precise IQ Engine (PIQE) 1024* DLR

Super Resolution¹

PIQE 1024¹ DLR maximizes the inherent resolution of a CT to provide Super Resolution1 images without comprising on image noise, temporal resolution or dose.

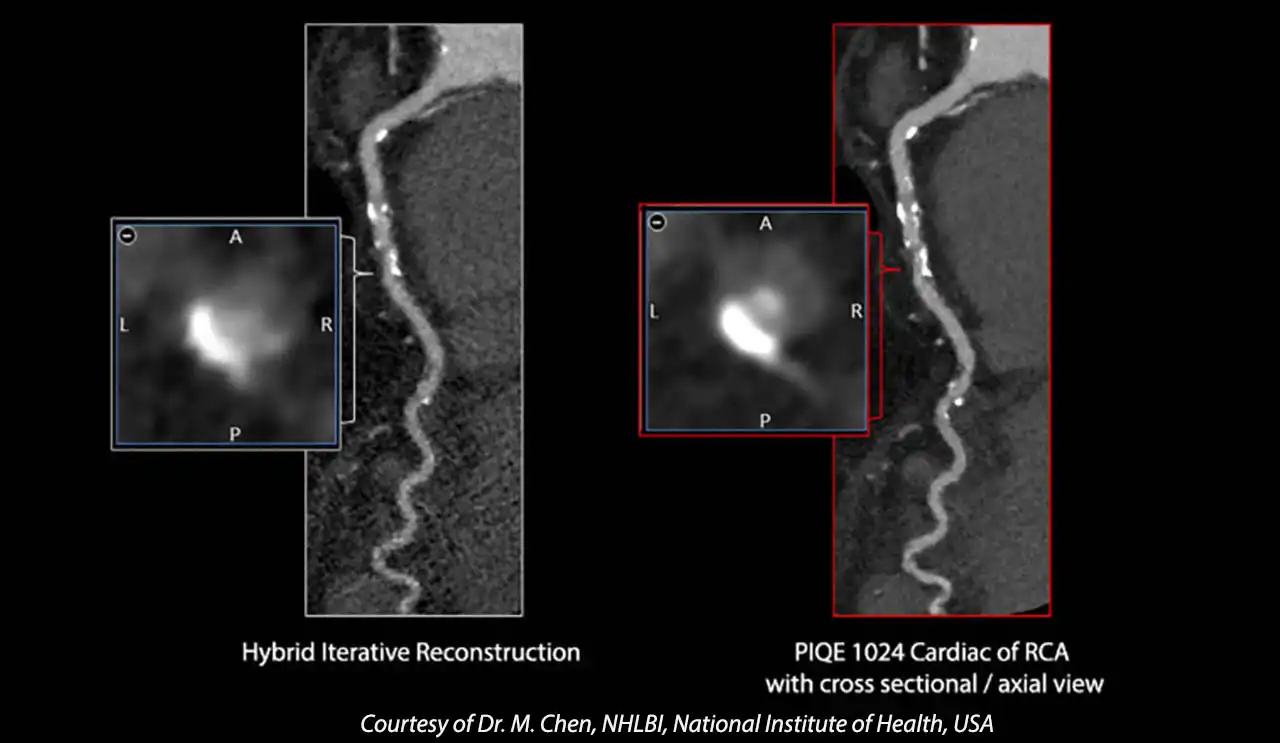

PIQE 1024* Cardiac delivers sharper images for better visualization of stents, calcification and plaque.

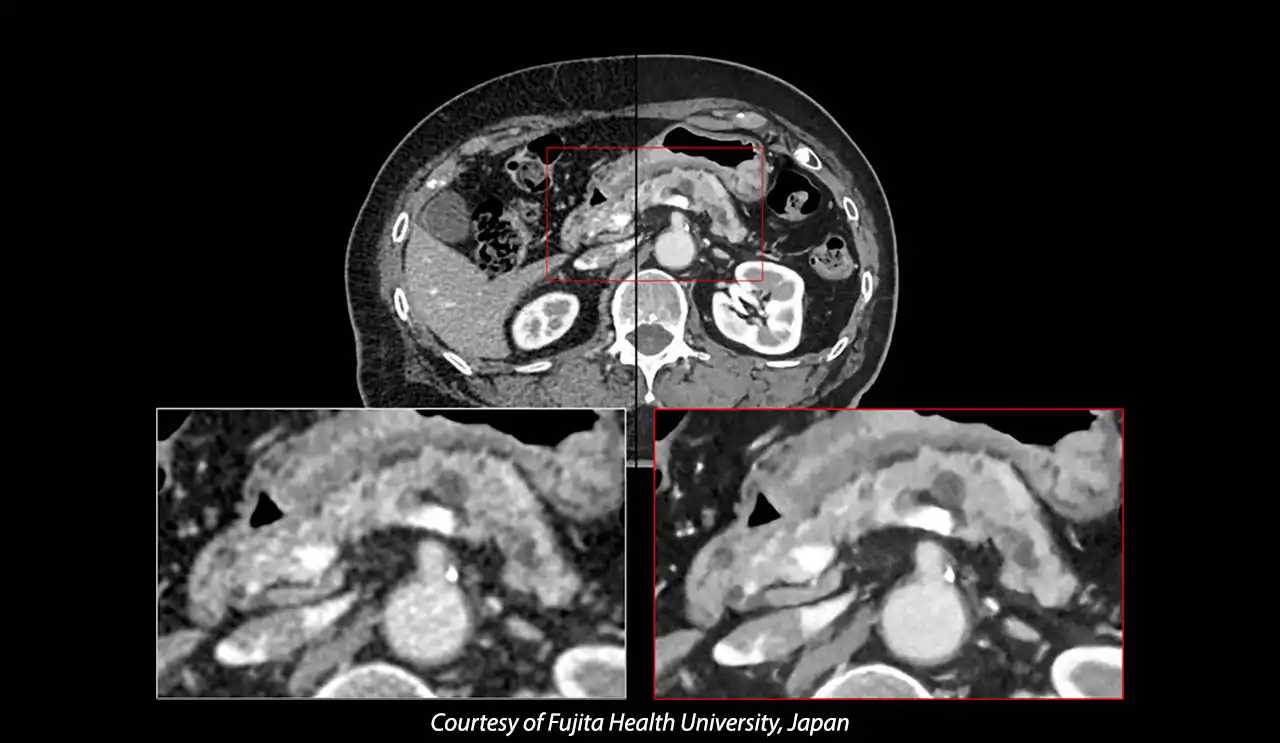

PIQE 1024* Body provides images with less noise and sharp borders between lesions seen in the liver or kidneys.

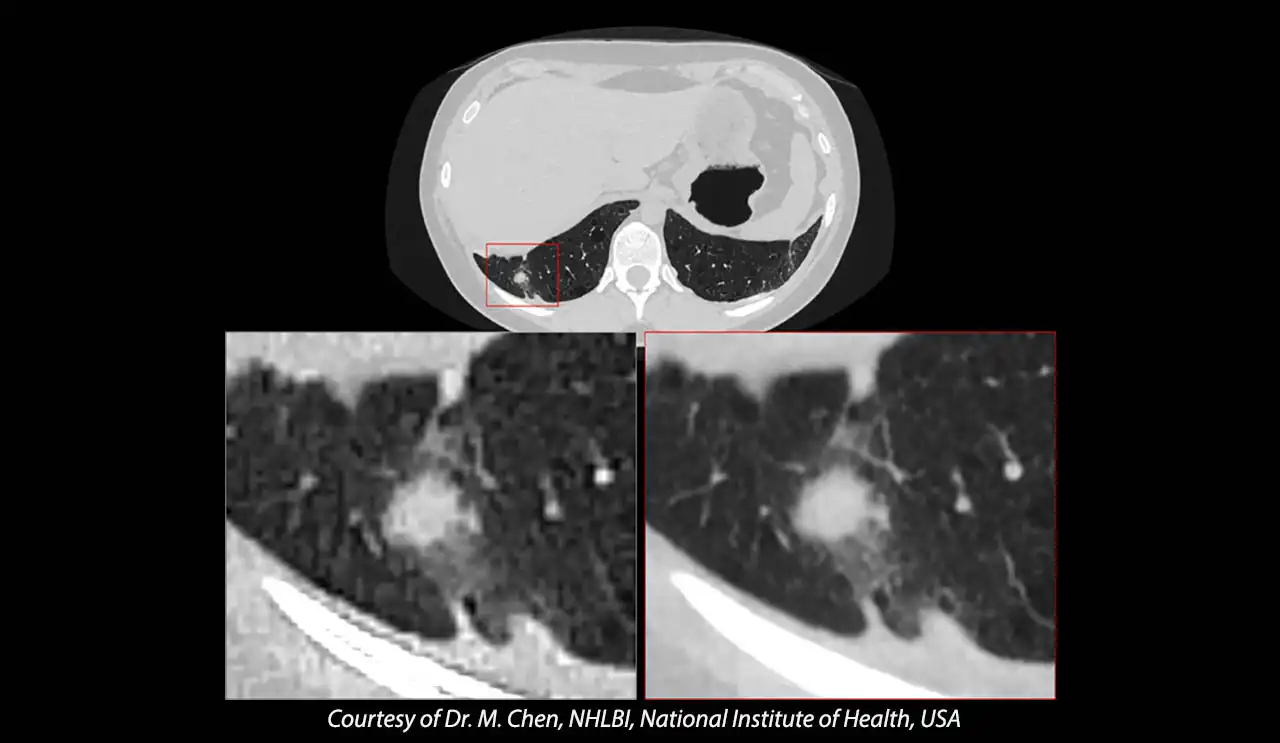

PIQE 1024* Lung² provides sharp anatomical detail for improved visualization of the lung parenchyma, without dose penalties.

* Option
¹ PIQE is designed to fully utilize the maximum resolution of the detector.
² PIQE Lung based upon NEQ measurements, e.g. increase in NEQ by a factor of X (range y – z) for frequencies above 0.5 lp/mm for a 320 mm FOV at an SSDE of 9mGy.
These results are based upon the customer’s specific experience. Clinical results are the experience of the author. Results may vary due to clinical setting, patient presentation and other factors.

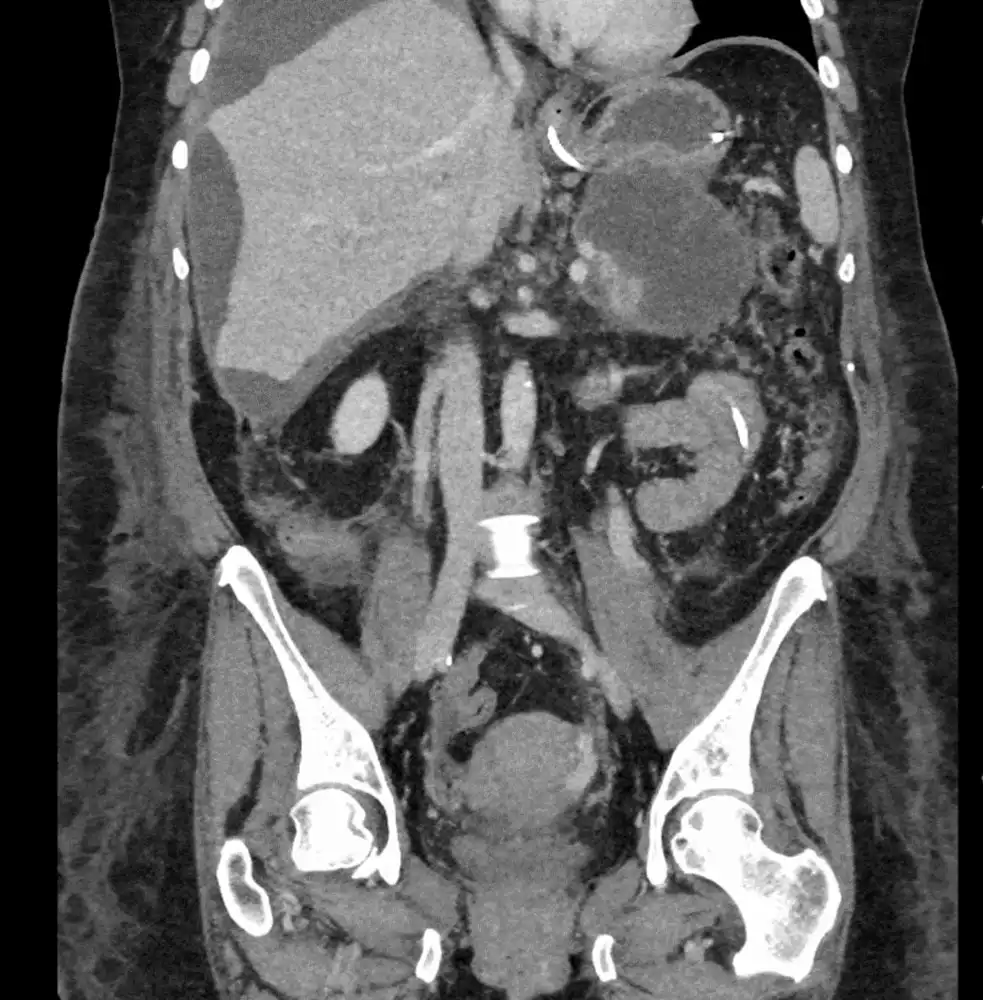

Sharp, Clear and Distinct Images at Low Doses

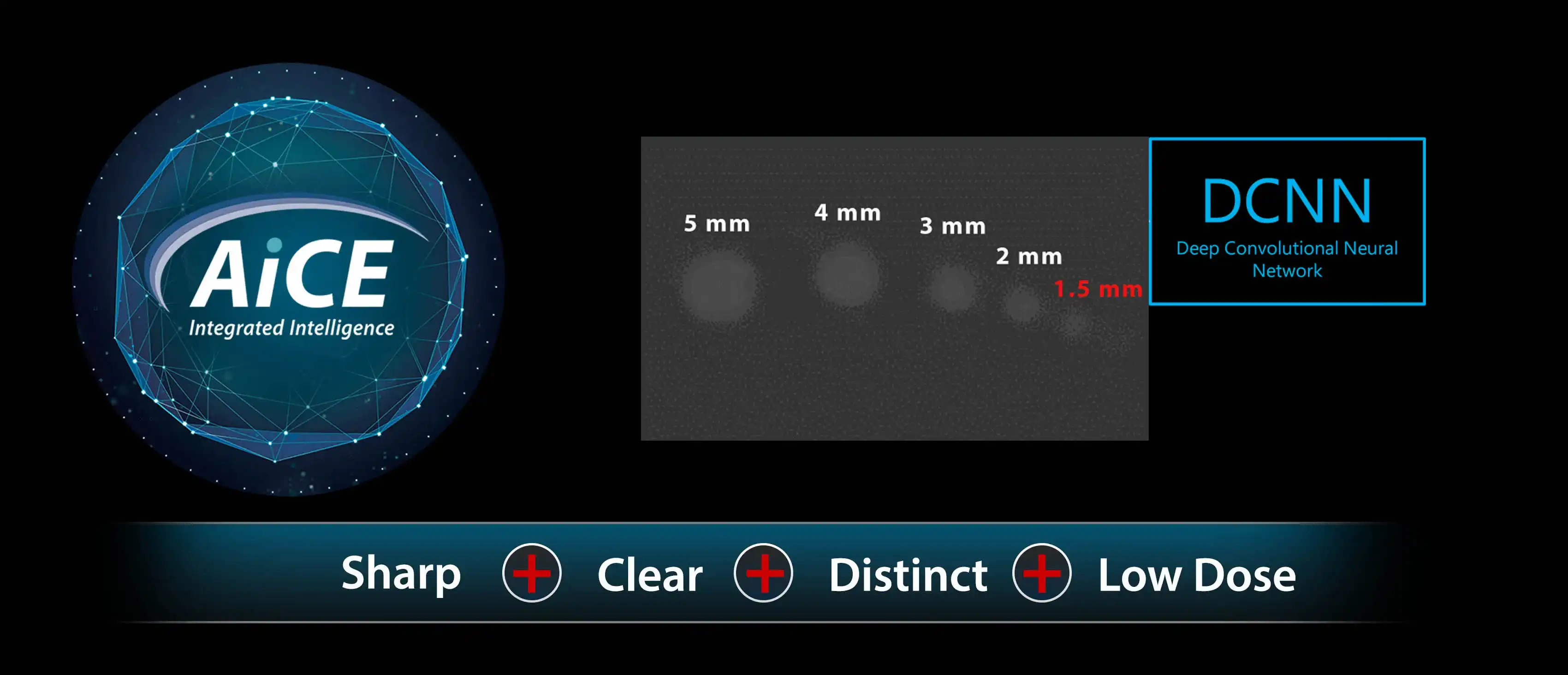

Advanced intelligent Clear-IQ Engine (AiCE).

Deep Learning Reconstruction (AiCE delivers our best low-contrast resolution ever¹, with improved low-contrast detectability, noise and spatial resolution relative to hybrid iterative reconstruction.

¹1.5 mm @ 0.3%, Aquilion ONE / GENESIS Edition

Stroke Assessment in Under 5 Minutes*

When time is brain, every second counts

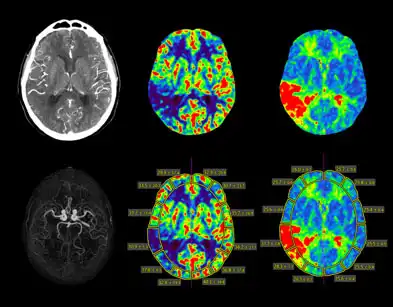

Wide-area CT comprehensive stroke evaluation with whole brain¹ perfusion with 4D digital subtraction* angiography of the intracranial circulation in just one minute.

Evaluate flow and perfusion defects with 4D brain perfusion² Vitrea software to make the appropriate treatment decision in under five minutes.

Technology Highlights:

• 320 detector row system, 0.5 mm x 320¹
• Up to 640 slices with coneXact* double slice reconstruction 16 cm z-axis ultra-high-resolution coverage¹
• Advanced Clear-IQ Engine (AiCE) Deep Learning Reconstruction
• Vitrea Advanced Visualization*²

* Option
¹ Available on the Aquilion ONE / INSIGHT Edition, Aquilion ONE / Prism Edition, Aquilion ONE / Genesis Edition.
² Available with Vitrea Advanced Visualization.
Images Courtesy of Radboud UMC, Nijmegen, The Netherlands.

Deep Learning Spectral*

Full Spectral Transformation

• Transforms multi-energy raw data sets into two full high and low energy separated sinograms.
• Excellent energy separation for Spectral analysis with the high resolution and low noise properties you would expect from a routine diagnostic CT exam.
• Easy to use, fully integrated in protocols with automatic transfers of monochromatic volumes, iodine maps¹ and VNC images to PACS.
• Spectral material differentiation and characterization evaluations can be launched directly from PACS with the integration of  Vitrea Advanced Visualization² software.

* Option
¹ Gray scale iodine maps directly from CT console, color iodine maps only with Advanced Vitrea application.
² In combination with Vitrea® Advanced Visualization.

Main specifications

*1 Requires option license

*2 Option, with 1200 mm stroke

*3 Adaptive Iterative Dose Reduction
