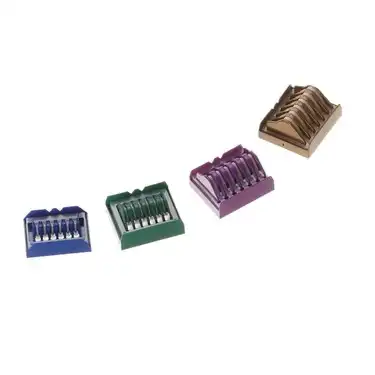

Teleflex/Weck Hem-o-lok Polymer Ligating Clips 544220/544230/544240/544250

Hem-o-lok is available in a range of clip sizes (Medium, Medium/Large, Large,and XL) to ligate up to 10 mm vessels through a 5 mm port or up to 16 mm vessels through a 10 mm port.

Phone：+86-21-54286005

Resources

Hem-o-lok_Brochure_EN

Hem-o-lok_Brochure_CN

Overview Specifications Dimensions

HEM-O-LOK®

WECK® Hem-o-lok polymer locking ligation system.

HEM-O-LOK结扎夹

AT A GLANCE

Provides secure ligation, cliplocks on to vessels
Tactile feedback
Permanent, non-absorbable,inert, non-toxic, radiolucentpolymer
Cool ligation system
Open or laparoscopic appliers

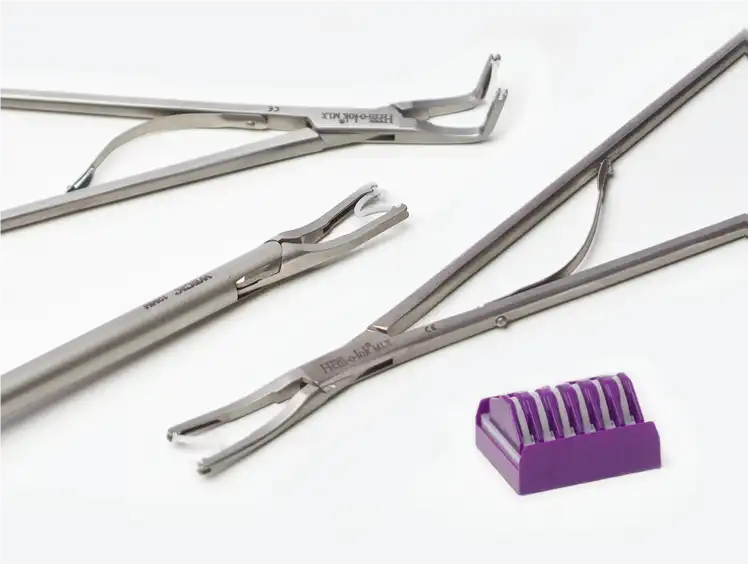

生物锁定结扎系统

CONFIDENCE YOU CAN FEEL
Confidence. That’s what the WECK Hem-o-lok polymer locking ligation system provides. Confidence created by a ligation system designed for clip security—secure in the applier, locked on to the patient vessel.

SECURITY BY DESIGN
Hem-o-lok’s unique design and flexible hinge keep the clip firmly seated in applier jaws. The clip’s distinct tactile feedback confirms jaw seating and secure vessel placement.

COOL LIGATION
Since Hem-o-lok is a cool ligation system, there’s no chance of thermal spread to vital structures, a common concern of many surgeons when they use energy-based ligation solutions.

SIZE RANGES TO MEET YOUR NEEDS
Hem-o-lok is available in a range of clip sizes (Medium, Medium/Large, Large,and XL) to ligate up to 10 mm vessels through a 5 mm port or up to 16 mm vessels through a 10 mm port. Our broad range of applier lengths(including 45 cm endo appliers for extended reach) allows surgeons to deliver clips with control and confidence.

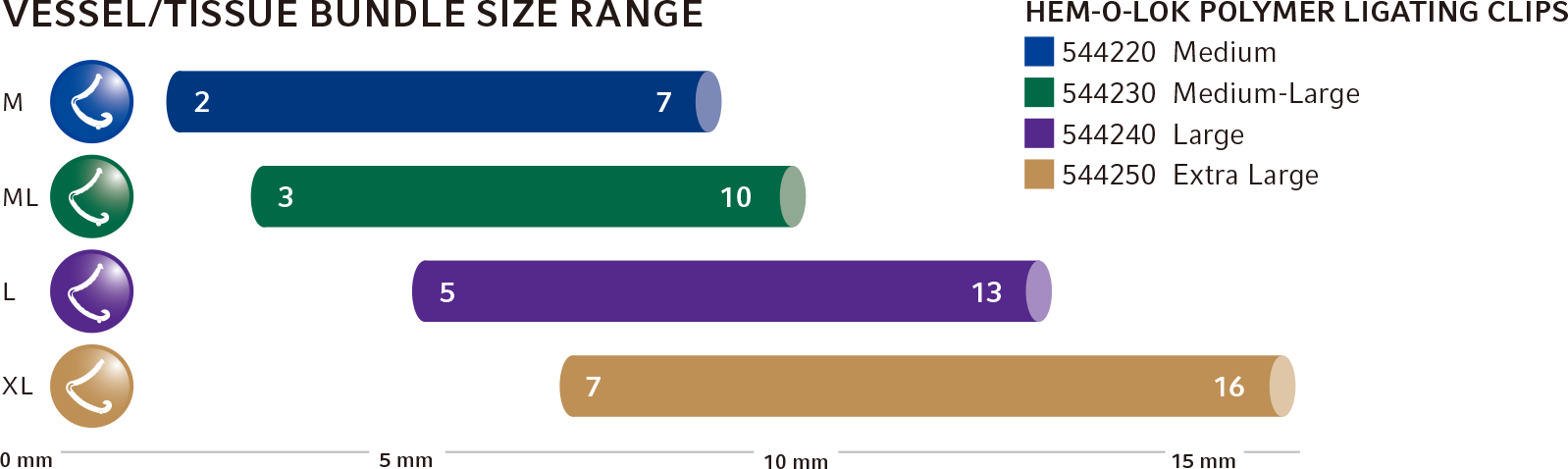

VESSEL/TISSUE BUNDLE SIZE RANGE

CLIPS

OPEN
APPLIERS/REMOVERS

ENDOSCOPIC
APPLIERS/ REMOVERS

544220 Hem-o-lok® Medium

Polymer Clips

6 clips/cartridge
14 cartridges per box, sterile

544113 8"Curved

544114 11"Right-Angle(70°)

544115 11" Curved

544123 11" Remover

(for M,ML,L)

中大号

544230 Hem-o-lok® Medium-Large

Polymer Clips

6 clips/cartridge

14 cartridges per box, sterile

544170 8"Curved

544171 11"Curved

(for M,ML,L)

Endo5® ML,diameter 5 mm

544965 32.5cm applier

544965L 45cm applier

544965T 34cm applier,,take-apart

544121 32cm Remover(for ML and L)

544121L 45cm Remover(for ML and L)

544121T 32cm Remover,take-apart(for ML and L)

544240 Hem-o-lok®大号

Polymer Clips

6 clips/cartridge

14 cartridges per box, sterile

544179 11"Right-Angle(70°)

544180 8"Curved

544181 11"Curved

544123 11"Remover(for M,ML,L)

544124 11"Remover(for L,XL)

Endo10™ L

544995 32cm applier,10mm

544995L 45 cm applier,10mm

544995T 34cm applier,10mm,take-apart

544121 32cm Remover,5mm(for ML and L)

544121L 45cm Remover,5 mm(for ML and L)

544121T 32cm Remover,5 mm,,take-apart(for ML and L)

544130 32cm Remover,10 mm(for L and XL)

544130L 45cm Remover,10 mm(for L and XL)

544130T 33cm Remover,10mm,take-apart(for L and XL)

特大号

544250 Hem-o-lok® Extra-Large

Polymer Clips

6 clips/cartridge

14 cartridges per box, sterile

544191 11"Curved

544192 11"Right-Angle(70°)

544124 11"Remover

(for L,XL)

Endo10™ XL,diameter10mm

544990 32cm applier

544990L 45cm applier

544990T 34cm applier,take-apart

544130 32cm Remover(for L and XL)

544130L 45cm Remover(for L and XL)

544130T 33cm Remover,take-apart(forL and XL)

Product Associated

COVIDIEN 133650 Premium Surgiclip™ III clip applier 13″

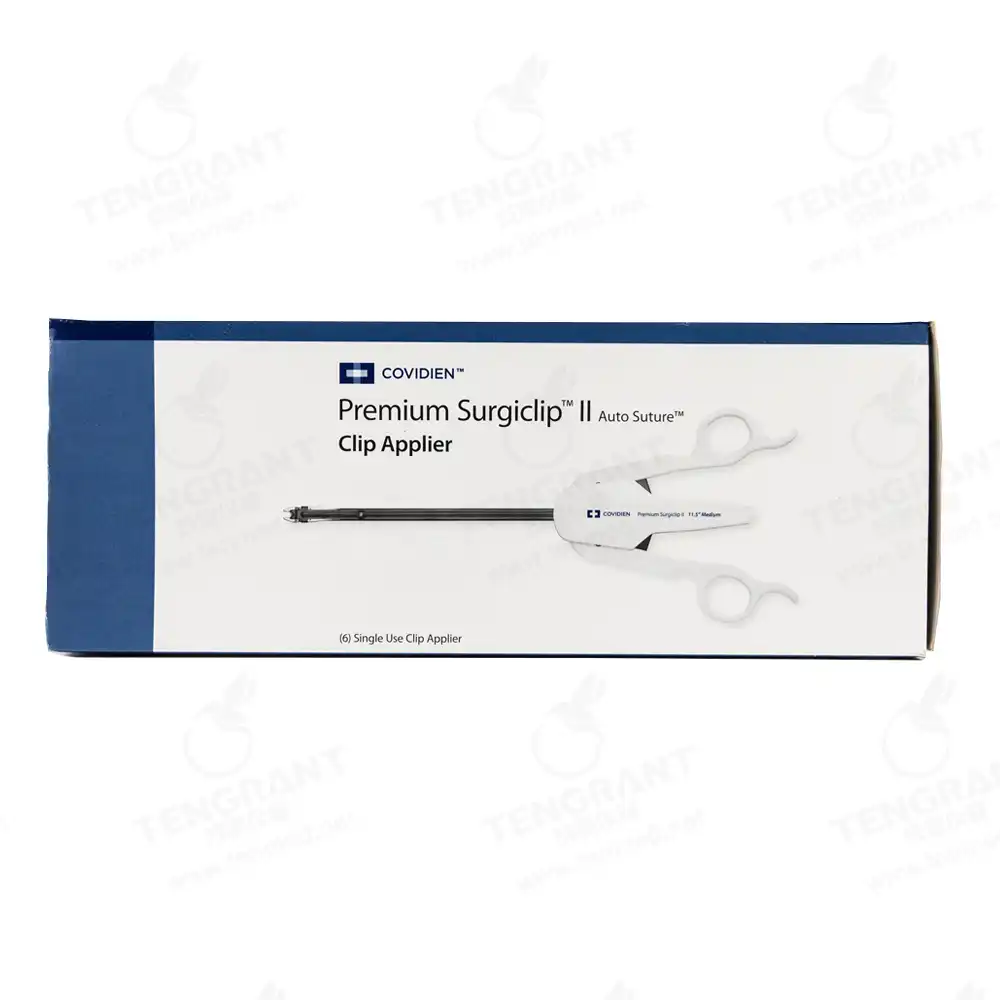

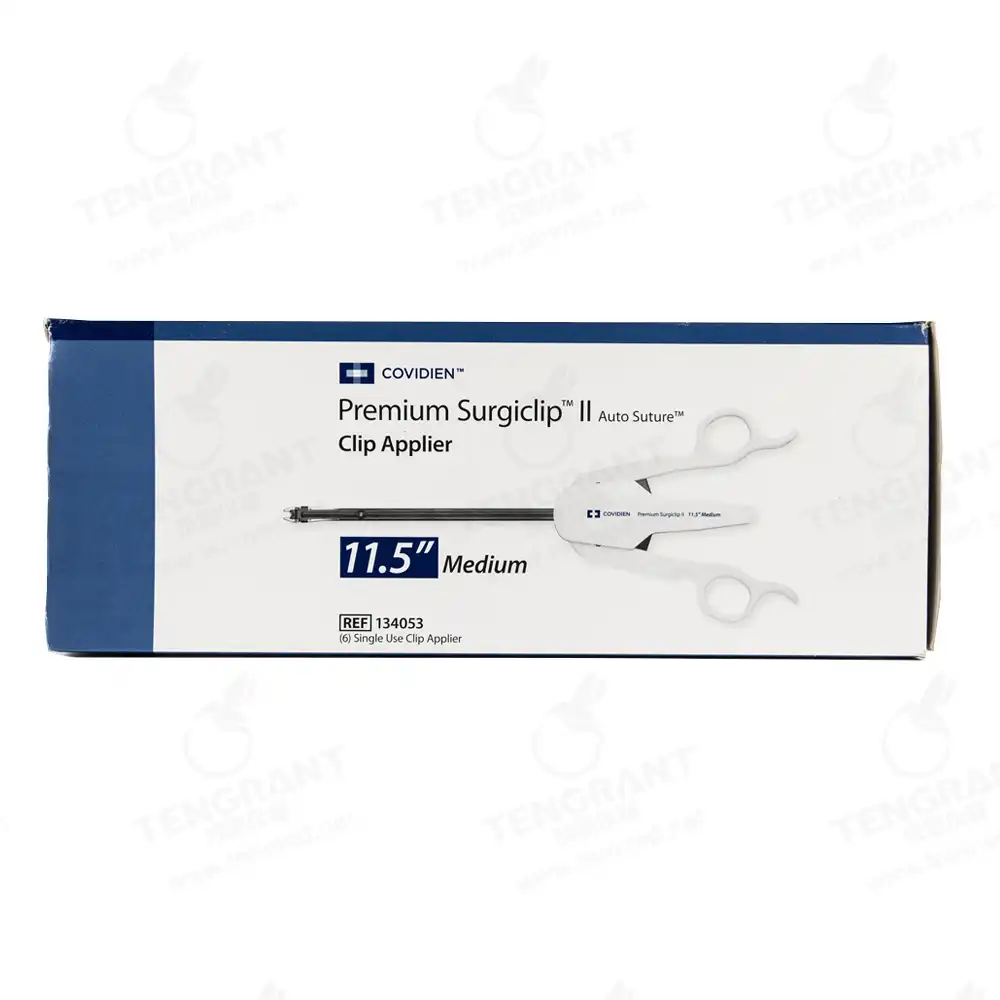

COVIDIEN 134053 Premium Surgiclip™ II clip applier 11.5″

COVIDIEN 134051 Premium Surgiclip™ II clip applier 9.75″

COVIDIEN 134048 Premium Surgiclip™ clip applier 13″

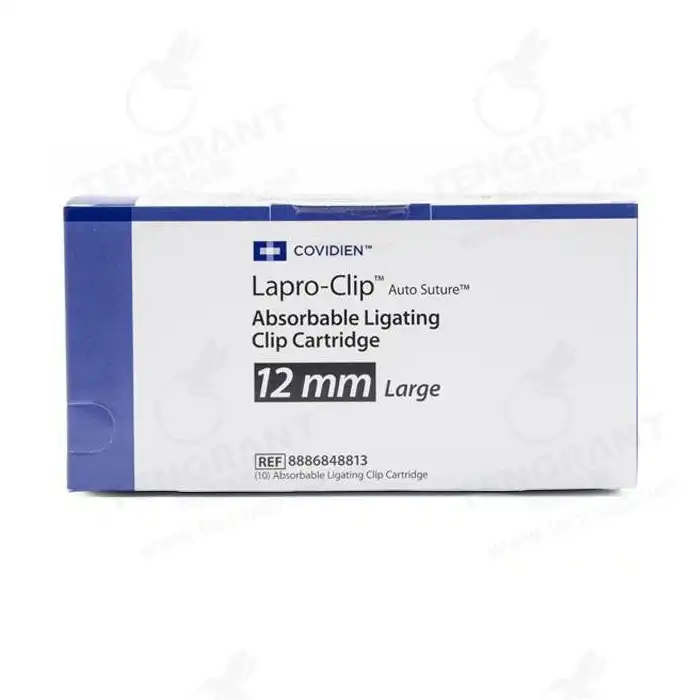

COVIDIEN 8886848813 Lapro-Clip™ 12 mm absorbable clips

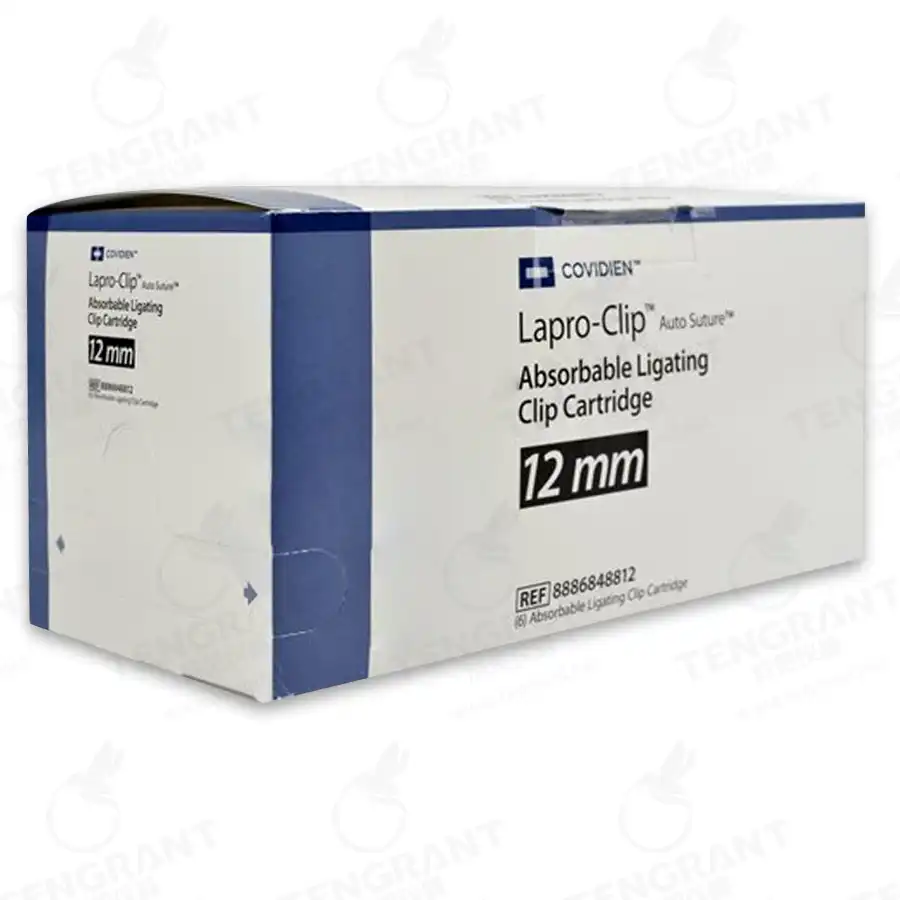

COVIDIEN 8886848812 Lapro-Clip™ 12 mm absorbable clips
