KARL-STORZ UP501 S-PILOT Smoke Management System

s-pilot® – The solution for your smoke management，Regulated extraction and filtration of surgical smoke during endoscopic procedures

Phone：+86-21-54286005

Overview Specifications

s-pilot® – The solution for your smoke management

UP501

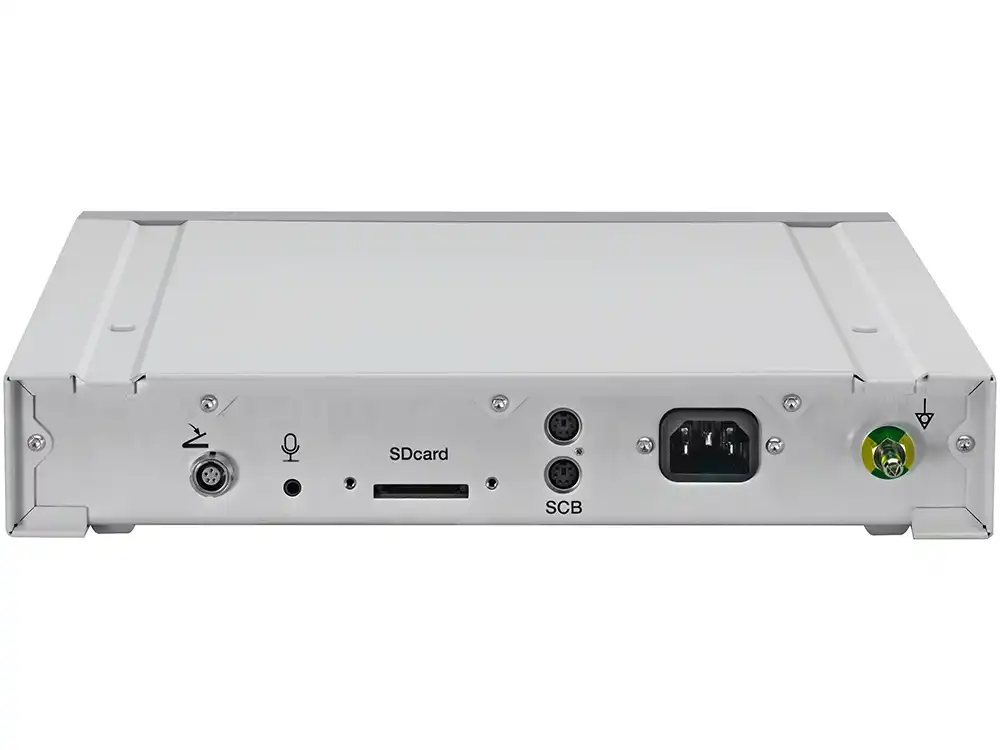

UP501 UP501 BACK

Regulated extraction and filtration of surgical smoke during endoscopic procedures
Parallel suction of smoke gas and liquids
Suction power from the sterile field individually adjustable
Activation via foot switch or on the unit
Can be individually integrated into existing systems (KARL STORZ endoflators, HF-devices, motor system, ultrasonic generator)

KARL-STORZ UI500 ENDOFLATOR 50 Insufflation

KARL-STORZ UI400 ENDOFLATOR 40 Insufflation

Olympus WM-NP3 Endoscopic Mobile Trolley

Olympus OFP-2 Endoscopic Flushing Pump

Olympus UHI-4 45L High Flow Insufflation

Olympus UCR CO2 Insufflator

Brand	S-PILOT®
Power supply	100 – 240 VAC
Slot for SD memory card	1
Serial port for connecting cable	1
Connection socket footswitch	1
Line frequency	50/60 Hz
Power input AN	7.5 VA
Power input maximum	43 VA
Power consumption standby	3 VA
Unit communication SCB	yes
Wipe disinfection	yes
Degree of safety	CF
IP protection class	IP21
Electrical protection class	protection class 1
System requirements for SCB	SCB control NEO system with installed SCB control NEO Software Release 20090001-46 or higher
SCB connection	2
Width	305 mm
Height	55 mm
Depth	356 mm
Weight	1.9 kg
