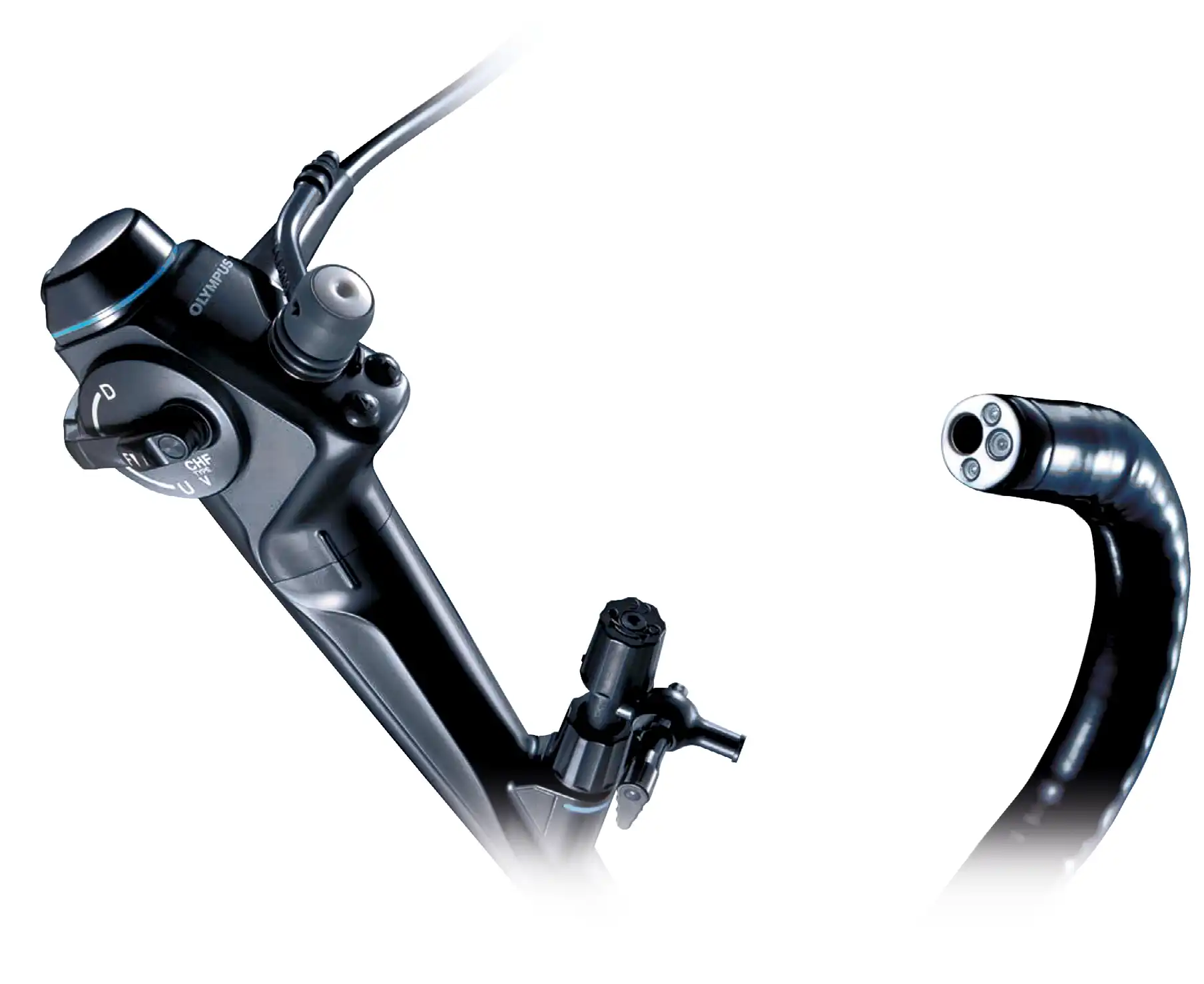

中文Olympus CHF-V Video Choledochoscope
The CHF-V presents a solution to transcutaneous biliary tract surgery, combining advanced imaging with a deep field of view.
Phone：+86-21-54286005
Resources
CHF-V_Brochure_EN
CHF-V_Brochure_EN
Olympus CHF-V Video Choledochoscope
- A simultaneous-multicolor type CCD that features color consistent moiré-free imaging is introduced to the visualization of the bile duct.
- With its deep depth of field of view, this system eliminates the need for inconvenient intra-operative focusing.
- The CHF-V's image is even larger and less distorted than that of our conventional fiberscope*, making the most of its high-resolution image quality and enhancing observation.
|
|
CHF TYPE V |
|
| Field of View |
120° |
|
| Direction of View |
0° |
|
| Depth of Field |
3–50 mm |
|
| Insertion Tube | Distal End Outer Diameter |
4.9 mm |
| Insertion Tube Outer Diameter |
5.2 mm |
|
| Working Length |
380 mm |
|
| Instrument Channel | Inner Diameter |
2.0 mm |
| Minimum Visible Distance |
3 mm |
|
|
Bending Section Angulation Range |
Up |
160° |
| Down |
130° |
|
| Total Length | 660 mm | |
