Location：Home > Our Product > Endoscopysystem > Light-Source > Fujifilm BL-7000 4-LED Light Source

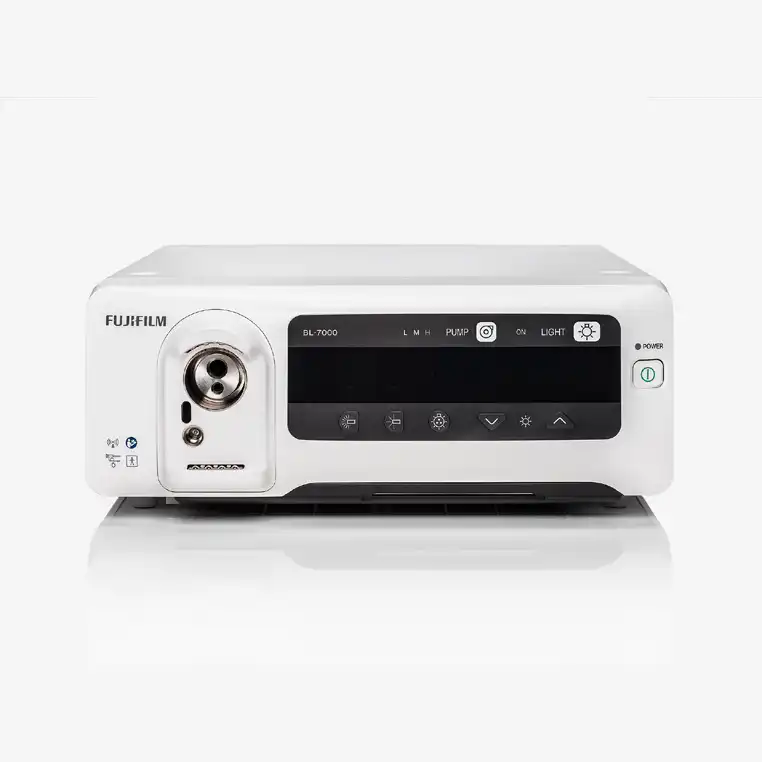

Fujifilm BL-7000 4-LED Light Source

A reliable light source is a prerequisite for use in large clinics as well as smaller outpatient centres to ensure procedures can take place as scheduled.

Phone：+86-21-54286005

Resources

Overview Specifications

BL-7000 4-LED MULTI LIGHT™ SOURCE WITH HIGH DURABILITY

A reliable light source is a prerequisite for use in large clinics as well as smaller outpatient centres to ensure procedures can take place as scheduled. To achieve high standards, the eco-friendly ELUXEO™ 7000 system features the 4-LED Multi Light™ Source, which outperforms conventional Xenon or Halogen light sources: With 10,000 hours average life expectancy for the LED lights, the ELUXEO™ system has far longer durability while having much lower energy consumption, resulting in better cost-efficiency.

BL-7000

Product Associated

Olympus CLV-190 Xenon Light Source

AOHUA AQL-300L Endoscope LED light source

AOHUA AQL-200 Elite Endoscope LED light source

AOHUA AQL-200L Endoscope LED light source

Olympus VISERA ELITE III CLL-S700 LED Light Source

R. Wolf 806635301 Fiber light cable Ø3.5 mm Length 3.0 m

R. Wolf 806550301 Fiber light cable Ø5.0 mm Length 3.0 m

R. Wolf 5160001 ENDOLIGHT LED 1.1 light source

R. Wolf 5161001 ENDOLIGHT LED 1.2 LED light source

R. Wolf 5163001 ENDOLIGHT LED 2.1 LED light source

R. Wolf 5164001 ENDOLIGHT LED 2.2 Light source

Karl Storz TL410 POWER LED SAPHIRA Light Source

Karl Storz 495NE/495NA/495NCS/495NCSC Fiber Optic Light Cable

Karl Storz 20161401-1 Power LED 175 Light Source

Karl Storz TL300 Power LED 300 Light Source

Karl Storz TL400 Power LED RUBINA NIR/ICG Light Source

Power rating	Voltage 100V to 240 V ~ ± 10 ％
	Frequency 50/60 Hz
	Current consumption 1.2-0.7 A
Dimensions(W×H×D)	390×155×485 mm (incl. projection)
Weight	12Kg
Illumination	Illumination source LED, qualifies 300W Xenon lamp intensity
	Durability of LED 6 years (based on FUJIFILM criteria)
	Lighting system Switching regulator
	Light control method LED Auto power control
	Light cooling method Forced air cooling
	Special light observation mode BLI, BLI-bright, LCI
	Maximum air supply pressure 65 kPa
Automatic brightness adjustment	Automatic brightness adjustment method Brightness is automatically adjusted according to the video output (manually possible).
Air supply	Pump Diaphragm method pump
Air supply	Air supply pump HI/MID/LOW/OFF
Water supply	Method Feeds water by pressurizing the detachable water container with air.
Indicators on front panel	Transmitted illumination The light flashes with the maximum light intensity. Used to check the position of the distal end from outside the body.
	Light limitation To avoid the blood of a bleeding patient becoming clotted by the illuminating light. Used to limit the maximum light intensity.
	Illumination mode OFF/1/2/3. Observation modes can be switched by pressing the illumination mode button.
Memory of set value	Set values are maintained even after turning off the system.
Category of medical electric equipment	Type of protection against electric shock Class I equipment
	Degree of protection against electric shock Type BF applied part
	Degree of explosion protection Prohibited in oxygen-rich environment/ flammable gas atmosphere.
