中文NIKON S Plan Fluor ELWD ADM 40XC Objectives NA 0.6 WD 3.6-2.8mm
NIKON S Plan Fluor ELWD ADM 40XC Objectives NA 0.6 WD 3.6-2.8mm
Phone：+86-21-54286005

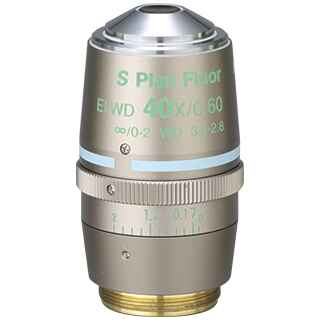

NIKON CFI S Plan Fluor ELWD ADM 40XC
Objectives NA 0.6 WD 3.6-2.8mm
| CFI S Plan Fluor ELWD ADM 40XC |
|
|---|---|
|
|
| Material Number | MRH48430 |
| Type | Super Plan Fluor |
| Primary Technique | Apodized Phase Contrast |
| Immersion | Air |
| Magnification | 40X |
| Numerical Aperture | 0.6 |
| Working Distance | 3.6–2.8 |
| Cover Glass Thickness | 0–2 |
| CFI S Plan Fluor ELWD ADM 40XC |
|
|---|---|
| Diagram (mm) |
 |

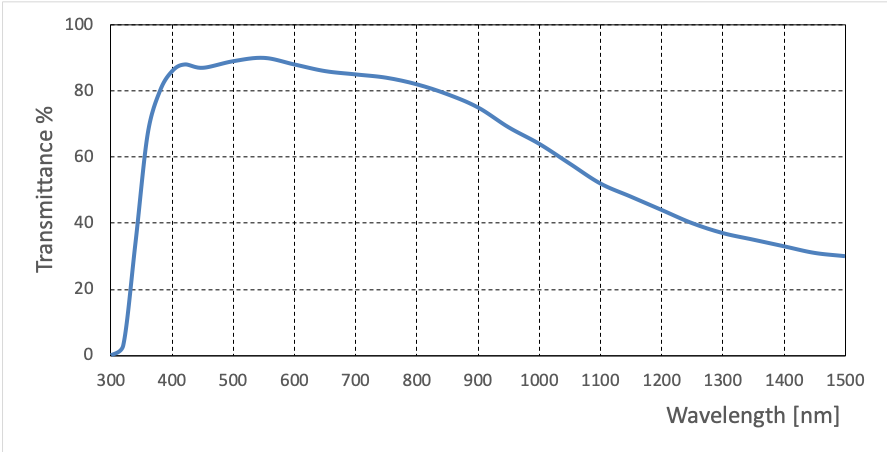

| Transmittance Graph |  |
| CFI S Plan Fluor ELWD ADM 40XC |
|
|---|---|
| Brightfield | suitable |
| Darkfield | universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil) |
| DIC | |
| Fluorescence (visible) | suitable |
| Fluorescence (UV) | suitable |
| Fluorescence (NIR) | |
| Polarizing | |
| Polarizing Type | |
| Phase Contrast Ring | ◎PH2 |
| Phase Contrast Type | ADM |
| CFI S Plan Fluor ELWD ADM 40XC |
|
|---|---|
| Correction Collar | ✓ |
| Spring Loaded | |
| Iris | |
| Long Working Distance | ✓ |
| Ti2-E PFS Compatible | ✓ |
| CFI S Plan Fluor ELWD ADM 40XC |
|
|---|---|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture | ✓ |
