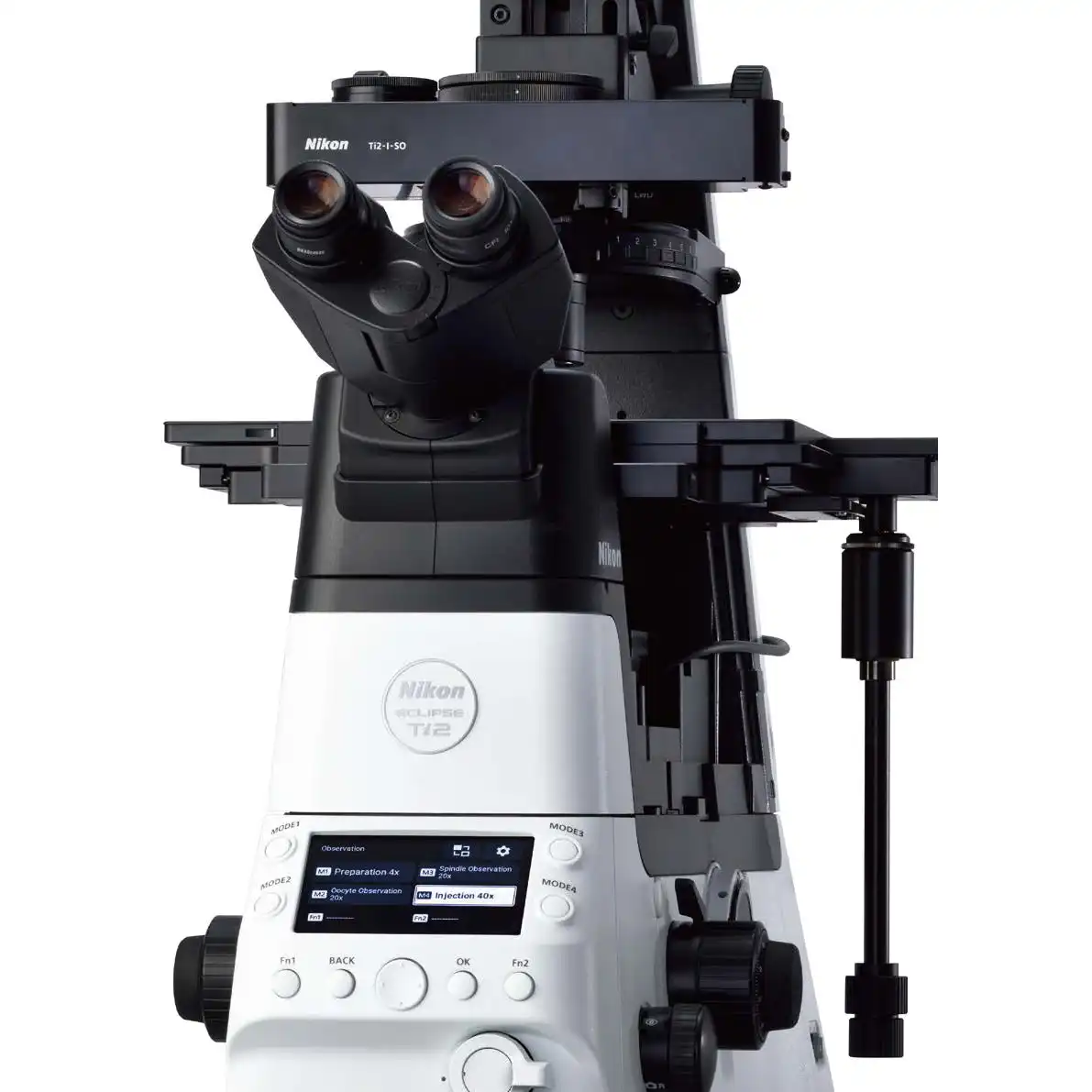

The ECLIPSE Ti2-I features motorized observation mode switching. You can quickly switch to the registered observation mode with a single button press.
Phone：+86-21-54286005
ECLIPSE Ti2-I_Brochure_EN
Improving Workflow Efficiency
The ECLIPSE Ti2-I includes new features to simplify your workflow and streamline your processes
Easy Operation
Microscope control with minimal operation to save you time at the microscope
Unique Design to Increase Confidence
Intuitive design with clear visibility of the microscope settings for your convenience
High Optical Quality
Nikon’s renowned optics provide high levels of clarity and overall optical performance
This product complies with the requirements of Regulation (EU) 2017/745 concerning medical devices. Please contact your local distributors or in-country representative for product availability in the country concerned.
The ECLIPSE Ti2-I features motorized observation mode switching. You can quickly switch to the registered observation mode with a single button press.

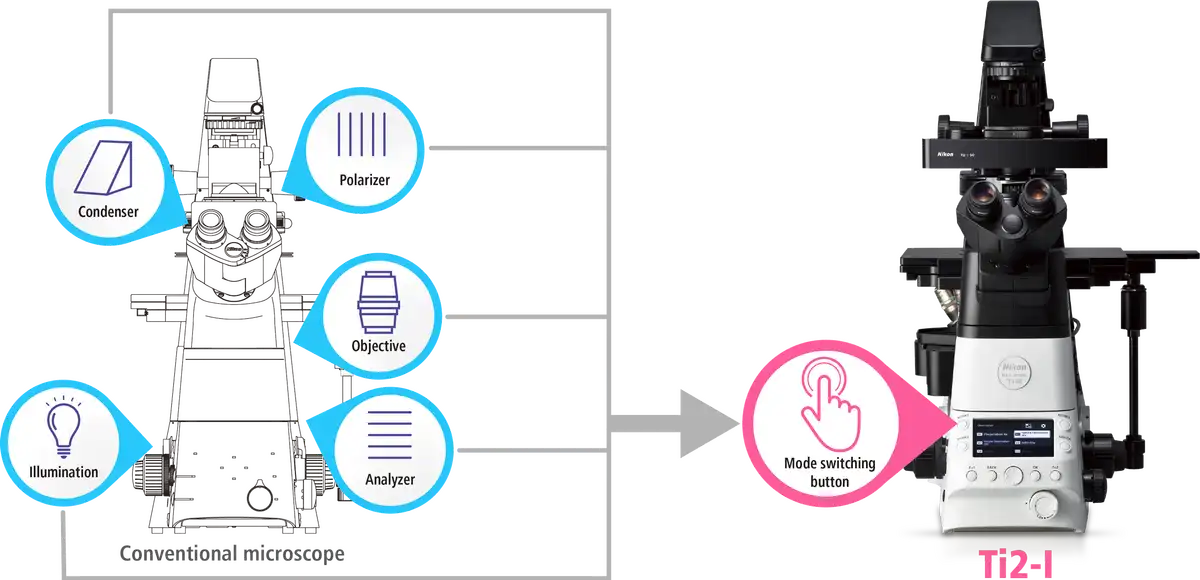

With conventional microscopes, it was necessary to operate and optimize multiple parts of the microscope for each observation mode, such as oocyte observation or sperm injection.
However, with the ECLIPSE Ti2-I, microscope optical settings for switching observation modes are integrated into a single button. This can be completely programmed to user preferences; even complex microscope operations can be completed with one touch.

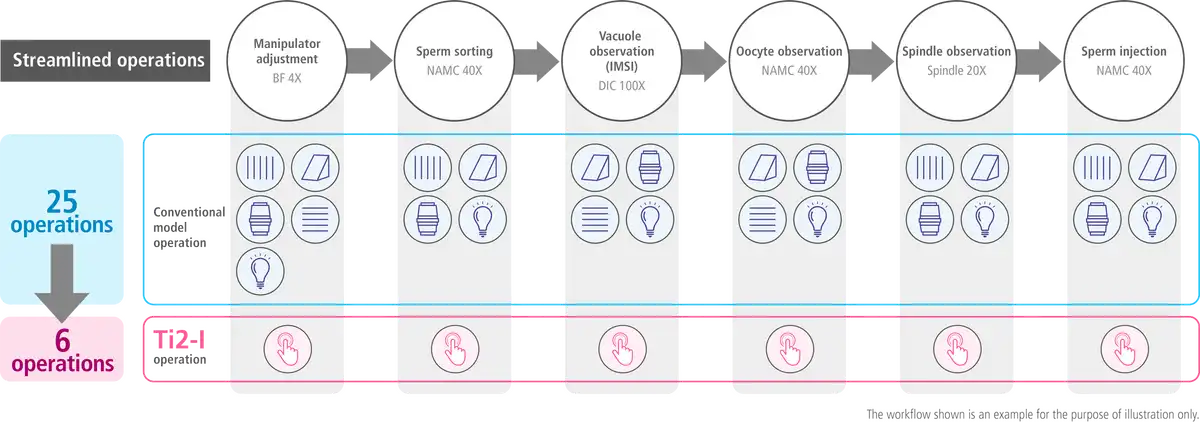

Microscopes require specific settings for each observation during assisted reproduction techniques (ART) such as ICSI and IMSI. The ECLIPSE Ti2-I requires only one button press to alter multiple settings when changing observations. This dramatically refines the workflow and improves efficiency in ICSI which requires frequent changes in observation methods.

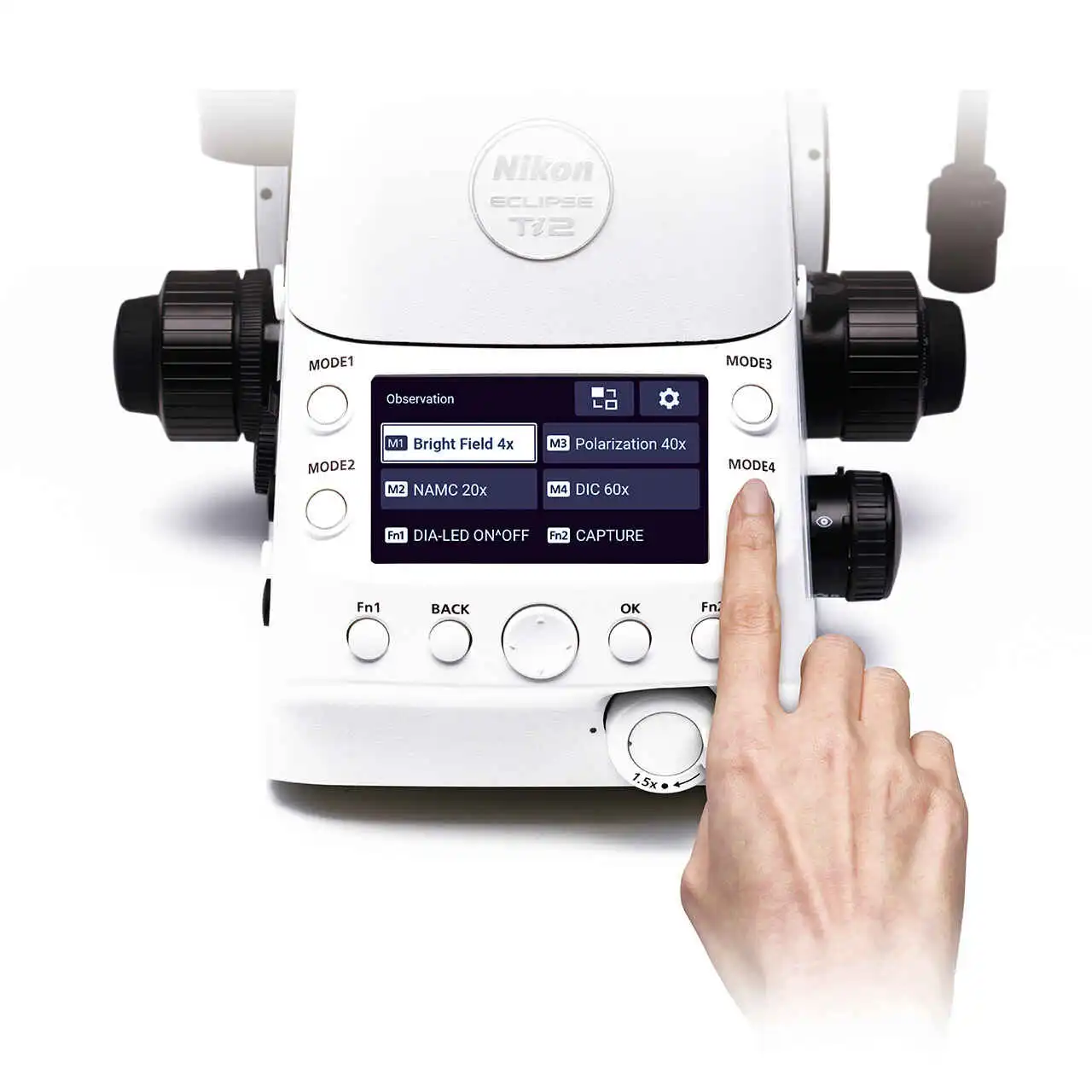

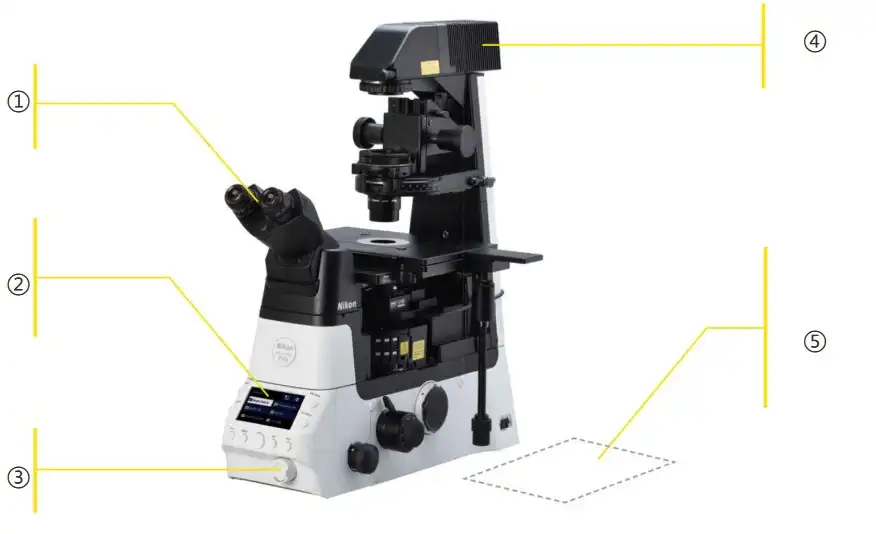

Control systems such as buttons are all in one place for ease of use. Motorized observation mode switching is available with just one push of a button. The microscope can be operated with minimal hand movements, allowing you to focus completely on ICSI technique.
Observation modes can be allocated to four mode buttons and two function buttons. This enables registration for observations at different magnifications, IMSI or spindle observations, and also supports the introduction of other types of observation such as laser observation.

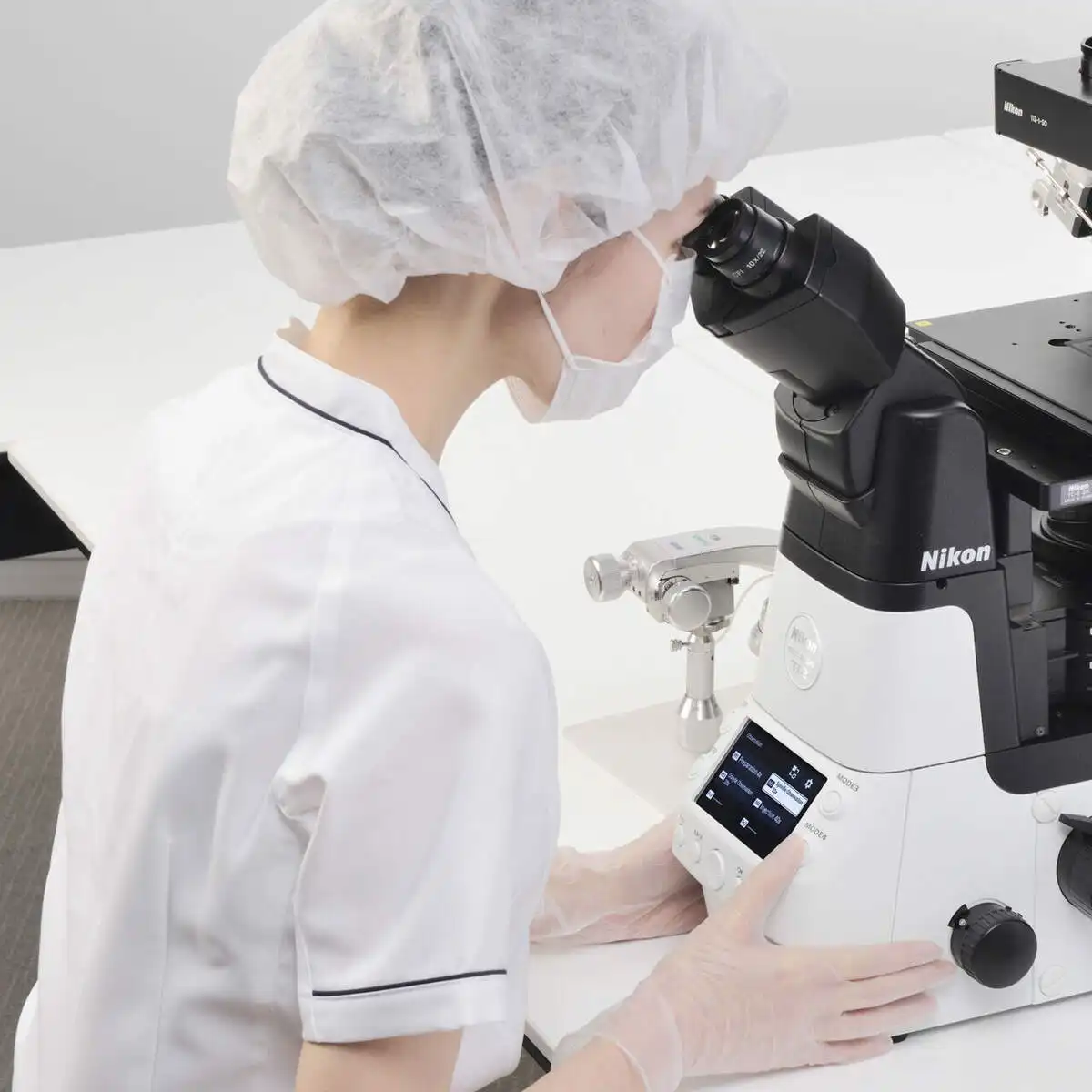

Buttons can be operated while looking through the microscope.

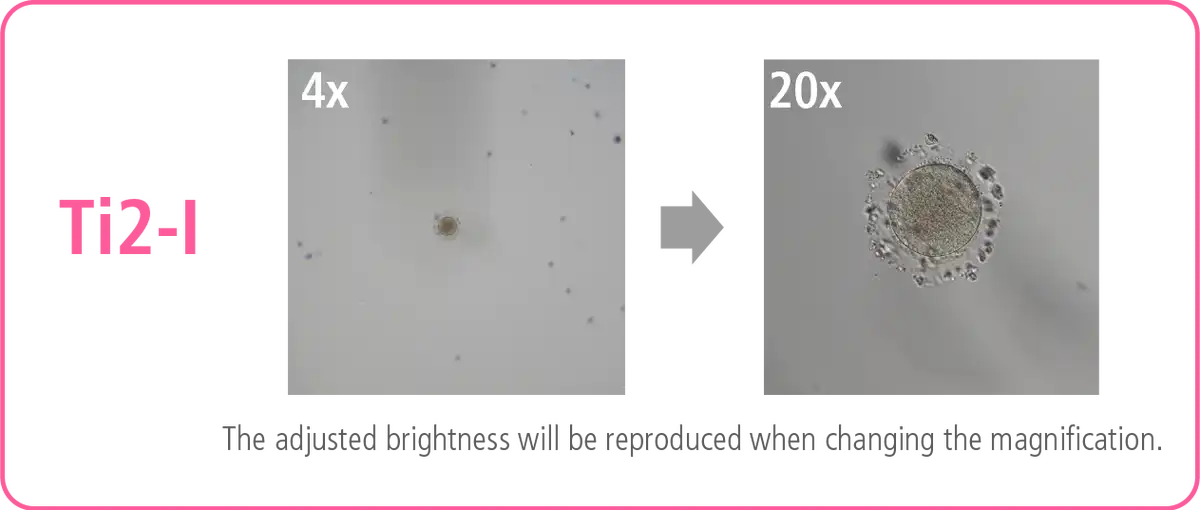

The ECLIPSE Ti2-I includes the light intensity management (LIM) function developed by Nikon. This automatically stores any changes to brightness settings which helps avoid drastic changes in brightness when switching magnification or observation mode, improving work efficiency and helping to mitigate eye strain.

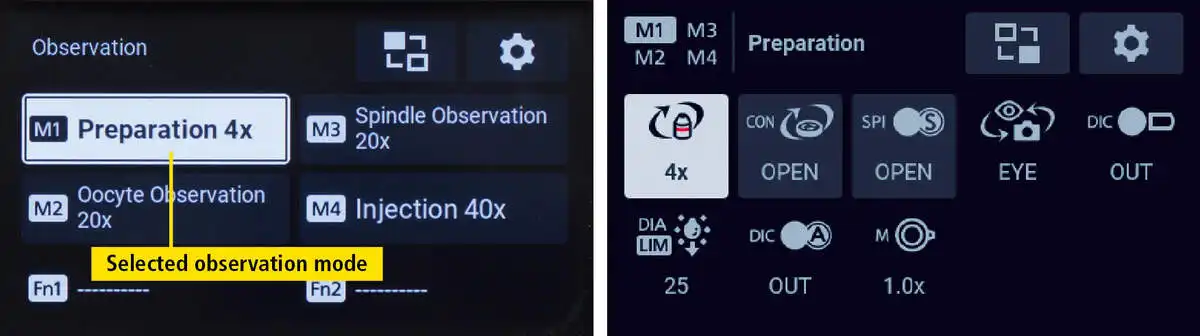

The currently selected observation mode can be easily checked on the LCD display. The settings are clear and easy to understand for all users of the microscope. The registration settings for each mode can be confirmed using intuitive icons on the detailed information screen.

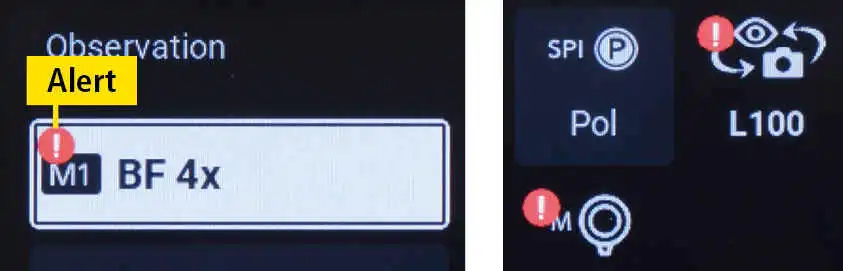

If the microscope settings do not match the registered configuration, a warning will be displayed. You can check on the screen where you need to make corrections. This makes it easier to notice setting errors and reduces operational mistakes.
The ECLIPSE Ti2-I is compatible with spindle observation. With this technique, the spindle is displayed in red or blue and can be clearly identified. As it is an omnidirectional method, the spindle is easy to see, even if the orientation of the oocyte is changed. This is a powerful tool to support those who want to capture spindles reliably.

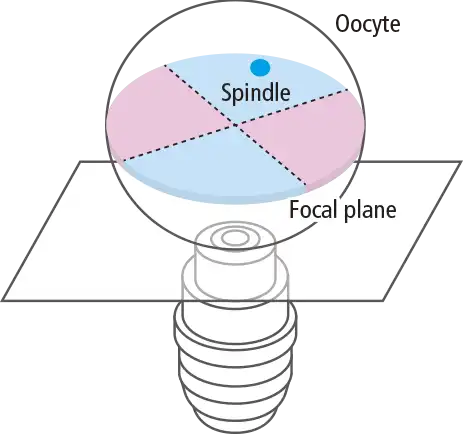

Using circularly polarized light, the spindle in the focal plane is displayed in color in all directions.

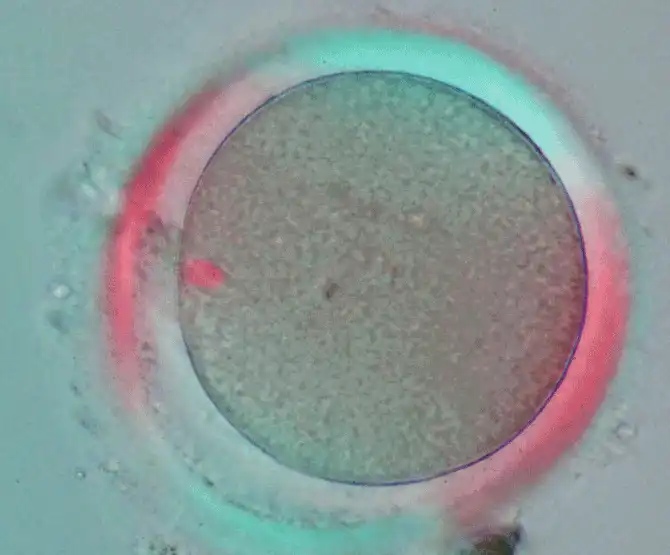

Images of the spindle displayed in color. The arrows indicate the position of the spindle.
Image courtesy of: Reproduction Clinic Tokyo
The brightness of the field of view when looking through the eyepiece has been significantly improved. You can observe oocytes and sperm more clearly than ever before. Nikon’s high-quality objectives enable observation of colorless and transparent oocytes and sperm by adding relief-like shading.

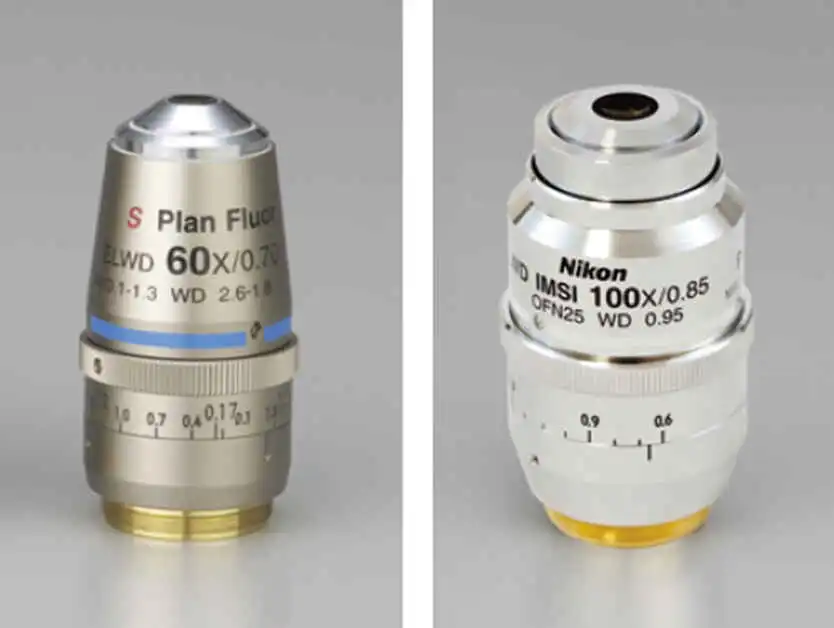

The 60X and 100X objectives allow for clear identification of fine structures, making them ideal for IMSI.
Vacuoles in the sperm head can be observed (100X objective)
Image courtesy of: Fujita Health University

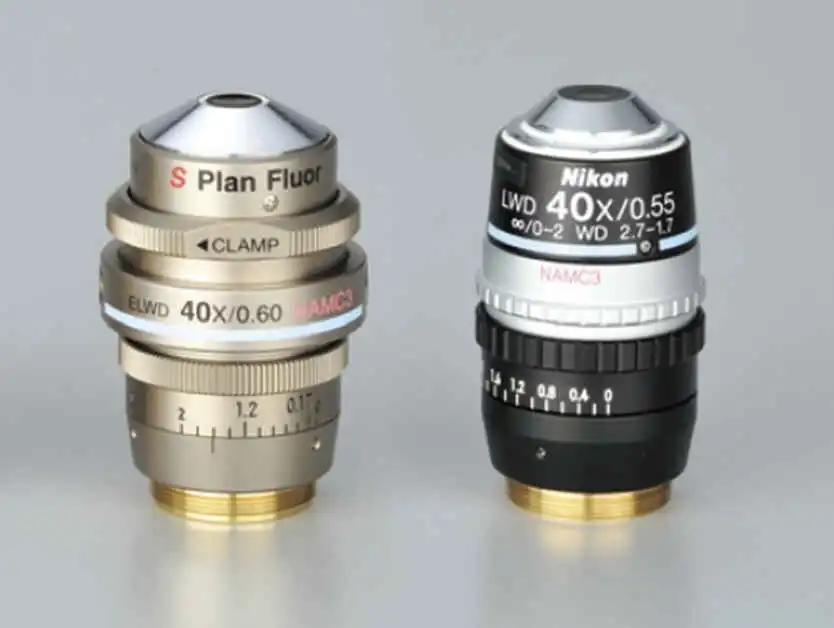

The direction of contrast can be adjusted by rotating the modulator in the objective. Plastic dishes can be used.
A sperm in the pipette can be clearly observed.
| Main Body | ECLIPSE Ti2-I |
|---|---|
| Optical system | CFI60 infinity optical system |
| Field number | 22 |
| Intermediate magnification | Manual switching of 1.0x/1.5x Status detection |
| Output port | 4 manual positions Eyepiece 100%, left 100%, right 100% Eyepiece 60%, left 40% Status detection |
| Focusing unit | Coarse/fine focusing knob Coarse motion torque adjustable With refocusing mechanism Stroke: up 4 mm, down 3 mm |
| LED Lamphouse for dia illumination | High power LED |
| Pillar for dia illumination | Condenser vertical stroke: 66 mm Backward tilting up to 25 degrees With field diaphragm and refocusing mechanism |
| Tube (field number 22) | Binocular S tube, Ergonomic ER tube |
| Condenser | 7 motorized positions (ø37 mm x 4, ø39 mm x 3) |
| Stage | Stroke range: adjustable in 3 levels with adjusting pin X x Y: ±57 x ±36.5 mm/±36.5 x ±25 mm/±9 x ±9 mm |
| Nosepiece | 6 motorized positions With DIC prism slots |
| Cube turret | 6 motorized positions |
| Spindle observation system | 2 motorized positions |
| Observation method | Brightfield, NAMC, IMSI observation*, Spindle observation* |
* Compatible with glass-bottom dishes only.
