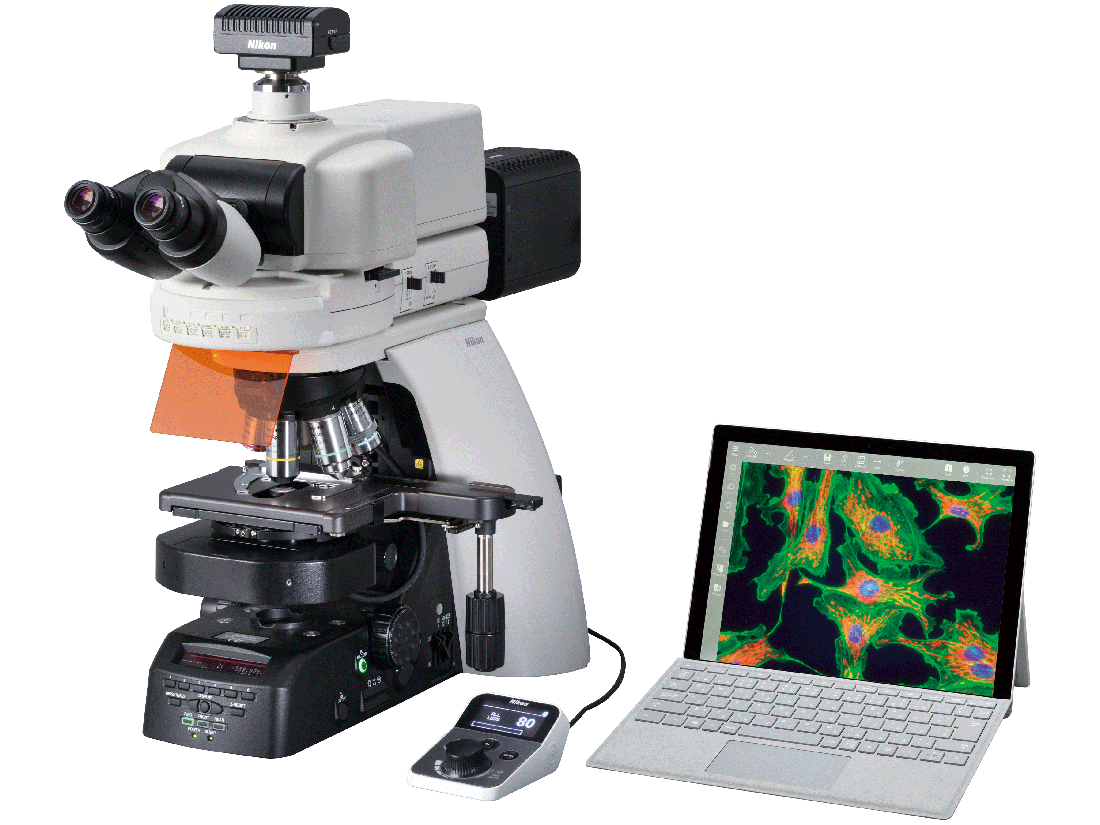

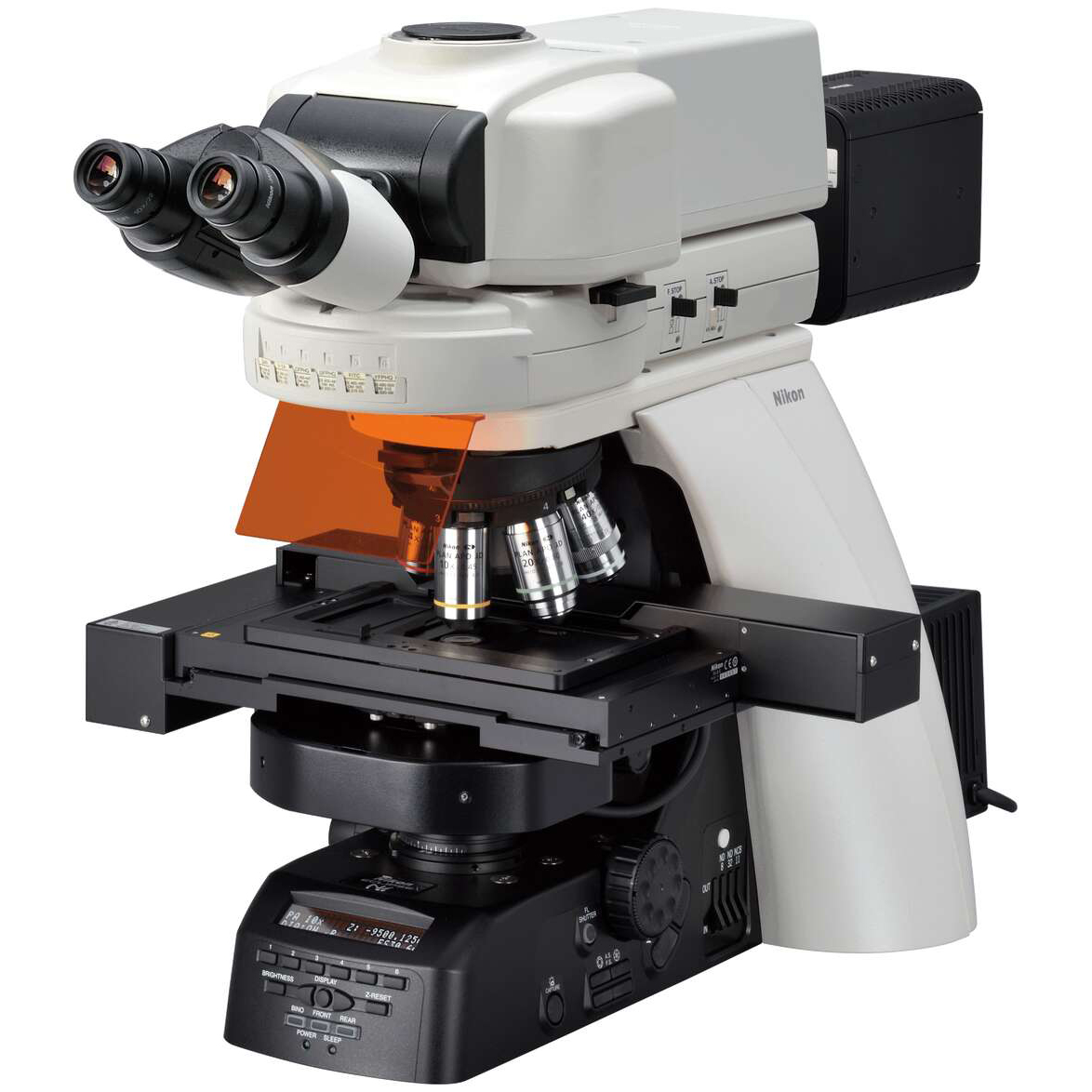

NIKON ECLIPSE Ni-E
Fully motorized Upright Microscopes for Research
The ECLIPSE Ni-E is Nikon's flagship upright microscope, boasting great optical performance and high system expandability. Combined with high-performance objectives, it can accurately visualize microstructure of the sample with high resolution. Adopting a stratum structure that allows simultaneous mounting of multiple fluorescence attachments, it provides great flexibility to freely combine various accessories as needed.
Fully motorized model equipped with motorized focus
- Motorized focus
- Broad range of motorized accessories available
- Can be equipped with confocal systems
- Two focusing mechanism options: focusing stage and focusing nosepiece
- Ideal for advanced research
Flexible system expandability to meet diverse needs
Stratum structure capable of mounting multiple optical paths

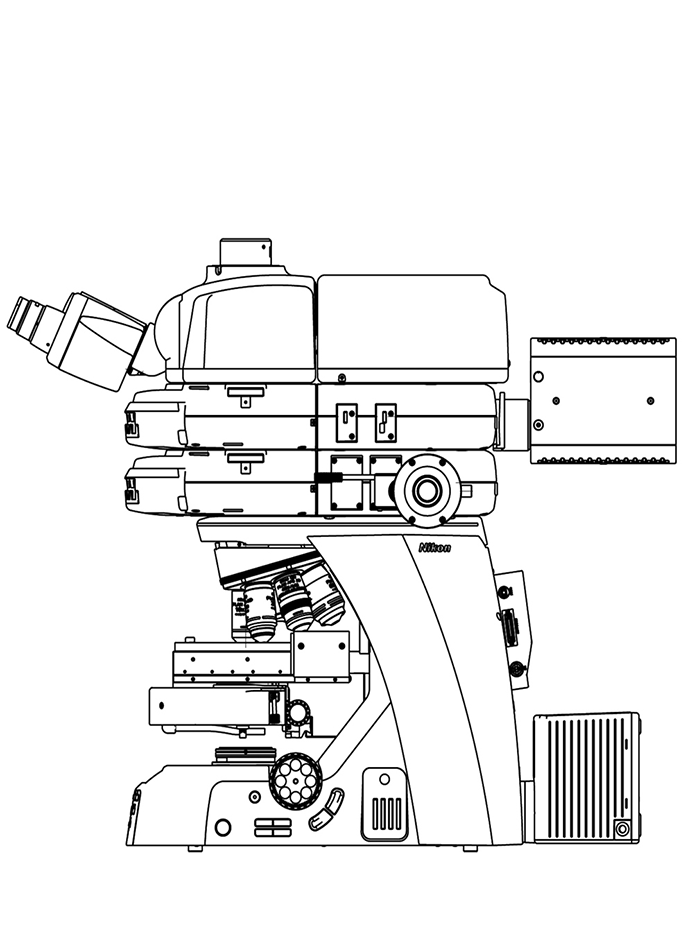

Nikon's proprietary stratum structure enables simultaneous mounting of two optical paths on one microscope. This structure allows vertical attachment and individual control of an excitation filter cube turret and a barrier filter cube turret, enabling support for a variety of applications.
Ni-E (focusing stage) configured with motorized epi-fluorescence illuminator, motorized condenser and motorized quadrocular tilting tube
Focusing mechanisms can be modified for the application
Ni-E's focusing mechanism can be selected from focusing stage type and focusing nosepiece type. The focusing nosepiece type enables a fixed-stage experimental system and meets the needs of in vivo imaging.

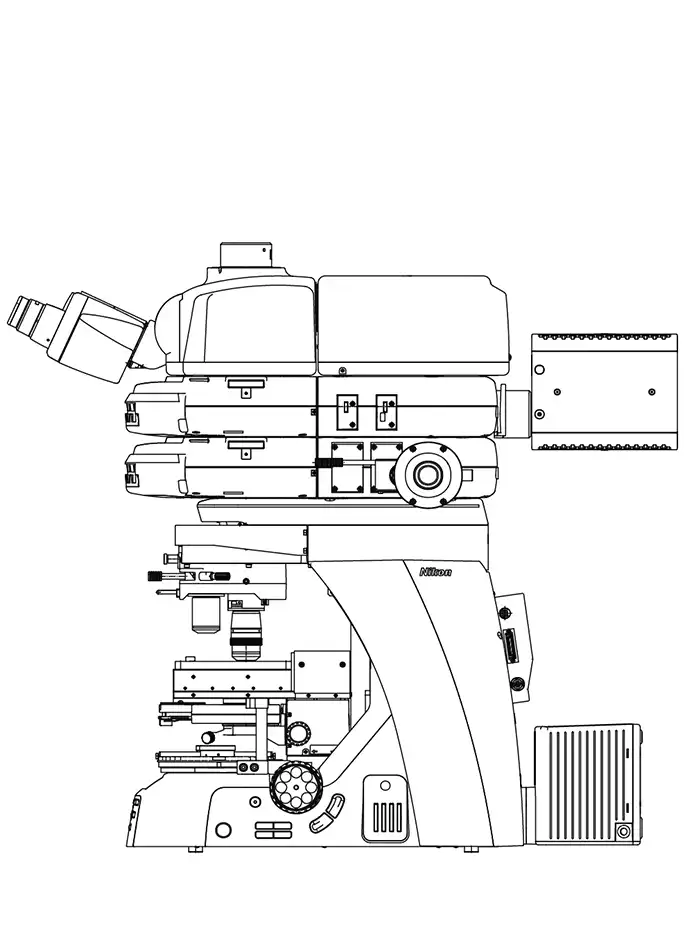

Focusing nosepiece type Focusing stage type
High-speed motorized accessories
The fully motorized model Ni-E can be custom-combined with a wide array of motorized accessories, including a motorized XY stage and a motorized DSC zooming port, depending on the application. The manual model Ni-L/Ni-U can also be equipped with motorized accessories such as the motorized nosepiece, motorized epi-fluorescence cube turret, and motorized shutter.

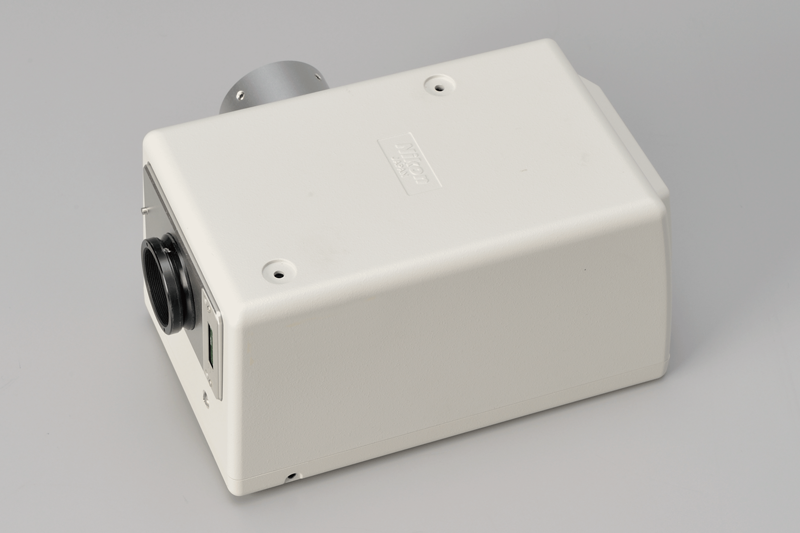

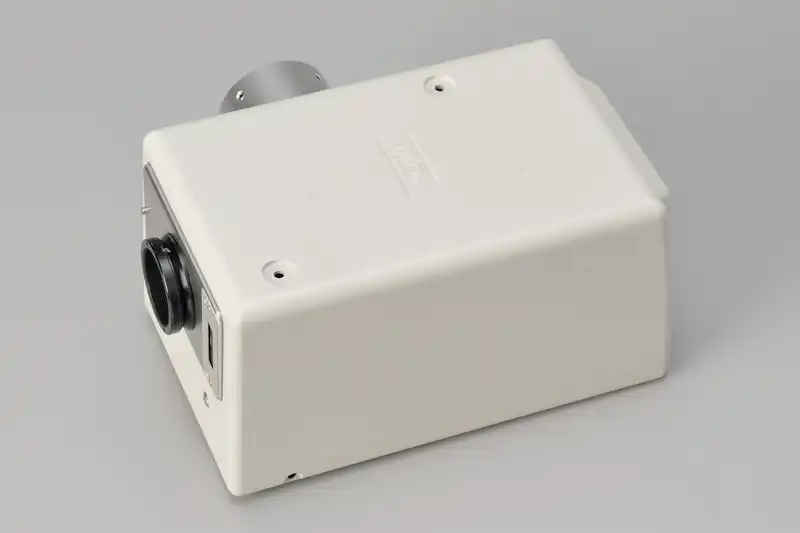

Motorized XY stage (Ni-E) Motorized DSC zooming port (Ni-E)

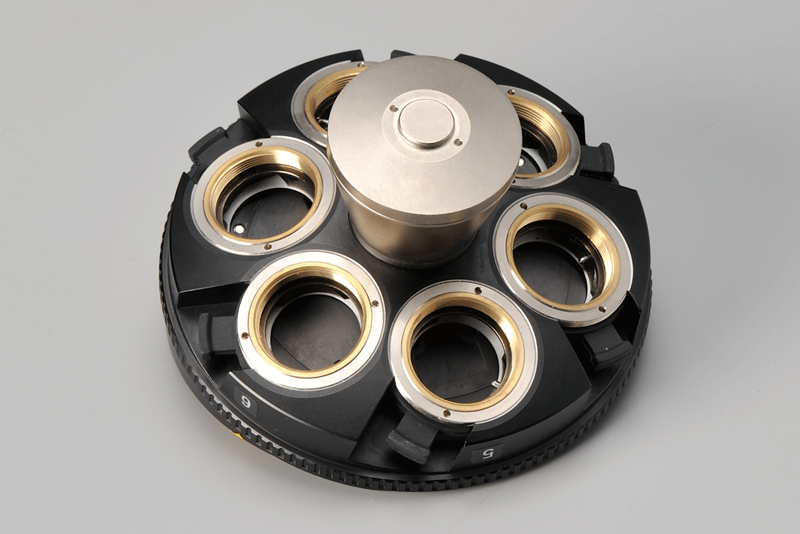

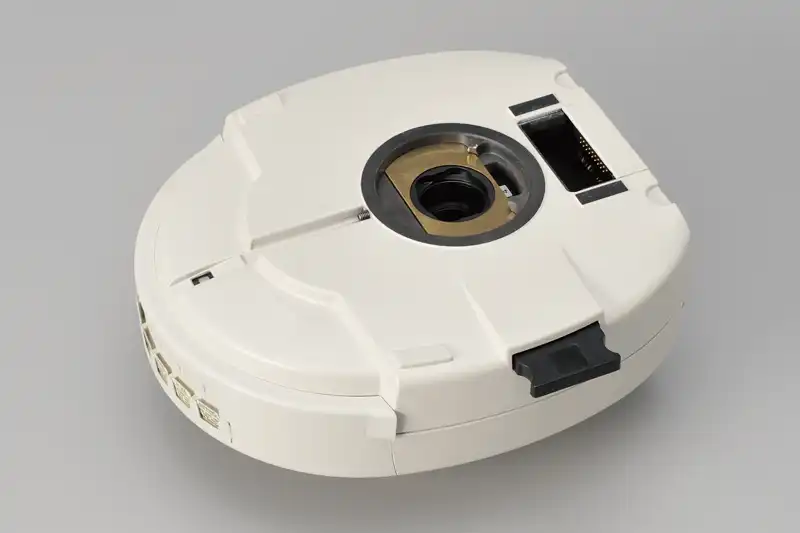

Motorized epi-fluorescence cube turret (Ni-E, Ni-L, Ni-U) Motorized DIC sextuple nosepiece (Ni-E, Ni-L, Ni-U)
Supports a wide range of observation methods
Ni series accessories are segmented by function, allowing you to select required units and flexibly combine them to create lean and effective system configurations.

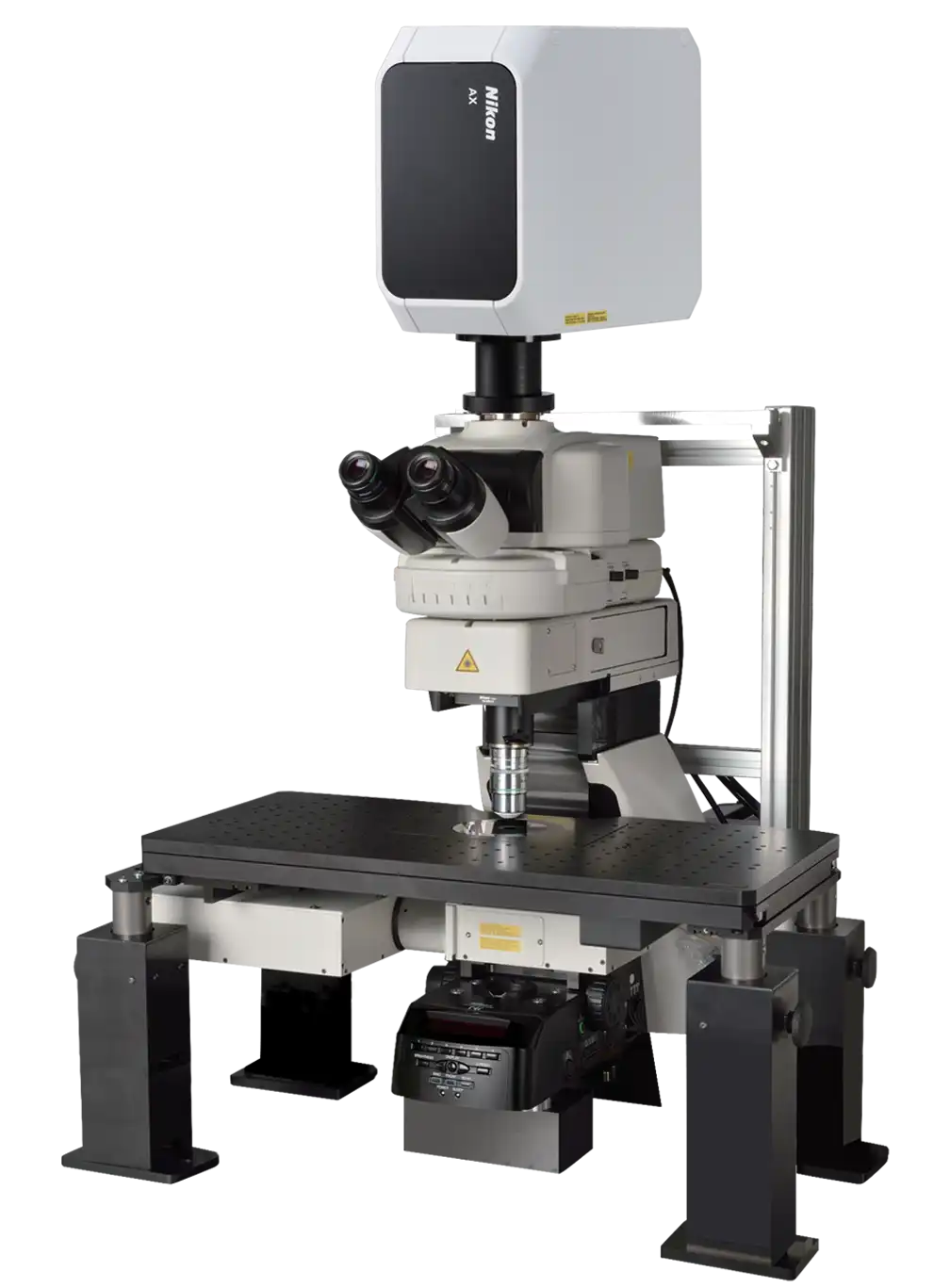

Confocal imaging
Combining the Ni-E’s high-precision Z-focus mechanism with Nikon’s confocal microscope system allows high-resolution, high-S/N-ratio imaging of 3D structures of organs and cells. The Ni-E has a highly stable structure suitable for mounting a confocal scanner and features a wide luminous flux that enables bright confocal imaging.
Configuration of Ni-E focusing stage type Configuration with Ni-E focusing nosepiece type

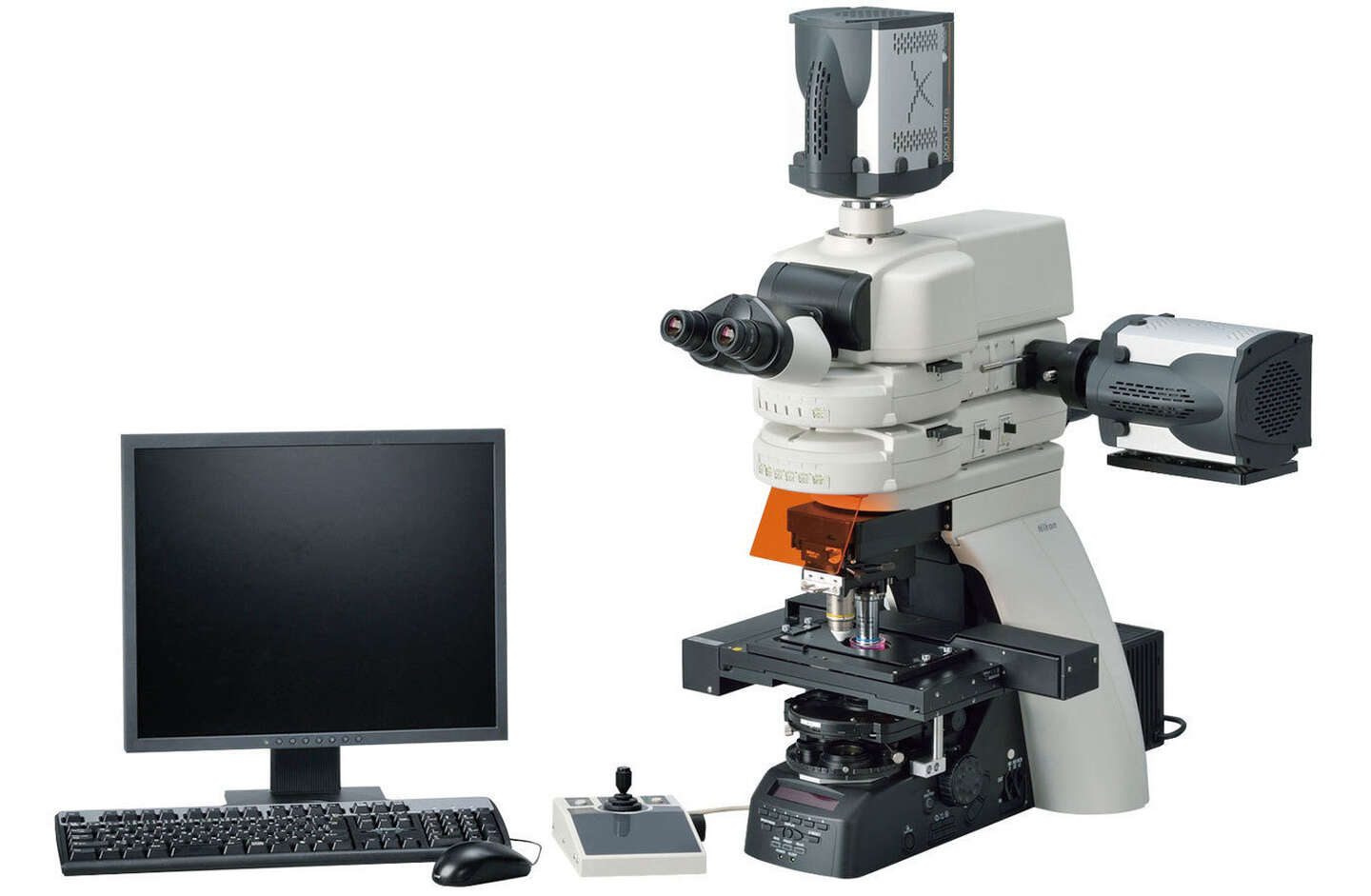

Simultaneous multichannel imaging
The Ni’s flexible stratum structure allows the back camera port unit and the epi-fluorescence attachment to be mounted at the same time, enabling simultaneous image acquisition of two different wavelengths with each camera. This enables the capture of high-resolution images in the entire frame for each wavelength without dividing the CCD chip. The use of individual cameras for acquisition allows the user to tailor acquisition parameters for each channel independently, allowing acquisition of high-sensitivity FRET images.
* For information about compatible cameras, contact Nikon or Nikon dealers.
Ni-E (focusing stage) configured with motorized epi-fluorescence illuminator, motorized condenser and motorized quadrocular tilting tube

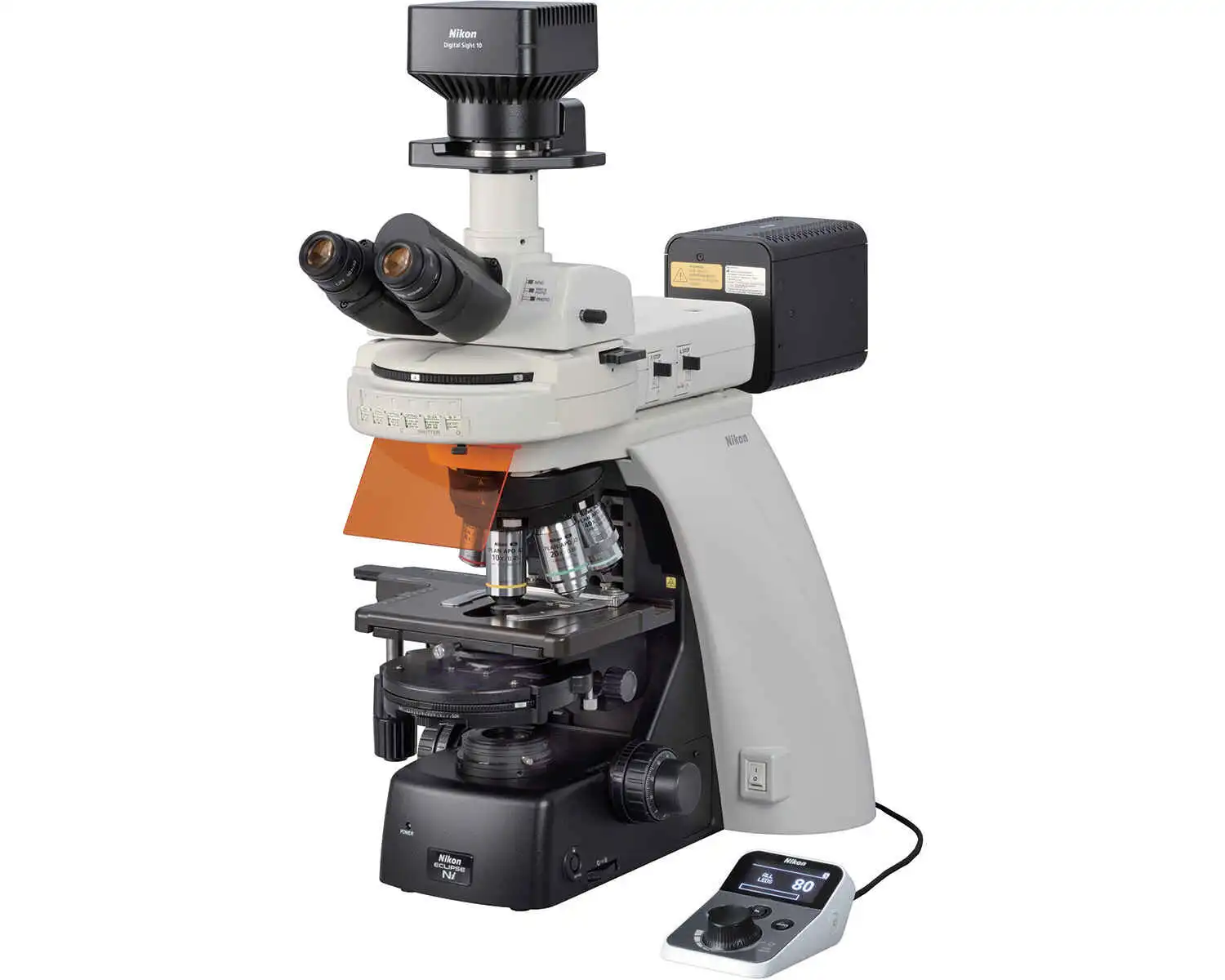

Imaging of fluorescent-labeled specimens
In combination with a motorized nosepiece and a motorized epi-fluorescence cube turret, each unit is automatically controlled according to the camera settings such as exposure time, camera gain, and time interval, allowing fast, efficient image acquisition.
The motorized epi-fluorescence cube turret shutter, which helps to reduce photobleaching of specimens, is easily operated with a convenient Ni-L/Ni-U remote control pad.

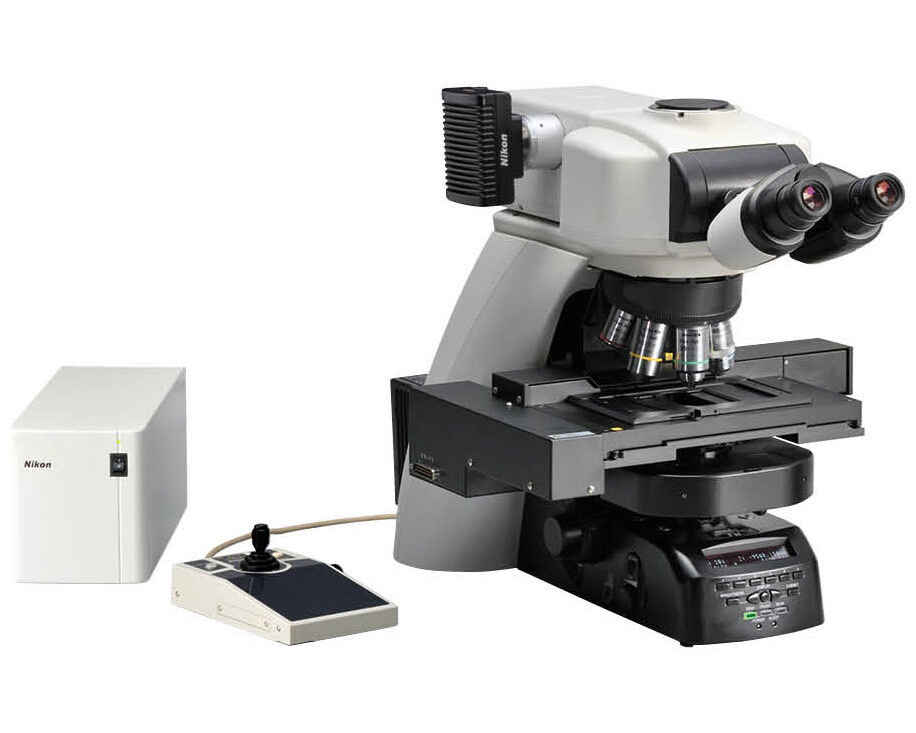

Automated imaging of pathological specimens
With the Ni-E, optimal brightness can be automatically adjusted with objective changeover, eliminating the need for manual adjustment. By controlling the optical zooming of the motorized DSC zooming port for quadrocular tube, it is possible to capture images with the desired angle of field while maintaining the image quality.
Ni-E combination
Ni-E provides fully motorized microscope control
Microscope operations related to observation can be automatically controlled as previously set. The Ni-E is a fully motorized model that is efficient for experiments requiring comprehensive control of various devices, such as photoactivation devices and confocal systems.
Automatic adjustment with objective changeover
Condenser, aperture, field diaphragm and ND filter are automatically set to optimal positions according to the objective magnification in use. In addition, XYZ stage travel distance per handle rotation and parfocal distance deviation correction are automatically adjusted. Microscope settings can also be manually adjusted.

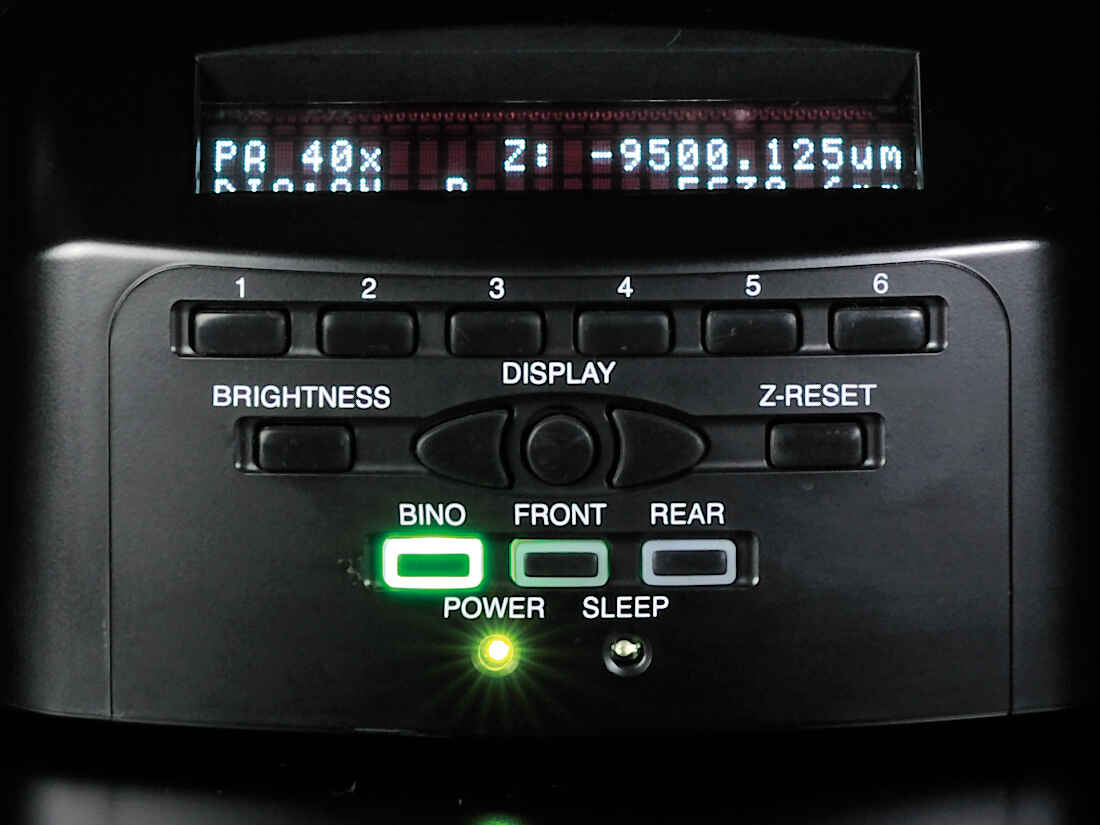

Reproducing observation conditions
Selected observation conditions can be designated to individual buttons, enabling changes to be made at the push of a button. This is particularly convenient when reproducing specific observation conditions.

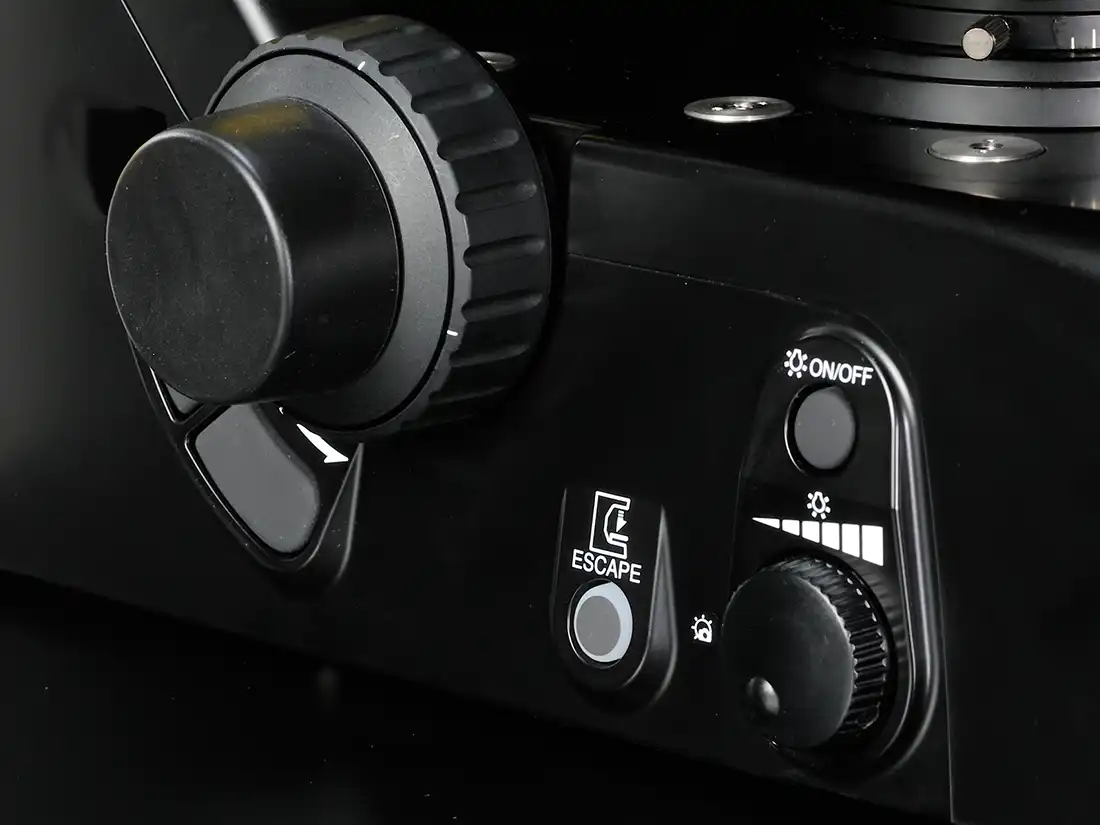

High-precision motorized focusing
High-precision Z-focus provides accurate Z-position information required for use with confocal laser microscopes and supports automated Z-series acquisition. Individual coarse and fine focus knobs enhance ease of operation.

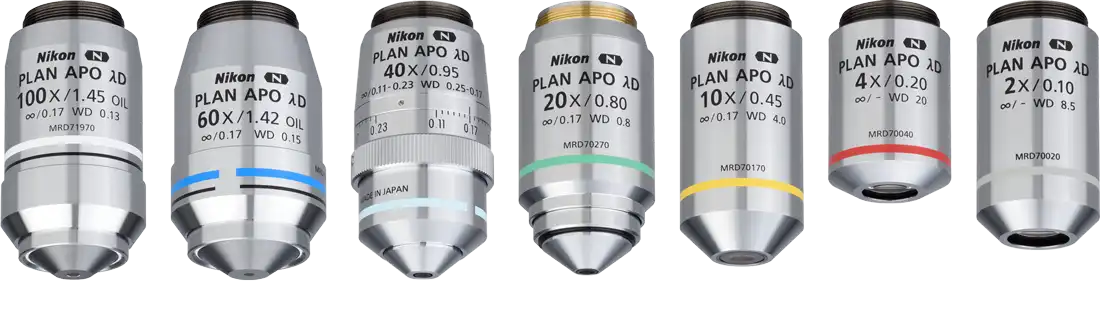

CFI Plan Apochromat Lambda D series
The high-refractive index glass used in the oil-immersion objectives provides uniform brightness and high image quality up to the periphery of a large 25mm diagonal field of view, enabling efficient acquisition of seamless stitched images and supports macro imaging of large samples. High transmittance and chromatic aberration correction over a wide wavelength range from 405 nm to 850 nm enable reliable quantitative data acquisition for intensity analysis of nuclear staining. These high NA lenses are ideal for brightfield and DIC observations, as well as fluorescence and confocal observations.

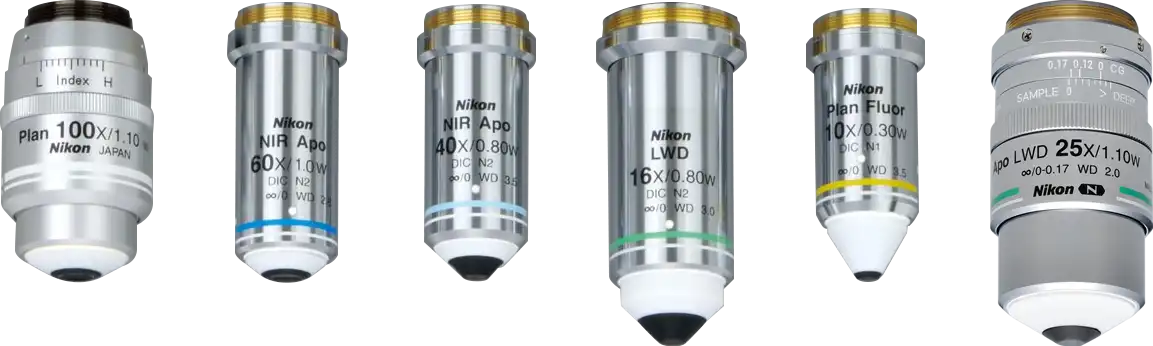

Water dipping objective lenses
CFI Apochromat NIR 40X W/60X W objectives with long working distances and high NA provide high transmission over the near-IR wavelength range. Axial chromatic aberration is corrected up to the near-IR range, enabling high-resolution images of minute structures of thick samples during IR-DIC observations.
CFI75 Apochromat 25XC W and CFI Plan Achromat100XC W objectives featuring high NA (1.10) and long working distance (2.00 mm at 25XCW, 2.50 mm at 100XCW) are corrected for chromatic aberration in the IR range. These objectives can capture crisp images of deep regions of thick samples by adopting a mechanism to compensate for changes in spherical aberration that occur at different temperatures and observation point depths.

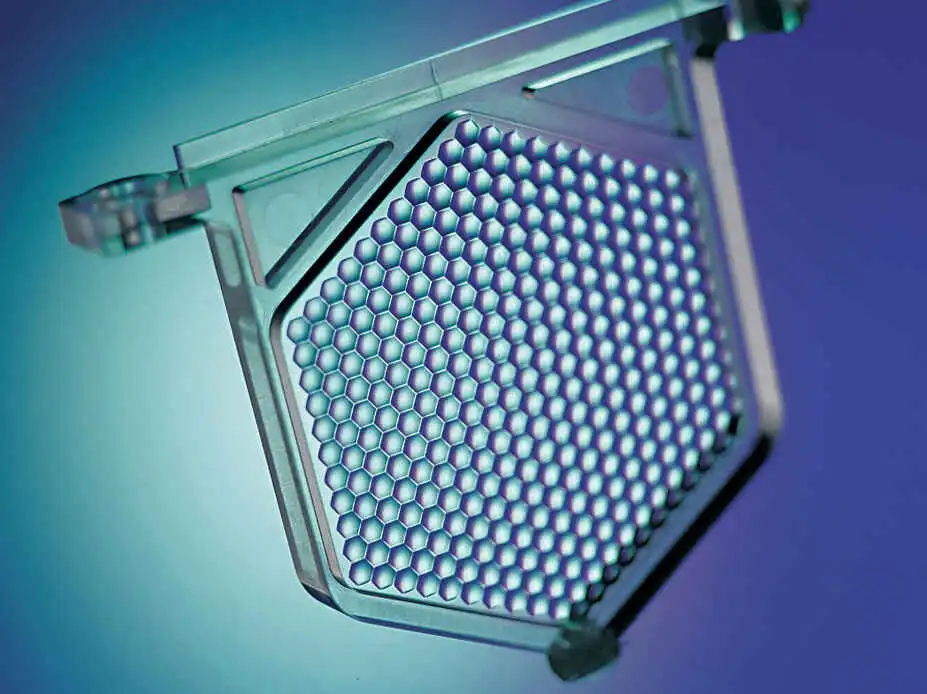

Uniformly bright illumination
A built-in “fly-eye” lens ensures uniform and bright illumination of the field of view, from edge-to-edge, at any magnification.

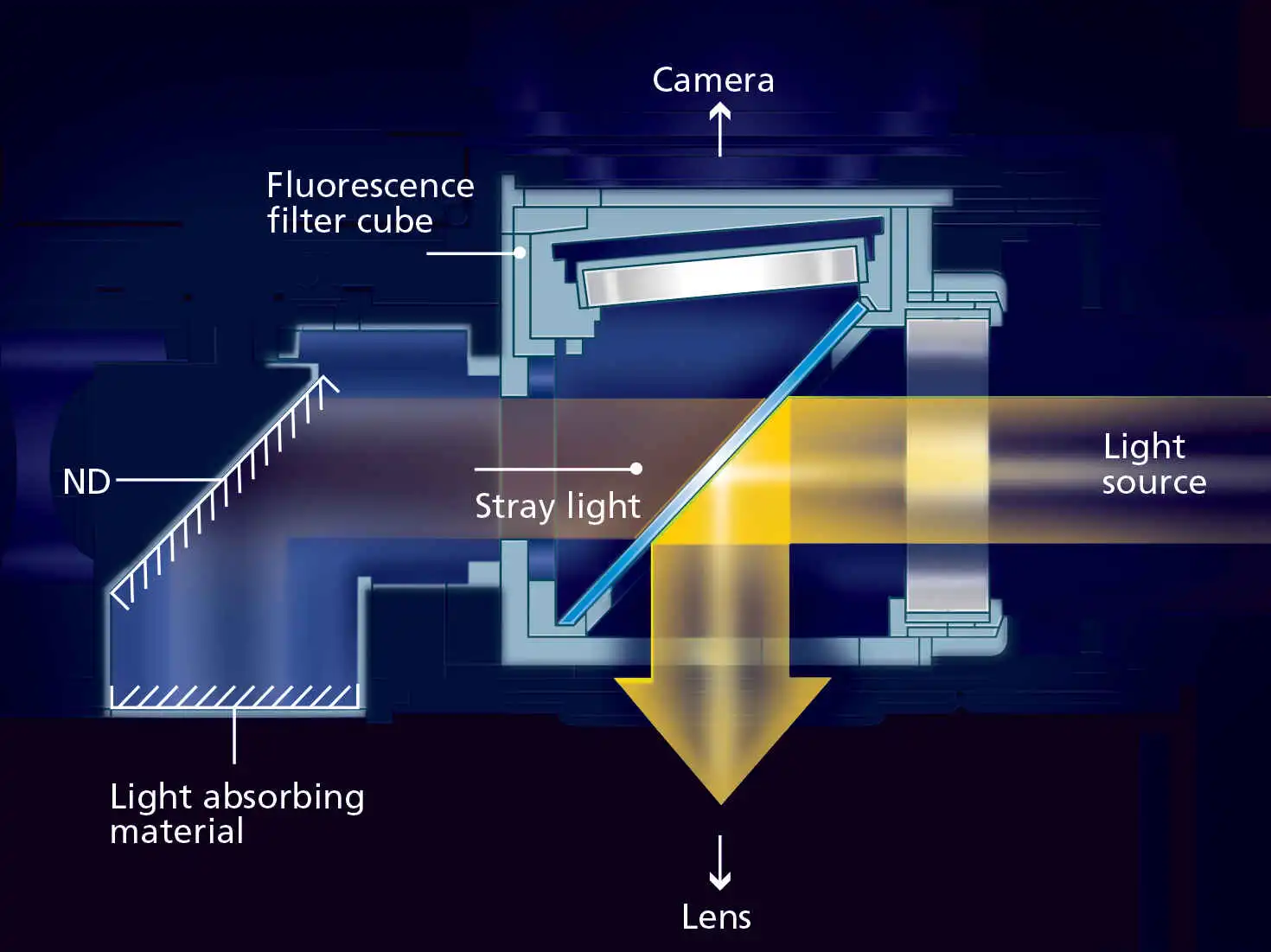

Fluorescence noise elimination
Nikon's proprietary noise terminator mechanism is employed in the epi-fluorescence cube turret and filter cubes. The S/N ratio is dramatically improved by eliminating stray light in the filter cubes, allowing images with weak fluorescent signals to be captured with high contrast and brightness.

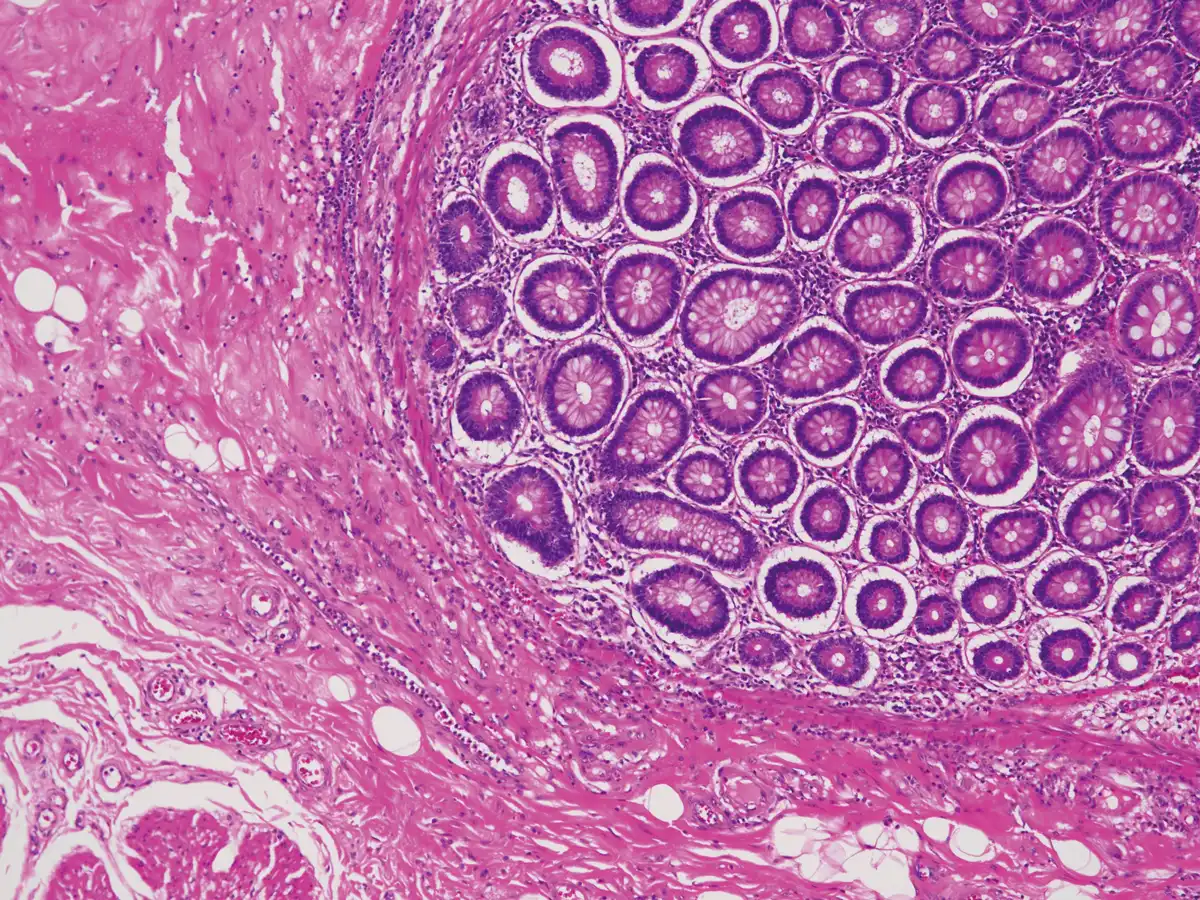

High color rendering LED light source
The high color rendering LED light source built-into the Ni-L provides natural color reproducibility comparable to a halogen light source, as well as light uniformity, long life, and other advantages associated with LEDs, making it effective for observation of pathological specimens.

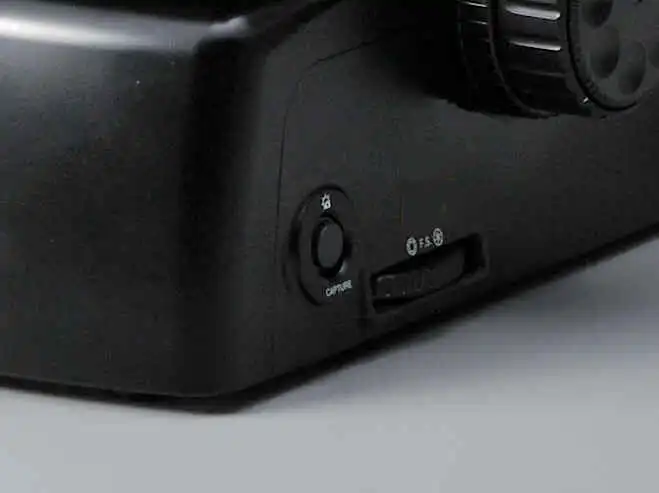

Simple digital imaging
Images can be captured with Digital Sight cameras by simply pressing the image capture button located on the microscope base.

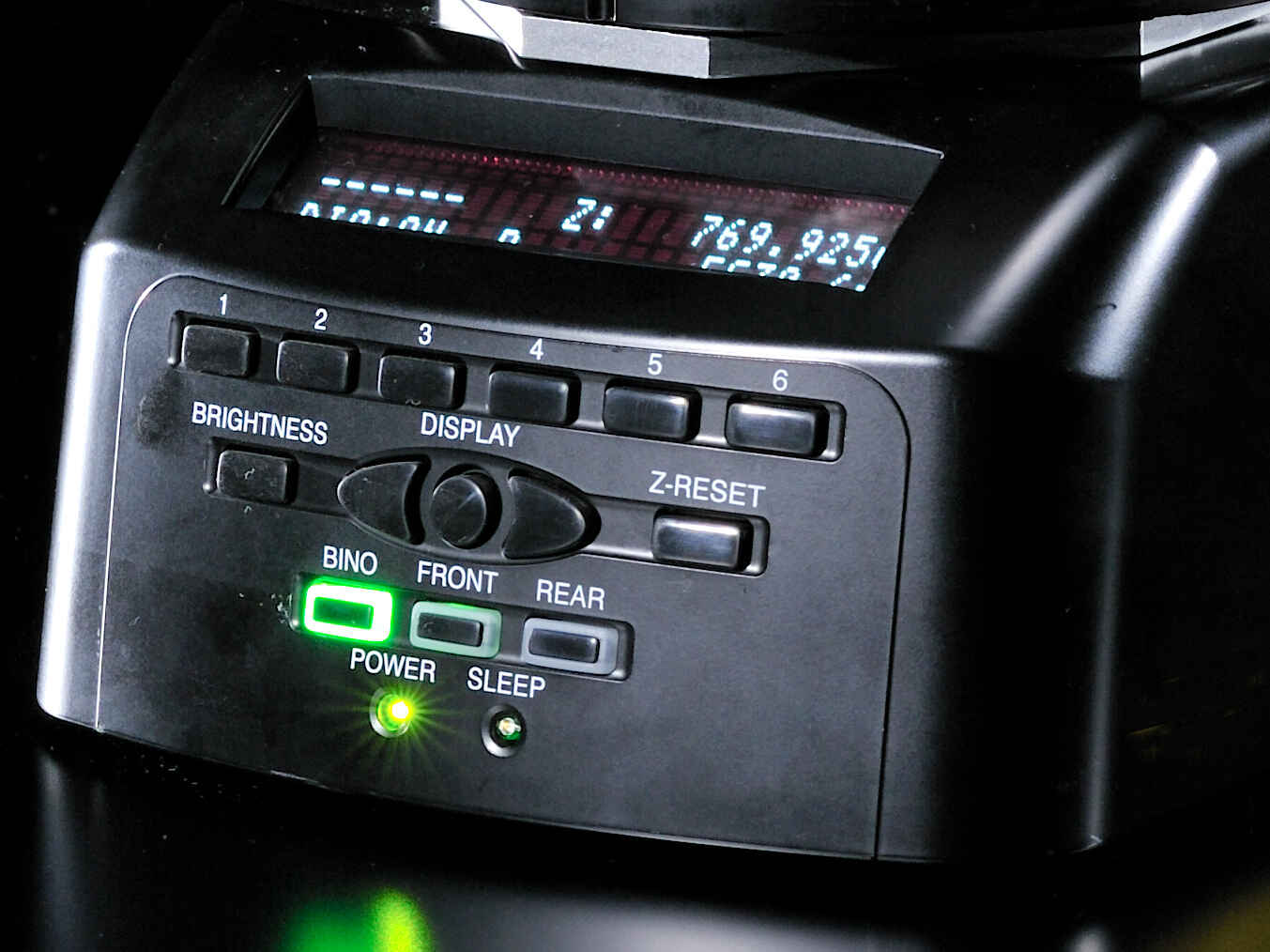

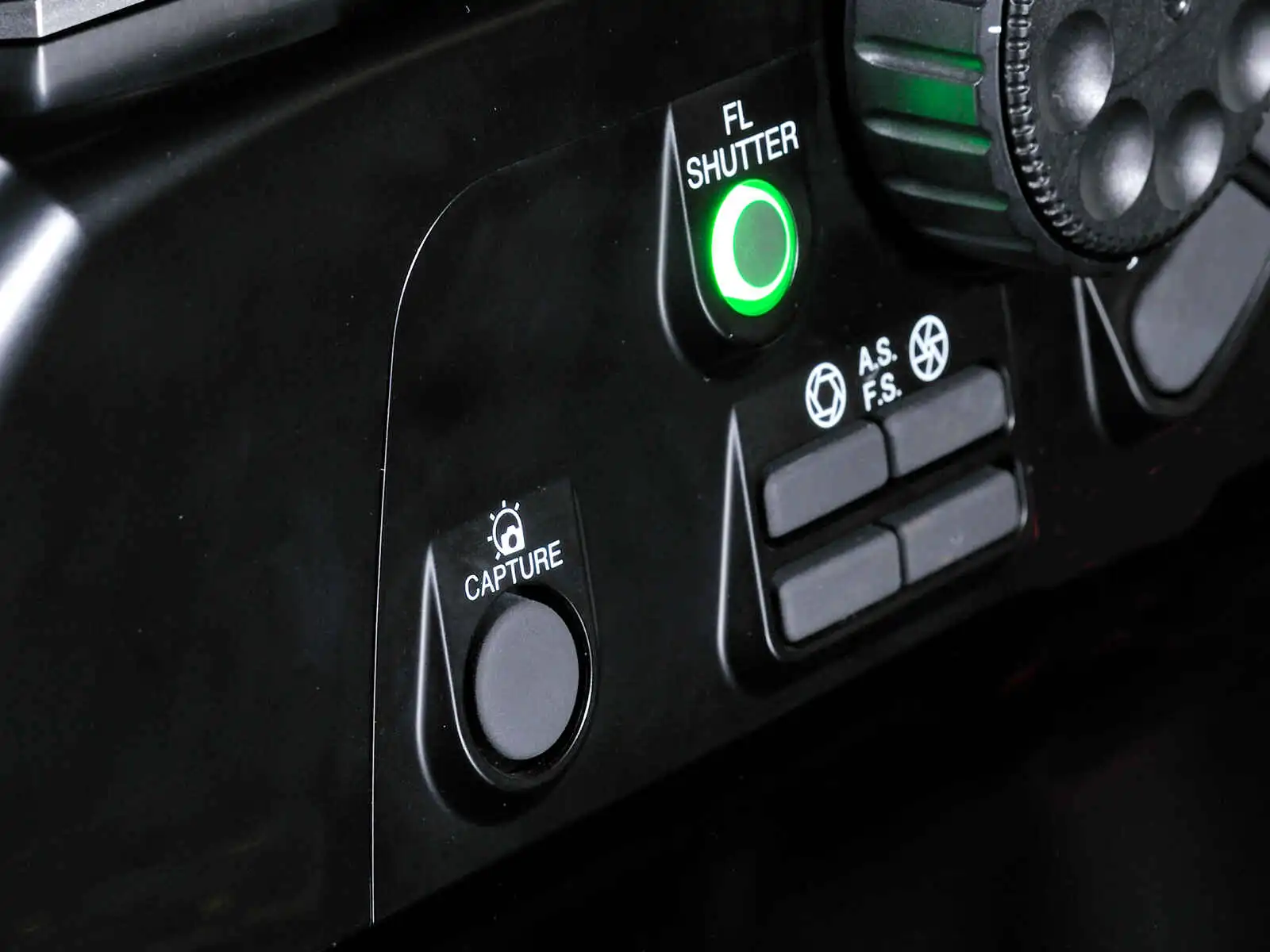

3D ergonomic design
Most microscope controls can be operated with easy-to-reach buttons on the front of the Ni-E. Operation buttons on the microscope's sides are angled to allow intuitive touch-type operations during observation. Also, the microscope has a status display that can easily check the current microscope settings.

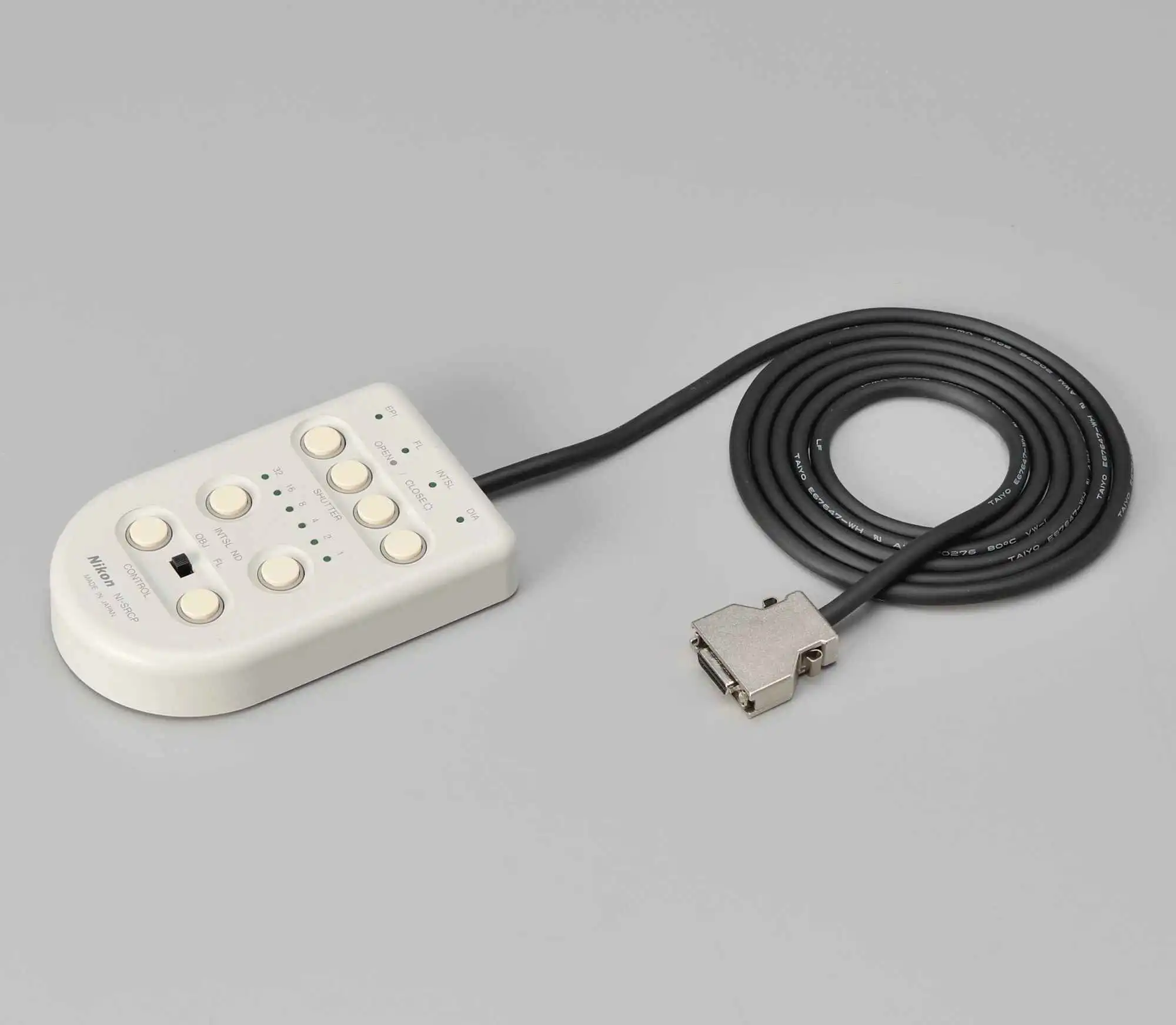

Remote controller
The simple remote control pad for Ni-L/Ni-U makes it easy to control the motorized accessories. An ergo-controller with similar operational feel to the actual microscope is also available for Ni-E, facilitating intuitive operation.

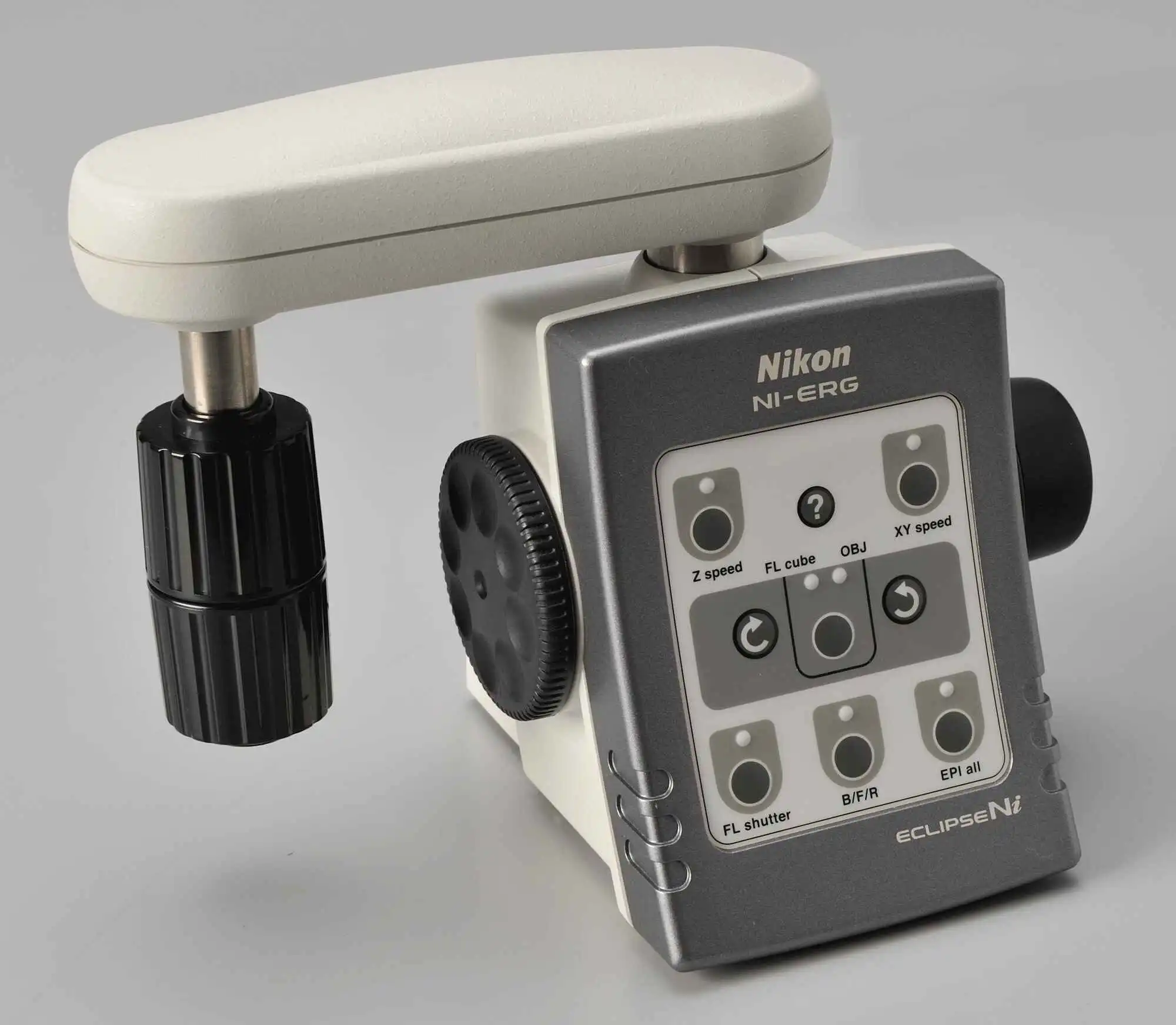

Ergo controller Simple remote control pad

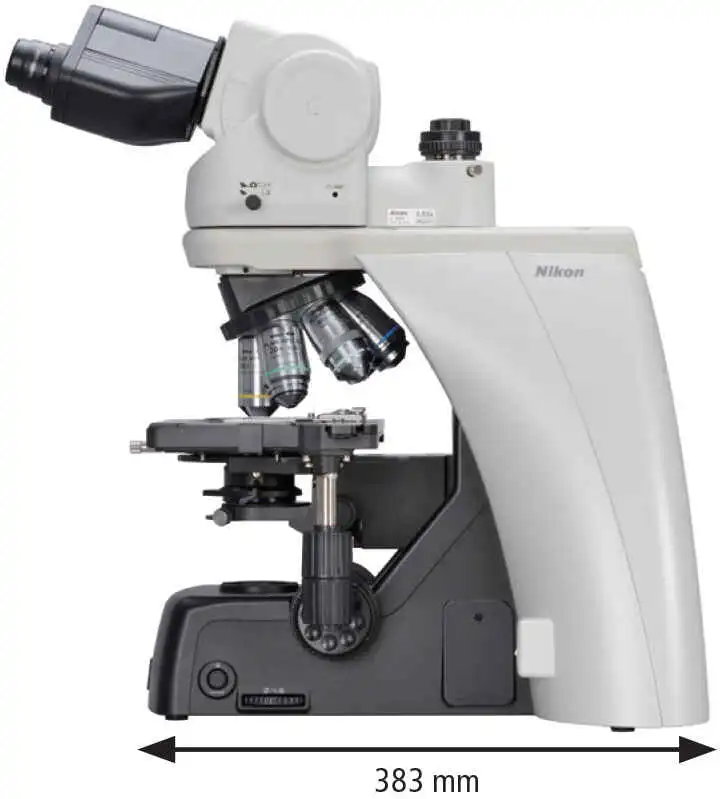

Compact lamphouse-free design
The Ni-L has a built-in LED light source for diascopic illumination, resulting in a space-saving design whose depth is approximately 150 mm shorter than that of the Ni-U, contributing to effective workspace utilization.
| |
Ni-E
Focusing stage type |
Ni-E
Focusing nosepiece type |
| Optical system |
CFI60 infinity optical system |
CFI60 and CFI75 infinity optical systems |
Focusing
(stroke from focus point) |
Via motorized stage Up/Down movement
(Up 2 mm/Down 13 mm) |
Via motorized nosepiece Up/Down movement
(Up 13 mm/Down 2 mm) |
Built-in linear encoder, Resolution: 0.025 µm
Motorized escape and refocus mechanism |
| Coaxial Coarse/Fine focusing |
| Illumination |
Halogen light source (12V 100W), high color rendering LED light source*1: 50,000 hours of life*2 (optional)
· NI-ND-E Motorized ND Filter (option) |
Built-in fly-eye lens
Built-in NCB11, ND8, ND32 filters (detachable, one additional
filter mountable) and diffuser (non-detachable)
ND2 filter (option) |
| Controls |
Transmitted light On/Off switch, Intensity control dial with preset function
Image capture button |
| Built-in motorized control switches |
|
· NI-ERG NI Ergo Controller (option)
|
| Power supply unit |
NI-CTLA External Power Supply Control Box A (for halogen illumination)/NI-CTLA2 External Power Supply Control Box A2 (for LED illumination) |
| Eyepieces (F.O.V. mm) |
· CFI 10X (22)
· CFI 12.5X (16)
· CFI 15X (14.5)
· CFI UW10X (25)
|
Tubes
F.O.V. 22 mm
(Eyepiece/Port) |
· C-TB Binocular Tube
· C-TE2 Ergonomic Binocular Tube (100/0, 50/50 via optional C-TEP2
DSC Port, C-TEP3 DSC Port C-0.55X or C-TEPF2.5 DSC Port F2.5X), Inclination angle: 10°-30°,
Extension up to 40 mm |
Tubes
F.O.V. 25 mm*3
(Eyepiece/Port) |
· C-TF Trinocular Tube F (100/0, 0/100)
· C-TT Trinocular Tube T (100/0, 20/80, 0/100)
· NI-TT2 Quadrocular Tilting Tube (Eyepiece/Upper port/Rear port: 100/0/0, 0/100/0, 0/0/100), Inclination angle: 15°-35°
|
|
· NI-TT2-E Motorized Quadrocular Tilting Tube (Eyepiece/Upper port/Rear port: 100/0/0, 0/100/0, 0/0/100), Inclination angle: 15°-35°
|
| Ports (F.O.V. 11 mm) |
· C-TEP2 DSC Port for Ergonomic Binocular Tube (with C-mount adapter, 0.7X)
· C-TEP3 DSC Port C-0.55X for Ergonomic Binocular Tube (with C-mount adapter, 0.55X)
· C-TEPF2.5 DSC Port F2.5X for Ergonomic Binocular Tube (with F-mount adapter, 2.5X)
· NI-BPU Back Port Unit (with C-mount adapter, 1.0X)
· NI-RPZ DSC Zooming Port for Quadrocular Tube (with C-mount adapter, manual zoom, 0.6X - 2.0X)
|
| · NI-RPZ-E Motorized DSC Zooming Port for Quadrocular Tube (with C-mount adapter, motorized zoom, 0.6X - 2.0X) |
| Arms |
· NI-SAM Standard Arm
|
|
· NIE-CAM Contact Arm (for Motorized/Intelligent options)
|
Nosepieces
(Motorized) |
· NI-N7-E Motorized Septuple Nosepiece
· NI-ND6-E Motorized DIC Sextuple Nosepiece |
— |
Nosepieces
(Intelligent) |
· NI-N7-I Intelligent Septuple Nosepiece
|
— |
Nosepieces
(Manual) |
· D-ND6 DIC Sextuple Nosepiece
· C-N6 ESD Sextuple Nosepiece ESD
· C-N6A Sextuple Nosepiece with
Analyzer Slot |
· FN-S2N 2 Place Sliding Nosepiece (for CFI60 objectives), Changeover 2 objectives, DIC slider
insertable
· FN-MN-H CFI 75 Holder (for CFI75 objective), DIC slider insertable
· FN-MN-H2 CFI 90
Holder (for CFI90 objective) |
| Stages |
· NIE-CSRR2 Right Handle Rotatable Ceramic-coated Stage with 2S Holder
Cross travel 78(X) x 54(Y) mm
Handle height and torque adjustable
|
· FN-3PS2 FN1 Standard Stage
Cross travel 30(X) x 30(Y) mm
|
· NI-S-E Motorized XY Stage
Resolution: 0.1 μm
· NI-SH-D Dish Holder (option) |
| Substages |
· NI-SSR Substage
(for Motorized Universal Condenser and Rotatable/Motorized stages) |
· NI-SSF Substage for Focusing Nosepiece
(for LWD condenser and FN1 Standard/Motorized stages) |
Condensers
(Motorized) |
· NI-CUD-E Motorized Universal Condenser Dry (0.88)
For DIC, phase contrast, darkfield observations
Attached on NI-SSR Substage
|
— |
Condensers
(Manual) |
· NI-CUD Universal Condenser Dry (0.88)
· C-AB Abbe Condenser (0.90)
· C-AR Achromat Condenser (0.80)
· C-DO Darkfield Condenser Oil (1.20-1.43)
· C-DD Darkfield Condenser Dry (0.80-0.95)
· C-AA Achromat Aplanatic Condenser (1.40)
· C-SA Slide Achromat Condenser 2-100X (0.90)
· C-SW Swing-out Achromat Condenser 1-100X (0.90/0.11)
· C-SWA Swing-out Achromat Condenser 2-100X (0.90/0.22)
· C-LAR LWD Achromat Condenser (0.65)
· D-CUO DIC Condenser Oil (1.40)
|
· FN-C LWD Condenser (0.78) (for DIC and oblique light illumination)
|
| Power consumption |
211W
(with max. halogen lamp intensity and full motorized options) |
96W
(with max. halogen lamp intensity and full motorized options) |
| Weight (approx.) |
29 kg
(Epi-fluorescent configuration with motorized quadrocular tilting tube) |
32 kg
(Epi-fluorescent configuration with motorized quadrocular tilting tube) |
Epi-fluorescence
illuminator |
Ni-E
Focusing stage type |
Ni-E
Focusing nosepiece type |
| Filter cube turret |
6 filter cubes mountable, Noise Terminator mechanism for all turrets
· NI-FLT6-E Motorized Epi-fluorescence Cube Turret
Motorized shutter, Status check function*5
· NI-FLT6-I IntelligentEpi-fluorescence Cube Turret
Manual shutter, Status check function*5
· NI-FLT6 Epi-fluorescence Cube Turret
Manual shutter |
| Light distribution device |
· NI-FLEI-2 Epi-fluorescence Attachment
Aperture diaphragm and field diaphragm (Centerable/Detachable)
|
| Epi-illumination light source |
· D-LEDI Fluorescence LED Illumination system
|
*1 Cannot be used for IR-DIC observation.
*2 Estimate value based on Nikon’s regulations.
*3 Eyepiece F.O.V.: When used with an expanded configuration such as a double layer of fluorescent cube turrets, eyepiece F.O.V. is 22 mm. F.O.V. to imaging ports vary depending on the model.
*4 Can only be mounted on the NI-SS Substage.
*5 Status check function: Status of Filter/Nosepiece etc. can be recorded with captured images. Can be displayed on the PC operation screen.
