Location：Home > Our Product > Endoscopysystem > Hysteroscope > KARL STORZ 26053CD Telescope Bridge

KARL STORZ 26053CD Telescope Bridge

Phone：+86-21-54286005

Resources

Overview Specifications

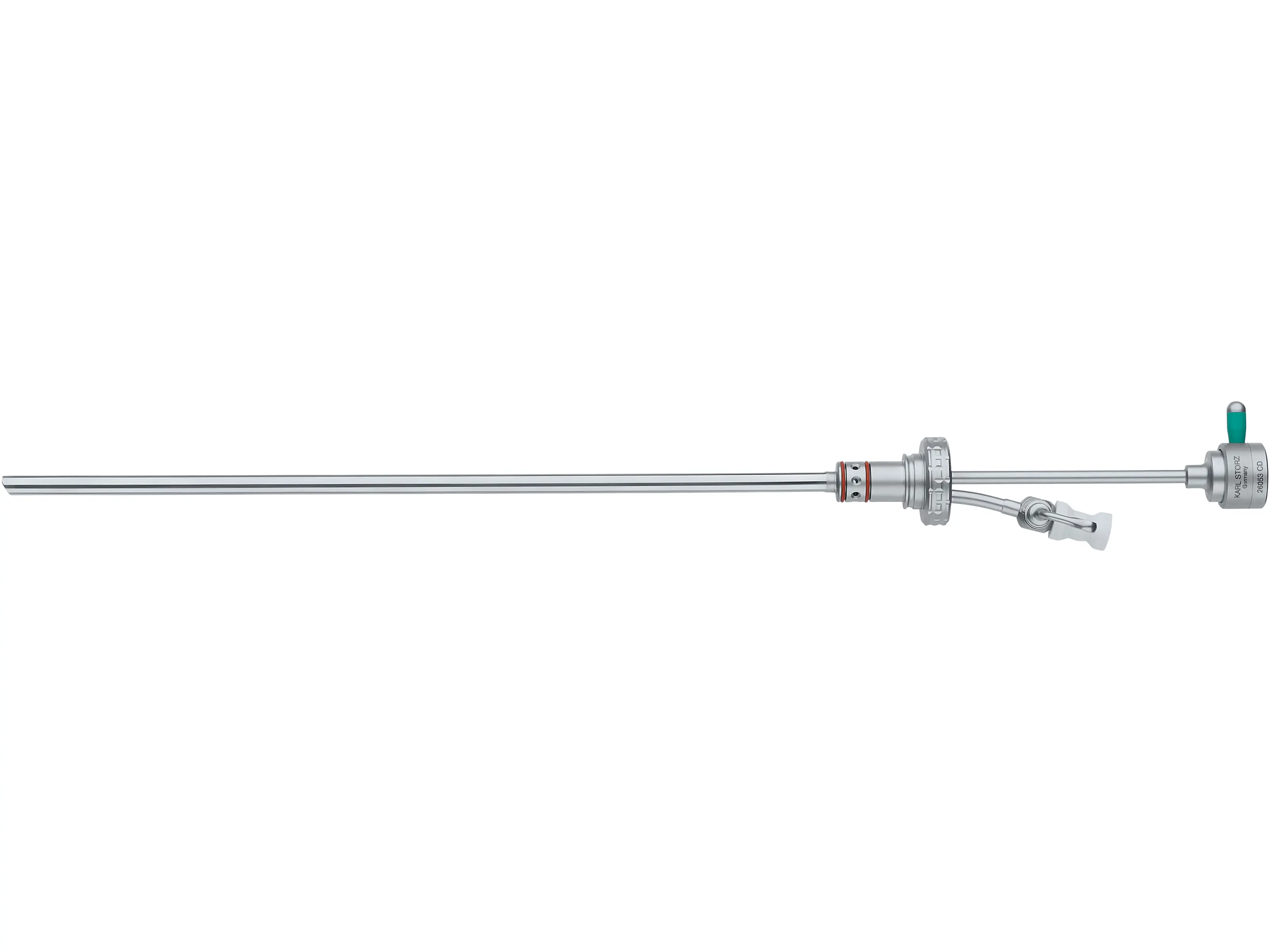

KARL STORZ 26053CD

Telescope Bridge

The 5 mm resectoscope can be used in combination with a telescope with a corresponding outer sheath as a diagnostic hysteroscope. Furthermore, the working channel allows the introduction of 5 Fr. instruments.

Working channel for the use of semirigid 5 Fr. operating instruments and bipolar electrodes

26053CD

Product Associated

KARL STORZ 26161UO Obturator for 26161 U

KARL STORZ 26161UFO Obturator for 26161 UFK

KARL STORZ 11540KEO Obturator for sheath 11540KE

KARL STORZ 26208OC Obturator for 26208AMA

KARL STORZ 26205OC Obturator for 26205AMA

KARL STORZ 26161UH Working Insert, with steering lever

KARL STORZ 26069CD Telescope Bridge

KARL STORZ 26055CD Telescope Bridge

KARL STORZ 26205CD Operating Sheath, 17 Fr.

KARL STORZ 26153EA Hysteroscope Sheath, 5 mm

KARL STORZ 26153DC Continuous-Flow Operating Sheath

KARL STORZ 26153DB Continuous-Flow Operating Sheath

KARL STORZ 26153CO BETTOCCHI Outer Sheath

KARL STORZ 26153BOL BETTOCCHI Outer Sheath

KARL STORZ 26163VC Outer Sheath, Ø 6.2 mm

KARL STORZ 26161VC Outer Sheath, Ø 4.5 mm

System size	15 Fr.
For telescope direction of view	0°
For telescope size	2.9 mm
Color code	Green
Working channel for	Semirigid 5 Fr. operating instruments
Flow property	Continuous flow in conjunction with compatible outer sheath
Flow function	Inflow
Sheath rotation	Fixed
Connection mechanism	Click mechanism
Type of usage	Reusable
