KARL STORZ TH200 VITOM 3D Scope

Phone：+86-21-54286005

Overview Specifications

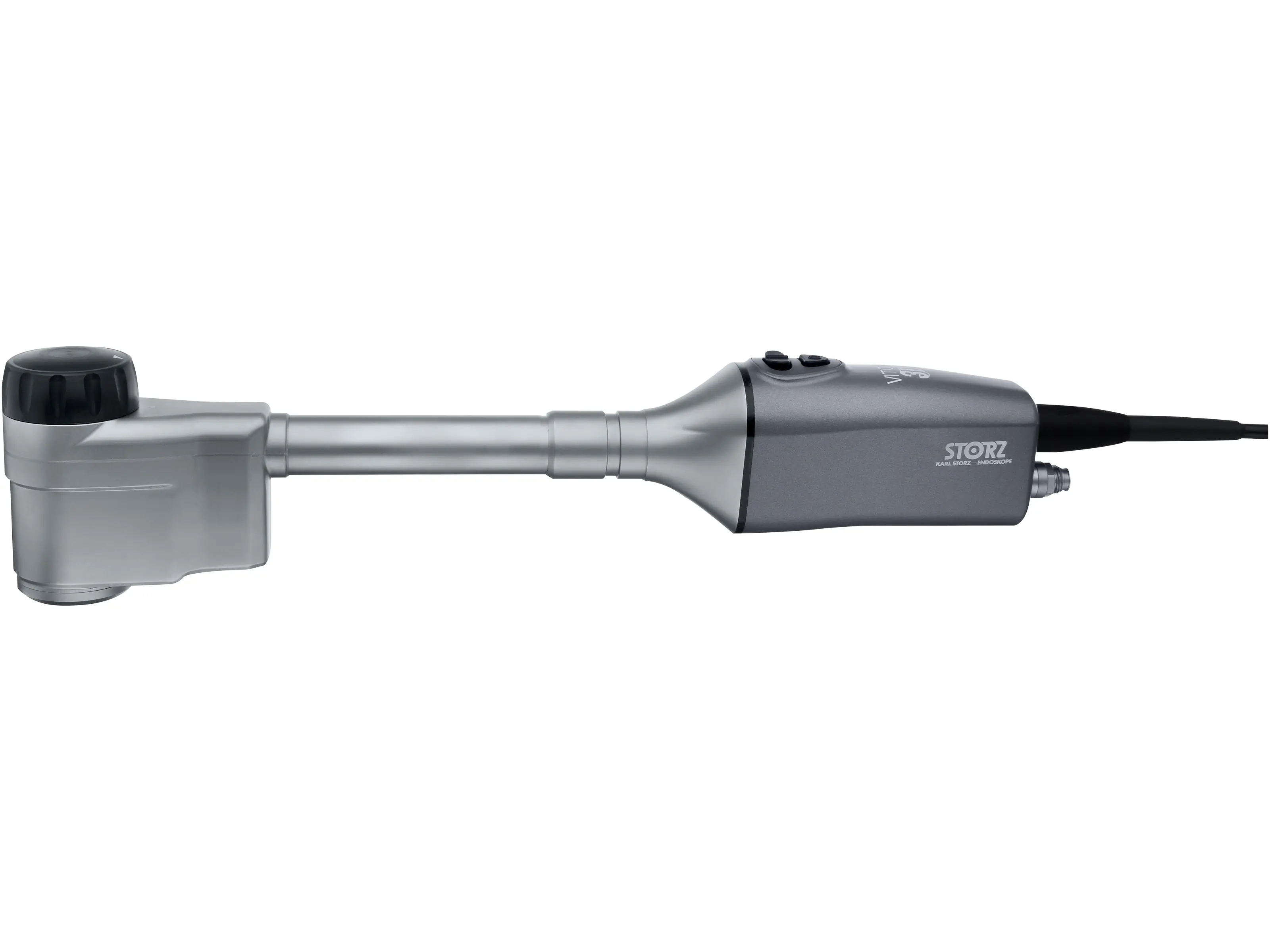

KARL STORZ TH200

VITOM 3D Scope

Smaller, lighter and more compact than an operating microscope
Lower acquisition costs and synergistic effects with endoscopy thanks to integration in the endoscopy tower
Ergonomic work – the user is not confined to the eyepiece
Improved workflow – the OR team can view the procedure in the same image quality as the surgeon

TH200

KARL STORZ 7230FS Suction and Irrigation Sheath 45°

KARL STORZ 7230CS Suction and Irrigation Sheath 70°

KARL STORZ 7230BS Suction and Irrigation Sheath 30°

KARL STORZ 7230AS Suction and Irrigation Sheath 0°

KARL STORZ 7230AES Irrigation-Suction Sheath for 7230 AE

KARL STORZ 7219AS Suction and Irrigation Sheath 0°

KARL STORZ 7241FS Irrigation Sheath 45°, 4.8 mm, 14 cm

KARL STORZ 7241BS Irrigation Sheath 30°, 4.8 mm, 14 cm

KARL STORZ 7241AS Irrigation Sheath 0°, 4.8 mm, 14 cm

KARL STORZ 7230FWA HOPKINS Telescope 45°, 4 mm, 18 cm

KARL STORZ 7230FVA HOPKINS Telescope 45°, 4 mm, 18 cm

KARL STORZ 7230FLA HOPKINS Telescope 45°, 4 mm, 18 cm

KARL STORZ 7230FA HOPKINS Telescope 45°, 4 mm, 18 cm

KARL STORZ 7230EA HOPKINS Telescope 120°, 4 mm, 18 cm

KARL STORZ 7230DA HOPKINS Telescope 90°, 4 mm, 18 cm

KARL STORZ 7230CWA HOPKINS Telescope 70°, 4 mm, 18 cm

Frame rate	50 / 60 Hz
Image sensor type	CMOS
Resolution	3840 x 2160 px
Scanning method	Progressive scan
Lens	Stereo
Zoom function	4x
Working distance	20 - 50 cm
Width	45 mm
Height	80 mm
Length	351 mm
Weight	950 g
Cable length	500 cm
Cable detachable	No
Camera head buttons	Freely programmable
Sterile concept	Single-use covers
Soakable	No
Autoclavable	No
EO sterilization	No
H2O2 (hydrogen peroxide)	No
Wipe disinfection	Yes
S-Technologies	CLARA, CHROMA, SPECTRA A + B
Fluorescence imaging (NIR/ICG)	No
Fluorescence imaging (Blue Light Imaging, BLI)	No
Image sensor resolution	4K
Number of image sensors	2
Image display	2D, 3D
Brand	VITOM®
