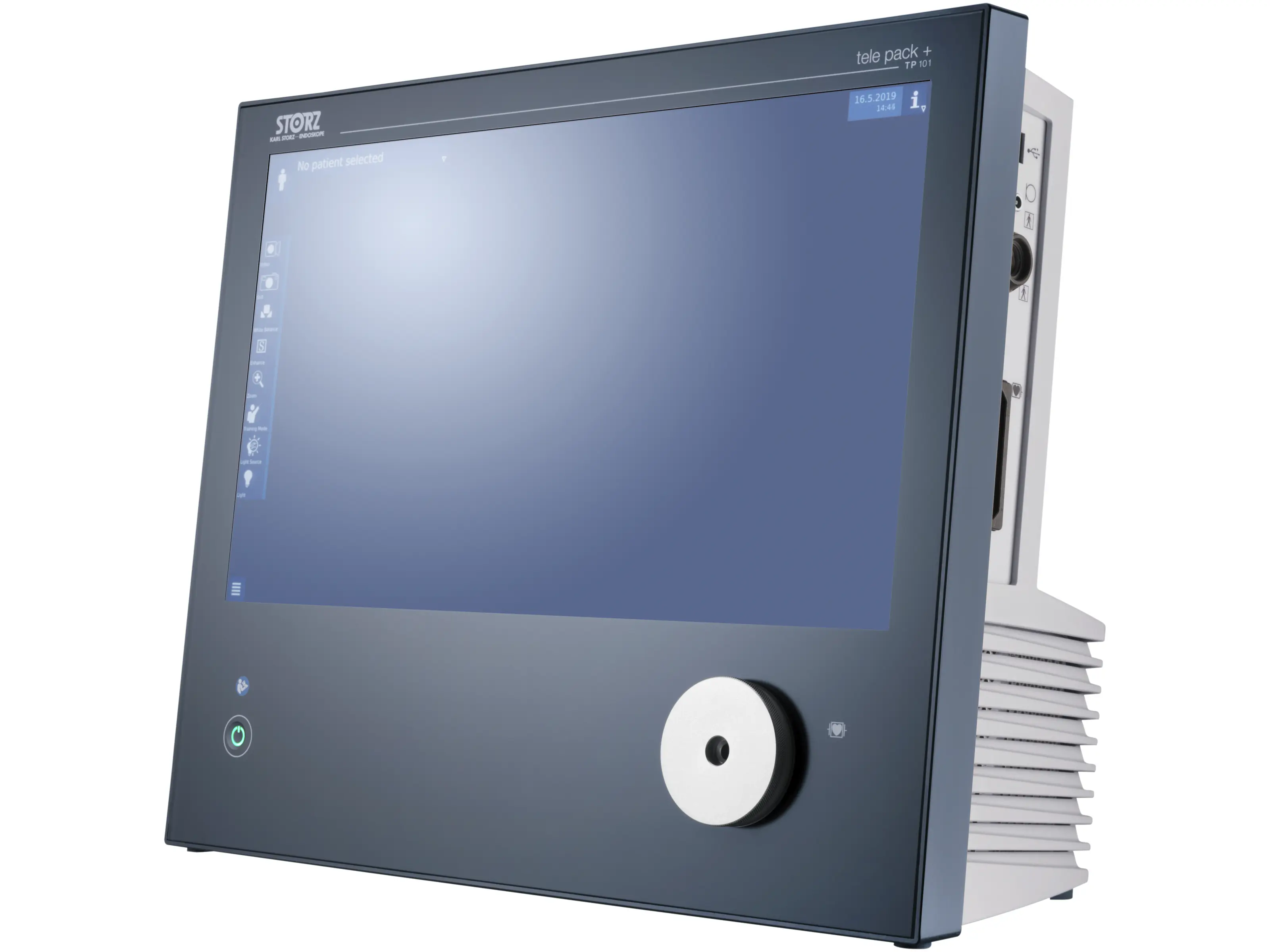

Karl Storz TP101 TELE PACK+ endoscopic video unit

Phone：+86-21-54286005

Overview Specifications

Karl Storz TP101

Portable and compact all-in-one system
FULL HD touch monitor
Integrated LED light source
Archiving of patient data on internal memory, on USB memory devices or via the network integration function
Compatible with rigid, flexible and single-use endoscopes from KARL STORZ
Network functionality option: Export and import of patient data

TP101

Karl Storz 8404ZX C-MAC Monitor for CMOS Endoscopes

Karl Storz TC100 TELECAM C3 FULL HD camera control unit

FUJIFILM ELUXEO EP-8000 Processor & Light Source

AOHUA AQ-300 4K Video Endoscope Processor

AOHUA AQ-200 Video Endoscope Processor

AOHUA AQ-150 Pro Video Endoscope Processor

AOHUA AQ-120 Video Endoscope Processor

AOHUA AQ-100 Video Endoscope Processor

AOHUA VME-2800 Video Endoscope Processor

AOHUA VME-2300 Video Endoscope Processor

Olympus VISERA ELITE III OTV-S700 Video Processor

R. Wolf ENDOCAM Flex HD 5521101 camera controller

R. Wolf 5525201 ENDOCAM logic HD lite Camera controller

R. Wolf 552510x ENDOCAM logic HD Camera controller

R. Wolf 5525301 ENDOCAM logic 4K Camera controller

Karal Storz TC300 IMAGE1 S H3-LINK Module

Brand	TELE PACK +
Purpose	Endoscopic video unit with 2 camera inputs (X-Line and C-Line) for use with flexible videoendoscopes and one-chip camera heads (up to FULL HD)
Screen diagonal	18.5"
Illumination technology	LED
Average lamp service life	30000 h
Monitor type	FULL HD touch screen monitor
Control	Touch screen, keyboard, mouse, camera head buttons, footswitch
Resolution	1920 x 1080 px
Contrast ratio	1200:1
Power supply	100 – 240 VAC
Color temperature approx.	5700 K
Line frequency	50/60 Hz
Power consumption	140 VA
Digital Image Processing Module	Integrated
Integrated pump for air insufflation	No
DVI-D output	1
Storage option	USB / network / internal
USB interface	6 (4x rear, 2x side)
Microphone input	2 (1x rear, 1x side)
Network connection via Ethernet interface	Yes
Camera connectors	2, X-LINE and C-LINE
Stroboscopy microphone connection	1
Kensington lock connection	1
Image documentation (format)	JPEG
Video documentation (format)	MPEG4
Loudspeaker consumption	3.2 Watt
Weight	8.85 kg
Wipe disinfection	Yes
IP protection class	IPX0
Electrical protection class	Protection class 1
Degree of safety	Depending on camera connection – CF or BF
VESA holder	VESA 100
Dimensions (w x h x d)	470 x 387 x 222 mm
Electrical protection class	I
