CANON 80 rows CT Aquilion Prime SP

Aquilion Prime SP TSX-303B

Phone：+86-21-54286005

Resources

Aquilion Prime SP TSX-303B_Brochure

Overview Specifications Dimensions

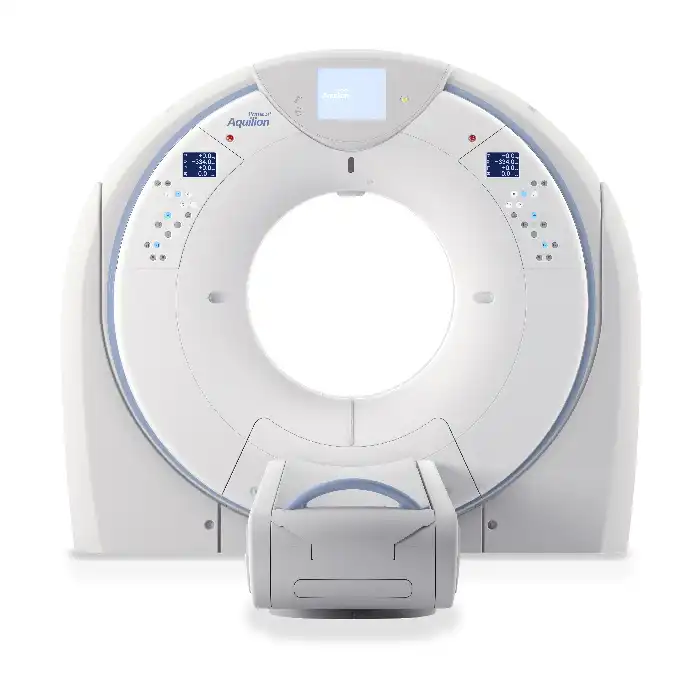

Aquilion PRIME SP TSX-303B

Ultra Helical CT that delivers all-around performance

From fast patient throughput to robust cardiac scanning and new diagnostic capabilities, the new Aquilion Prime SP is a CT system of choice for all your imaging needs. Built with premium technology migrated straight from our high end CT, Aquilion Prime SP empowers your facility to handle all patients from pediatric to bariatric, even the most challenging cases, while providing all staff with a fast and efficient solution to make their work easy.

Mobile CT Solution

Clinical Confidence Anywhere

Harness the power of the Aquilion Prime SP systems wherever and whenever you need them. The design of our mobile medical equipment allows for high-patient throughput, without compromising on patient safety, workflow, or image quality.

Advanced intelligent Clear-IQ Engine (AiCE)

Welcome to the age of AI-assisted CT

AiCE is a cutting-edge Deep Learning Reconstruction technology that’s been trained to reduce noise and boost signal to deliver sharp, clear and distinct images at speed.

Expand your clinical capability

From complex to routine, Aquilion Prime SP is designed to keep pace with your work list, with new standards of image quality provided at the right dose for every patient.
An expansive suite of protocol integrated application solutions enables the seamless and rapid adoption of advanced CT procedures into your clinical practice. Aquilion Prime SP can automate complex exams while delivering high-quality data.

Enhance your productivity

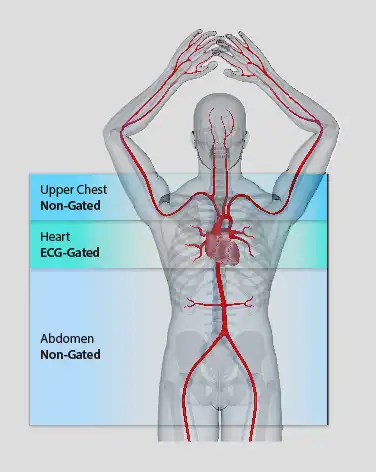

From new graduates to experienced technologists, the Aquilion Prime SP's integrated workflow solutions render even the most complex of tasks easy. Through exposure control automation, vHP3 scanning and automatic image processing, Aquilion Prime SP will be a powerful part of your imaging team.

Capitalize on your investment

From installation to department expansion, the Aquilion Prime SP is the right economic choice. Designed to be more than efficient, Aquilion Prime SP checks all the boxes for a CT system capable of fast throughput, patient and technologist safety and a platform to expand any department's imaging portfolio for improved productivity.

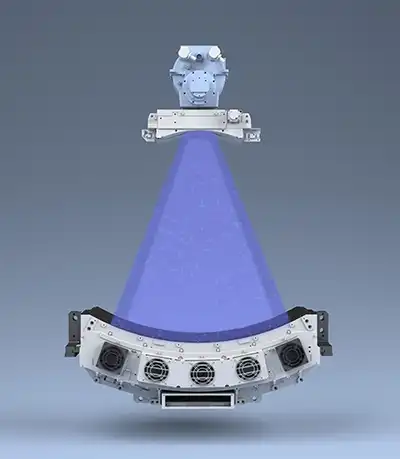

Detector		^PUREViSION detector technology
Detector		80 rows of 0.5 mm
Gantry	Rotation time	0.35 s
	Generator	72 kW
	Bore aperture	78 cm
	Tilt	± 30°
Patient couch	Max. load	220 / 315 kg^*2
Patient couch	Max. scan range	150 – 200 cm^*2
Reconstruction speed	Helical	50 fps / 70 fps^*1
Reconstruction	Iterative reconstruction	AIDR 3D Enhanced
	Deep learning reconstruction	AiCE^*1
	FOV	500 mm, 700 mm^*1
Installation	Power capacity	100 kVA / 110 kVA^*1

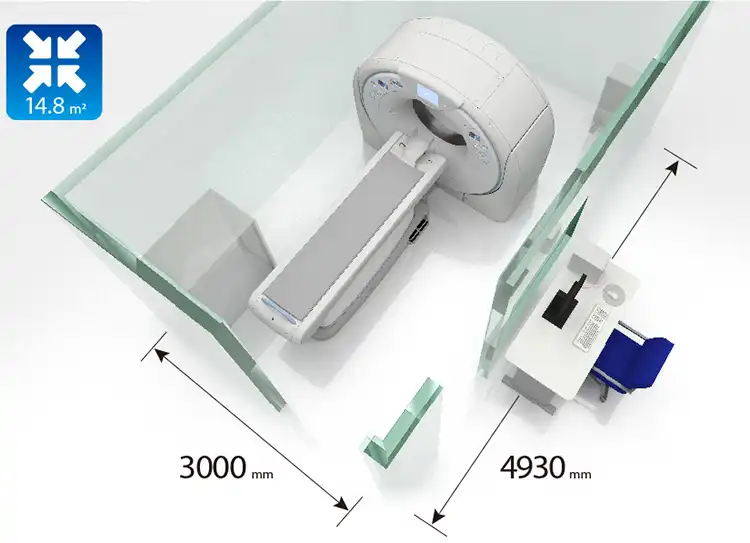

Installation	Min. installation space	14.8 m² (short couch)
Image quality	Spatial resolution	21.5 lp/cm at MTF 0%^*3
