中文CANON 320 rows CT Aquilion ONE GENESIS Edition
Aquilion ONE GENESIS Edition TSX-305A
Phone：+86-21-54286005
Resources
Aquilion ONE GENESIS Edition TSX-305A_Brochure
Aquilion ONE GENESIS Edition TSX-305A_Brochure

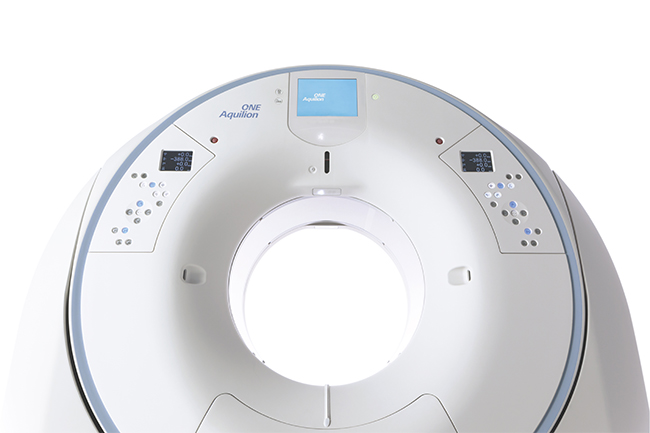

Aquilion ONE / GENESIS Edition
Transforming Dynamic Volume CT
Aquilion ONE™ / GENESIS Edition goes beyond the evolution of dynamic volume CT. Intensive clinically focused research and breakthrough technological developments have culminated in a CT system with industry-leading spatial resolution and reduced radiation dose requirements.
A better balance between image quality and dose – from the youngest to the largest
PUREViSION Optics
PUREViSION Optics provides significantly improved imaging efficiency from photon generation to detection. An optimized beam spectrum combined with a more efficient detector result in a better balance between image quality and dose.
PUREViSION Optics transforms routine CT imaging to new levels of image detail and low contrast detectability with up to 31% less dose.*
*A non-prewhitening model observer study was conducted comparing Aquilion ONE / GENESIS Edition to Aquilion ONE. Maximum dose reduction values were established by comparing low contrast detectability under baseline conditions for abdominal and brain examination based on the detectability index performance metric, a measure of signal to noise that takes into account the magnitude and texture of both the signal and the noise for a given LCD task.
.jpg)

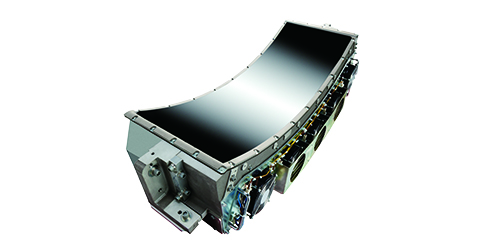

Aquilion ONE / GENESIS Edition’s 320 row PUREViSION detector with industry-leading 0.5 mm element size delivers sharp isotropic images with a boost of 40% more light output.

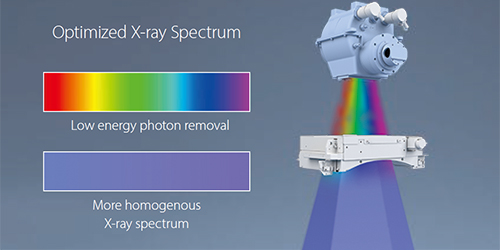

Patient-specific beam shaping filters provide an optimized X-ray spectrum and more homogenous distribution, improving low contrast detectability by up to 18% for body imaging and up to 22% for brain imaging as shown by a model observer study.*
*A non-prewhitening model observer study was conducted comparing Aquilion ONE / GENESIS Edition to Aquilion ONE. Maximum dose reduction values were established by comparing low contrast detectability under baseline conditions for abdominal and brain examination based on the detectability index performance metric, a measure of signal to noise that takes into account the magnitude and texture of both the signal and the noise for a given LCD task.
A new era of AI-assisted medicine

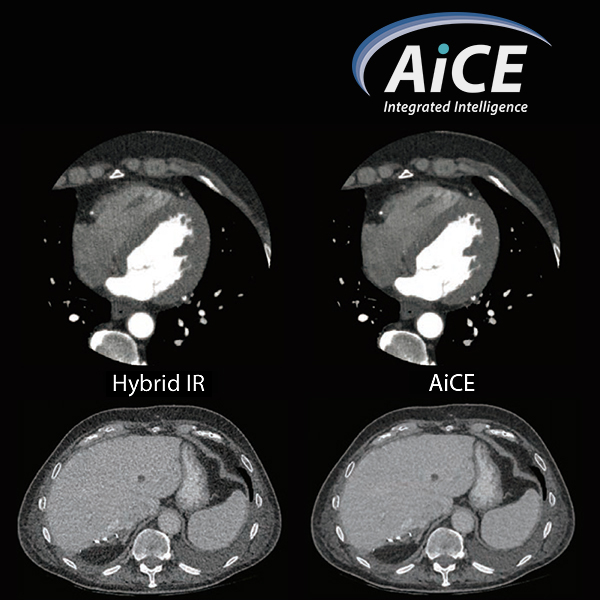

Advanced intelligent Clear-IQ Engine (AiCE)
AiCE is a revolutionary approach to CT reconstruction that leverages Deep Learning Neural Networks specifically trained to perform one task – reconstruct images that are sharp, clear, and distinct.
- Low Noise
- Fine Image Texture
- Sharp High Contrast Resolution
- Clear Low Contrast Detectability

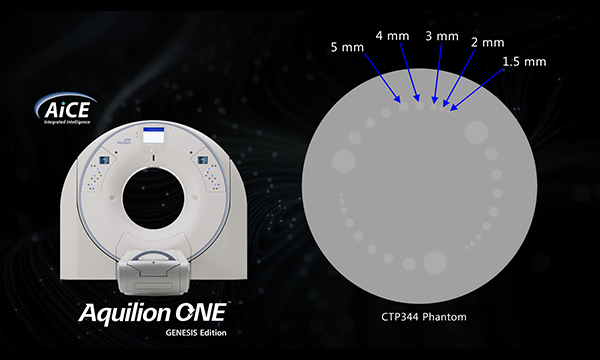

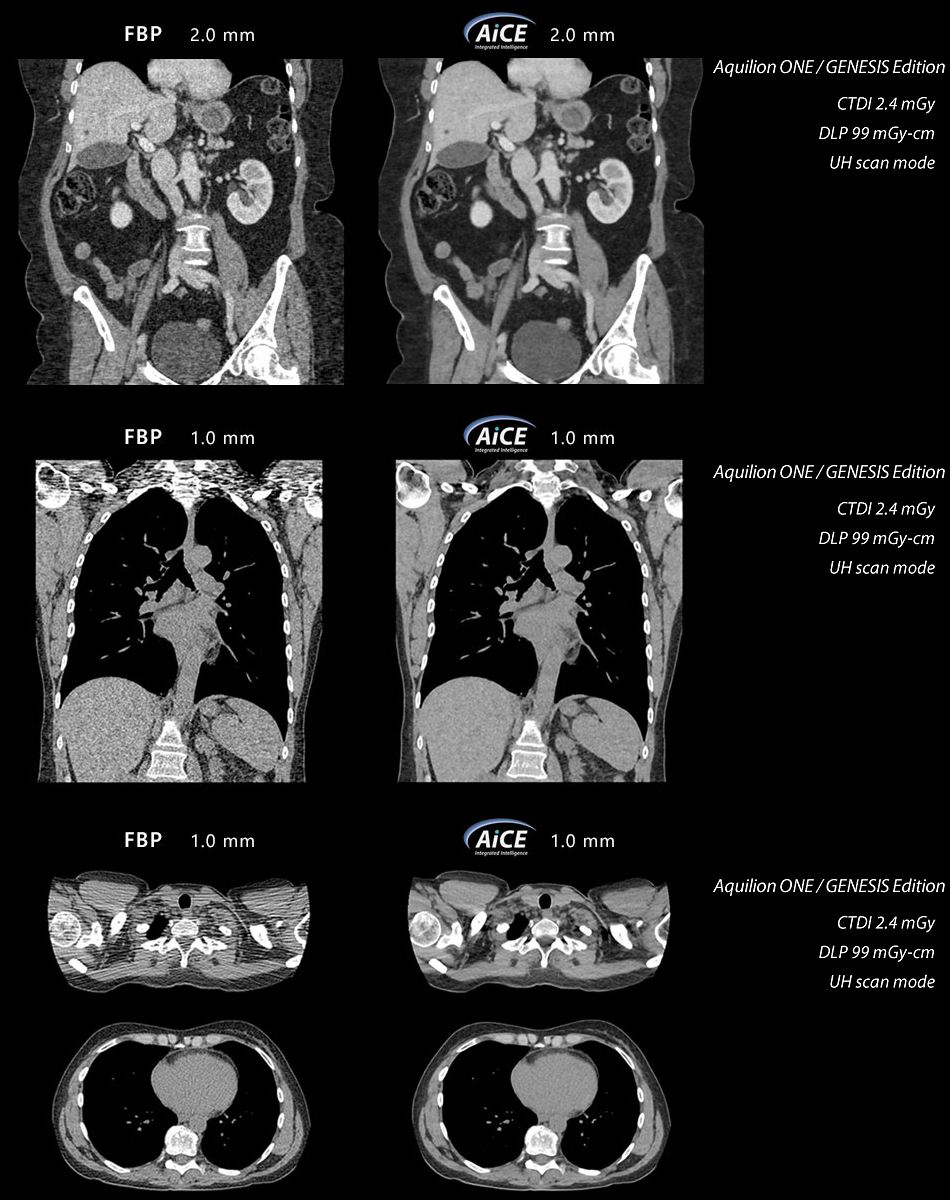

AiCE Deep Learning Reconstruction
New Low Contrast Detectability
Body, Lung and Cardiac
| Object Size | CTDIvol |
| 3 mm at 0.3% | 5.3 mGy |
| 2mm at 0.3% | 10.5 mGy |
| 1.5mm at 0.3% | 22.6 mGY |
| Scan Parameters | |
| 10 mm (with AiCE Body) | |
| Phantom | |
|
(CTP344, Phantom Labs) |
|
The AiCE Server
Designed for collation and analysis of large amounts of data
Our partnership with NVIDIA® has allowed Canon Medical Systems to make significant advances in artificial intelligence (AI) and data-intensive deep learning techniques in the healthcare sector. The AiCE Server enables the processing of large volumes of medical data while simultaneously coordinating a variety of patient information.
Clinical Gallery
See through the noise
- Cardiac Cases
- Body Cases
- Pediatric Cases
The right application for a confident diagnosis
Adaptive Diagnostics
- Patient-centric imaging solutions
- Simplifying complex protocols
- Providing consistent quality results
*Option

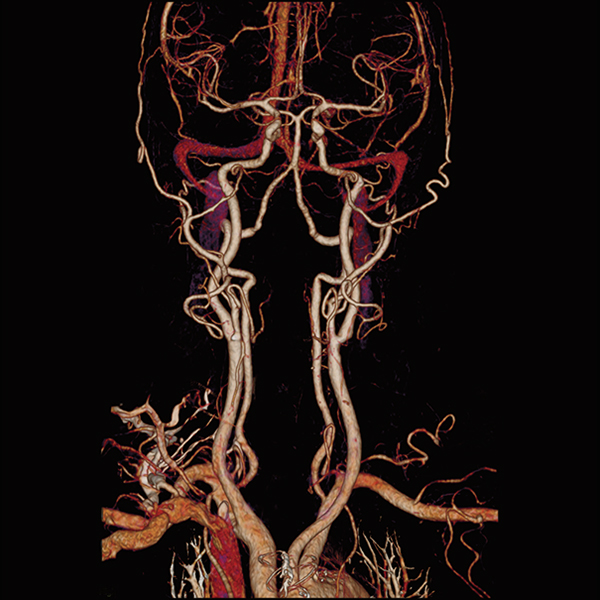

Angiography SURESubtraction CT*
Angiography SURESubtraction CT* true subtraction of bone and calcium.

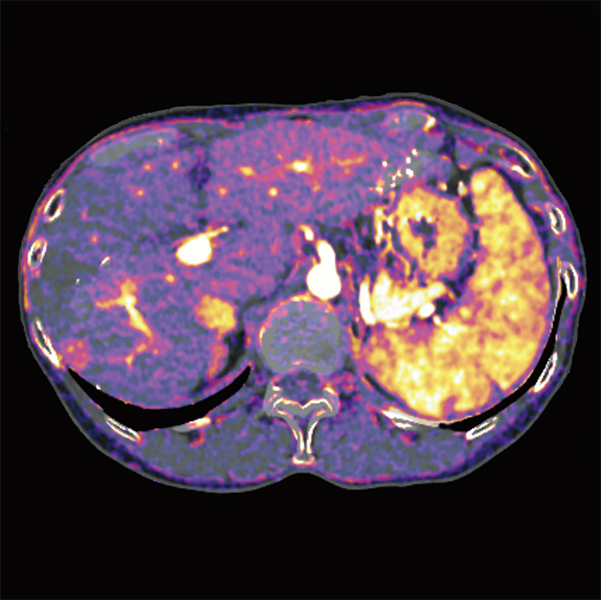

Iodine mapping SURESubtraction CT*
Enhance your diagnostic capabilities with color iodine maps provided automatically for any multiphase abdominal protocol.
SURECardio Prospective*

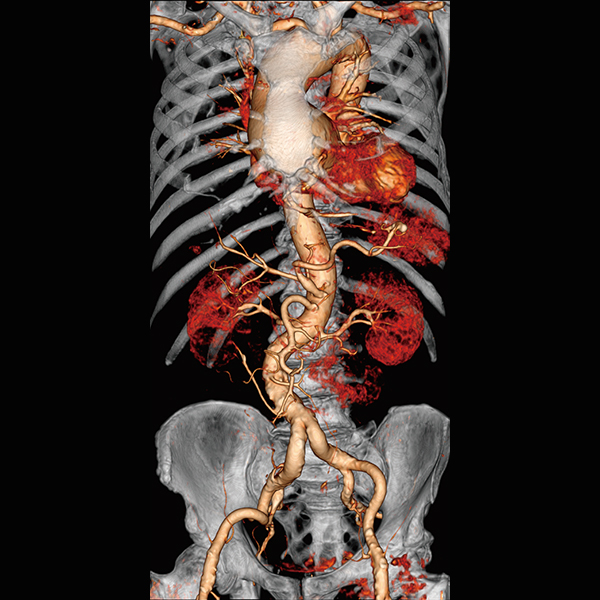

vHP* 3 Phase (Three-phase variable Helical Pitch)
Perform three exams in one with vHP 3 variable helical pitch three-phase mode.

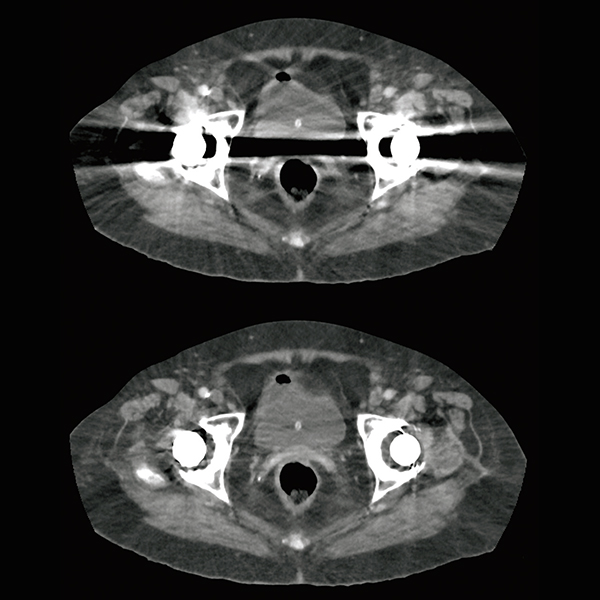

SEMAR (Single Energy Metal Artifact Reduction)
Improve visualization of bone and soft tissue with metal artifact reduction technology SEMAR.

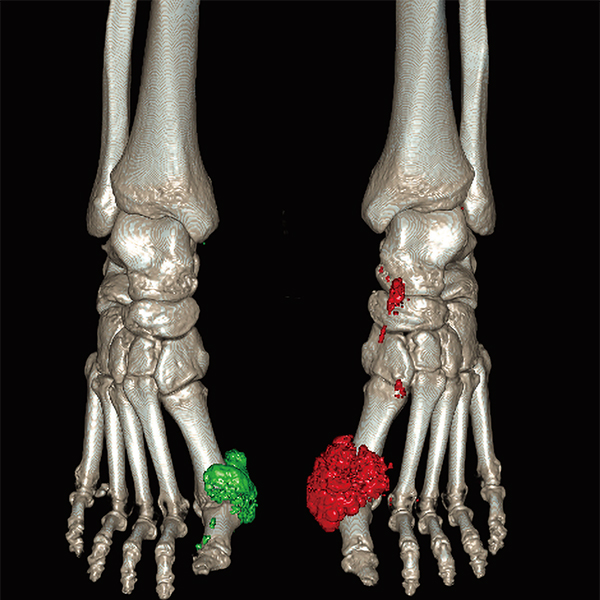

Dual Energy*
Tissue visualization with easy-to-use Dual Energy scanning.
One rotation is all it takes

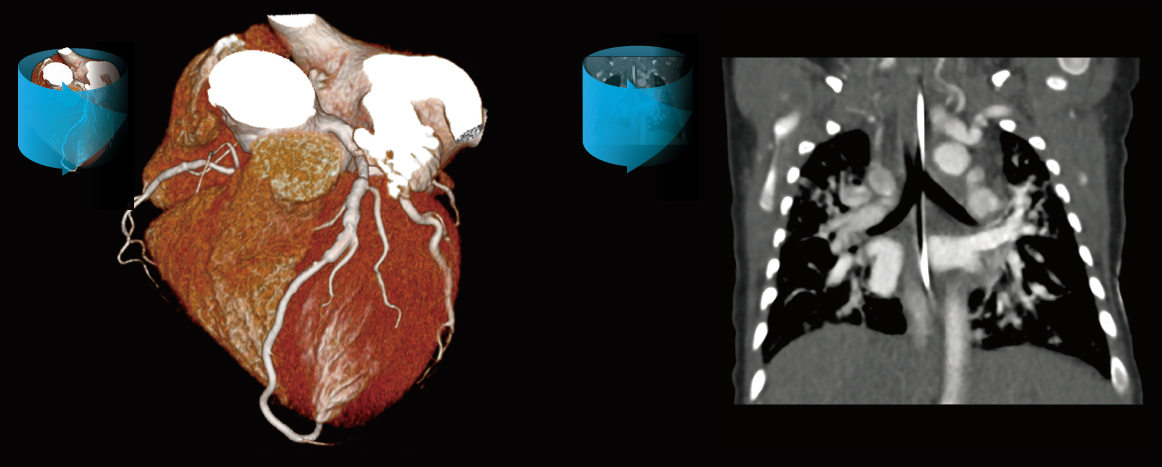

ONE Rotation Scanning
GENESIS Edition’s 16 cm wide area detector signicantly improves your ability to obtain high-quality images for routine and advanced studies. One rotation is all it takes to acquire a whole heart, a neonatal chest, a foot or an ankle exam – in a fraction of a second with less dose and great z-axis uniformity.
Changing clinical pathways

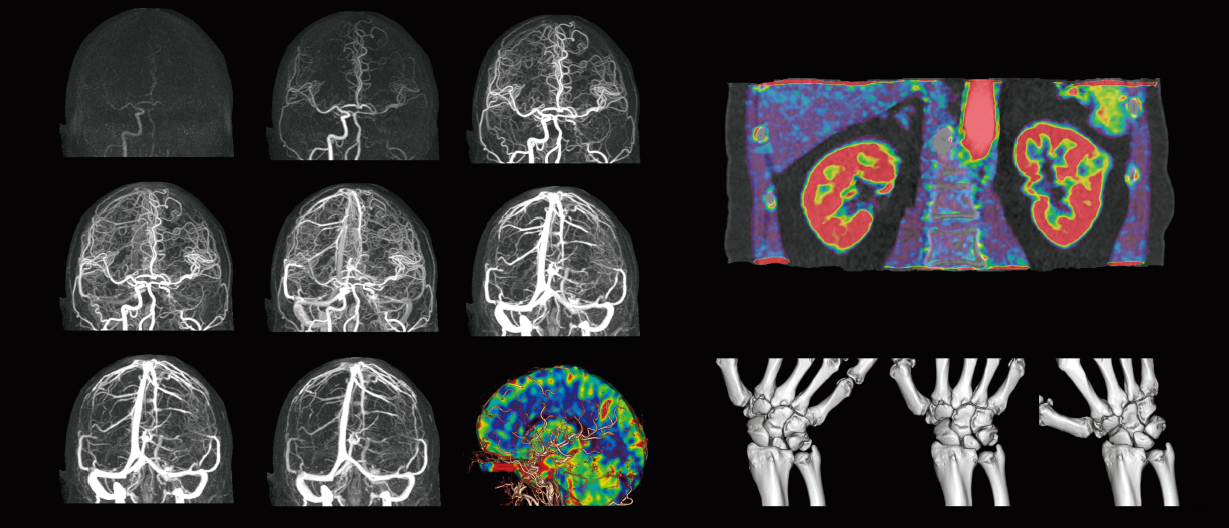

Dynamic Functional Imaging
Adding dynamic functional imaging to morphology can provide valuable further insights, helping you to optimize disease management and treatment plans. Advanced perfusion maps can assist in diagnosis and therapy response verification of stroke or tumors, while dynamic joint studies help identify causes of pain or immobility.
Main specifications
|
Detector |
PUREViSION detector |
|
|
320 rows, 0.5 mm |
||
|
Gantry |
Rotation time |
0.275 s*1, 0.35 s |
|
Bore size |
78 cm |
|
|
Bore depth |
38.7cm |
|
|
Physical Tilt |
±30° |
|
|
Patient couch |
Load |
220 / 315 kg, 694 lbs*2 |
|
Max. scan range |
150-200 cm*2 |
|
|
Reconstruction speed |
Volume |
5 s |
| Helical | Max. 80 fps | |
|
Reconstruction |
Iterative reconstruction |
AIDR*3 3D Enhanced |
|
Deep Learning Reconstruction |
AiCE*1 |
|
|
Installation |
Power capacity |
125 kVA*1, 100 kVA |
|
Space |
19m2 |
|
*1 Option
*2 Depending on system configuration
*3 Adaptive Iterative Dose Reduction
