中文CANON 160 rows CT Aquilion Precision
Aquilion Precision TSX-304A
Phone：+86-21-54286005
Resources
Aquilion Precision TSX-304A_Brochure
Aquilion Precision TSX-304A_Brochure

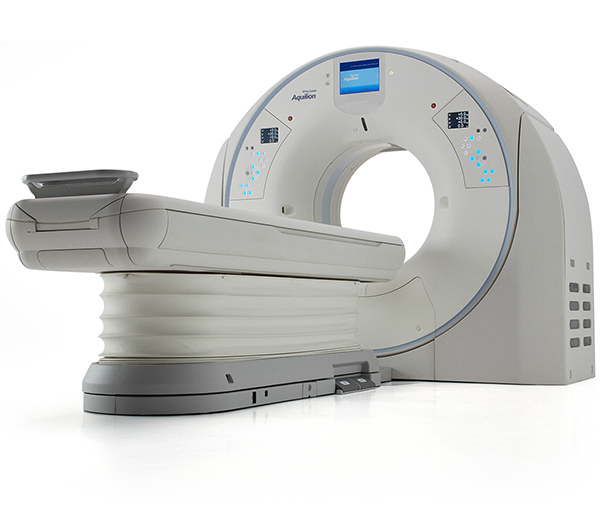

Aquilion Precision TSX-304A
Provides Twice the Resolution of Today’s CT Systems
The world's first Ultra-High Resolution CT (UHR CT) capable of resolving anatomy as small as 150 microns, providing CT image quality with resolution typically seen only in cath labs. The UHR detector is newly designed to provide twice the resolution when compared with today’s CT technology, with an all-new detector as well as tube, gantry and reconstruction technologies.

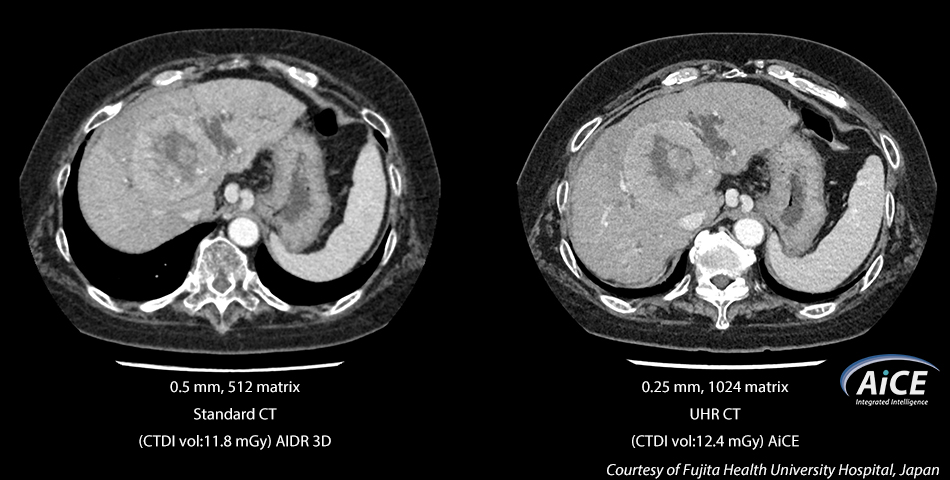

Advanced intelligent Clear-IQ Engine (AiCE)
Ultra-High Resolution at standard CT dose
The Aquilion Precision introduces a revolutionary approach to CT reconstruction that leverages Deep Learning Neural Networks specifically trained to perform one task – reconstruct images that are sharp, clear, and distinct.
Known as AiCE, this deep learning reconstruction network is trained on an advanced Model-Based Iterative Reconstruction (MBIR) algorithm to produce low noise, natural texture, and 0.25 mm, 1024 matrix Ultra-High Resolution CT images several times faster than clinical MBIR today.

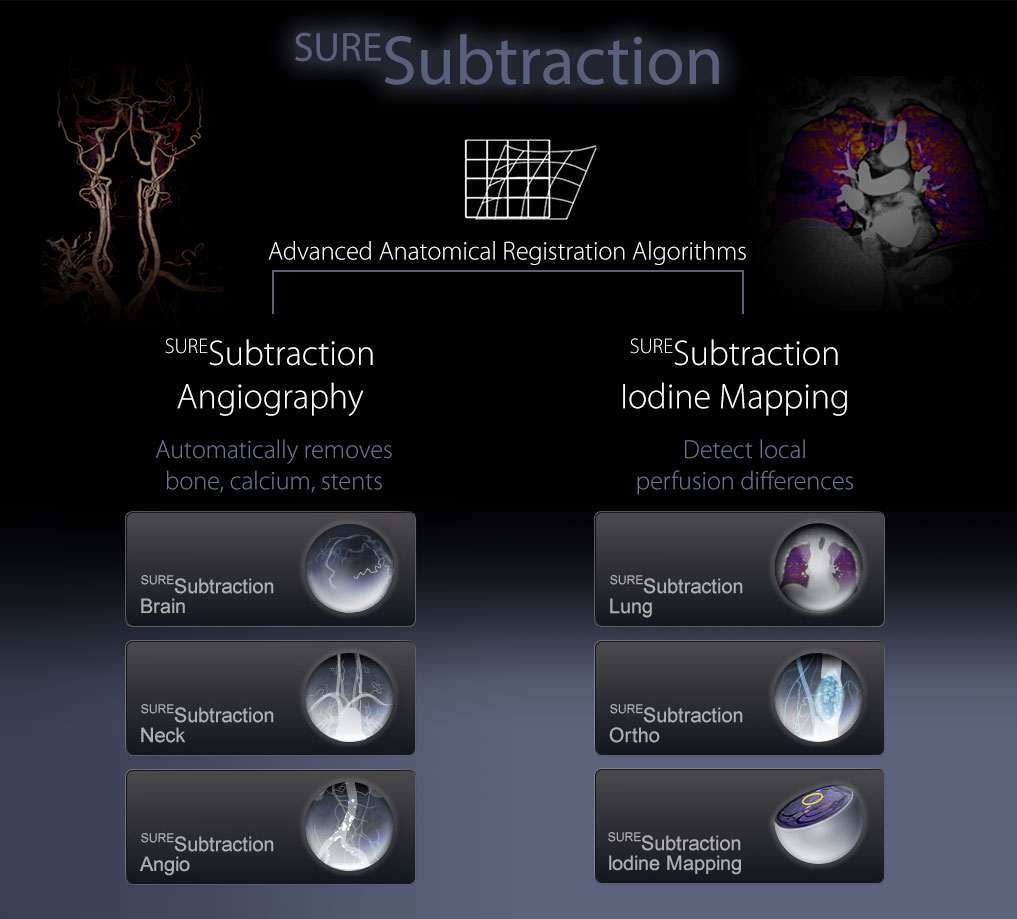

SURESubtraction
Ultra-High Resolution Subtraction CT
In CTA examinations SURESubtraction has the ability to remove bone, calcium and stents from data sets allowing clinicians an unobstructed view of the arteries. Moreover, SURESubtraction can create iodine maps to enable the assessment of the distribution of contrast media within the body to visualize local perfusion.

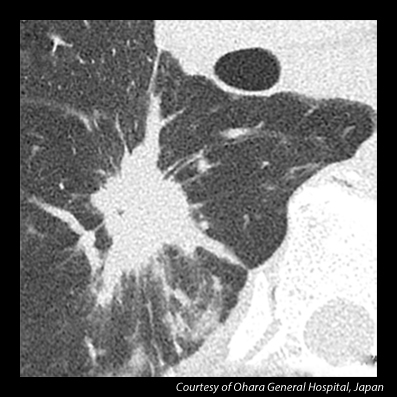

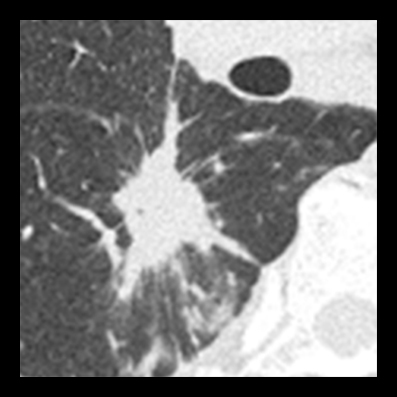

Ultra-High Resolution CT (UHR CT)
Hardware Technology Innovations
- New tube design with industry smallest focal spot
- New 0.25 mm x 160 rows—Industry smallest
- New miniaturized DAS components
- Couch top with precision reinforced drive mechanism
Reconstruction Innovations
- New Matrix, 1024 x 1024
- Optimized for UHR CT acquisitions
- 150 micron, 50 lp/cm* resolution
- AIDR 3D Enhanced optimized for UHR CT acquisitions
- AiCE-optimized for UHR CT acquisitions
*MTF 0% (reference value)

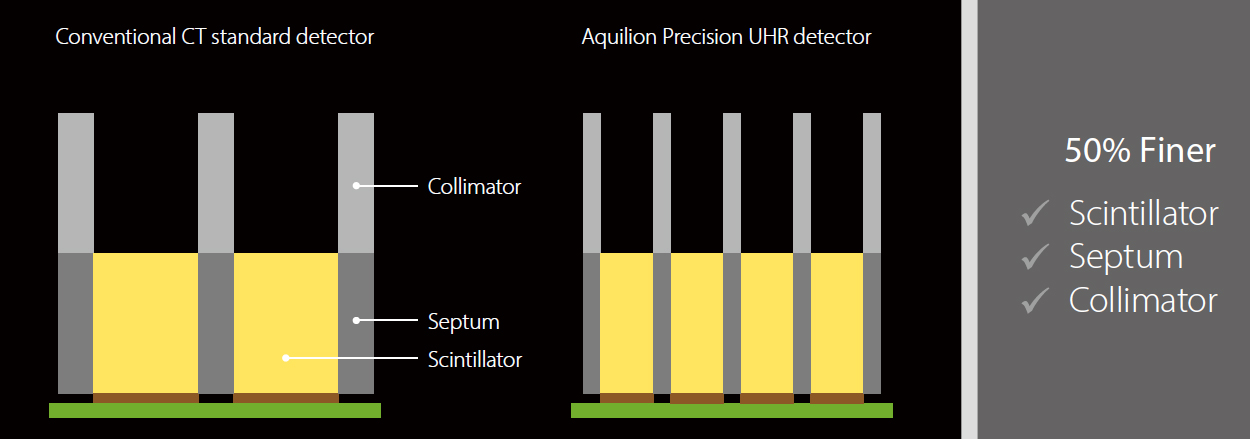

UHR Detector System
The Aquilion Precision Ultra-High Resolution detector maintains the same geometric efficiency as a conventional detector even though there are four times the number of detector elements, septa and electronics.
- 0.25 mm x 160 rows, 1792 channels
- Low electronic noise

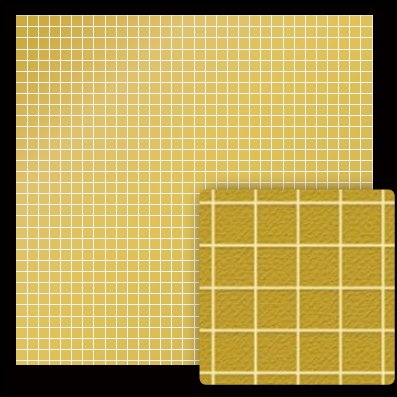

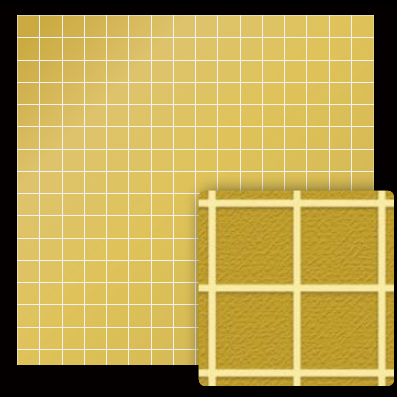

New UHR Reconstruction Matrix
- 0.5 mm 896 channel Detector
- 0.25 mm 1792 channel UHR Detector

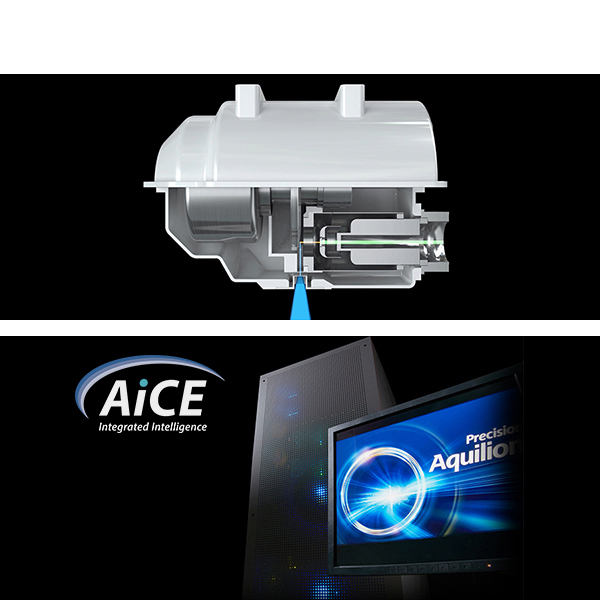

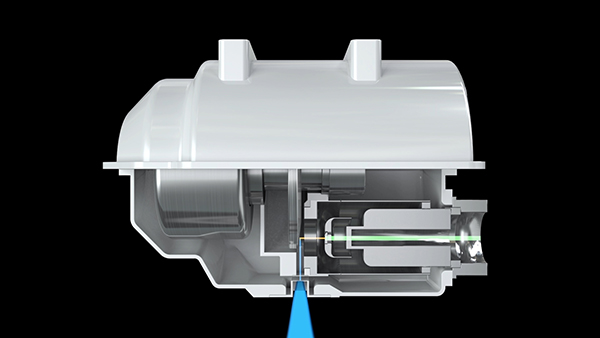

UHR X-ray Tube
Small Focal Size (0.4 mm X 0.5 mm)
The UHR tube incorporates an adaptive focal spot, capable of producing six precise focal spot sizes to meet the demands of UHR CT. The focal spot adapts to the patient size, collimation, matrix and clinical task, ensuring the optimal resolution for every examination.

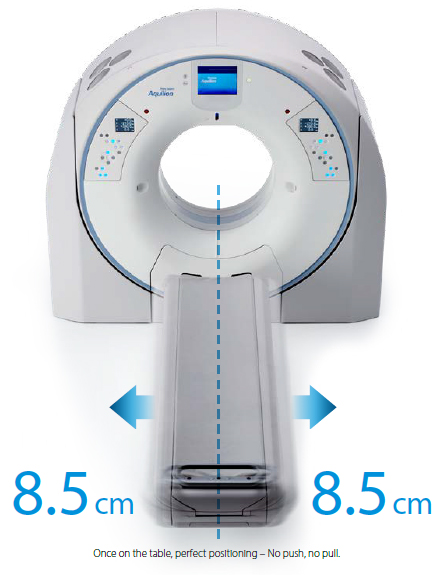

UHR Couch Technology
The UHR couch enables clear images at 0.15 mm resolution while maintaining the popular popular design features for patient and technologist comfort and safety.
- 47 cm, industry’s widest
- 17 cm lateral table movement
- 2-step slide mechanism
Main Specifi cations
|
Detector |
Ultra-High Resolution detector |
|
|
160 rows, 0.25 mm |
||
|
Gantry |
Ultra-High Resolution tube |
|
|
Focal spot size |
0.4 × 0.5 mm (6 Adaptive) |
|
|
Rotation time |
0.35 s |
|
|
Generator |
72 kW |
|
|
Bore aperture |
78 cm |
|
|
Tilt |
± 30° |
|
|
Patient couch |
Ultra-High Resolution couch |
|
|
Max. load |
315 kg |
|
|
Max. scan range |
170–200 cm*3 |
|
|
Lateral movement |
± 8.5 cm*4 |
|
|
Reconstruction speed |
Helical |
80 fps (1024 matrix) |
|
Reconstruction |
Deep Learning Reconstruction |
AiCE*4 |
|
Matrix |
2048, 1024, 512 |
|
|
Installation |
Power capacity |
110 kVA |
|
Min. installation space |
19 m2 (short couch) |
|
|
Image quality |
Spatial resolution |
50.0 lp/cm at MTF 0%*5 |
*3 Depending on system configuration
*4 Option
*5 For reference
