中文Olympus BF-Q290 Video Bronchoscope
EVIS LUCERA ELITE BF-P290 Bronchoscope
Phone：+86-21-54286005
Resources
BF-Q290_Brochure_EN
BF-Q290_Brochure_EN

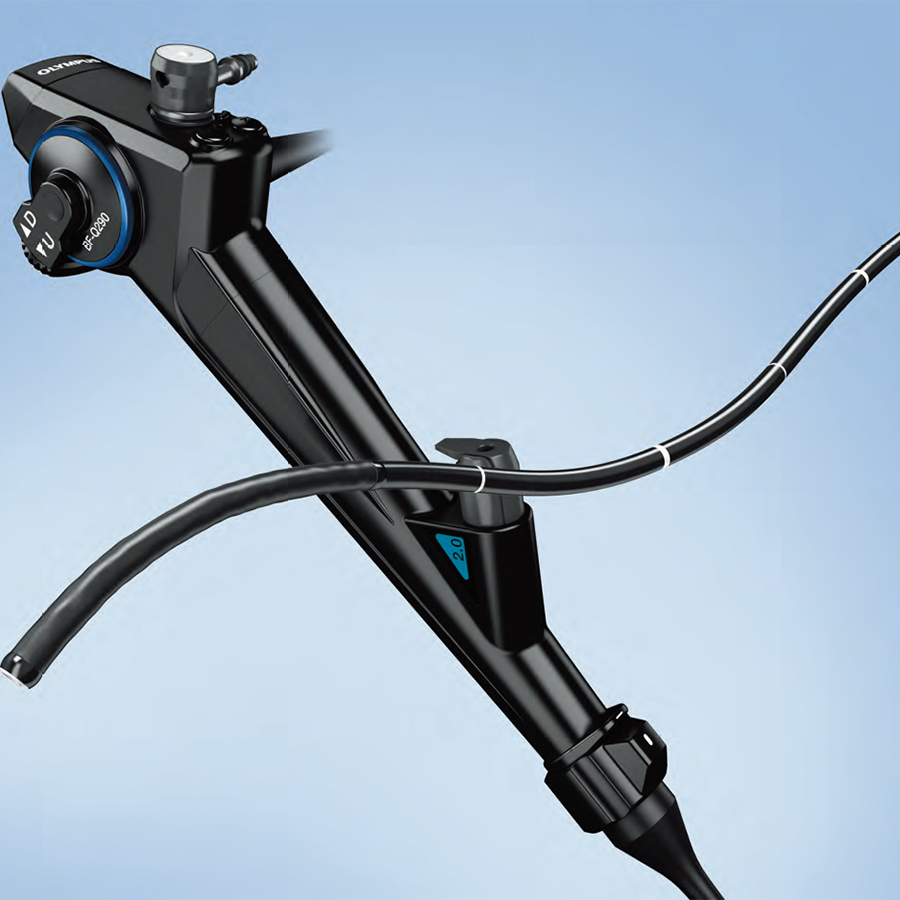

EVIS LUCERA ELITE Bronchoscope BF-Q290
Versatile high resolution image bronchoscope with a slim 4.8 mm diameter and 2.0 mm instrument channel
Main Features
Excellent image with a thinner diameter
High-resolution image quality comparable to our previous flagship model (BF-6C260) but with a slimmer design.
NBI (Narrow Band Imaging)
NBI is an optical image enhancement technology that improves the visualisation of vessels on the mucosal surface. NBI is now twice as bright as the CV-260, CLV-260SL and BF-260.

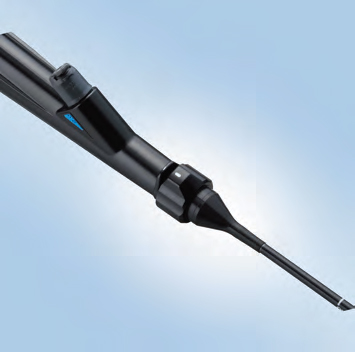

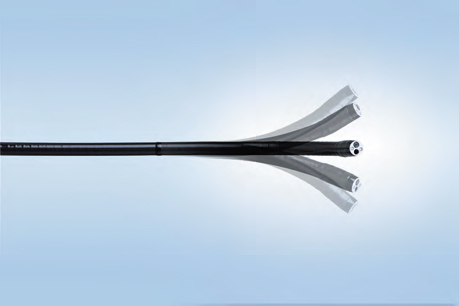

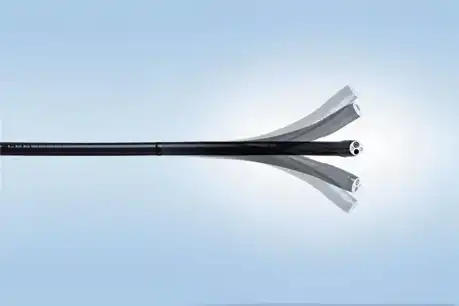

Insertion tube rotation function
The insertion tube can be rotated left or right up to 120 degrees by simply turning a ring on the control section of the scope. This supports easier operation and smoother insertion with less operator fatigue.

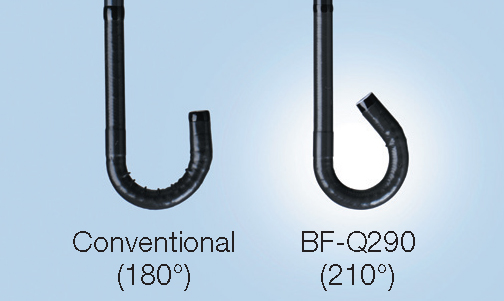

Wider angulation range
A 210˚ up angulation range supports smoother insertion to the upper lobe bronchi and allows more of a bend in the scope when an EndoTherapy device is inserted in the endoscope’s working channel.

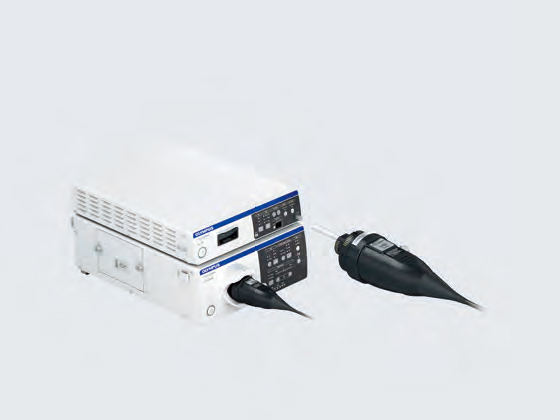

Waterproof one-touch connector
A new connector design minimises the effort required for setup prior to and in between cases. In addition, it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.
|
|
BF-Q290 | |
| Optical system | Field of view |
120° |
| Direction of view | Forward viewing | |
| Depth of fi eld |
2-100 mm |
|
| Insertion section | Distal end outer diameter | 4.8 mm |
| Insertion tube outer diameter |
4.9 mm |
|
| Working length | 600 mm | |
| Instrument channel | Channel inner diameter |
2.0 mm |
| Minimum visible distance | 3.0 mm from the distal end | |
| Bending section | Angulation range |
UP 210° |
| Compatible EVIS LUCERA system |
Video system center OLYMPUS CV-290 Xenon light source OLYMPUS CLV-290SL |
|
