中文Olympus BF-XP290 Ultra-Slim Video Bronchoscope
BF-XP290 Ultra-Slim Video Bronchoscope
Phone：+86-21-54286005
Resources
BF-XP290_Brochure_EN
BF-XP290_Brochure_EN

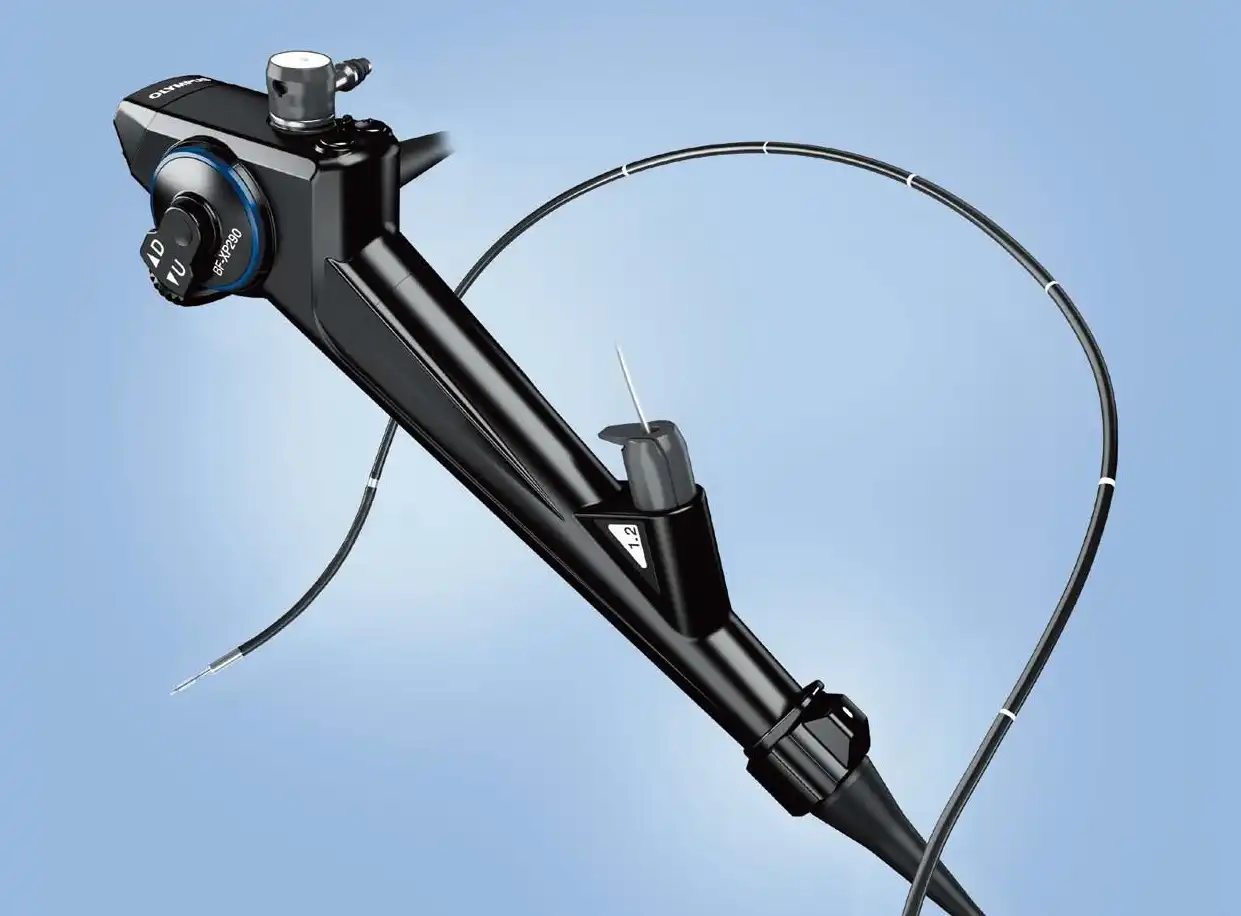

EVIS LUCERA ELITE BRONCHOVIDEOSCOPE BF-XP290
Extremely slim, 3.1 mm diameter videoscope reaches further
for observation of thinner bronchi
Main Features

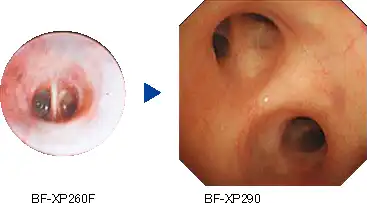

Extremely-slim-design videoscope
Newly developed micromini CCD on the tip realizes drastically improved image quality over conventional hybrid scopes*, while maintaining an extremely-slim diameter.
Insertion tube rotation function
The insertion tube can be rotated left or right up to 120 degrees by simply turning a ring on the control section of the scope. This supports easier operation and smoother insertion with less operator fatigue.
Wider angulation range
210˚ up angulation range supports smoother insertion to the upper lobe bronchi and allows more of a bend in the
scope when an EndoTherapy device is inserted in the endoscope’s working channel.
Waterproof one-touch connector
A new connector design minimizes the effort required for setup prior to and in between cases. In addition, it is fully submersible and eliminates the need for a water-resistant cap and the associated risk of an expensive repair due to accidental immersion.
|
|
BF-XP290 | |
| Optical system | Field of view |
110° |
| Direction of view | Forward viewing | |
| Depth of fi eld |
2-50 mm |
|
| Insertion section | Distal end outer diameter | 3.1 mm (tapered part of distal tip 2.9 mm) |
| Insertion tube outer diameter |
2.8 mm |
|
| Working length | 600 mm | |
| Instrument channel | Channel inner diameter |
1.2 mm |
| Minimum visible distance | 1.5 mm from the distal end | |
| Bending section | Angulation range |
UP 210° |
| Compatible EVIS LUCERA system |
Video system center OLYMPUS CV-290 Xenon light source OLYMPUS CLV-290SL |
|
