COVIDIEN Valleylab™ FX8(VLFX8GEN)
ELECTROSURGERY WITH THE POWER OF PRECISION.
Introducing the latest advancement in the Valleylab™ energy family
Our new Valleylab™ FX8 energy platform puts the power of precision in your hands.1,2,† Now, your electrosurgical handpieces can adapt to variable tissue — in real time.3,†

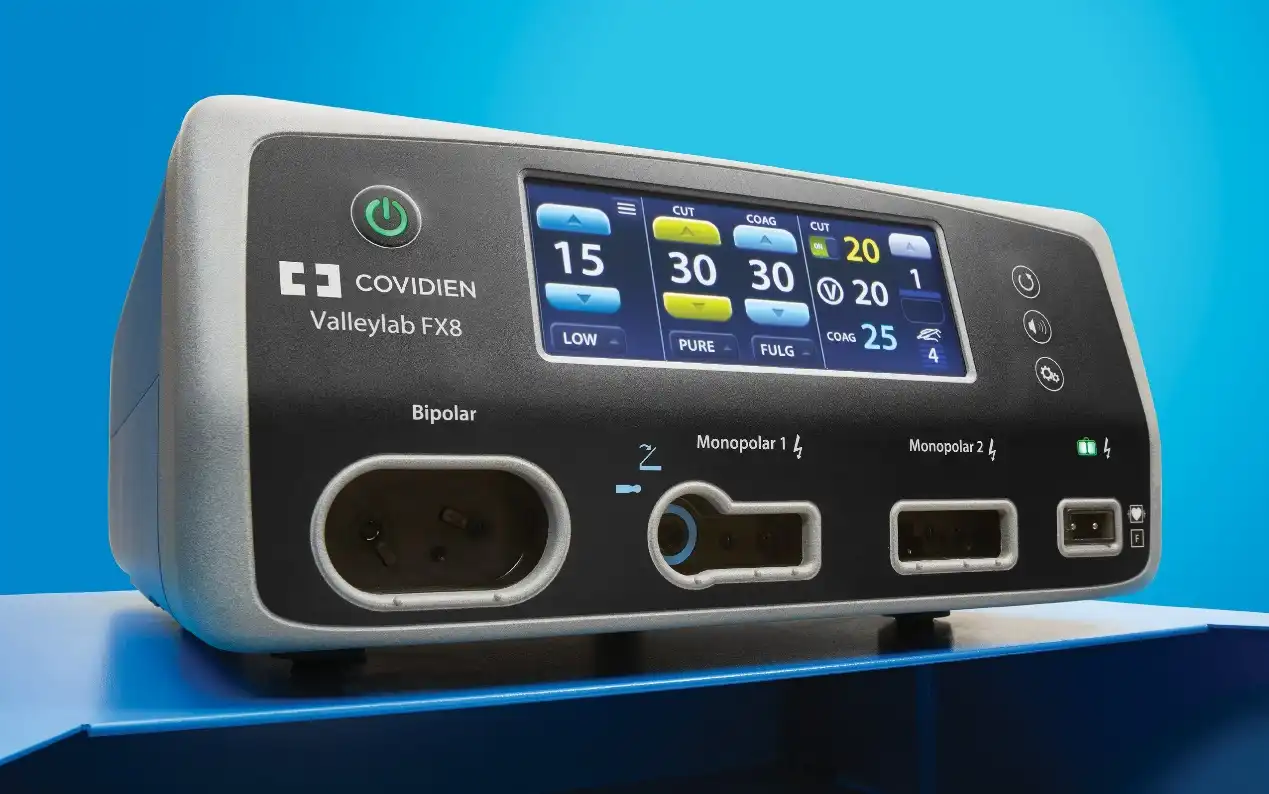

The Valleylab™ FX8 Electrosurgical Generator
PRECISE ENERGY DELIVERY.
CONSISTENT TISSUE EFFECTS.
INTUITIVE DESIGN.
The Valleylab™ FX8 energy platform is powered by our smart TissueFect™ tissue-sensing technology. That means it can monitor changes in tissue impedance 434,000 times per second — and adjust energy output accordingly.4,5
Now, in your hands, electrosurgical devices can adapt to produce the consistent clinical tissue effects you require.4.5
The Valleylab™ FX8 energy platform delivers:
- Precise delivery of monopolar and bipolar energy1,2
- Power control during monopolar energy delivery that’s five times better than the ForceTriad™ energy platform1,2
- Tissue monitoring that’s 2600 times faster than the Force FX™ electrosurgical generator4–6
- Appropriate thermal spread7,†
The Valleylab™ FX8 energy platform has a next-gen design. It provides users with:
- A three-section touch screen
- Simple controls and straightforward information displays3,§
- Add new functionality through software upgrade4,5
General
|
Output configuration
|
Isolated output
|
|
Cooling
|
Natural convection and fan
|
|
Display
|
15.7 cm (6.2 in) LCD touchscreen
|
|
Enclosure
|
Magnesium
|
|
Mounting
|
- Valleylab™ universal generator cart (VLFTCRT)
- Operating room boom systems
- Any stable, flat surface such as a table or cart top
|
Dimensions and Weight
|
Height
|
14.6 cm (5.73 in)
|
|
Width
|
33.5 cm (13.18 in)
|
|
Length
|
43.6 cm (17.15 in)
|
|
Weight
|
8.8 kg (19.5 lb)
|
Operating Parameters
|
Ambient temperature range
|
10°C to 40°C (50°F to 104°F)
|
|
Relative humidity
|
15% to 85% noncondensing
|
|
Atmospheric pressure
|
700 to 1060 millibars
|
Transport and Storage
|
Ambient temperature range
|
-10°C to 60°C (14°F to 140°F)
|
|
Relative humidity
|
15% to 90% noncondensing
|
|
Atmospheric pressure
|
500 to 1060 millibars
|
Duty Cycle
The Valleylab™ FX8 energy platform is capable of operating a duty cycle of 25%, defined as 10 seconds active and 30 seconds inactive — in any mode for a period of 4 hours.
Internal Memory
|
Real-time clock battery
|
Can be: Lithium CR1620 or CR1632Battery capacity — 75 mAh minimum
|
|
Storage capacity
|
8 GB
|
Audio Tones
|
Activation Tones
|
Tone
|
Duration
|
Volume
|
|
CUT
|
660 Hz ± 5%
|
Entire Activation Duration
|
User adjustable from 45 dBA to 65 dBA (-0/+6 dBA @ 1 m)
|
|
COAG
|
940 Hz ± 5%
|
Entire Activation Duration
|
User adjustable from 45 dBA to 65 dBA (-0/+6 dBA @ 1 m)
|
|
VALLEYLAB
|
800 Hz ± 5%
|
Entire Activation Duration
|
User adjustable from 45 dBA to 65 dBA (-0/+6 dBA @ 1 m)
|
|
BIPOLAR
|
940 Hz ± 5%
|
Entire Activation Duration
|
User adjustable from 45 dBA to 65 dBA (-0/+6 dBA @ 1 m)
|
|
SHARED COAG
|
988 Hz ± 5%
|
Entire Activation Duration
|
User adjustable from 45 dBA to 65 dBA (-0/+6 dBA @ 1 m)
|
Input Power
|
Nominal Line Voltage
|
|
|
100–127 VAC
|
220–240 VAC
|
|
Line Ranges
|
|
Line Voltage Full Regulation Range
|
90–140 VAC
|
198–264 VAC
|
|
Line Frequency
|
47–63 Hz
|
47–63 Hz
|
|
Max VA Nominal Line Voltage†
|
660 VA
|
660 VA
|
|
Max Mains Current†
|
6.6 ARMS
|
3.0 ARMS
|
|
Max Heat Dissipation
|
180 W
|
180 W
|
|
Fuses
|
10 A Fuses (2) – 5 mm x 20 mm10 A, 250 V fast blow
|
6.3 AFuses (2) – 5 mm x 20 mm6.3 A, 250 V fast blow
|
|
Power Cord
|
3-prong hospital-grade connector
|
|
†Max VA and current are based on nominal line voltages.
|
Output Characteristics
|
Mode
|
Rated Load (Ω)
|
Rated Output Power (W)
|
Peak Voltage (V)£
|
Current Nominal Max (A)
|
Typical Crest Factor‡
|
Duty Cycle
|
|
Monopolar CUT
|
|
PURE
|
300
|
300
|
1287
|
1.25
|
1.5
|
100%
|
|
BLEND
|
300
|
200
|
2178
|
1.0
|
2.3
|
50%
|
|
Valleylab™ mode
|
|
VALLEYLAB
|
300
|
200
|
2783
|
1.0
|
3.1
|
25%
|
|
Monopolar COAG
|
|
SOFT
|
100
|
120
|
264
|
1.55
|
1.5
|
100%
|
|
FULGURATE
|
500
|
120
|
3448
|
1.0
|
5.3
|
6.25%
|
|
SHARED FULGURATE
|
500§
|
120
|
3448
|
1.0
|
5.3
|
6.25%
|
|
SPRAY
|
500
|
120
|
3932
|
1.0
|
6.1
|
4.76%
|
|
SHARED SPRAY
|
500§
|
120
|
3932
|
1.0
|
6.1
|
4.76%
|
|
Bipolar
|
|
PRECISE (1–70 W)
|
100
|
70
|
284
|
1.8
|
1.6
|
100%
|
|
STANDARD (1–70 W)
|
100
|
70
|
415
|
1.8
|
1.6
|
100%
|
|
MACRO (1–70 W)
|
100
|
70
|
530
|
1.8
|
1.8
|
100%
|
|
LOW (1–15 W)
|
100
|
15
|
133
|
1.0
|
1.5
|
100%
|
|
MEDIUM (16–40 W)
|
100
|
40
|
214
|
2.0
|
1.6
|
100%
|
|
HIGH (45–95 W)
|
100
|
95
|
462
|
2.0
|
1.6
|
100%
|
£ Per IEC 60601-2-2: 2009 clause 201.7.9.2.2.101(c)(2), whenever the peak voltage is greater than 1600 V, the calculated variable y is less than the actual crest factor. The peak voltage at rated load can be calculated using the equation:
Vpeak(Umax) = TypicalCrestFactor √Power·RatedLoad
‡At rated load.
§ Rated load in SHARED COAG modes is the total energy channel load. For SHARED dual activation using two activating instruments, it is the parallel combination of the two loads. For SHARED single activation using one activating instrument, it is the load connected to the activating electrode only.
