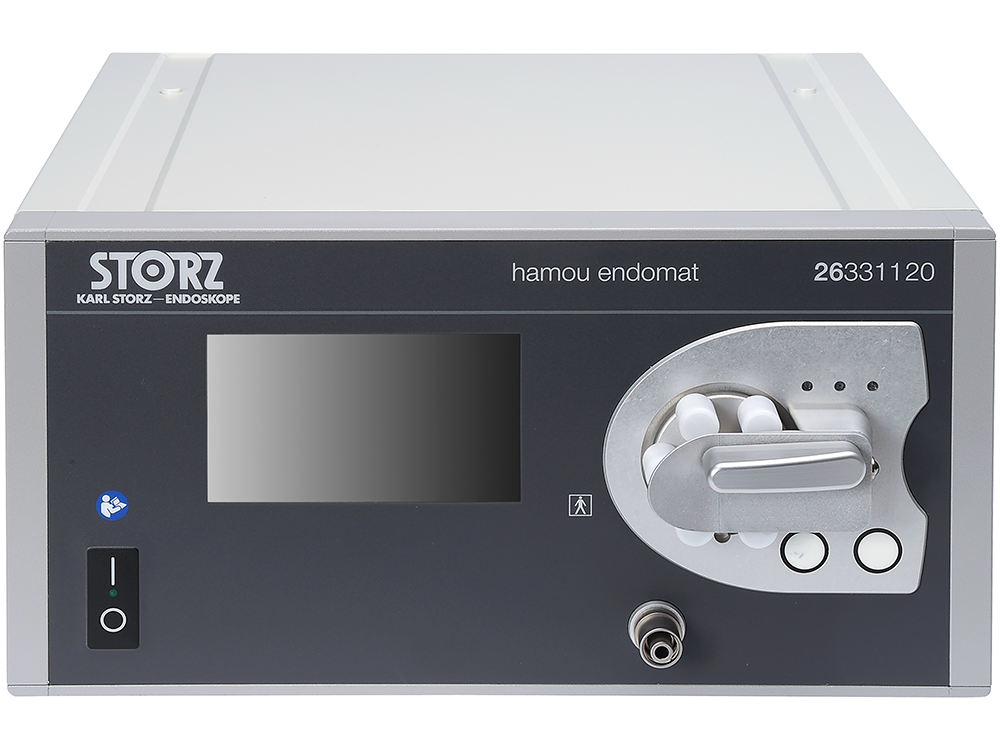

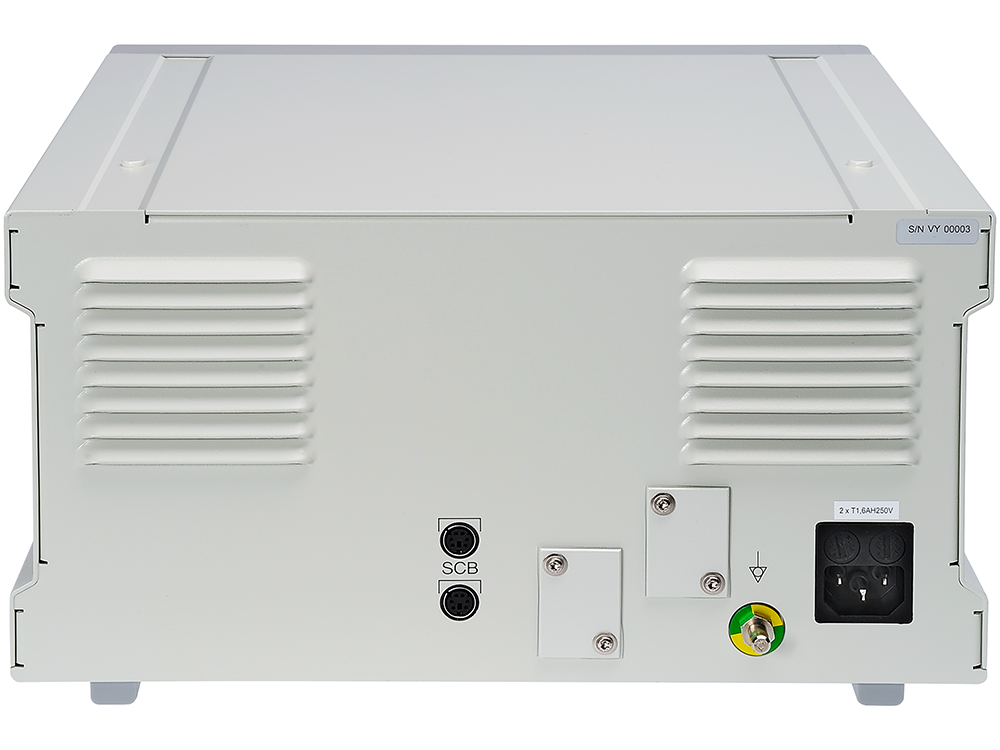

中文KARL-STORZ 26331101-1 HAMOU ENDOMAT suction or irrigation pump
HAMOU ENDOMAT SCB suction or irrigation pump，Set
Phone：+86-21-54286005
HAMOU ENDOMAT SCB, Set
26331101-1
Scope of delivery
| 26331120-1 | HAMOU ENDOMAT SCB (1) |
| 20090170 | SCB Connecting Cable, 100 cm (1) |
| 031523-10 | Tubing Set, Irrigation, PC (1) |
| 031524-10 | Tubing Set, Irrigation, FC (1) |
| 400A | power cord, length 300 cm (1) |
| Pump function | suction or irrigation pump |
| Unit type | roller pump + vacuum |
| Power supply | 100 – 240 VAC |
| Width | 305 mm |
| Height | 164 mm |
| Depth | 375 mm |
| Weight | 9.3 kg |
| Line frequency | 50/60 Hz |
| irrigation flow (ml/min) | HYS mode: 200-400-600; LAP mode: 100…1300 |
| max. irrigation pressure (mmHg) | HYS mode: 20…200; LAP mode: 100-300-500 |
| Brand | ENDOMAT® |
| Unit communication SCB | yes |
| SCB connection | 2 |
| IP protection class | IPX1 |
| Electrical protection class | protection class 1 |
| Degree of safety | BF |
| Control via touch screen | yes |
| Wipe disinfection | yes |
| System requirements for SCB | SCB control NEO system with installed SCB control NEO Software Release 20090001-46 or higher |
| Display | TFT screen |
| Socket for external systems | 0 |
| Unit communication KS HIVE | no |
| Connection socket footswitch | 0 |
| Bottle stand included | no |
| Power consumption | 0,7 VA |
| Operative procedure | HYS, LAP |
| Max. suction pressure | suction pressure: HYS mode: -0.1…-0.8 LAP mode: -0.1…-0.8 |
