中文NIKON CFI Plan NCG 100X Objectives NA 0.9 WD 1mm

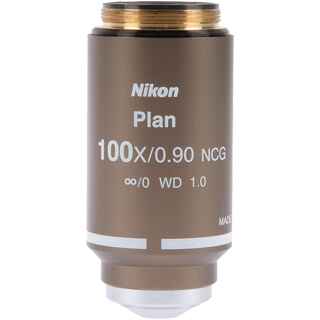

NIKON CFI Plan NCG 100X Objectives NA 0.9 WD 1mm
Phone：+86-21-54286005
NIKON CFI Plan NCG 100X
Objectives NA 0.9 WD 1mm
| CFI Plan NCG 100X |
|
|---|---|
|
|
| Material Number | MRL03901 |
| Type | Plan Achromat |
| Primary Technique | Brightfield |
| Immersion | Air |
| Magnification | 100X |
| Numerical Aperture | 0.9 |
| Working Distance | 1 |
| Cover Glass Thickness | 0 |
| CFI Plan NCG 100X |
|
| Diagram (mm) |
 |
| Transmittance Graph |  |
| CFI Plan NCG 100X |
|
| Brightfield | recommended for best results |
| Darkfield | darkfield condenser (oil) |
| DIC | |
| Fluorescence (visible) | suitable |
| Fluorescence (UV) | possible with visible light that has a longer wavelength than the excitation light used for DAPI |
| Fluorescence (NIR) | |
| Polarizing | possible but not recommended |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | |
| Phase Contrast Type | |
| CFI Plan NCG 100X |
|
| Correction Collar | |
| Spring Loaded | ✓ |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | |
| CFI Plan NCG 100X |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | ✓ |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
