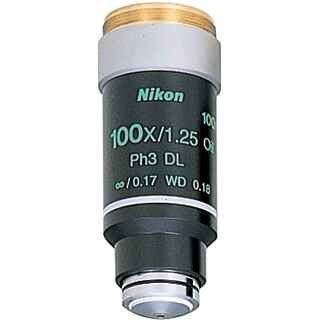

中文NIKON CFI Achro DL 100X Oil Objectives NA 1.25 WD 0.23mm
NIKON CFI Achro DL 100X Oil Objectives NA 1.25 WD 0.23mm
Phone：+86-21-54286005
NIKON CFI Achro DL 100X Oil
Objectives NA 1.25 WD 0.23mm
| CFI Achro DL 100X Oil |
|
|---|---|
|
|
| Material Number | MRP21902 |
| Type | Achromat |
| Primary Technique | Phase Contrast |
| Immersion | Oil |
| Magnification | 100X |
| Numerical Aperture | 1.25 |
| Working Distance | 0.23 |
| Cover Glass Thickness | 0.17 |
| CFI Achro DL 100X Oil |
|
| Diagram (mm) |
 |

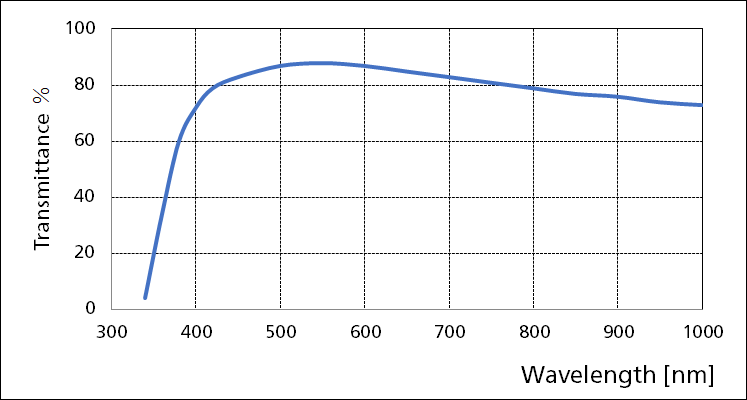

| Transmittance Graph |  |
| CFI Achro DL 100X Oil |
|
| Brightfield | suitable |
| Darkfield | |
| DIC | |
| Fluorescence (visible) | possible but not recommended |
| Fluorescence (UV) | |
| Fluorescence (NIR) | |
| Polarizing | possible but not recommended |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | ◎PH3 |
| Phase Contrast Type | DL |
| CFI Achro DL 100X Oil |
|
| Correction Collar | |
| Spring Loaded | ✓ |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | |
| CFI Achro DL 100X Oil |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | ✓ |
| Confocal | |
| Education | ✓ |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | |
| TIRF | |
| Tissue Culture |
