NIKON CFI Achro DL 40X Objectives NA 0.65 WD 0.65mm

Phone：+86-21-54286005

Overview Specifications

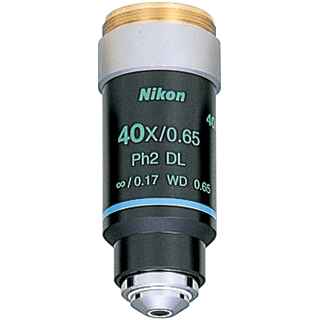

NIKON CFI Achro DL 40X

CFI Achro DL 40X

	CFI Achro DL 40X

Material Number	MRP20402
Type	Achromat
Primary Technique	Phase Contrast
Immersion	Air
Magnification	40X
Numerical Aperture	0.65
Working Distance	0.65
Cover Glass Thickness	0.17
	CFI Achro DL 40X
Diagram (mm)

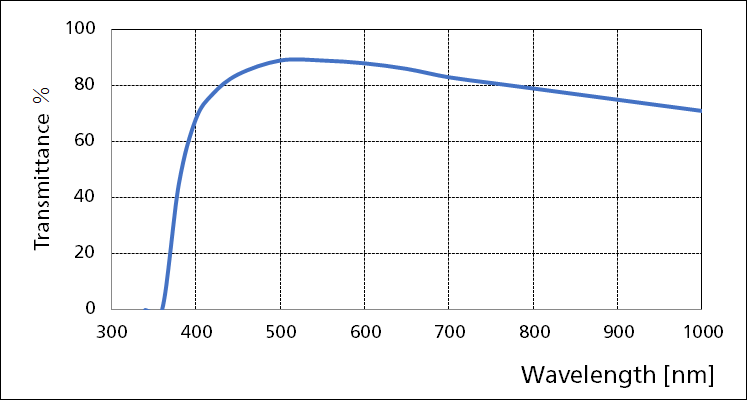

Transmittance Graph
	CFI Achro DL 40X
Brightfield	suitable
Darkfield	universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil)
DIC
Fluorescence (visible)	possible but not recommended
Fluorescence (UV)
Fluorescence (NIR)
Polarizing	possible but not recommended
Polarizing Type	Simple POL
Phase Contrast Ring	◎PH2
Phase Contrast Type	DL
	CFI Achro DL 40X
Correction Collar
Spring Loaded	✓
Iris
Long Working Distance
Ti2-E PFS Compatible
	CFI Achro DL 40X
Asbestos
Clear Tissue
Clinical / Laboratory	✓
Confocal
Education	✓
Laser Trapping / Tweezing
Multiphoton
SIM
STORM
Research
TIRF
Tissue Culture
